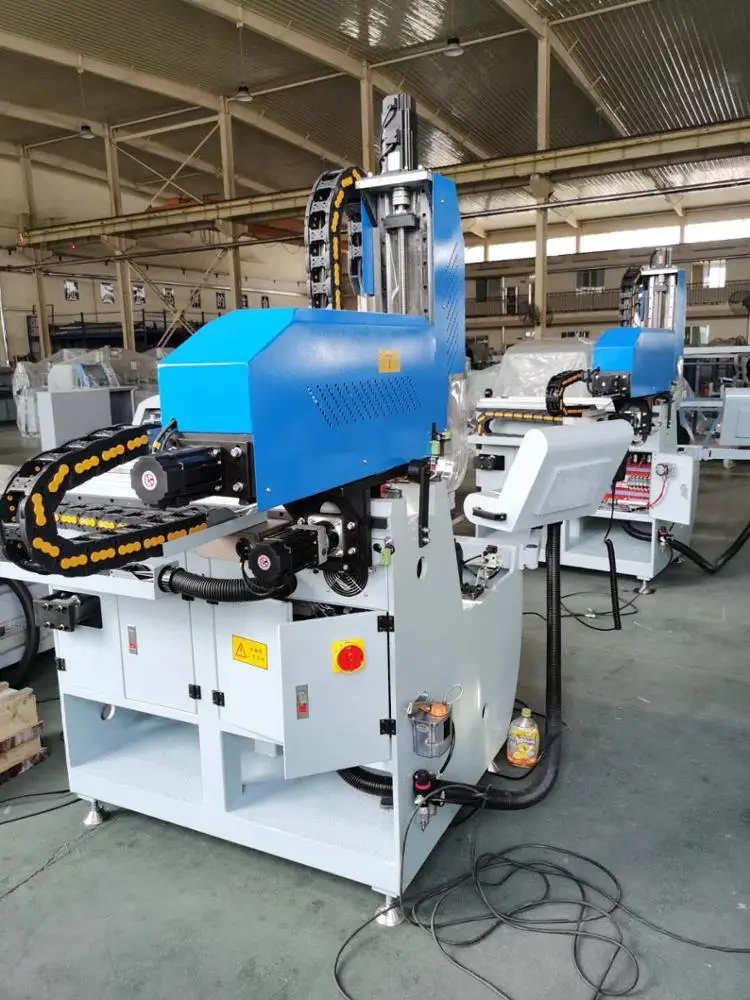

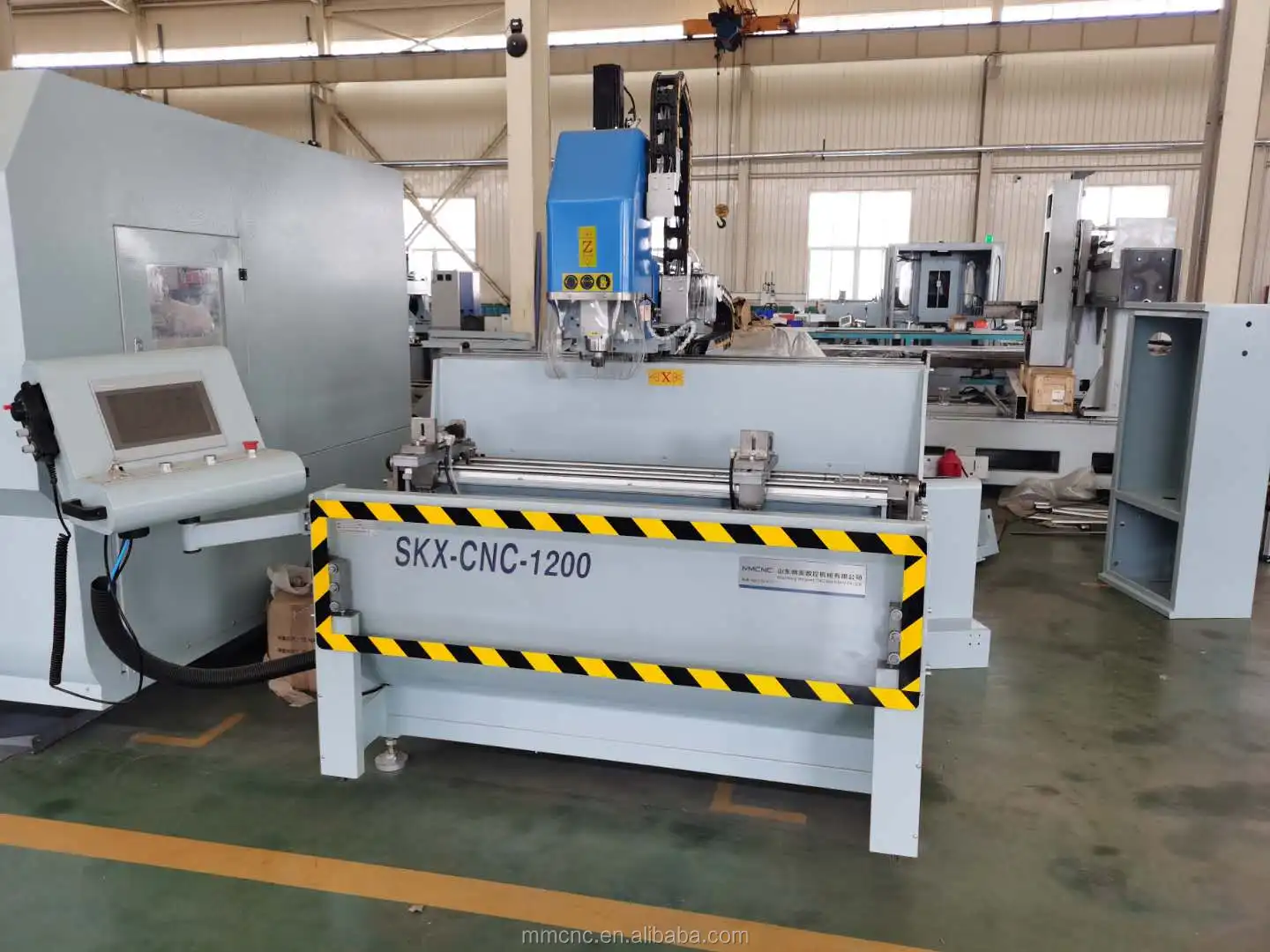

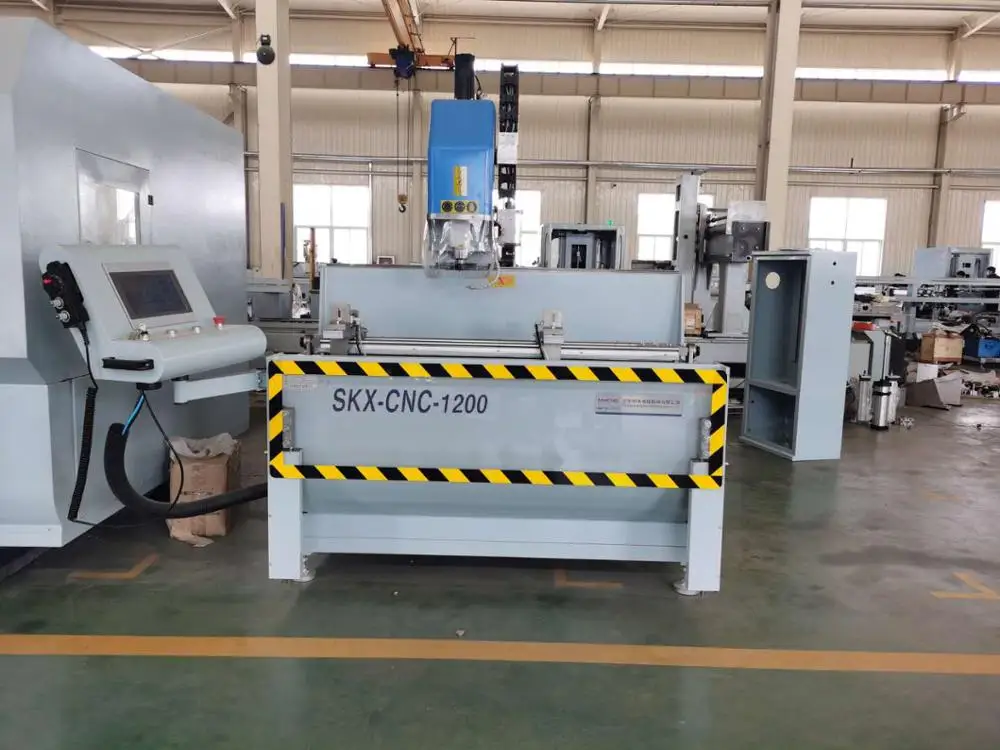

CNC Drilling Milling Machine for Aluminum Profile













1. Feature

1.1  applicable for drilling holes,milling grooves,processing circular holes and special-shaped holes,plane engraving of aluminum alloy profile

1.2  System adopts Taiwan Syntec CNC Controller

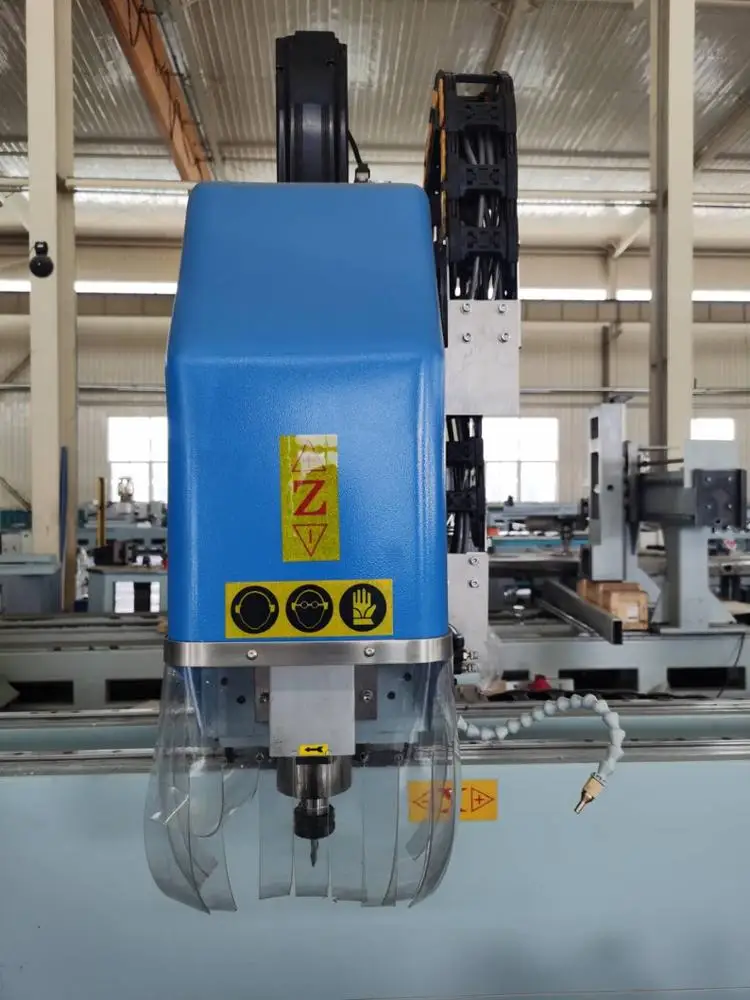

1.3  Adopting electric spindle:high precision,high safety and reliablity

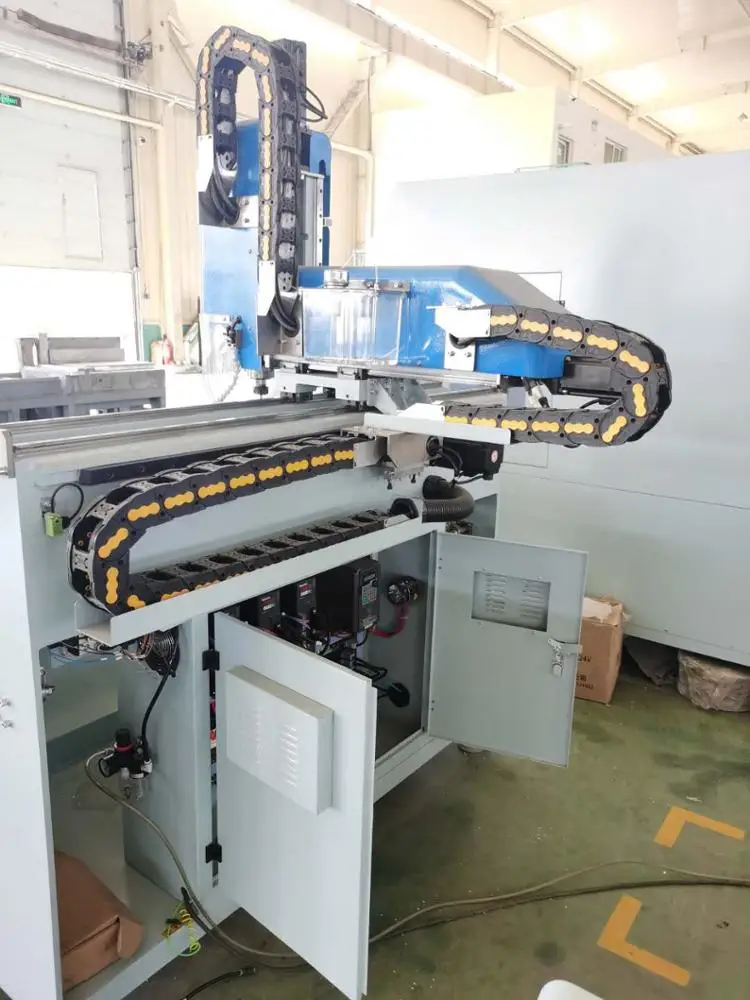

1.4  X axis adopts high-precision helical gear and rack;Y and Z axis adopt high-precision ball screw transmission and high precision

1.5  By using programming software to automatically transform and process G code;easy operation;high efficiency and low labour  intensity

1.6  Workbench can turn 180°,-90°~0°~+90°;it can realize three-sides processing by clamping one time;it can process deep and special-shaped holes through workbench;high efficiency and precision.



2. Technical Parameter

2.1   Power supply  380V/50Hz

2.2   Input power   3kw

2.3   Main axis rev  18000rpm

2.4   Air pressure   0.5~0.6MPa

2.5   X- axis speed  1200mm

2.6   Y-axis speed  300mm

2.7   Z-axis speed  280mm

2.8   Processing range  100 x 140mm

2.9   Handle type     ER25 X Φ8

3.0   Dimension      2200 x 1500 x1950mm

3.1   Weight about     610kg

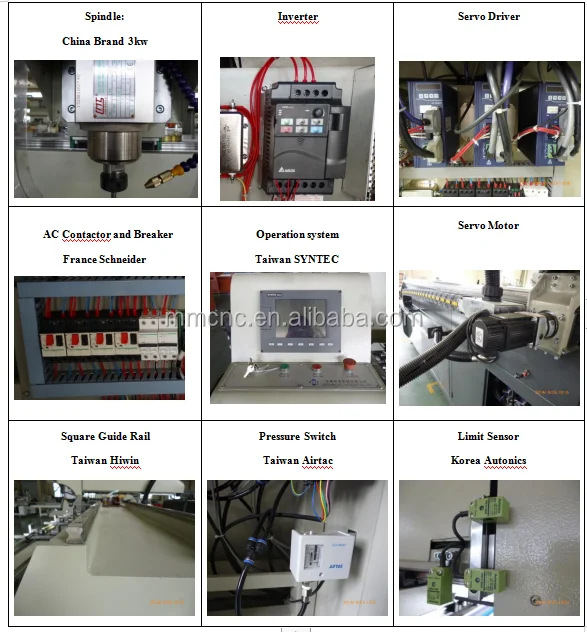

Main accessory
Control system	Taiwan Syntec
Solenoid valve	Germany FESTO
Cylinder	PC(FESTO Joint Venture Brand)
Motor	Anhui Sanyang (Best Chinese Motor Brand)
Air Filter Device	STNC

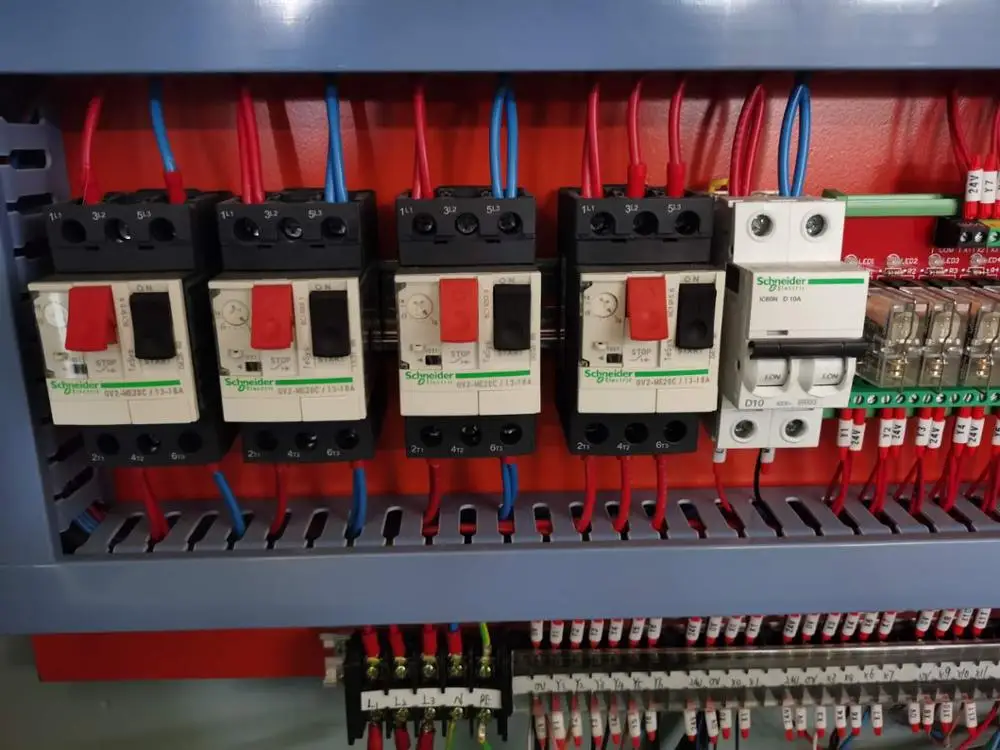

Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switch	Taiwan Delta
Guide rail	Taiwan Hiwin



Standard accessory
Cutters	4pcs
Air Gun	1pc
Complete tooling	1set
Certificate	1pc
Operation Manual	1pc
