hydraulic lift from china mainland

Product Overview

Description

Hyraulic lift from china



Standard Function

Hydraulic pump drive

VVVF door operator

Independent running

Automatic pass without stop

Automatically adjust door opening time

Reopen with hall call

Express door closing

Car stops and door opens

Car arrival gong

Command register cancel

Photocell protection

Designated stop

Overload holding stop

Anti-stall timer protection

Start protection control

Inspection operation

Fault self-diagnosis

Repeated door closing

Up/down over-run and final limit protection

Down over-speed protection device

Upward over-speed protection device

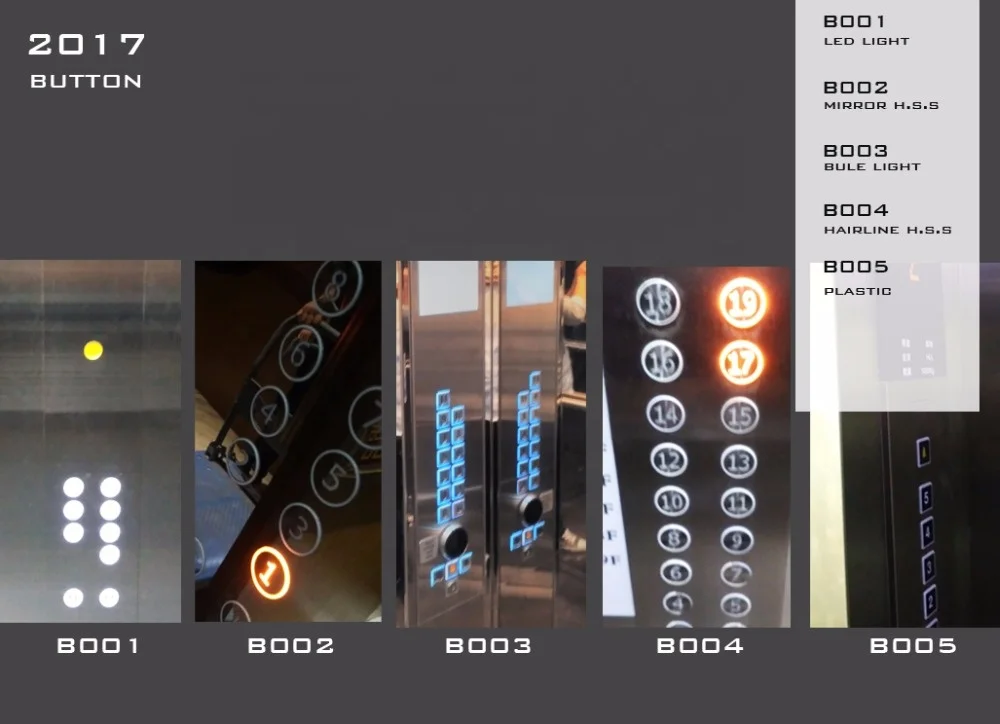

Micro-touch button for car call and hall call

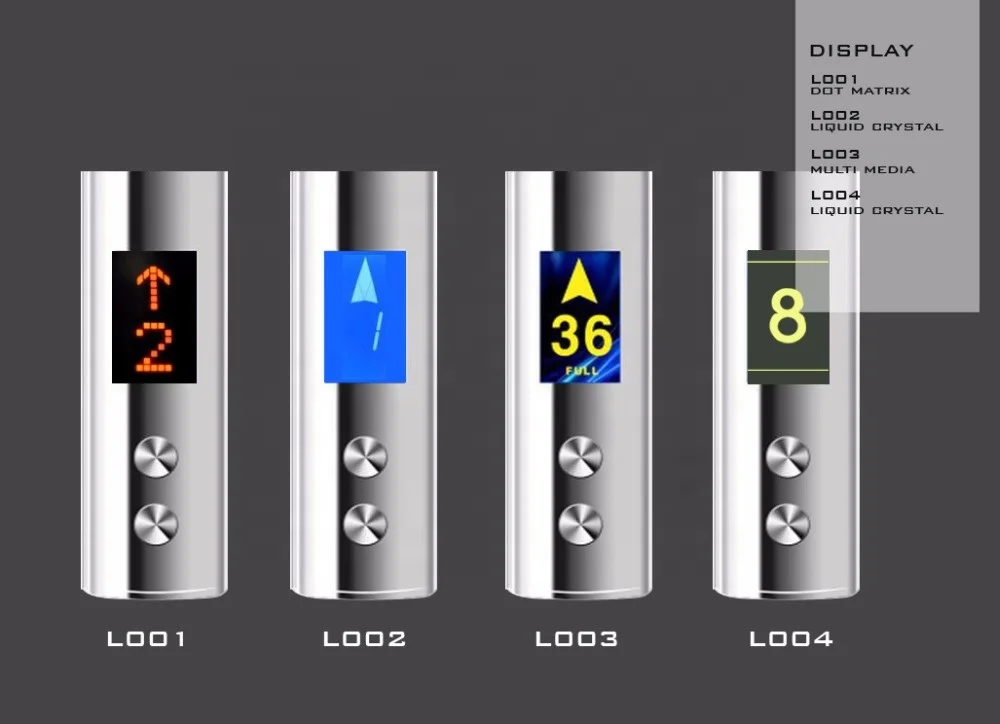

Floor and direction indicator inside car

Floor and direction indicator

Emergency car lighting

Inching running

Five way intercom

Bell

Fire emergency return

Car ventilation, light automatic shut off

Remote shut-off

Optional Function

Leveling when power failure

Anti-nuisance

Open the door in advance

Direct parking

Group control function

Duplex control

On-duty peak service

Off-duty peak service

Door open time extending

Voice announcer

Car assistant operation box

Operation box for the handicapped

Intelligent calling service

IC card control function

Remote monitor

Remote control

Camera function in the car



Passenger Elevator Specifications

Loading Capacity/ Passengers	Rated Speed (m/s)	Door Opening Size (mm) (JJ×HH)	Door Opening Type	Car Size (mm) (AA×BB)	Hoistway Size (mm)			Machine Room Size (mm) (W×D×H)
					AH×BH	PP	OH
450kg/ 6 Passengers	0.5	800×2100	Center Opening	1400×850	2000×1550	1500	4500	2500×3200×2500
						1600
630kg/ 8 Passengers	0.5	800×2100	Center Opening	1400×1100	2000×1750	1500	4500	2500×3600×2500
						1600
800kg/ 10 Passengers	0.5	800×2100	Center Opening	1400×1350	2000×2000	1500	4500	2500×3800×2600
						1600
1000kg/ 13 Passengers	0.5	900×2100	Center Opening	1600×1400	2200×2150	1500	4500	3000×4000×2600
						1600
1250kg/ 16 Passengers	0.5	1100×2100	Center Opening	2000×1400	2600×2150	1500	4500	4000×4500×3000
						1600	4700
1350kg/ 18 Passengers	0.5	1100×2100	Center Opening	2000×1500	2600×2250	1500	4500	4000×4500×3000
						1600	4700
1600kg/ 21 Passengers	0.5	1100×2100	Center Opening	2000×1750	2600×2500	1500	4500	4000×4500×3000
						1600	4700

Note: only for reference, final manufactures please follow contract.
