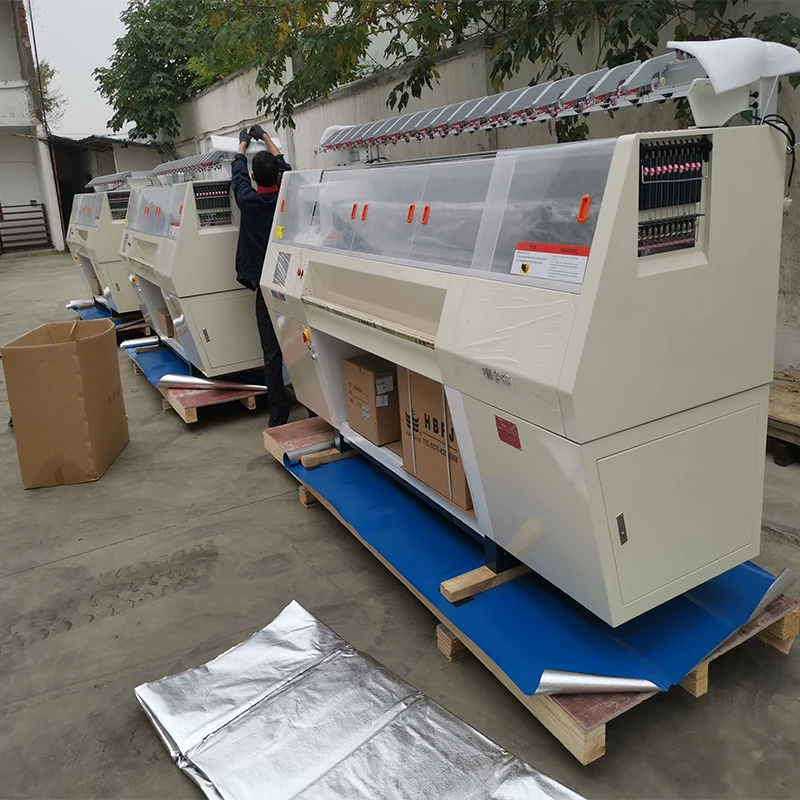

T shit collar sweater knitting machine price cuffs rib knitting machine
- Category: >>>
- Supplier: Changshu Shengxingda Co. Ltd.
Share on (62561174493):
Product Overview
Description

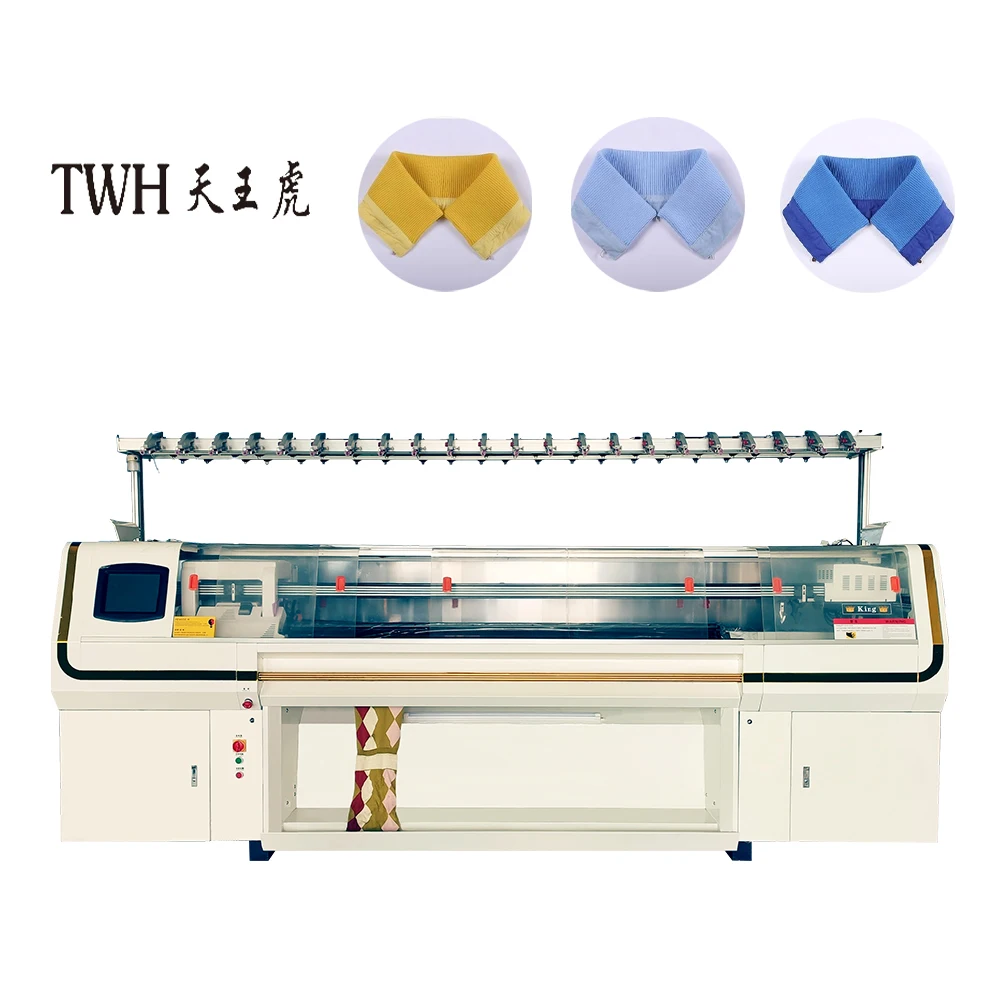

Best Price TWH Sweater Knitting Machine Computerized Flat
Related Products
Product Description
It applies unique cam and needle bed to achieve transfer,tuck,eyelet stitch,jacquard,apparent shape, hidden shape and other regular pattern knitting functions.It can knit basic stitch like plain stitch,rib fabric,links and links,interlock
stitch,etc.irregular multi-color jacquard,twist flowers weft organization,aran,cord weave,racked stitch,cable,intarsia,etc.
It is suitable to use synthetic,wool,acrylic,mixed fiber,yarn material etc to knit ready-made cardigan,hat,gloves,scarf and
accessories of cloth.Machine through subsection control and adjustable pulling rev,it can complete complex knitting and improve production efficiency.
It is suitable to use synthetic,wool,acrylic,mixed fiber,yarn material etc to knit ready-made cardigan,hat,gloves,scarf and
accessories of cloth.Machine through subsection control and adjustable pulling rev,it can complete complex knitting and improve production efficiency.
Product Specification
Gauge : | 2.5gg,3gg, 3-5-7 multi-guague ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 8-10-12 multi-gauge ,14gg,16gg ,18gg | |||||
Knitting width: | 40/48/52/56/60/72/80/88/100 inch | |||||
Knitting system: | Single/double carriage with single/double/three system | |||||
knitting function: | Stitch Trasfer, independent suspension,pointelle,intarsia,jacquard,apparent or hide shaping and other regular or inregular patterns. | |||||
Knitting speed: | Controlled by servo motor with 32 sections optional, Max 1.4M/S.The serve motor combines precise feedback control system with high-speed digital signal processor(DSP)to control IGBT to achieve accurate electric current output. | |||||
Racking: | Controlled by AC servo-motor,racking within 2 inches an with fine adjusting function. | |||||
Needle selection: | Advanced encoder reading pin. | |||||
Stitch transfer: | Triangular integrated designing enables independent or simultaneous stitch transfer to realize more efficient production. | |||||
Racking: | Controlled by servo motor racking within 2 inches and with fine adjusting function. | |||||
Stitch density: | Controlled by stepping motor, 32 sections stitch selectable adjustable scope supported by subdivision technology: 0-650, the length of the knitwear can be accurately controlled. | |||||
Stitch system: | Controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. | |||||
Take-down system: | Controlled by stepping motor,adjustable to different fabrics to realize multiple binding-off and stitch-dropping. | |||||
Roller system: | Infrared alarm,Computer programs instruction, stepper motor control, 32-stagetension selection with an adjustable range between 0-100. | |||||
Color-changing system: | 2×8 yarn feeders on both sides of 4 guide rails,shiftable at any postion of the needle bed(special intarsia carriers optional) | |||||
Protection system: | The machine alarm system will set off when yarn-breaking, knots, floating yarn,rewinding, end of knitting, racking failure, needle breakage or Program error, also set up the safety auto-lock protect device. | |||||
Control system: | 1. LCD touch screen, graphical interface.USB and network compatible,with expanded memory of up to 2G.A great amount of patterns can be stores and mobilized for use at any time as per production requirements. | |||||
2. Monitoring display:Various operating parameters can be displayed and can be adjusted anytime when the machine is running,making operations as convenient and time-saving as possible. | ||||||
3. Design system and control system(software)are easy to update for free. | ||||||
4. Multi-language operating system:There are Chinese,English,Spanish and Arabic Versions.Languages can be switched according to customer requirements. | ||||||
Network function: | High speed network can coordinate up to 250 machines；the knitting data can be uploaded downloaded and shared. | |||||
Power: | Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop. | |||||
Product Details

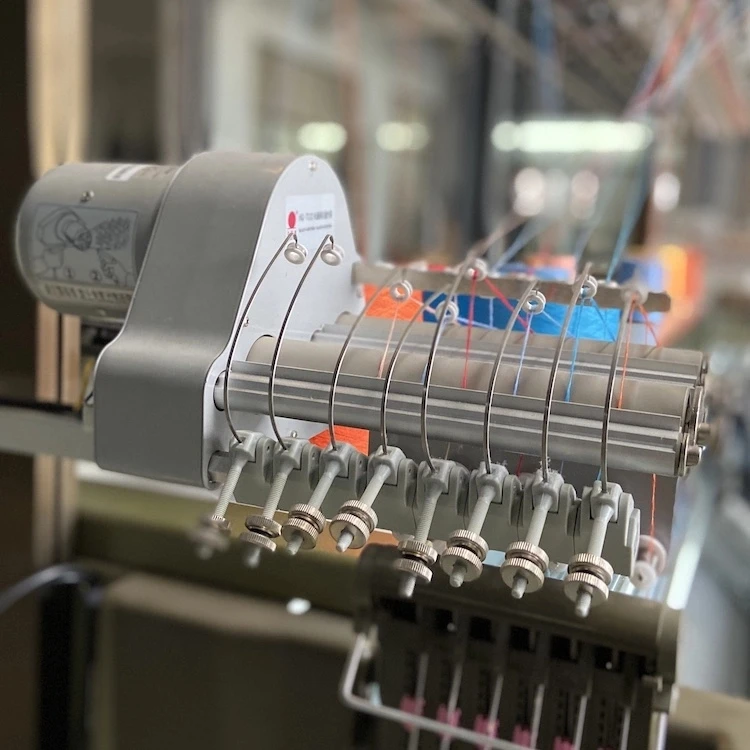

Positive feed yarn device
Positive yarn feed device could reduce resistance while yarn is moving , suit for fabrice with lace of elasticity and brittle fabric to make the fabric even and improve knitting efficiency.
Motorized inversion bar & Tight handing head
The carriage inversion bar driven by motor ,carriage return is more accurate Tight is controlled by the motor ,to achieve different degrees of tight tuck,ranging from 0 to 80 .
Japanese MINEBEA Stitch motor
Adopt Japanese Minebea increase torque stitch motor . With Dynamic stitch function ,using high speed stepping motor multi-segment
stitch function can be achieved in one course
stitch function can be achieved in one course

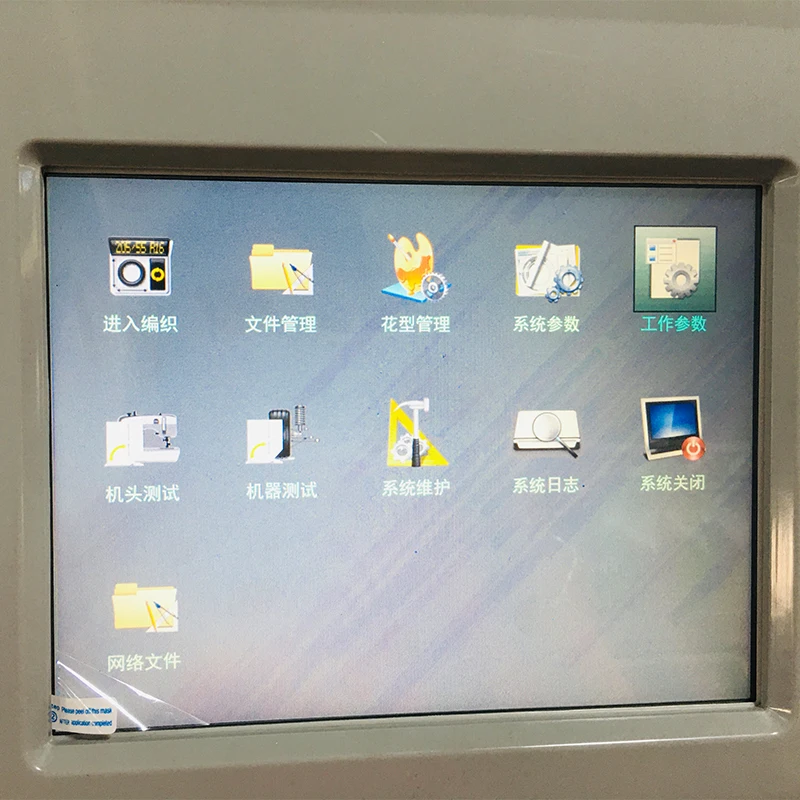

LCD Touch screen
Humanized design control interface large memory capacity, can store about 1000 patterns, for tens of thousands of lines of complex patterns can also be read quickly without waiting. Stable performance make the operation more convenient, easy to learn
ndunderstand.
ndunderstand.
Servo Motor
Using cani control ,can achieve the rapid return and direction changing of the machine carriage ,accurate positioning ,smoothconmutation .
Auto oil system
Machine have fully automatic refueling system .Self-determind auto oiling when time up automatically refueling and lubrication the jack and spring needles on the needle bed ,avoide maintance problem ,increase machine serive life
Ultra-small Carriage
Further optimize the size of the machine carriage ,reduce the carriage return distance and improve the efficiency .
Plus wide transmission belt
Specifical design double row synchronizing transmission belt let the machine with more stable running performance .
16 yarn carriages
The 16 yarns can be used by any weaving system and can be switched at any position. According to different knitting speed the control program can automatically adjust the position of the yarn nozzle.
Knitting Sample
After-sale service
Companies follow the price，quality and service to the principle of the supremacy of customers，to eliminate any menace from the“rear”.
1.Changshu Changhua Knitting Garments Machinery Factory has stable inventory and efficient production capacity.
It is our responsibility to provide you with a satisfying buying experience. We pursue quantity and quality. Changshu Changhua Knitting Garments Machinery Factory (T.W.H) has a complete inventory system that can meet the needs of each customer. The delivery time is set at about 7-15 days; we also accept private orders. If you need to customize, our assembly line can be effectively improved Work efficiency and greatly shorten the delivery time.
2. You will get free machine operation training & pattern-designing training as soon as you buy our machine now.
Mature and attentive service is what Changshu Changhua Knitting Garments Machinery Factory hold as the principle of service,machine operation training for free and pattern-designing training for free to free customers from all the worries.
It is our responsibility to provide you with a satisfying buying experience. We pursue quantity and quality. Changshu Changhua Knitting Garments Machinery Factory (T.W.H) has a complete inventory system that can meet the needs of each customer. The delivery time is set at about 7-15 days; we also accept private orders. If you need to customize, our assembly line can be effectively improved Work efficiency and greatly shorten the delivery time.
2. You will get free machine operation training & pattern-designing training as soon as you buy our machine now.
Mature and attentive service is what Changshu Changhua Knitting Garments Machinery Factory hold as the principle of service,machine operation training for free and pattern-designing training for free to free customers from all the worries.
3. One year warranty period
The warranty period is one year except for the wearing parts (knitting needle, brush, roller, mouth, seat).
Buy machines in bulk at competitive prices.
Our Hengqiang system also has service points overseas, which can help provide services and provide you with detailed help.
The warranty period is one year except for the wearing parts (knitting needle, brush, roller, mouth, seat).
Buy machines in bulk at competitive prices.
Our Hengqiang system also has service points overseas, which can help provide services and provide you with detailed help.
Certificate&Exhibition
FAQ
1. What is your main products?
* Our main product is computerized flat knitting machine,socks knitting machine and dial linking machine.
2. What products can flat knitting machine produce?
* Our machine can usually produce sweaters, hats, scarves, knee pads and so on.
3. What other product does your company offer?
* In addition to computerized flat knitting machine, we also provide sock machine.
4. What is your advantages?
* (1) We are 20 years old factory.
* (2) We have sold over 40 coutries.
5. How long is the delivery time?
* The exact delivery time depends on the quantity of the order. Usually 25~30 days after receive the deposit.
6. How do you provide after-sales service?
* We have agents overseas to help after sales maintenance. And if the problem is difficult to handle, we will send the engineers to help you.
