GXG Technology Metal Broom Tube Welding Steel Pipe Making Machine

Product Overview

Description



TUBE MATERIAL:Stainless Steel/Copper/Carbon Steel/Iron/Galvanized Etc

PIPE SHAPE:Round/Square/Rectangle/Special-shaped Etc

USAGE:Pipes for Furniture, Construction, Municipal Facilities etc Fields

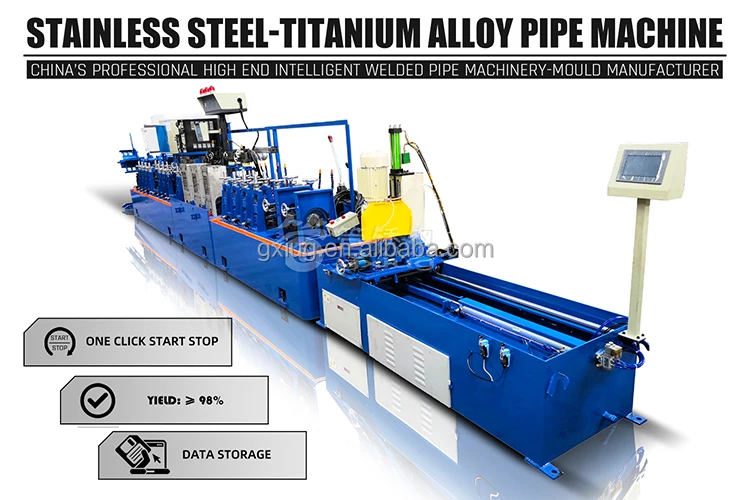

Stainless steel welding pipe making machine tube mill is a professional equipment which mainly produces decorative pipes. It can be used in the production of handrails, railings, tables and chairs, doors, windows and other pipes with low strength and high ornamental requirements. It can produce round, square, rectangular, special-shaped and other shapes. It is suitable for the manufacture of stainless steel, iron, copper/galvanized and other metal materials.

MODEL	GXG-S40	GXG-40	GXG-L40	GXG-50	GXG-60
Round Tube Range (mm)	Ø5—31.8 1/5”—1-1/4”	Ø9.5—50.8 3/8”—2”	Ø15.9—63.5 5/8”—2-1/2”	Ø19.1—76.2 3/4”—3”	Ø31.8—114.0 1-1/4”—4-1/2”
Square Tube Range (mm)	5*5—25*25	8*8—40*40	13*13—50*50	20*20—60*60	30*30—90*90
Wall Thickness Range (mm)	0.15—0.8 / 0.5	0.23—1.5 /1.2	0.30—1.8 / 1.3	0.35—2.5 / 1.5	0.55—3.0 / 2.0
Horizontal Shaft Diameter(mm)	Ø40	Ø40	Ø45	Ø50	Ø60
Vertical Shaft Diameter(mm)	Ø20	Ø25	Ø25	Ø30	Ø35
Main Motor Power(kw)	5.5	7.5	7.5	11	15
Installation Dimension(L*W  m)	21*1	22*1.2	23*1.2	25*1.3	28*1.5
Rated Voltage(v)	220 / 380 / 415 / 440
