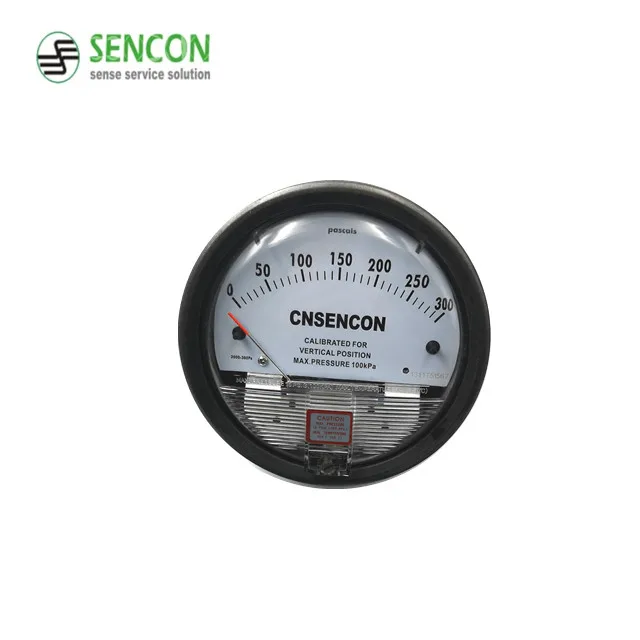

Differential Pressure Gauge Differential Pressure Gauge Magrfhelic Differential Pressure Gauge

Dimensions: 4-3/4'' dia .x 2-3/16'' deep.

Weight: 1 1b. 2 oz. (510 g)

Finished: Baked dark gray enamel.

Connections: 1/8'' female NPT high and low

pressure taps, duplicated, one pair sideand one pair back.

Accuracy: Plus or minus 2%~4% of full scale,At21℃

Pressure Rating: 15 PSI (1.03 bar)

AmbientTemperatureRange: 20°to140°F(-7 to60℃).

Standard gage accessories include two

1/8'' male NPT plugs for duplicate pressure taps, two 1/8'' male NPT pipe thread  to rubber tubing adapters,and three flush

mounting adapters with screws.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* New Prouction development

After-Sales Service

* Training how to install and use the pressure switch.

* 2-3 year Warranty

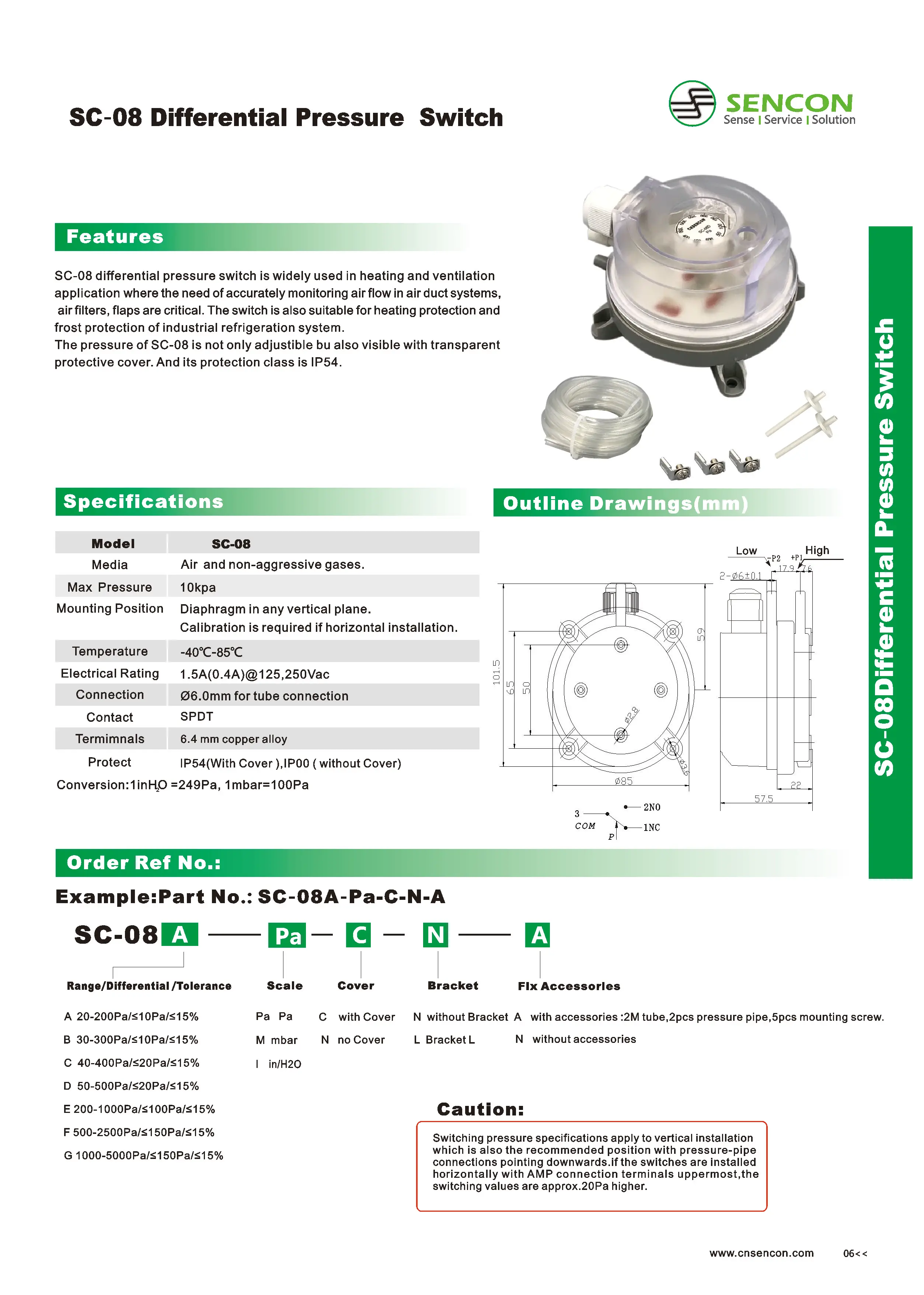

SC-08 Differential Pressure Switch

91.8% Response Rate

XYK-117/114 Pressure switch

91.8% Response Rate

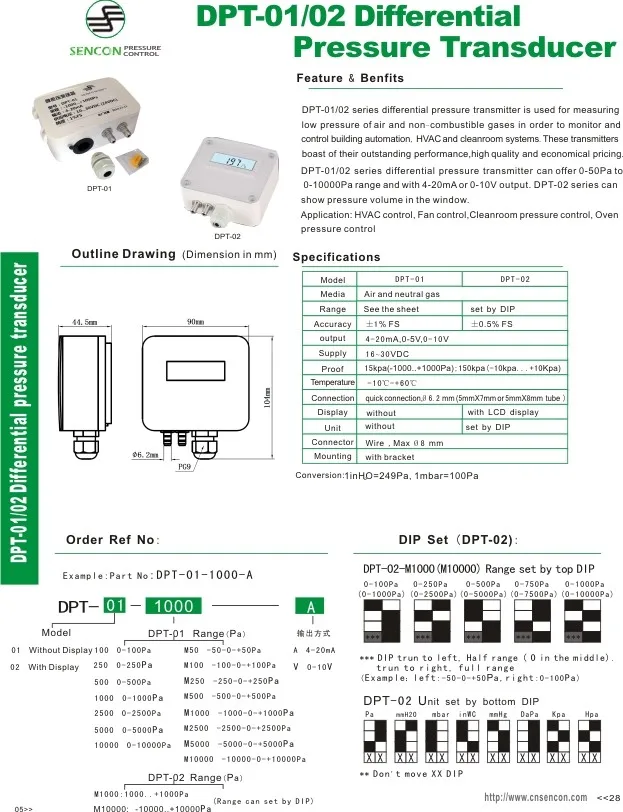

DPT-01/02 Differential  Pressure Transducer
