Industrial Tunnel Instant Freezer 1 perfect freezing effect, suitable for various food 2 High efficiency, meets food standar
1. general introduction

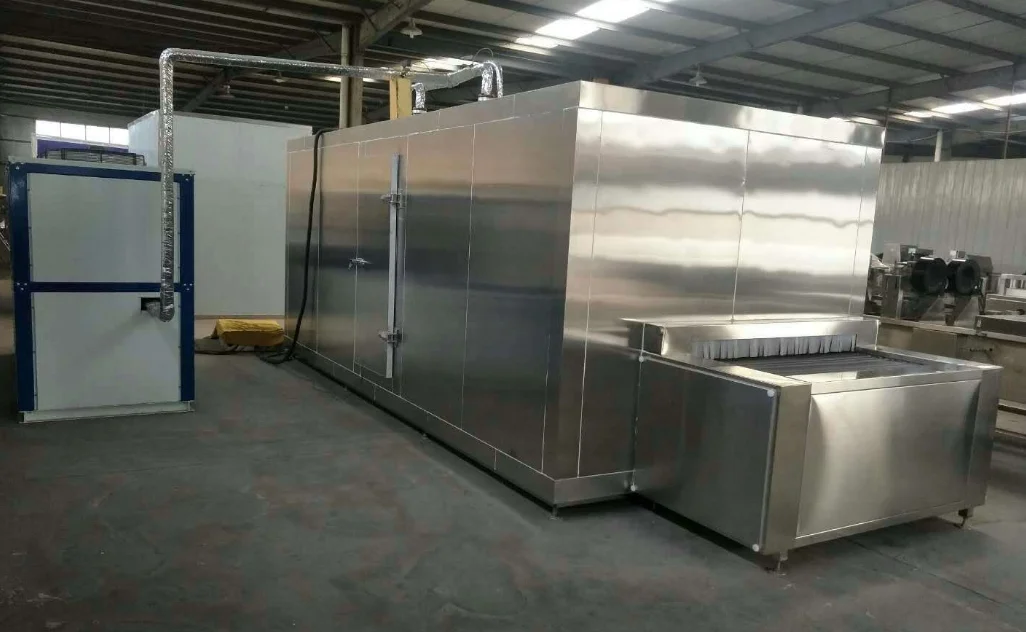

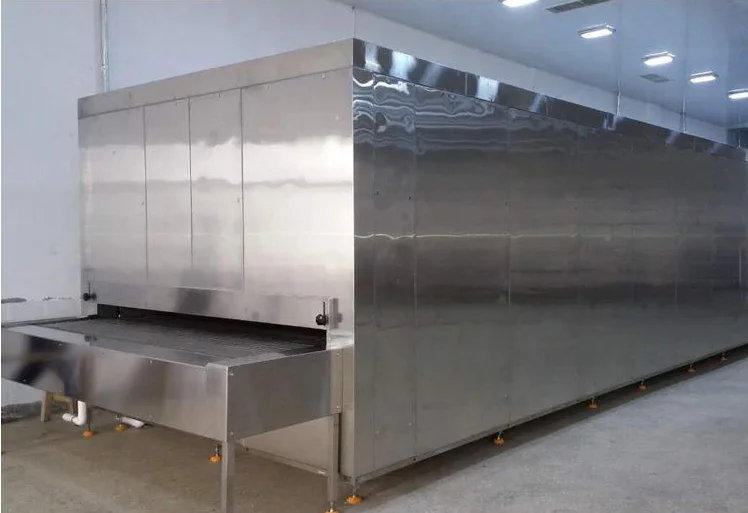

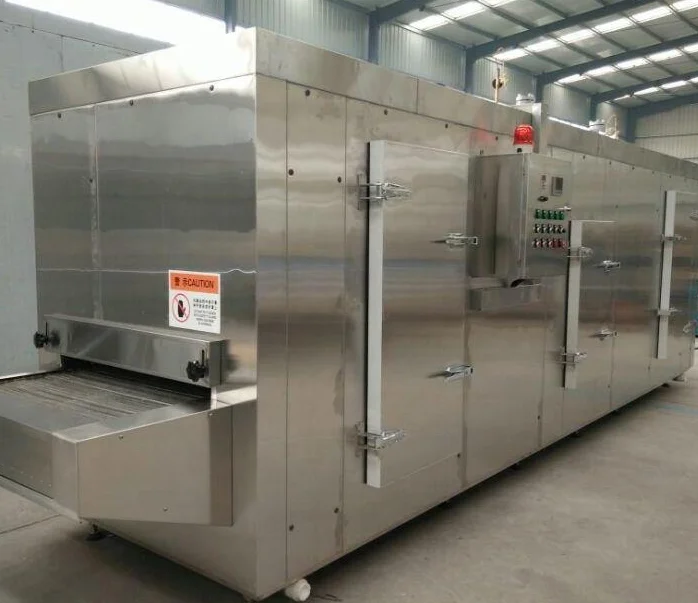

Industrial Tunnel Instant Freezer
This industrial tunnel instant freezer is a kind of individual quick freezing machine with advanced design and excellent performance. It possesses the advantages of energy saving, high efficiency and can preserve the food to the best extent. Its outstanding features are mainly in two aspects: 1. Large freezing area; 2. Wide application. You can freeze the food with different freezing way with this machine, like individual freezing, plate freezing. The industrial tunnel instant freezer uses totally closed air channel structure. The air blows from all direction, thus, improving the freezing efficiency and quality, making the food freezing more perfect.
Tunnel quick freezers
Model
Freezing capacity(kg/h)
Cold consumption (kw)
Installed power(kw)
Length(m)
Width(m)
Height(m)
Mesh belt width(m)
SD100
100
15
2.3
7
1.5
2.1
1
SD150
150
21.5
3
8
1.8
2.2
1.3
SD300
300
43.5
6.5
11.2
2.3
2.3
1.8
SD500
500
75
10.3
13.5
3
2.5
2.5
SD1000
1000
142
19.8
21.5
3
2.5
2.5
SD1000A
1000A
165
20.2
18.5
3.5
2.5
3
SD1500
1500
225
28.6
26.4
3.
2.5
3
2.Application of the industrial tunnel instant freezer:
The industrial tunnel instant freezer is widely used in freezing food in strip , block , flake or pellet shape, such as shrimp, potato chips, asparagus, fish, tubers, dumplings, dumplings, spring rolls, cutted meat, and chicken etc.
3.Features of the industrial tunnel instant freezer:
1. finished product will not stick together, in full compliance with the export of food hygiene standards.
2. uses air convection technic, short freezing time of 3-60 minutes.
3. The air blows from all direction, thus, improving the freezing efficiency and quality, making the food freezing more perfec.
4. Air cooler uses the overall copper tube aluminum set, extending equipment life , improving food hygiene and frozen efficiency .
5. Insulation effect is remarkable, elegant appearance.
Warranty
1.We guarantee that the commodity hereof is made of the best materials and new brand with top
workmanship, and in accordance with quality specification stipulated in product Contract and Appendix.
2. Guarantee period shall be within 12 months from the date of acceptance. During this period, if there are quality problems, we will provide solution by verbal or written communication. If the problem is unsolved, our engineers will repair for you on site as soon as possible. The maintenance is free when there are non-operation errors; otherwise it is for the buyer’s account.
