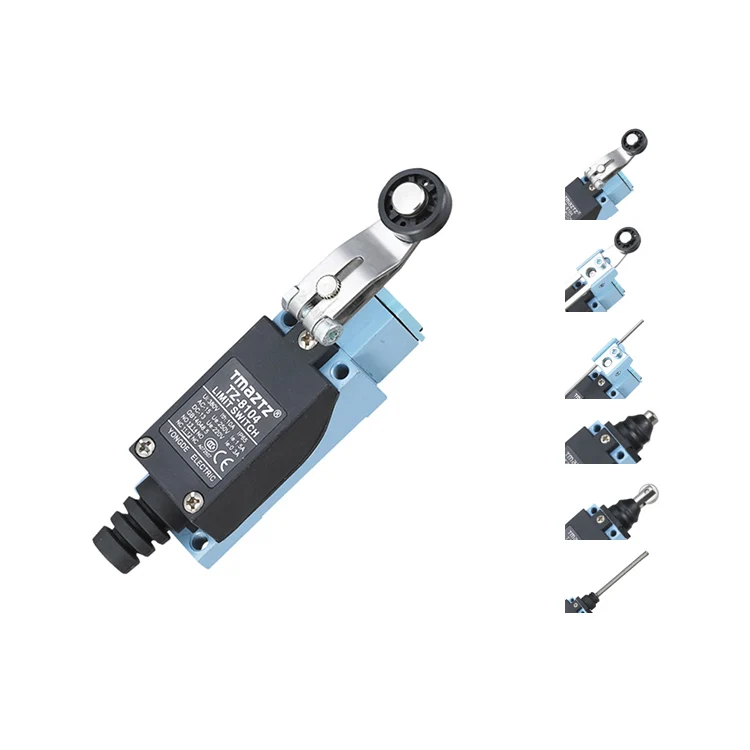

TUV & RoHS TZ 8108 ограничительный переключатель 380 В переменного тока/15 А серии ME водонепроницаемый с регулируемым роликом из пластика/нержавеющей стали
- Category: Limit Switches >>>
- Supplier: Yueqing Yongde Electric Co. Ltd.
Share on (62561604232):
Product Overview
Description
Product Overviews

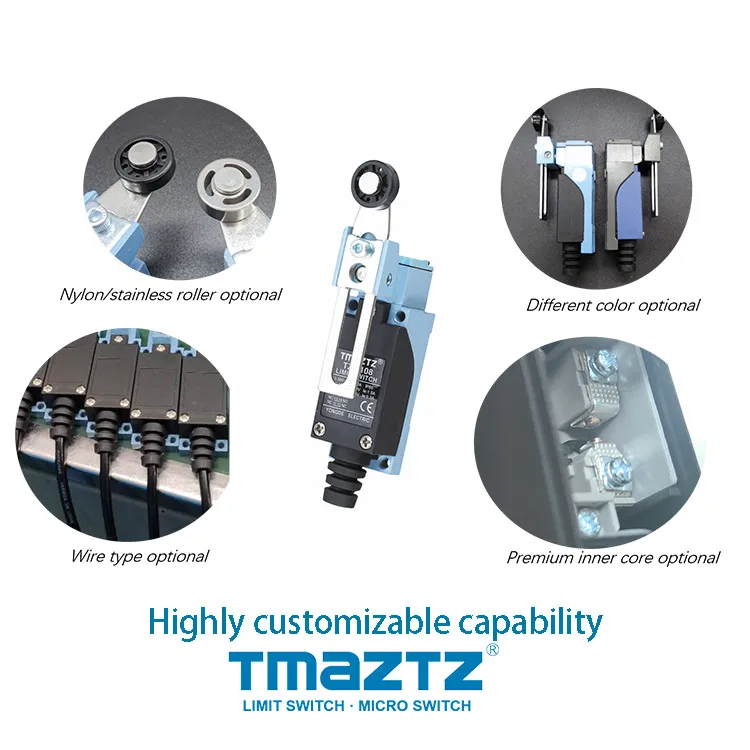

SWITCH FEATURES

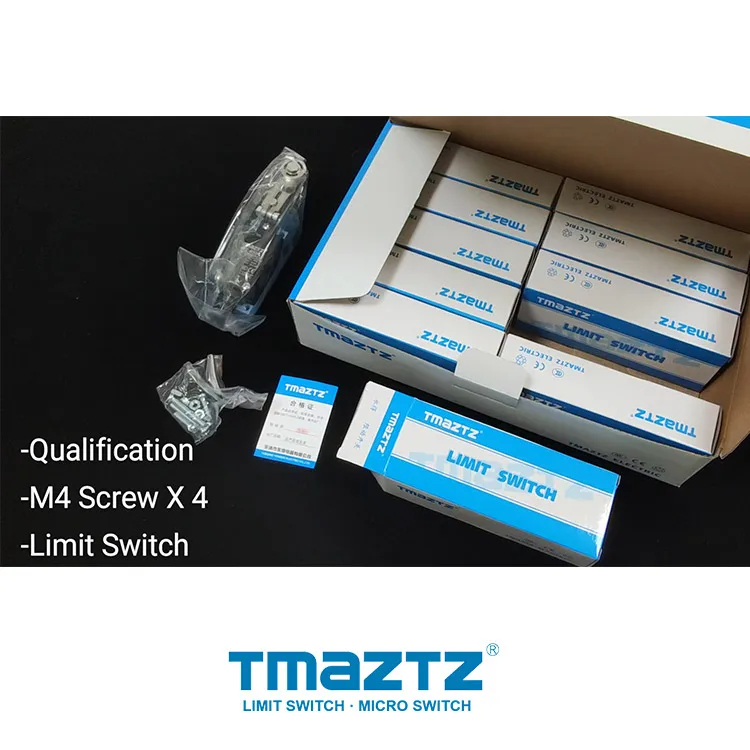

Product Show

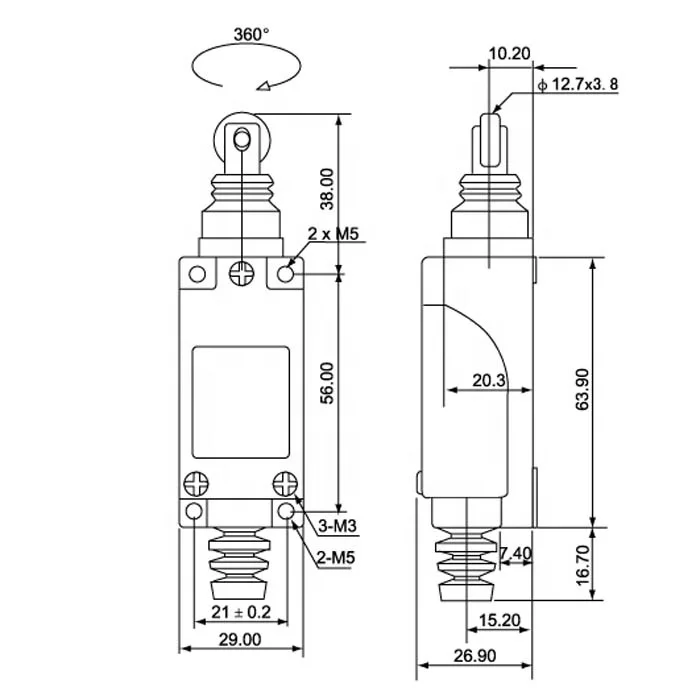

DRAWING AND SPECIFIC
| Model No. | TZ-8108 |
| Name | Limit switch |
| Operation speed | 0.5mm-50cm/sec |
| Operating frequency | Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
| Contact resistance | 25mΩ max.(initial value) |
| Insulation resistance | 100mΩ min.(at 500VDC) |
Dielectric strength | 1000VAC,50/60HZ for 1 minute between terminals of the same polarity |
1500VAC,50/60 HZ for 1 minute between currentcarrying and non-current carrying metal parts | |
| 1500VAC,50/60 HZ for 1 minute between each terminal and ground | |
| Vibration | 10-55HZ,1.5mm double amplitude |
Shock | Mechanical durable:1000m/Sec2;Malfunction:300m/Sec2(about 30G'S) |
| Life | Electrical: 500,000 operations above |
| Weight | About 130-190g |
| Humidity | <95% RH |
| Degree of protection | IP65 |
| Certification | TuV,RoHS,CCC,CE |
