100% copper tubes!! Industrial water heater hvac heater fan heaters

Product Overview

Description

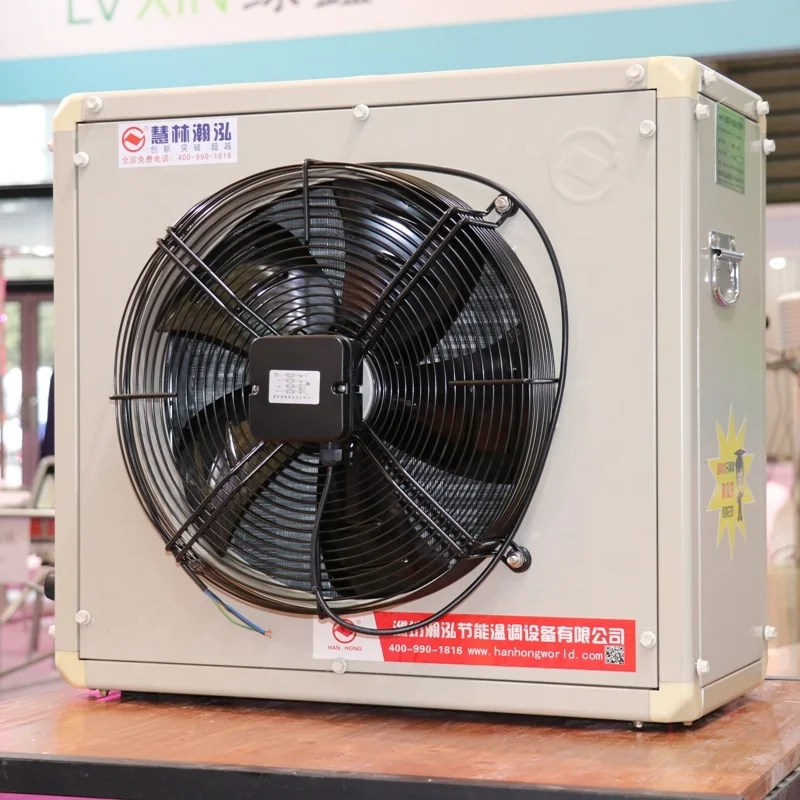

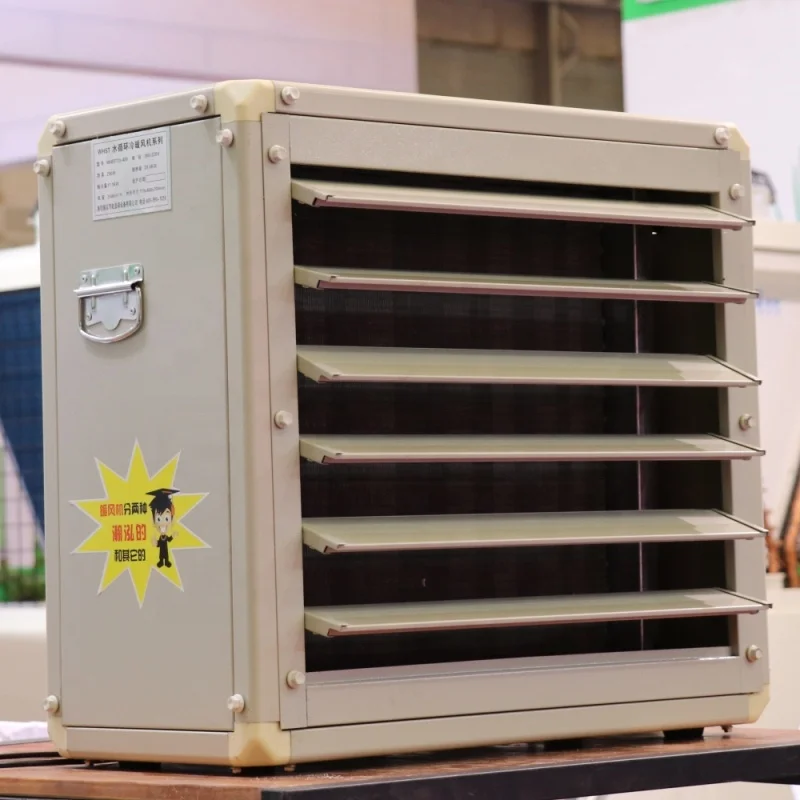

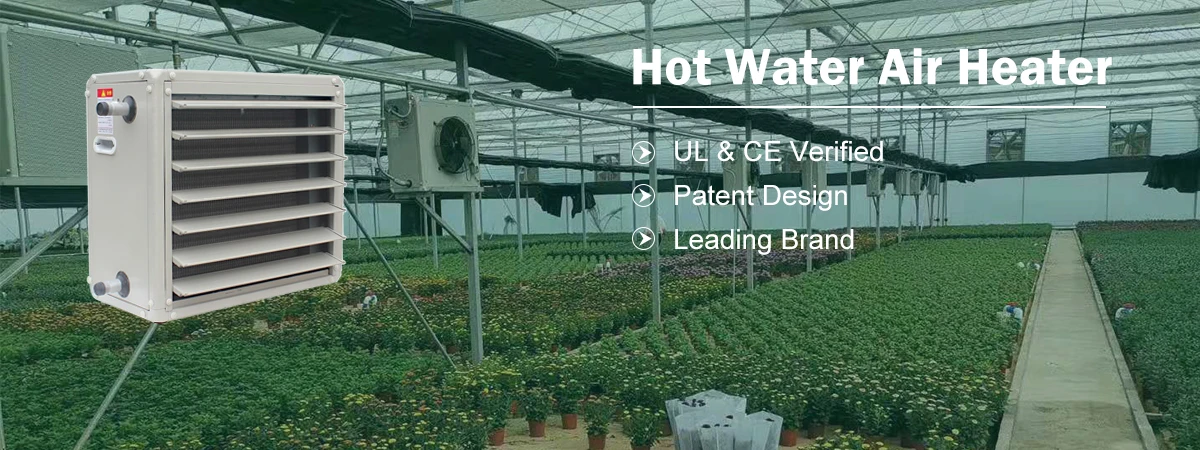

100% copper tubes!! Industrial water heater hvac heater fan heaters



Our hot water air heater access to China's national patents, the NO. ZL201620012243.I.

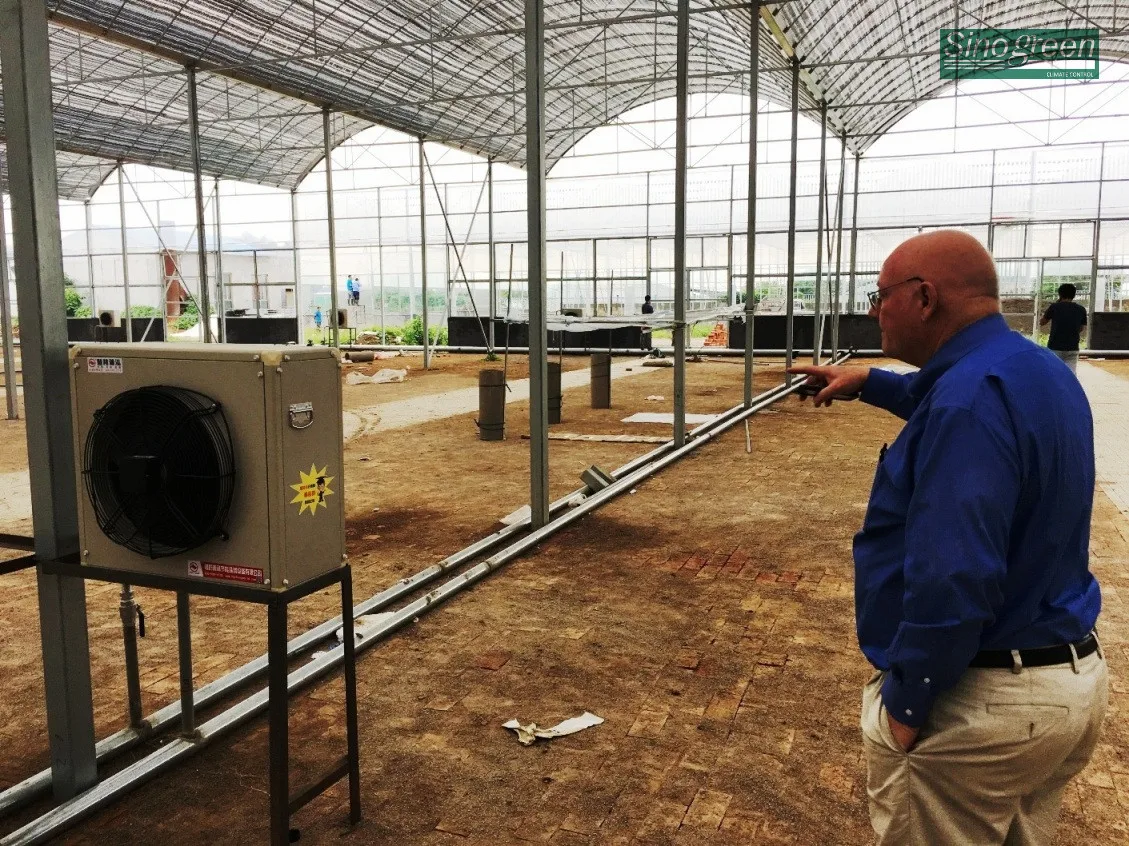

It is widely used in greenhouse, farm house, workshop, drying house, hotel etc. and can easily be mounted anywhere. They operate via the pipe system of your central heating. The large range offers heaters from 7.65 – 126 kw of heat output.
The units have protection class IP55. The most advanced technology and equipment are adopted to make the energy be exchanged and used efficiently. They assure draught-free, area-wide and comfortable distribution of heat and air.
In order to calculate your requirements and whole heating solution exactly, SINOGREEN consultant team is at your disposal.

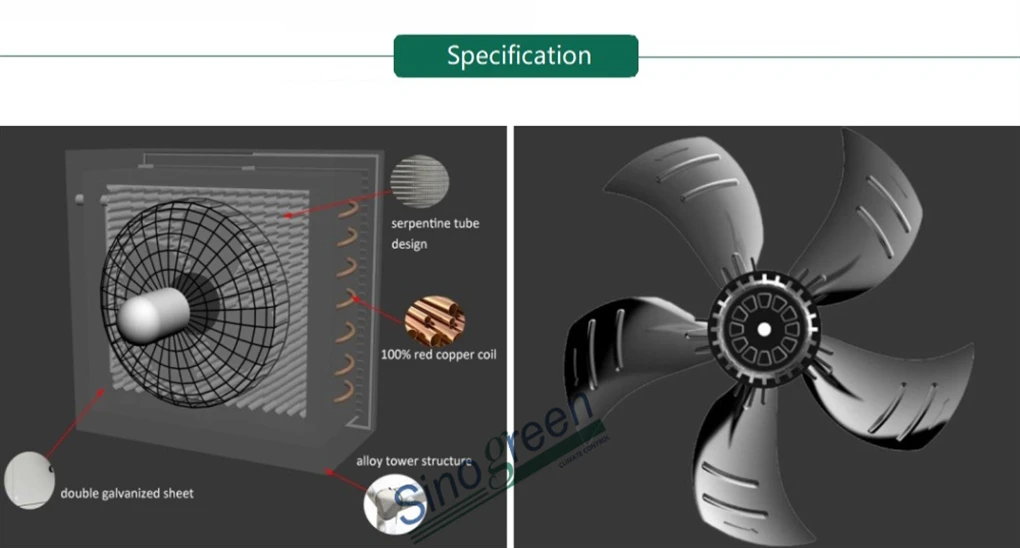

 High Efficiency of Heating

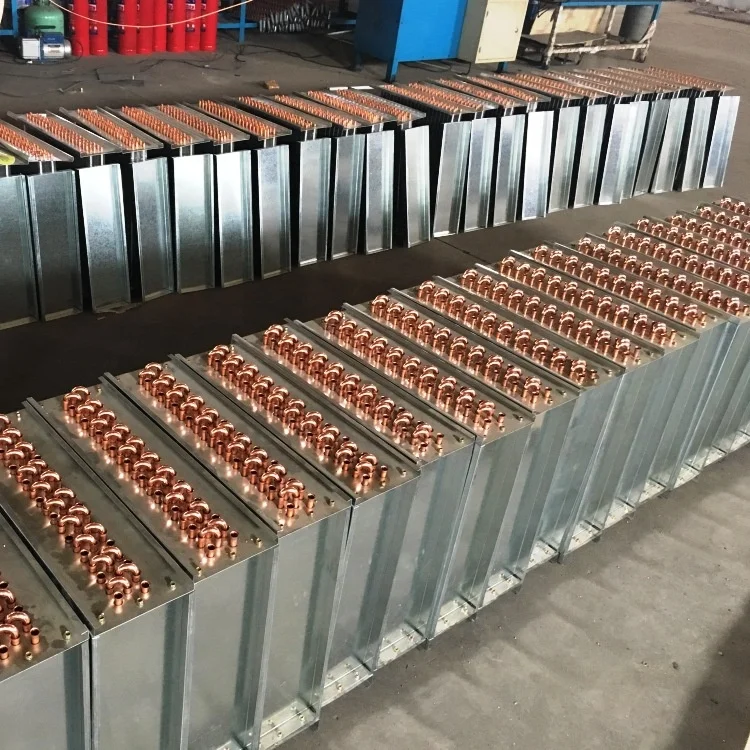

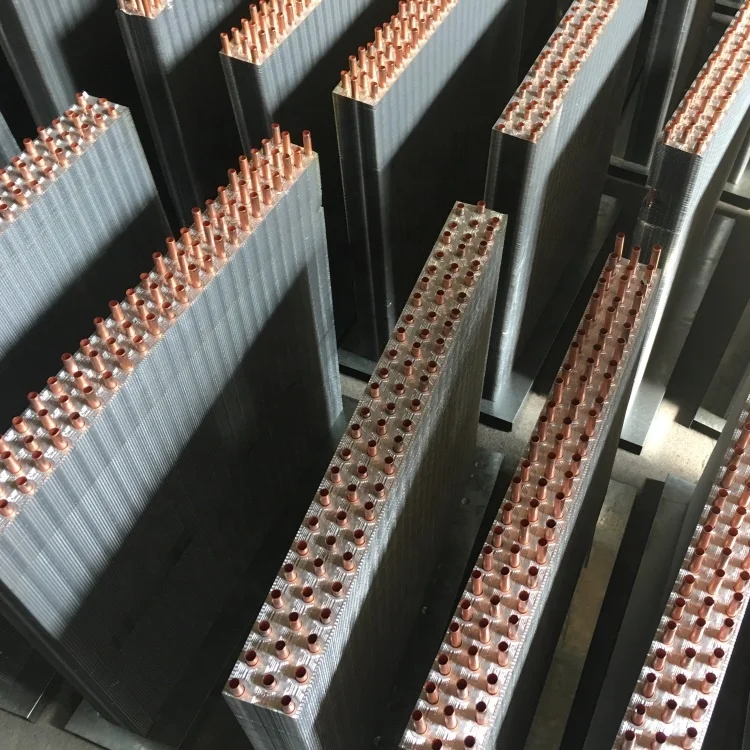

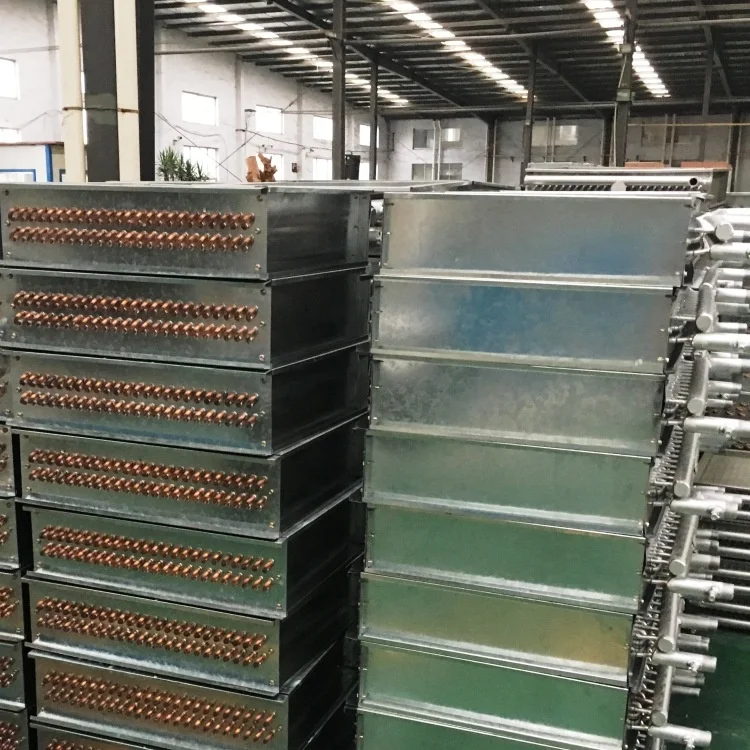

√ 100% copper tubes, can be professional identification
√ The tubes stagger arrangement
√ "S" shape water pipe

 High Protection Grade and Long Service Life (hvac heater | forced air space heaters)
√ Stainless steel screws
√ Blades adjusted by dynamic balance
√ Hot-dip galvanizing and electrostatic spraying shell
√ Water proof gel caps
√ Protective screening
√ Exclusive hot-dip galvanizing water chamber
√ Aluminum alloy frame and shutters
√ Rubber legs

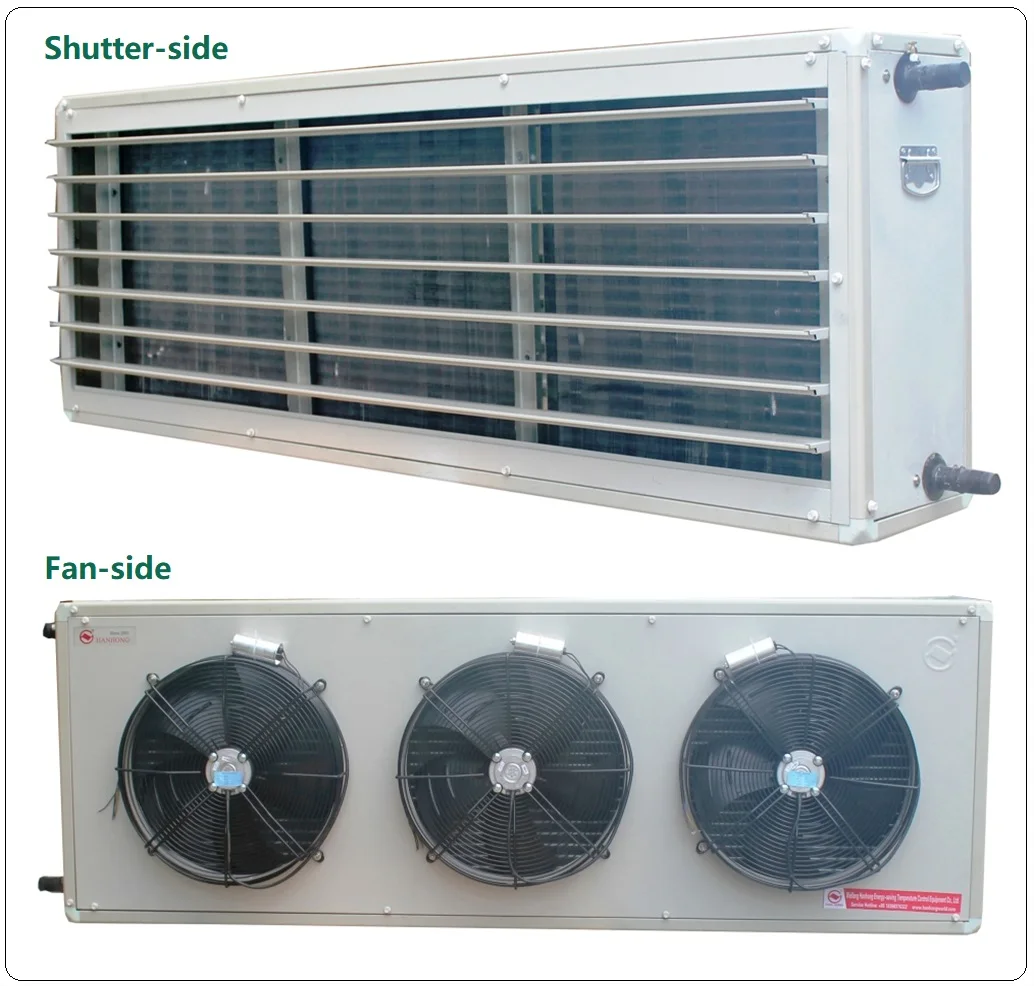

Multi-fan model:





Type	SGST(60)-400	SGST(72)-400	SGST(96)-450	SGST(136)-500
Power (w)	150	190	260	460
Voltage (v)	220/380	220/380	220/380	220/380
Rotational Speed (r/min)	1400	1380	1380	1380
Airflow (m³/h)	3000	3500	4500	5500
Outlet Wind Speed	5.7	6.5	6.9	6.9
Inlet Wind Temp. ℃	15	15	15	15
Outlet Wind Temp. ℃	50	50	50	50
Heating Capacity (kw)	23.5	28.6	36.5	47.5
Water Consumption (L/h)	1000	1300	1400	1600
Water Speed (m/s)	0.49	0.58	0.44	0.31
Refrigerating Capacity	14.1	17.1	21.9	28.5
Noise (db)	60	65	70	75

Remarks:

    1. All the electric parameter can be customized, like 110V-1P-60HZ, 240V-1P-50HZ, 480V-3P-60HZ, etc.

    2. UL motor is available for USA and Canada market.

    3. NPT standard thread, hanging installation etc. can be customized.

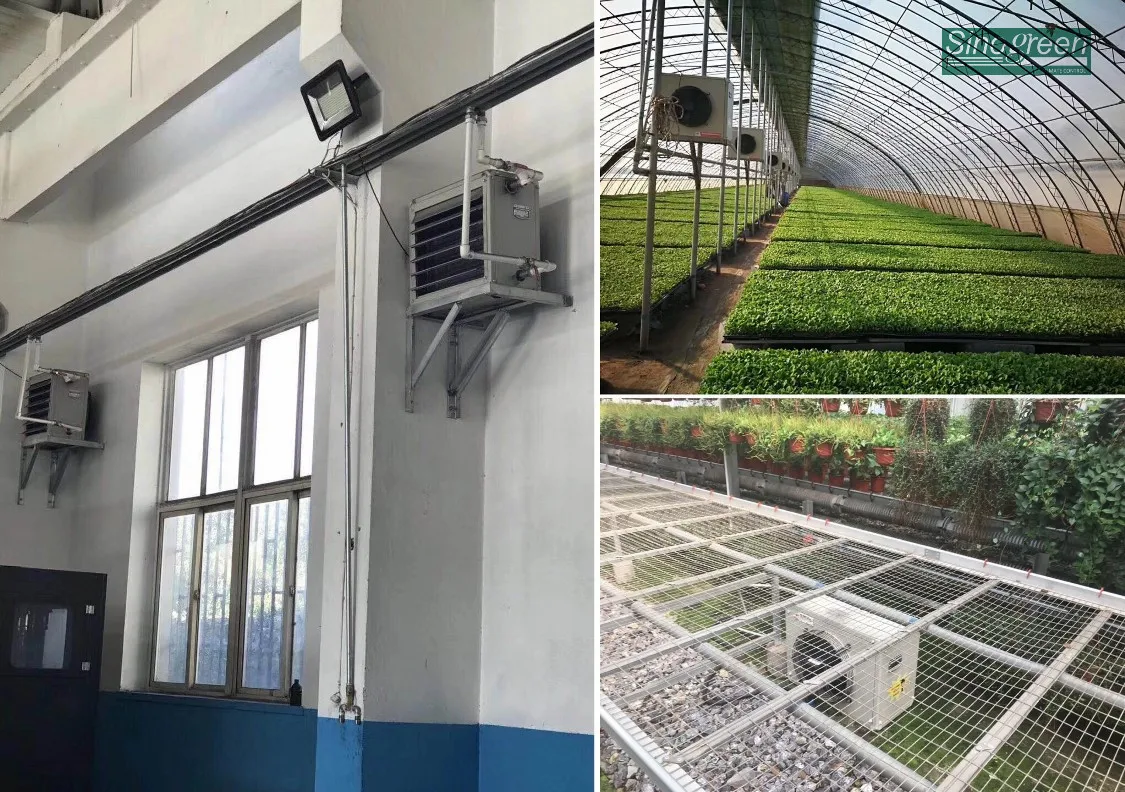

 Application: Industry, poultry house, greenhouse

1) Industrial fields: textile, socks/clothes making, glass, molding, rubber, coating, silk-screen printing, toy, electronics, home appliances, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.



2) Civil fields: net bars, stores, supermarkets, mess hall, food markets, waiting-rooms and recreation places and other occasions with air-conditioning.

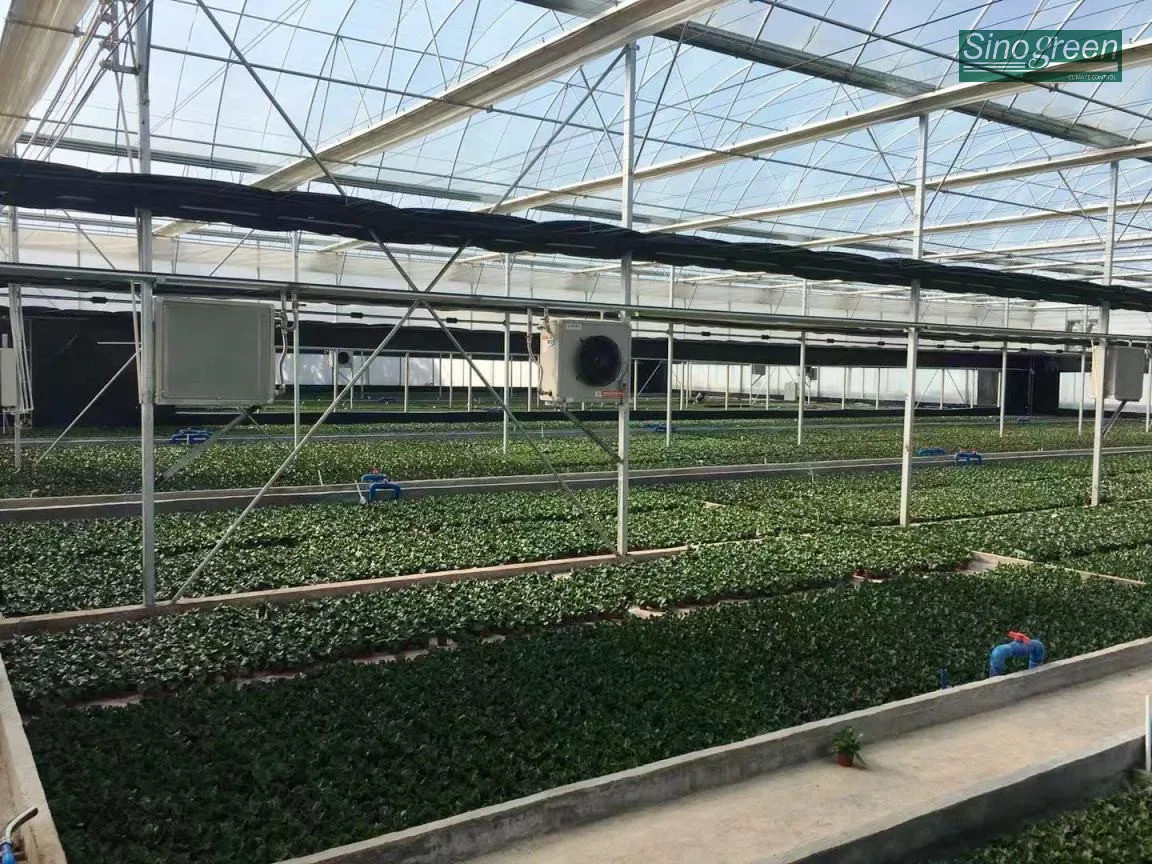

3) Agricultural fields: large farms, greenhouse and livestock farms, etc.

Key words: hot water air heater, heater fan, air heater, heating system, heat exchange etc.



















 Heating, Cooling and Ventilation Since 2003

——All heart for you——



1. Where is your company located ? Are you a factory or a trading company?



A:Our factory located in Middle of Fuying street, Economic development district, Qingzhou city, Shandong Province, China.

B:We are a factory.



2. What products your factory supply ?

Exhaust fan, Cooling Pads, fire fans, axial fans, negative pressure fan, hot water air heater, environmental temperature and humidity air conditioning etc.



3. UL or cUL is avaliable for USA and Canada market?

Yes,dwe can supply the product with UL to you. And very experienced. But different price.



4. Can Electric parameter be customized?

Yes, just supply yours ' ?Voltage-?Phases-?HZ'.



5. Can you do our logo or brand on the fan?

Yes, OEM & ODM are all available.



6. Can I order some samples at first to see the quality?

Yes, of course.



7. Can you deliver samples by DHL or FedEx?

Yes, we can. But you could pay for express fee,and parts of products are charged.





8. What's your trade term &?payment term?

E-XWORK,FOB,CNF,CIF;T/T,L/C,D/P,or paid by third party are available.



9. Do you have the products in stock?

Yes. There is some series products in stock.



10. What's the delivery time?

Normally, it will take 10-20 days .



11. Can I mix different models in one container?

Yes, of course, but need to meet the MOQ quantity.



12. How does your factory do regarding quality control?

Our quality inspections will take quality control of each production process, also you can come to our factory to make the inspection the goods before shipment, till the guests are satisfied of them and make the payment, then we will make the shipment.



13. Will you deliver the right goods as ordered? How can I?trust you?

We will check many times before shipping through different departments. Our factory are very welcome you come to our factory for inspection and guidance
