Tri Shield RG6 bare copper CCS conductor PVC PE jacket rg59 rg11 rg58 rg6 coaxial cable for CCTV CATV

Product Overview

Description

Product Description:

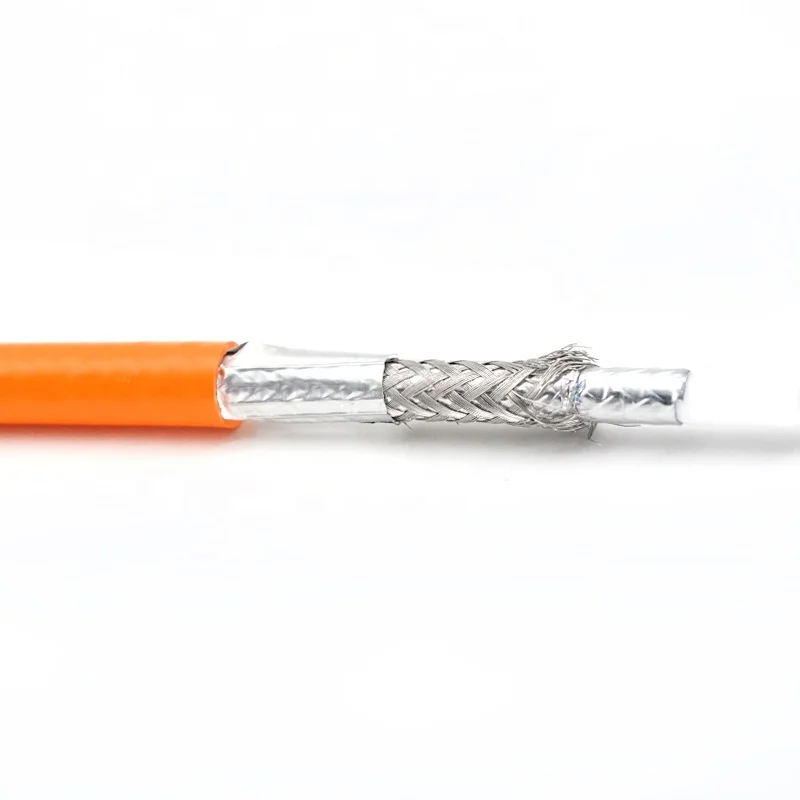

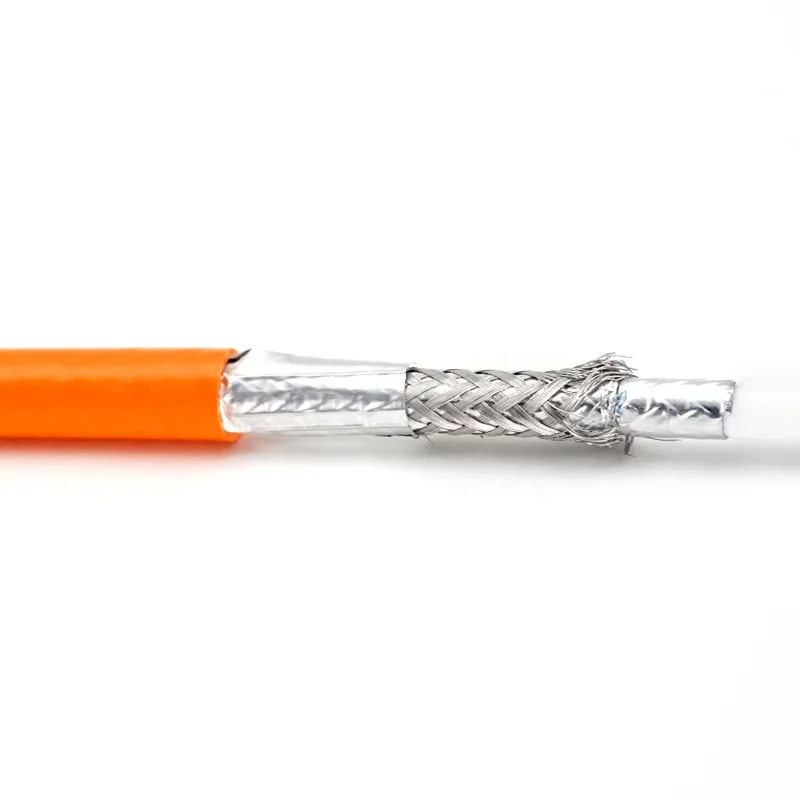

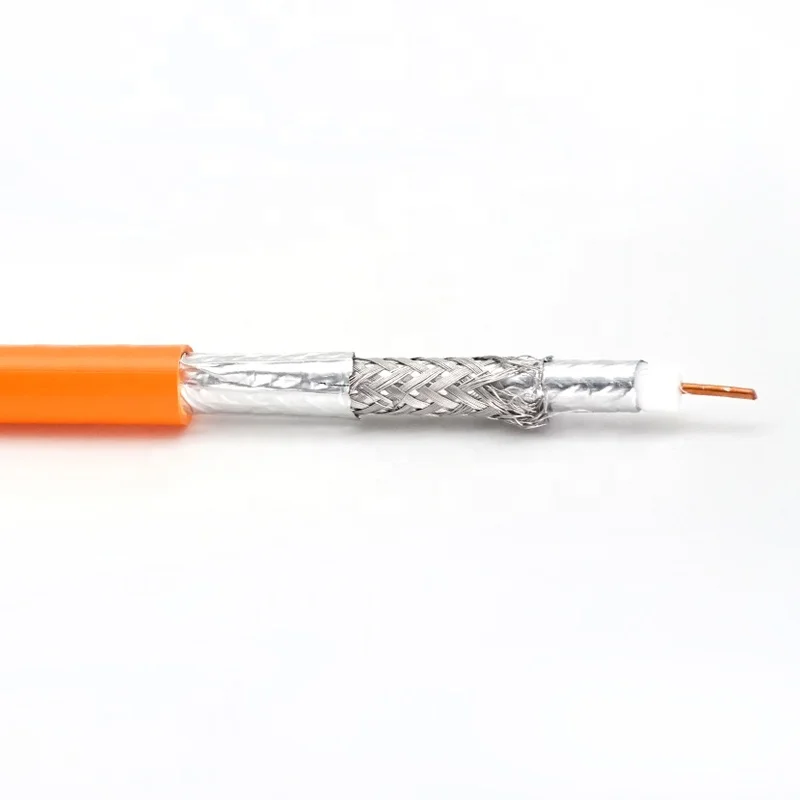

CABLE SPECIFICATION: Solid Core 18AWG CCS RG-6 Coaxial Cable. Tri-Shield 77%, Two Layer 100% Foil Shield.  UL ETL Rated. Bright Orange PVC Utility Standard PVC Jacket.Tri shield RJ6 Coaxial cable is highly recommended for coaxial cables that exceeds over 150ft. This combination is highly recommended and fully approved for use with most satellite and digital CATV and HDTV systems. These cables can also be used with standard cable TV and antennas for the best signal transfer with minimum loss.USAGE: HD OVER THE AIR ANTENNA. DirecTV/ Dish Network, and Other Satellite . Ham Radio, Short Wave Antenna usage. Cable Modem Internet. HD Digital Cable TV. Cellular Boost Antenna. TV/Video Applications. Security and Surveillance Video Camera Systems.



Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC .
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.

Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)



RG6 types:



Procuct Construction		STANDARD SHIELD	TRI-SHIELD	QUAD-SHIELD
CONDUCTOR	MATERIAL	BC/CCS	BC/CCS	BC/CCS
	Nom.Dia.	18AWG	18AWG	18AWG
DIELECTRIC	MATERIAL	Foam PE	Foam PE	Foam PE
	Nom.Dia.	4.57mm	4.57mm	4.57mm
SHIELD	MATERIAL	Al Foil+Al Braiding	Al Foil+Al Braiding+Al Foil	(Al Foil+Al Braiding)*2
	COVERAGE	40%-95%	40%-95%	40%-60%
JACKET	MATERIAL	PVC/PE	PVC/PE	PVC/PE
	Nom.Thick.	0.80mm	0.80mm	0.86mm
	Nom.Dia.	6.91mm	7.06mm	7.62mm
MESSENGER	MATERIAL	Galvanized steel wire
	Nom.Dia.	1.30mm	1.30mm	1.30mm



Nominal Impedance(ohm)		75±3
Nominal Velocity of propagation(%)		85
Nominal Capacitance(pf/m)		50
Spark Test(VAC)		3000
SRL(dB)		20	20
Attenuation [68°F(20℃)]	Frequency(MHz)	Maximum(dB/100ft)	Maximum(dB/100m)
	5	0.58	1.9
	55	1.6	5.25
	187	2.85	9.35
	300	3.55	11.64
	450	4.4	14.43
	600	5.1	16.73
	750	5.65	18.54
	865	6.1	20.01
	1000	6.55	21.49
