Horizontal Continuous Casting Brass Tube and Rod Straightening Machine
- Category: >>>
- Supplier: Wuxi Jintong Furnace Co. Ltd.
Share on (62561661821):
Product Overview
Description
Production Line Machines & Parameters:
1. 300*300 Melting and Temperature holding Furnaces
No. | Parameters: | Qty |
1 | Rated Power: 140Kw Temperature Holding: 60kw; Melting: 80kw | 1 set |
2 | Type: Melting Brass Scrap/Temperature Holding | |
3 | Model: GYT300/300 | |
4 | Input voltage: 380 VAC | |
5 | Furnace Content Capacity: 2~3T each | |
6 | Input phase: 3 phase (ABC) | |
7 | Power Factor: 0.95 | |
8 | Input Frequency: 50 Hz | |
9 | Melting Rate: 300KG/Hour | |
10 | Max Working Temperature: 1250 ℃ | |
11 | Hook: 2pcs | |
12 | Cooling System: Water cooling | |
13 | Voltage Regulating: Autotransformer | |
14 | Temperature Measurement: Thermocouple | |
15 | Electric Cabinet: 2 Sets Electron component brand: CHINT |
Note: Price is different with different brand of electric control system, if you need Siemens or Schneider, we can also provide

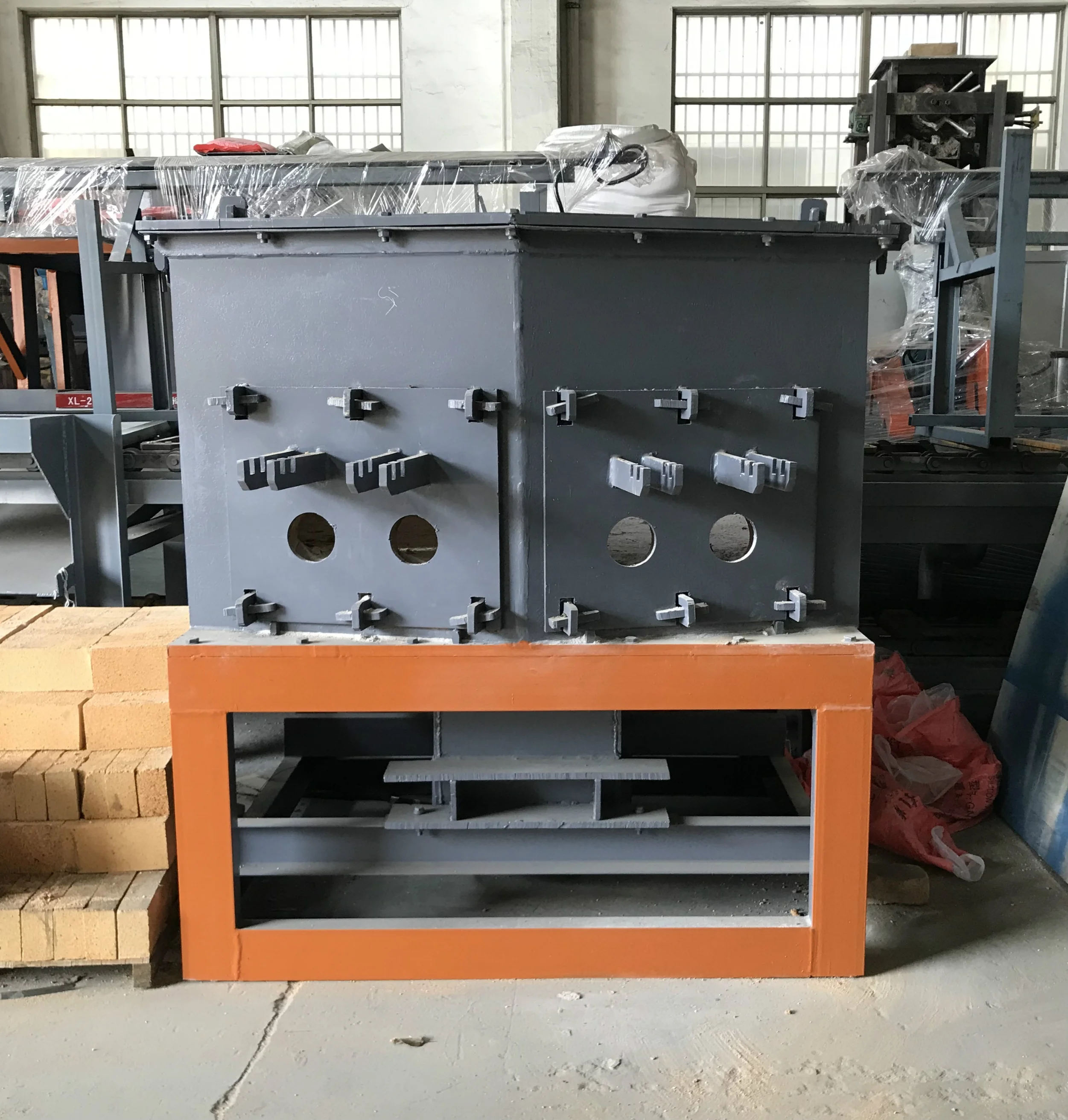

Furnace Picture: (picture just for reference, yours will customized)

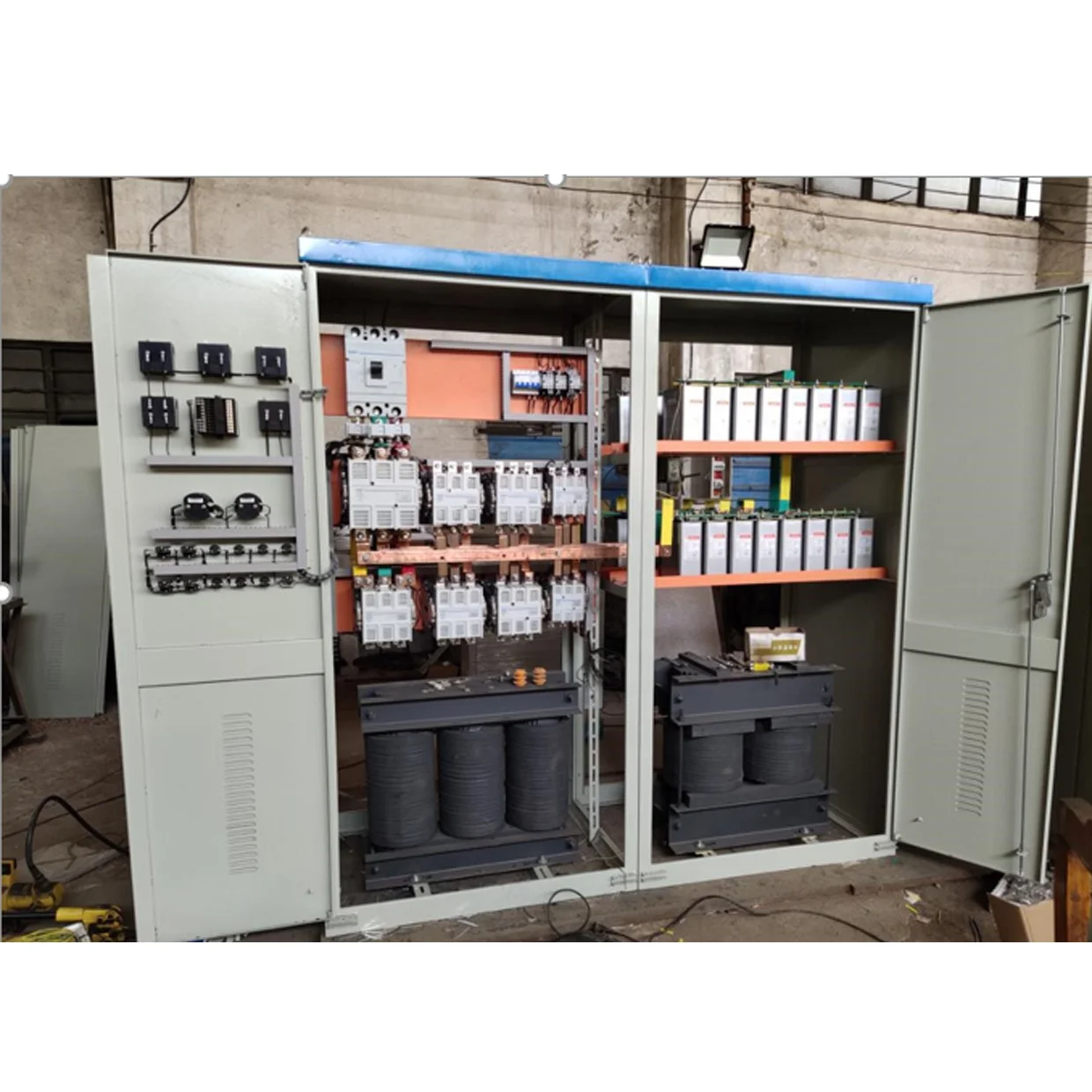

Electric Cabinet Picture: (picture just for reference, yours will customized)
CHINT Electric Control System:
2. Drawing/Traction Machine
No. | Parameters: | Qty |
1 | Power Supply: 1.5kw | 2 sets |
2 | Rod Size: Φ8-65mm | |
3 | Wheel Size:Φ138mm | |
4 | Spare wheel inner shaft size:Φ35mm | |
5 | Machine Size:730*730*1200mm |

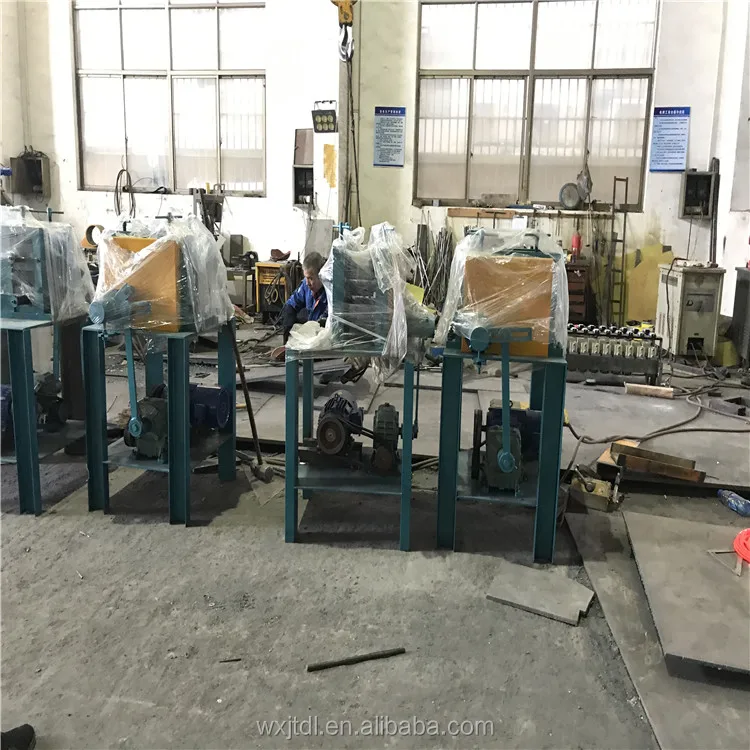

Drawing Machine Picture: (picture just for reference, yours will customized)
3. Cutting Machine
Parameters: | Qty | |
1 | Power: 4kw | 2 sets |
2 | Cutting Diameter: Φ8-70mm/ | |
3 | Guide: Hard line rail | |
4 | Pressure:0.7mpa | |
5 | Rotate Speed: 2200r/min | |
6 | Machine Size: 1150*650*1500mm |
Cutting Machine Picture: (picture just for reference, yours will customized)
With rod holding shelf
4. Hydraulic Peeling Machine
No. | Parameters: | Qty |
1 | Main Motor Power: 18.5kw Hydraulic Type | 1set |
2 | Diameter: 8mm~65mm | |
3 | Max Machining Length:4-5m | |
4 | Transmission Speed: 1:31.5 | |
5 | Chain Speed: 25.38m/min | |
6 | Hydraulic Tubing Size:Φ16-Φ18-Φ22 | |
7 | Hydraulic Cylinder Size:45*85*510mm | |
8 | Type of Hydraulic Pump:F10M/Axial piston pump F10M | |
9 | Tank Size: 700*500*460mm | |
10 | Oil Tank Storage: 125L | |
11 | Type of Hydraulic Solenoid Valve:4WE6G61B/CW-2205N925L | |
12 | Clamping Claw Size:Φ8-70mm | |
13 | Guide Die Size:Φ78mm | |
14 | Outer Size of Distribution Box:1700*70*470mm | |
15 | Overall machine Size:9600*300*12600mm |

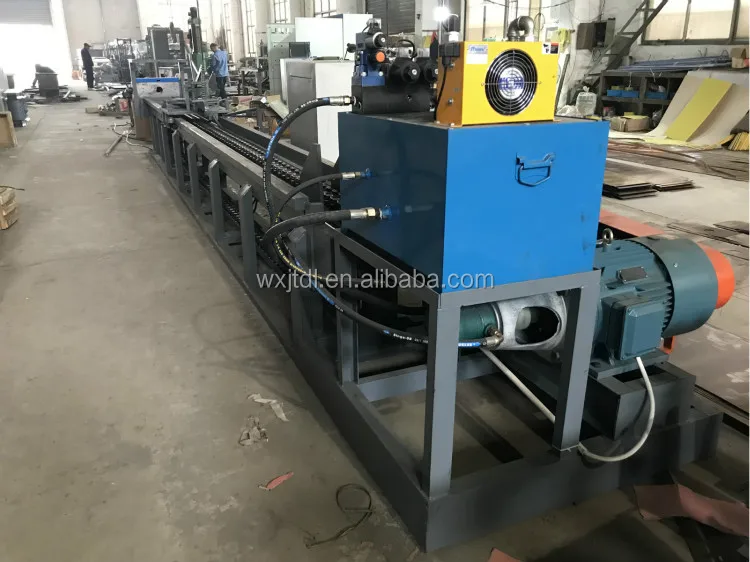

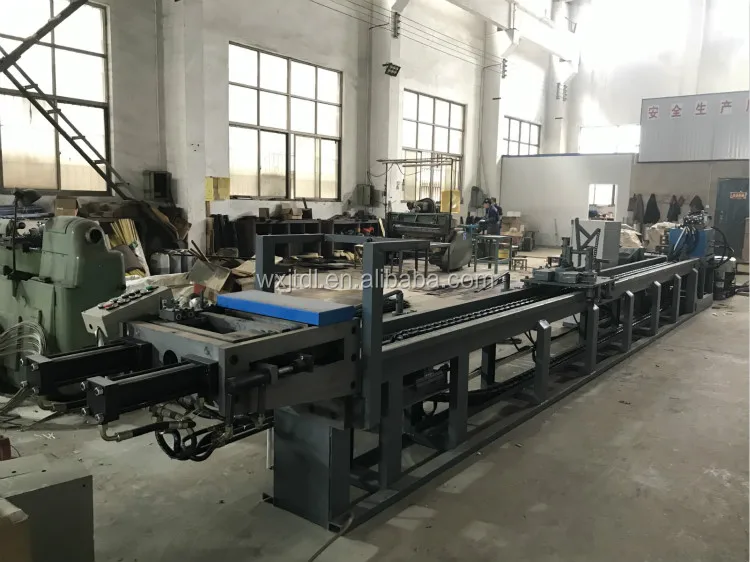

Peeling Machine Picture: (picture just for reference, yours will customized)
5. Straightening Machine
No. | Parameters: | Qty |
1 | Power/Input voltage: 7.5kw 380kv | 1 set |
2 | Straightening Diameter: Φ10-35mm | |
3 | Straightening Speed : 20m/min | |
4 | Straightness Accuracy : ≤1mm/M | |
5 | Machine Size: 2100*700*1250mm | |
6 | Roller number: 10 rollers |

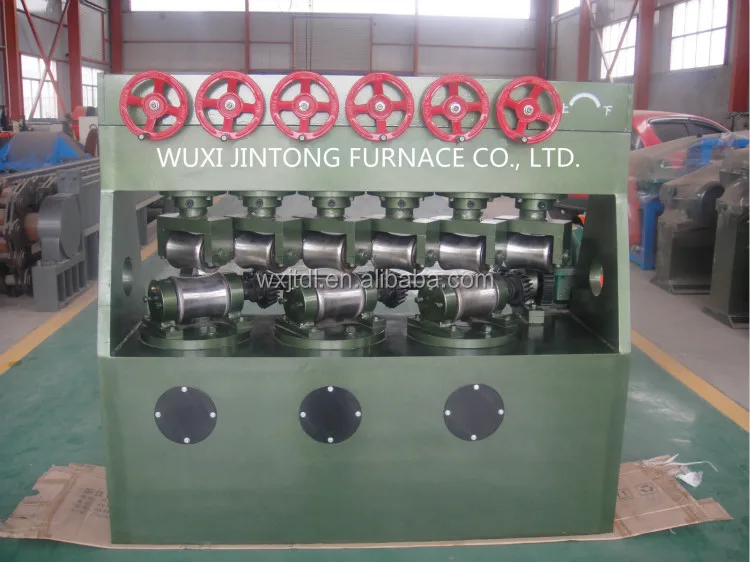

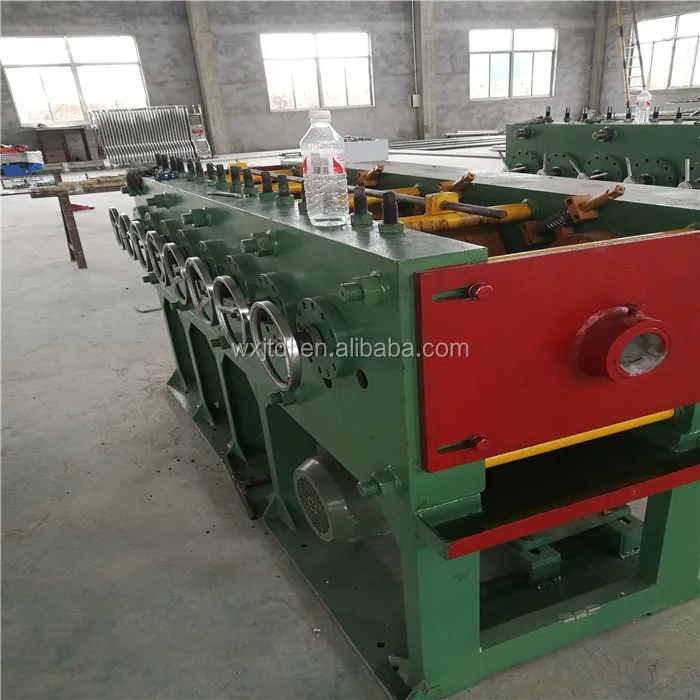

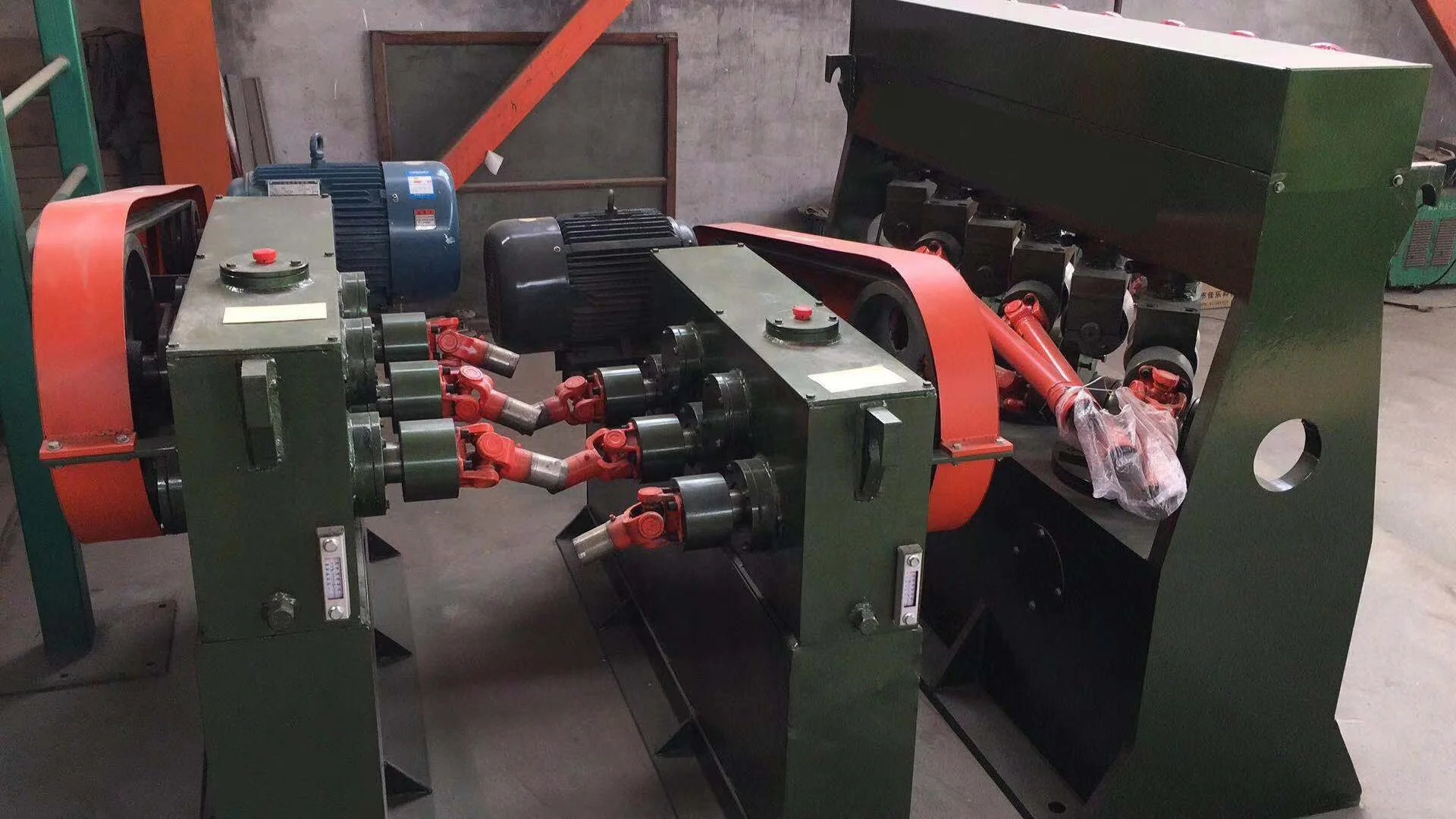

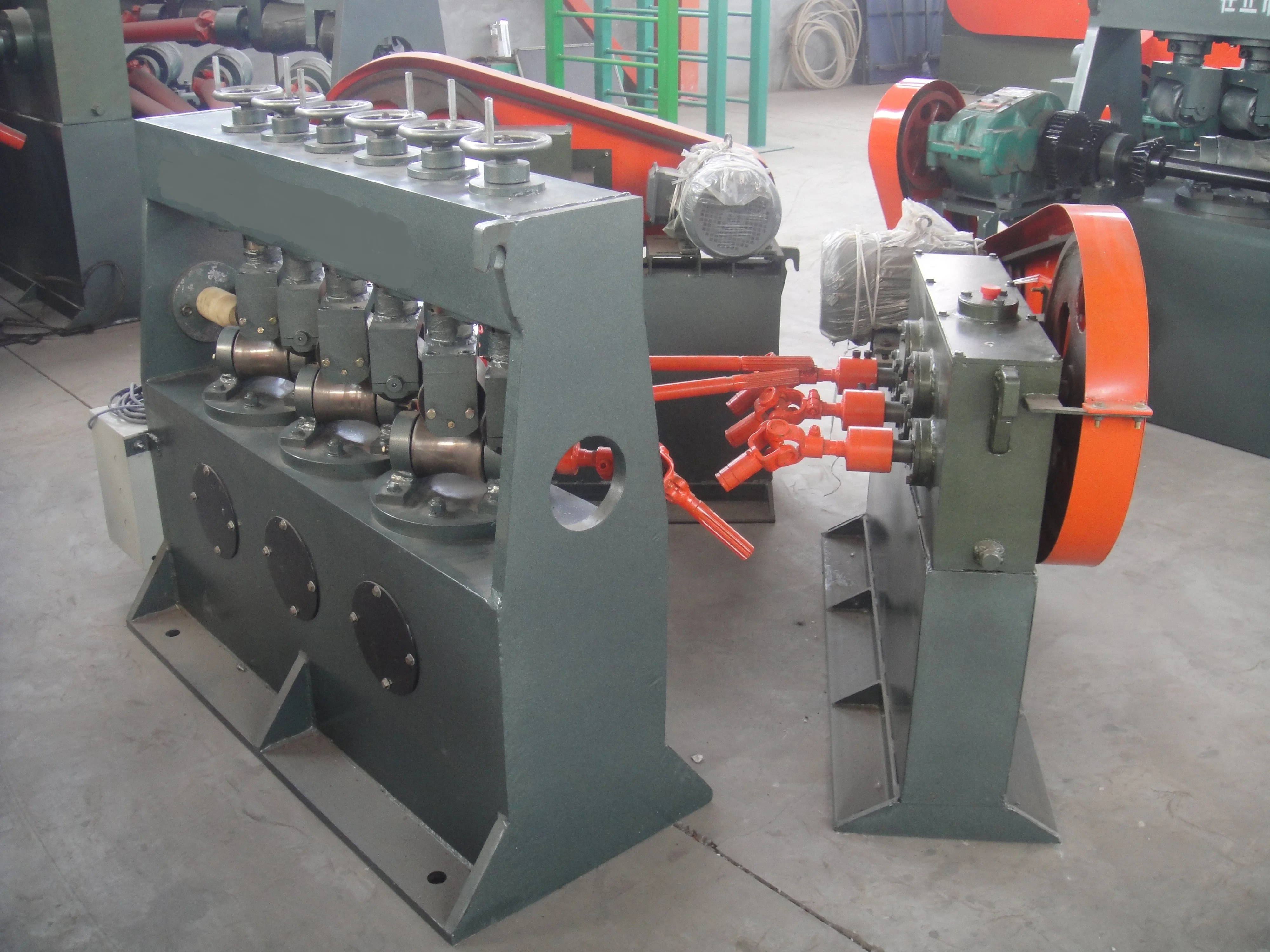

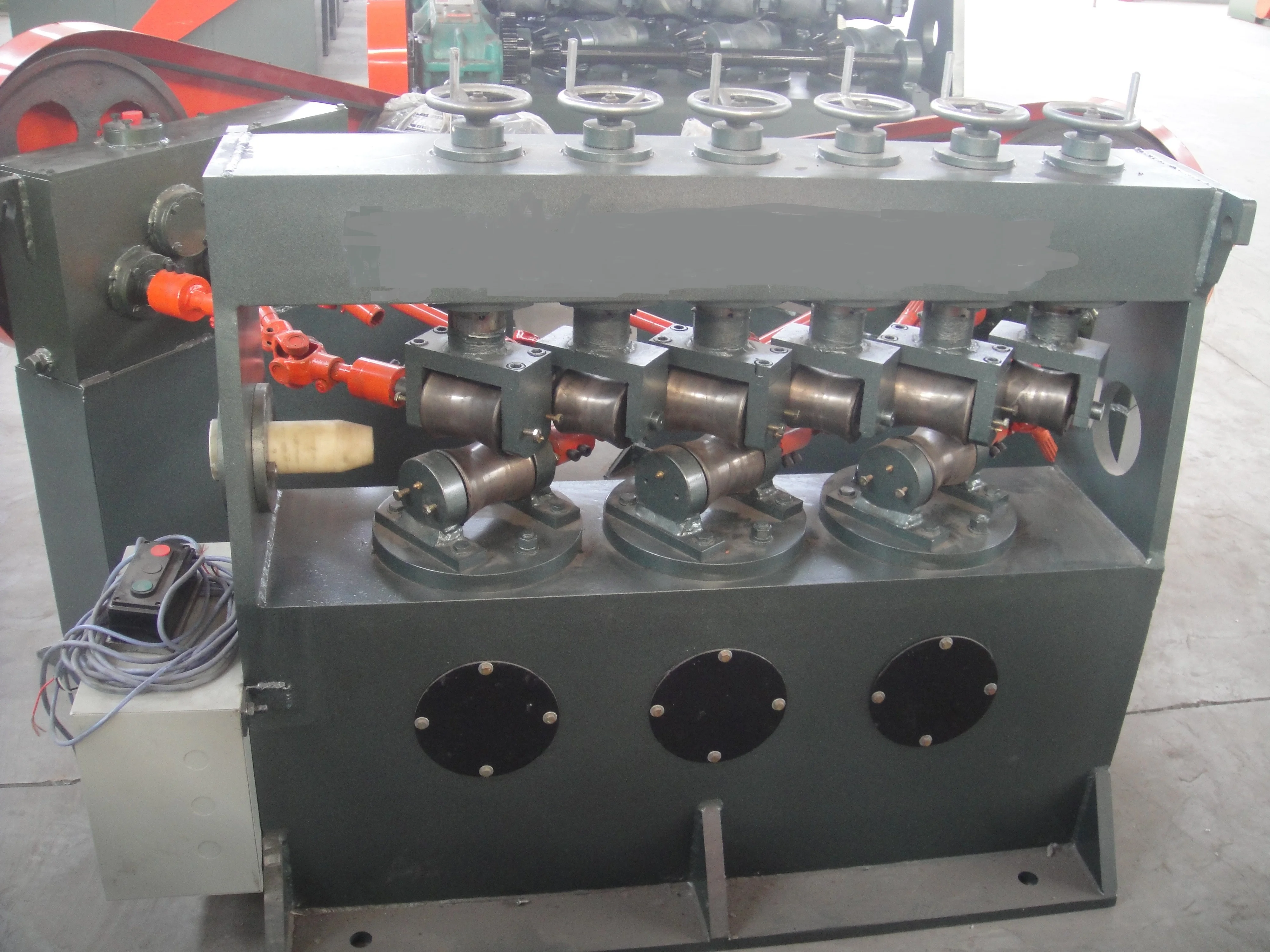

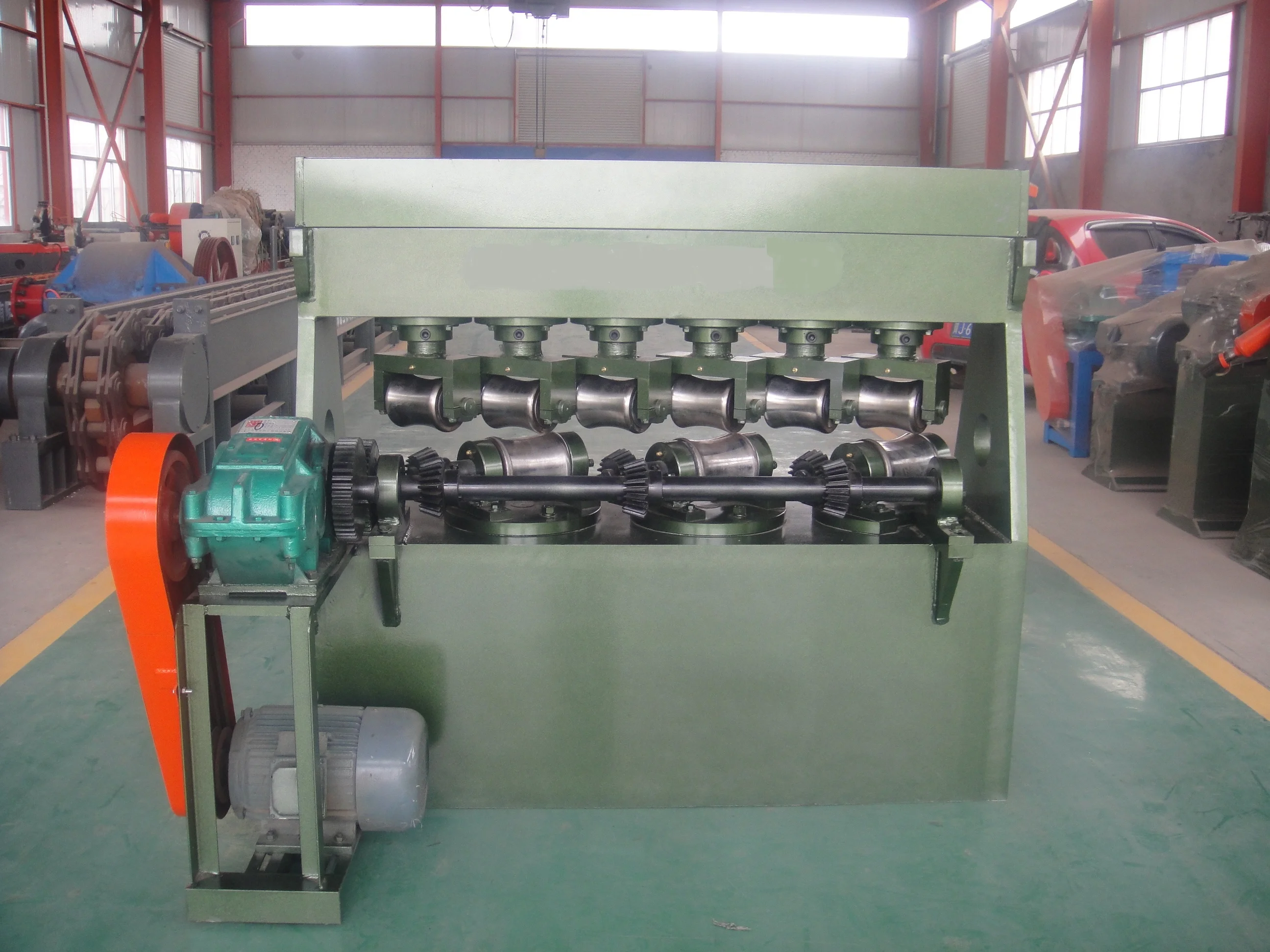

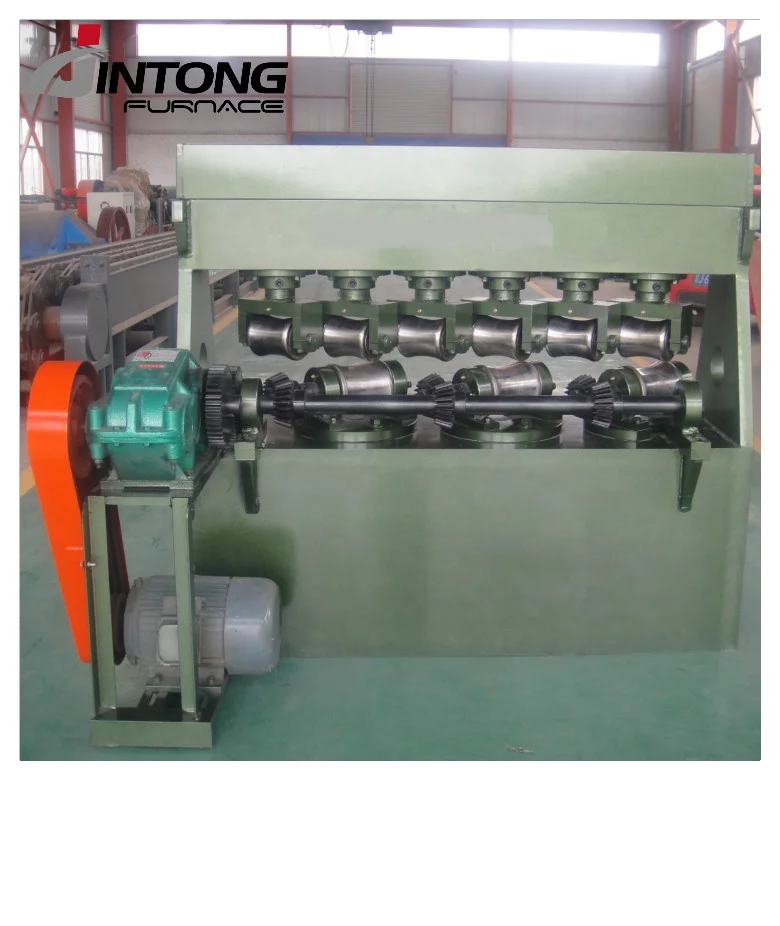

Straightening Machine Picture: (picture just for reference, yours will customized)
