This machine is heat sealing and heat cutting bag making machine, which is suitable for printing and non-printing HDPE/LDPE rolling bag making. The material of bag is HDPE, LDPE. 1.Drag material by double servo motors. 2. Main control panel adopts touch screen Delta from Taiwan with high definition. 3. The drive system of whole machine adopts PLC Microcomputer control (PC computer) . 4. One independent program on bag making machine. One independent program on winder part. 5. The machine will automatically stopped if film jammed. 6. Heat sealing copper knives and cold cutting teeth knife to make rolling bag easy to tear down. 7. Blowing system helps to make plastic film flat and reduce film stretch tension. 8. Dancing roller system keeps film tense after sealing and cutting to make plastic rollers tight and in order. 9. The machine will automatically change plastic rolls with fork winders and put rolls one by one on the

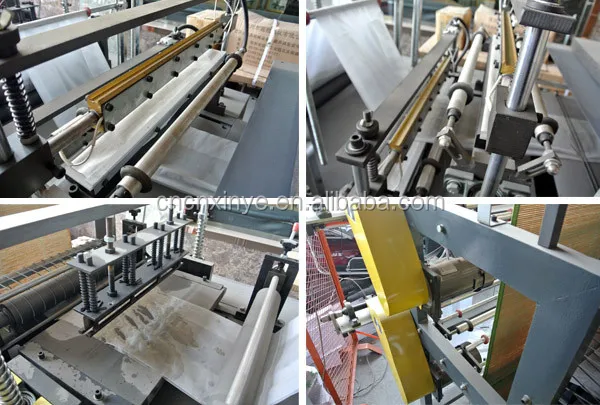

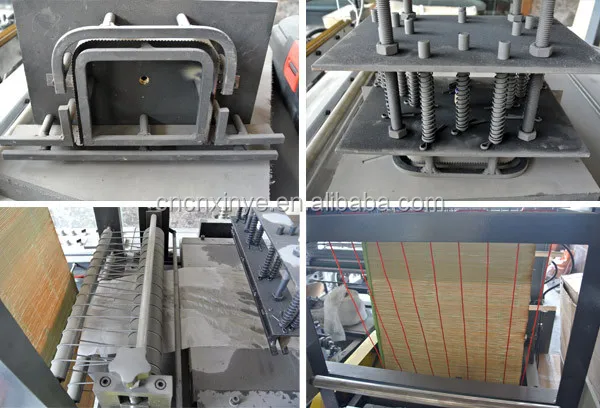

Details Images
Model
XYWX-450*2
Bag width
100-250mm
Bag length
200-1500mm
Bag thickness
0.008-0.035mm
Speed
100m/min*2
Film unwind diameter
Φ900mm
Plastic roll diameter
Φ150mm
Air compressor
6HP
Total power
12.5kw
Machine weight
3350kg
Overall dimension (L×W×H)
7.5×1.75×1.7m
Installation Instructions
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Our Advantages
1) Good quality 2) Competitive price 3) Satisfying service 4) Delivery timely
Company Profie

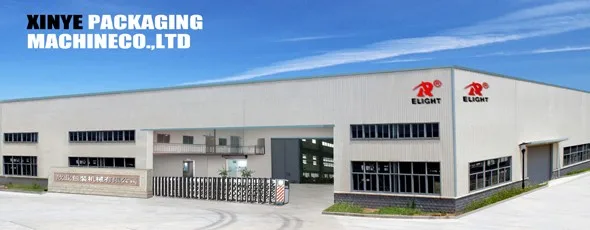

Xinye packaging machine company with a long history is located in Rui'an, Zhejiang Province.We specialize in producing series of packaging equipment, like bag making machines, printing machines, film blowing machines and material cutting and punching machine.Taking sincerity and credit as the most important factors for success, we will do our almost to improve product quality and perfect our service system.
