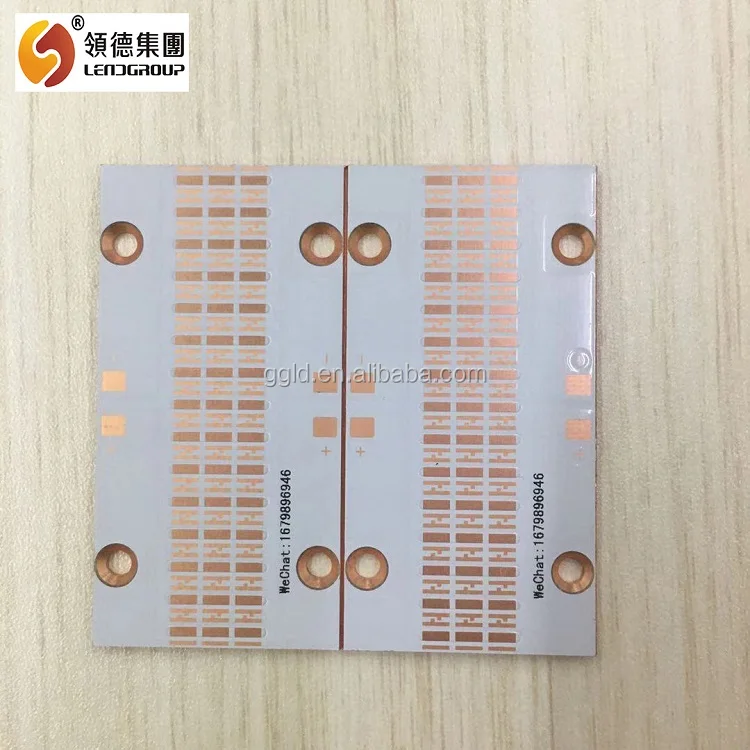

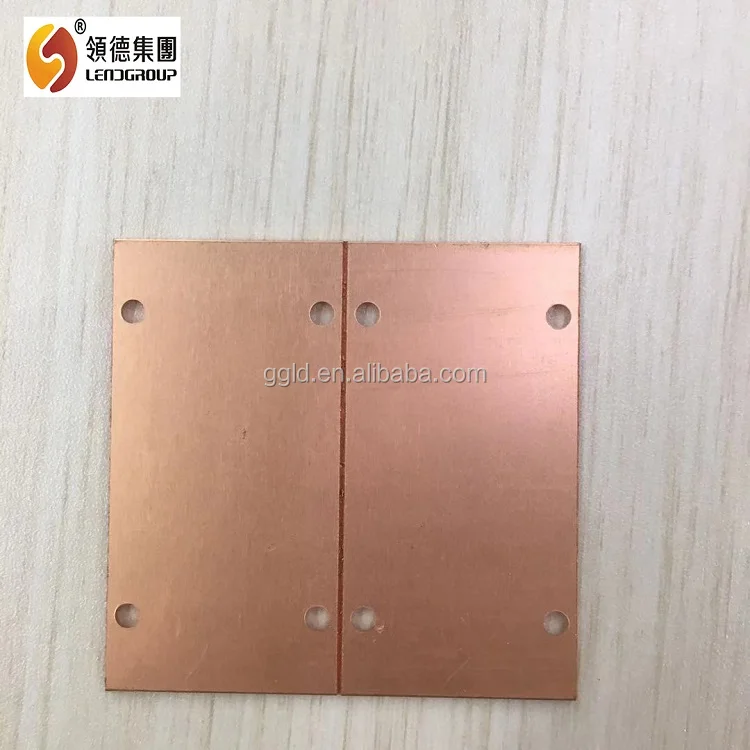

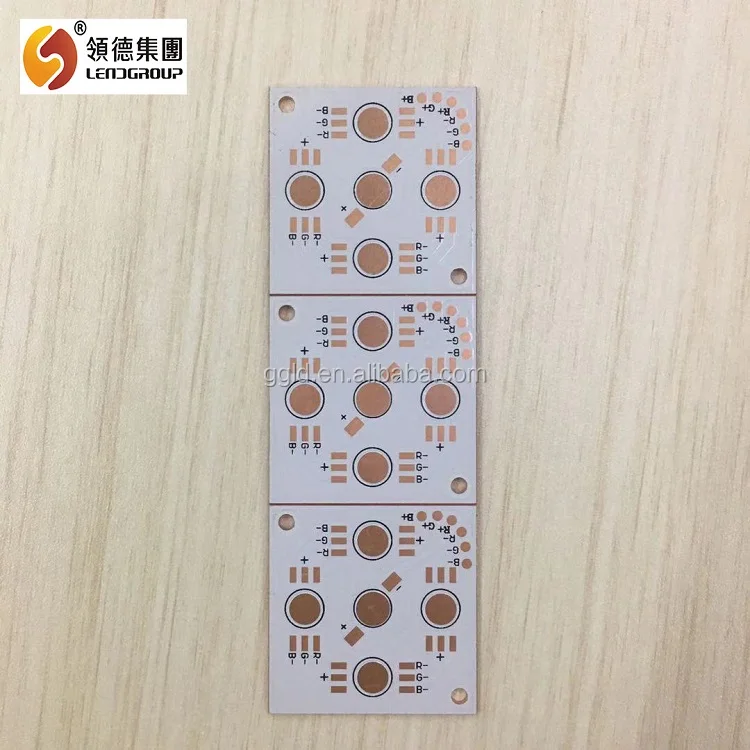

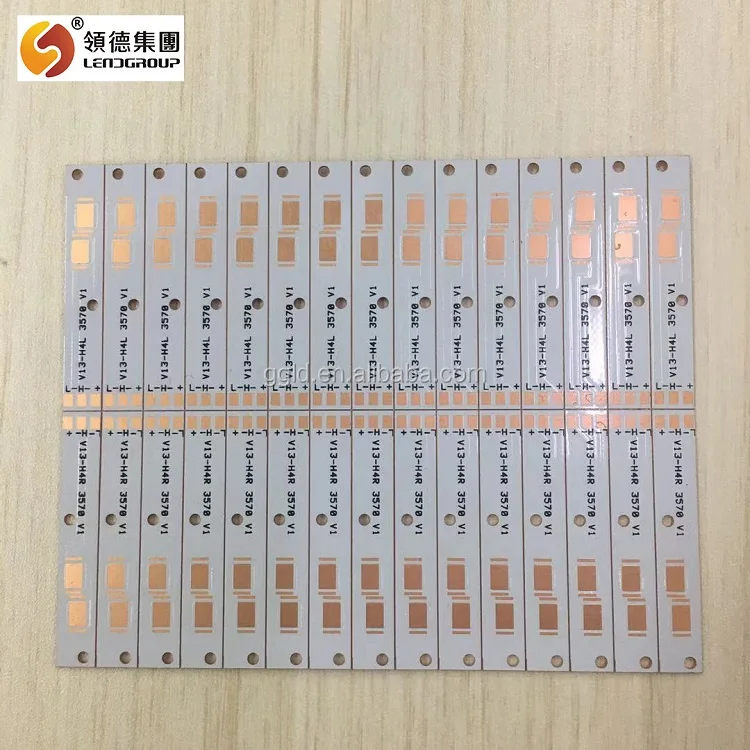

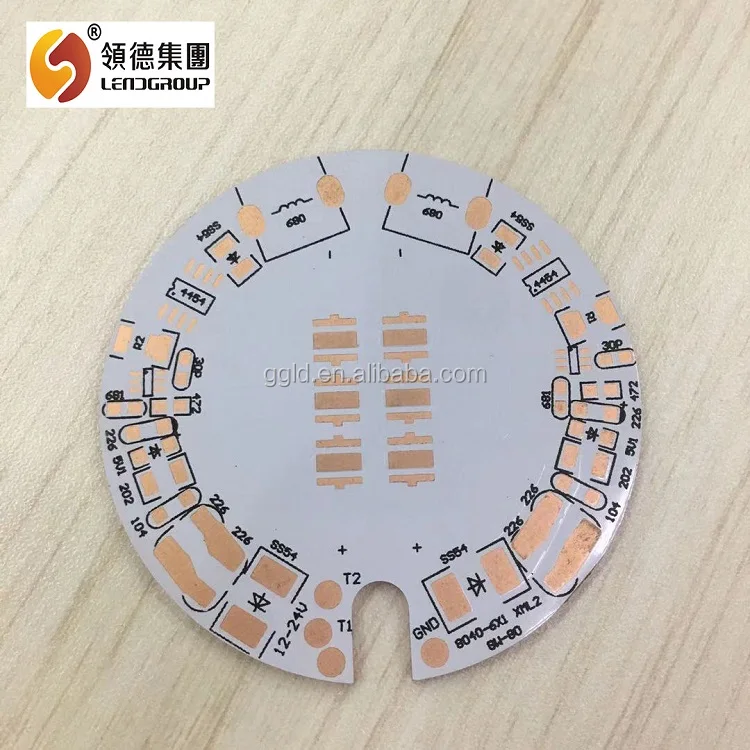

Aluminum base PCB, MCPCB sheet,copper base PCB

PCB Item

Manufacture Capacity

Layer Counts

1--20L

Base Material

FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B)

Material Thickness(mm)

0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2

Max board size(mm)

1200x400mm

Board Outline Tolerance

±0.15mm

Board Thickness

0.4mm--3.2mm

Thickness Tolerance

±8%

Minimum line/space

0.1mm

Min Annular Ring

0.1mm

SMD Pitch

0.3mm

Holes

Min  Hole Size(mechanical)

0.2mm

Min Hole Size(laser hole)

0.1mm

Hole Size Tol (+/-)

PTH:±0.075mm;NPTH: ±0.05mm

Hole Position Tol

±0.075mm

Plating

HASL/LF HAL

2.5um

Immersion Gold

Nickel  3-7um  Au:1-5u''

Surface Finish

HAL,lead-free HAL,ENIG,Plated Gold,Immersion Gold,OSP

Copper

Copper Weight

0.5--6oz

Color

Soldermask

Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue

Silkscreen

White, Black, Blue,Yellow

Acceptable File Format

Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000

Certificate

ROSH,ISO9001,UL

Sample Lead time

Mass production lead time

Single sided PCB

1~3

4~7

Double sided PCB

2~5

7~10

Multilayer PCB

7~8

10~15

PCB and Assembly

8~15

15~20
