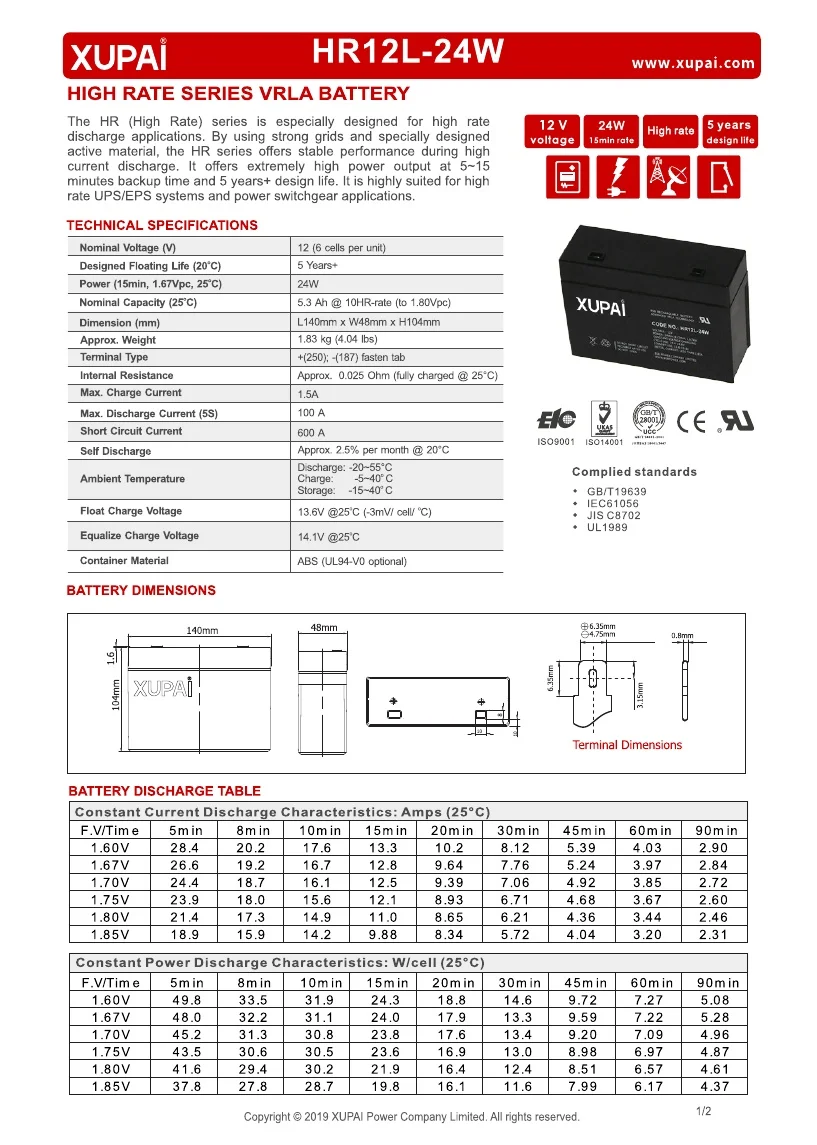

XUPAI 2020 How much HR12L 24W 12V 85AH mini ups solar power storage battery rechargeable batteries Welcome wholesales

FEATURES AND BENEFITS

1.


   30% increased Power output at 15 minutes backup





2.


   5~12 years design life in floating condition





3.


   Optimized plate achieve low internal resistance





4.


   Wide operating temperature range from -20°C to 55°C





5.


   Low self-discharge rate





6.


   Excellent deep discharge recovery capability




CONSTRUCTION

1.


   Positive plate : Special designed grid with Pb-Ca-Sn alloy





2.


   Negative plate : Balanced Pb-Ca grid for improved recombination efficiency





3.


   Separator : Low internal resistance AGM separator





4.


   Electrolyte : Dilute high purity sulphuric acid





5.


   Battery container and cover : ABS





6.


   Pillar seal : Double layers epoxy resin seal





7.


   Relief valve : Complete with integrated flame arrestor




CHARGING VOLTAGE AND SETTINGS

1.


   Constant voltage charging is recommended





2.


   Recommended float charge voltage: 2.27Vpc @ 20~25°C





3.


   Float voltage temperature compensation: -3mV/°C/cell





4.


   Float voltage range: 2.27 to 2.30 Vpc @ 20~25°C





5.


   Cyclic application charge voltage : 2.40 to 2.47 Vpc @ 20~25°C





6.


   Max. charge current allowable : 0.25C10A




Applications

1.


   UPS system





2.


   Power switch gears





3.


   Engine starting





4.


   Data centers
