YDM Wall Paper UV LED roll to roll Printer
YDM Wall Paper UV LED roll to roll Printer
YDM Wall Paper UV LED roll to roll Printer
YDM Wall Paper UV LED roll to roll Printer
YDM Wall Paper UV LED roll to roll Printer
YDM Wall Paper UV LED roll to roll Printer
YDM Wall Paper UV LED roll to roll Printer

YDM Wall Paper UV LED roll to roll Printer

Share on (62562670369):


Price:$18,200.00 - $19,000.00

Quantity:


Product Overview

Description



YDM Wall Paper UV LED roll to roll Printer has 3 PCS Ricoh G5 head , color set CMYK+W.The printing thickness is <=2 mm.
It can be print on Canvas,mural,wallpaper,vinyl sheet ,banner,light box leather and other soft materials .


Product Description




Product Paramenters


Technical Data
F3200 series
Print Technology
Print Format
320 cm/ 10 ft
Print Height
2 mm
Head Model
3 pcs Ricoh G5, Auto Heating
Color Set
CMYK+W
Control System
ROYAL
RIP Software
Printfactory ，by Holland Aurelon
Print Direction
Uni/ Bi-directional ; Front/ Rear Alternative
Resolution
4 PASS : 600 x 600 dpi
6 PASS : 600 x 900 dpi
8 PASS : 600 x 1200 dpi
Print Speed
Production mode: 18-25 sq.m/ h
Quality mode: 15-18 sq.m/ h
High resolution mode: 12-15 sq.m/ h
Machine Highlight
Heavy Duty Frame
Strengthened aluminum beam
Driving Mode
HIWIN linear rail + Servo motor + Lead screw + IGUS drag chain
Feeding type
Pinch roller+Anodized aluminum table
Auto takeup system
Optional
Ink type
UV ink
Ink System
Negative pressure Ink supply + White Ink stirring and circulation
Ink cartridge volume
3.5L
Curing System
Imported UV lamp, 30000 hours lifespan
Others
Print Media
Wallpaper/ Mural/ Vinyl sheet/banner/ Canvas/ Lightbox/ Leather.. etc
PC Configuration
Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G
Signal Transmission
Optical Fiber + USB 3.0
Color Control
Comply with ICC standards, with curve and density adjustment function
File Format
TIFF/ JPEG/ POSTSCRIPT3/ PDF
Power Supply
AC220V,50/ 60HZ
Working Power
3 KW
Noise
Standby < 32 dB ; Working < 65 dB
Machine Size
4.75m x 0.9 m x 1.6 m
Net Weight
800 KG

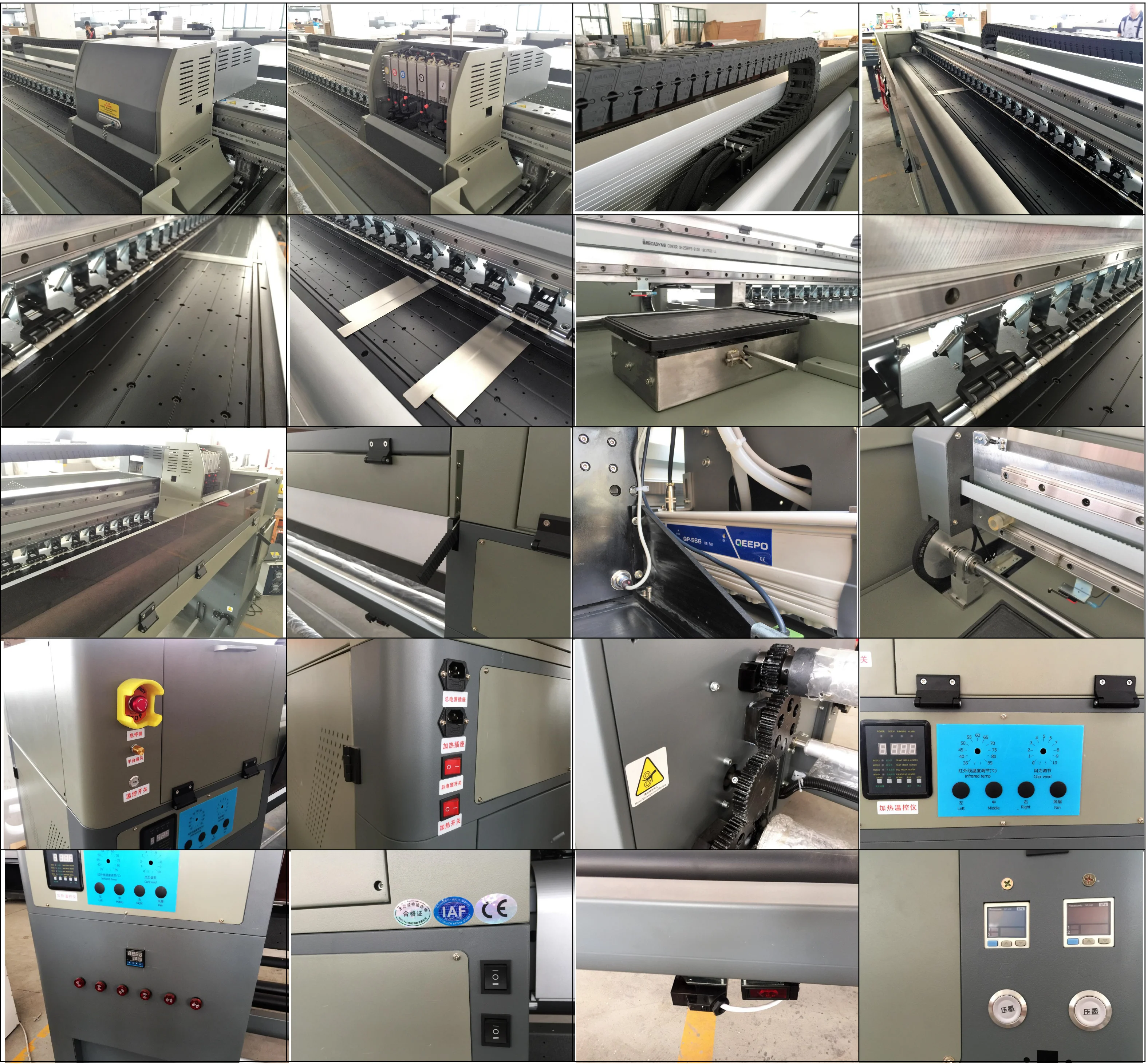

Details Images




Application




Certifications




Company Profile




Factory &warehouse show




Strategic Partners




Production Process




Exhibition




Why choice us?
