[MTM] DC 24V 40W Brushless Motor with gearbox and driver Made in Taiwan BLDC Motor
- Category: >>>
- Supplier: MOTION TECHNOLOGY ELECTRIC & MACHINERY CO. LTD.
Share on (62562723018):
Product Overview
Description
Product Description
Specification

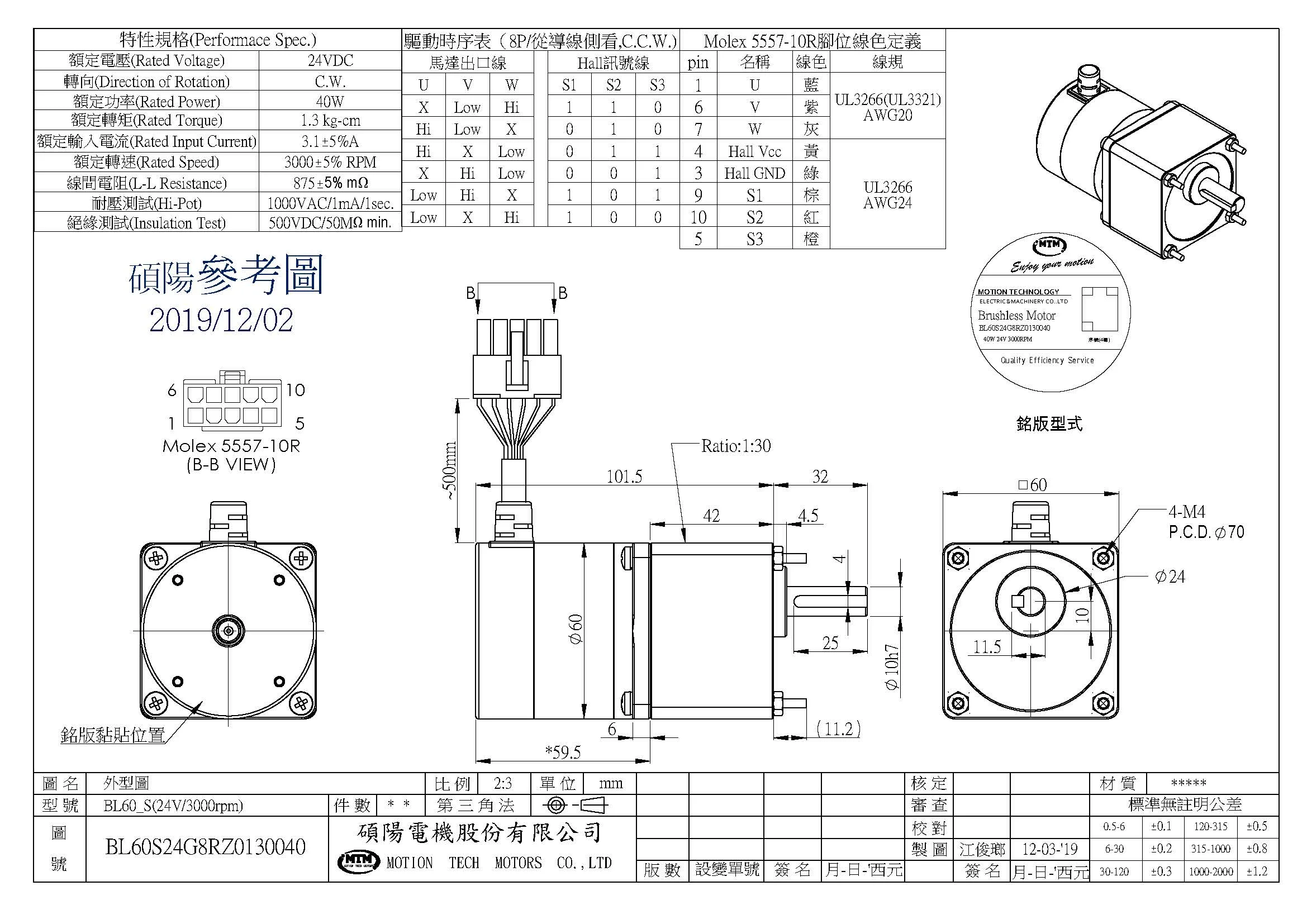

Product name | Brushless motor series-BL60 series with 2GU gearbox and V16 driver | ||||||||||
Country of origin | TAIWAN,CHINA | ||||||||||
Port | Keelung | ||||||||||
Motor Output | 40W | 80W | ||||||||
Gear Ratio | 1:5 / 1:10 / 1:20 / 1:30 | 1:5 / 1:10 | ||||||||
Speed Output(rpm) | 600 / 300 / 150 / 100 | 600 / 300 | 100 | 60 | 30 | |||||
Rated Torque Output(N-m) | 0.65 / 1.3 / 2.6 / 3.9 | 1.3 / 2.6 | ||||||||
Max Torque Output(N-m) | 1.3 / 2.6 / 4.5* | 2.6 / 5.2 | ||||||||
Rated Voltage | 24V | |||||||||
Rated Current | 3.1A | 5.6A | ||||||||
* Maximum torque is limited by mechanical strength. | ||||||||||
Product Paramenters
Certifications
Packing & Delivery
About BLDC Series
From 15W to 9000W
MTM have a complete BLDC product line from 15w to 9000w, from 100rpm to 8000rpm, from 12VDC to 96VDC, from 100VAC to 220VAC.
Standard BL42 products: 15W~30W
Standard BL60 products: 40W~120W
Standard BL90 products: 100W~500W
Standard BL104 products: 400W~1000W
Standard BL130 products: 1000W~2000W
Standard BL180 products: 2000W~9000W
Optional Power off brake: 2N-m~10N-m
Gearbox motor is available from 40W~7000W
Standard BL42 products: 15W~30W
Standard BL60 products: 40W~120W
Standard BL90 products: 100W~500W
Standard BL104 products: 400W~1000W
Standard BL130 products: 1000W~2000W
Standard BL180 products: 2000W~9000W
Optional Power off brake: 2N-m~10N-m
Gearbox motor is available from 40W~7000W
Applications
Brush motor is our root, Servo motor and brushless motor is our future.
The main product of MTM is for vehicles with low voltage DC power. If you are looking for a DC power servo motor, BLDC, brush motor or gearbox, MTM is your best choice.
Company Profile
About MTM
ISO 9001, ISO 14001 AUTHORIZED.
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over
the world. We devote to manufacture PMDC motors and BLDC motors since 2002.The main products of MTM is power module which
included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to
create a product with quality, efficiency and reliability.
Motion Tech is the leading role in motor industry in Taiwan and leading brand of medical electric wheelchair, E-scooter all over
the world. We devote to manufacture PMDC motors and BLDC motors since 2002.The main products of MTM is power module which
included motor, gearbox and motor controller. MTM provide customization service which included design, test and manufacture to
create a product with quality, efficiency and reliability.
