High temperature resistant UHF RFID tags ISO18000 6C 860 960mhz long reading range RFID label
- Category: >>>
- Supplier: Xiamen OPP IOT Technologies Co. Ltd.
Share on (62562751990):
Product Overview
Description
Product Introduction

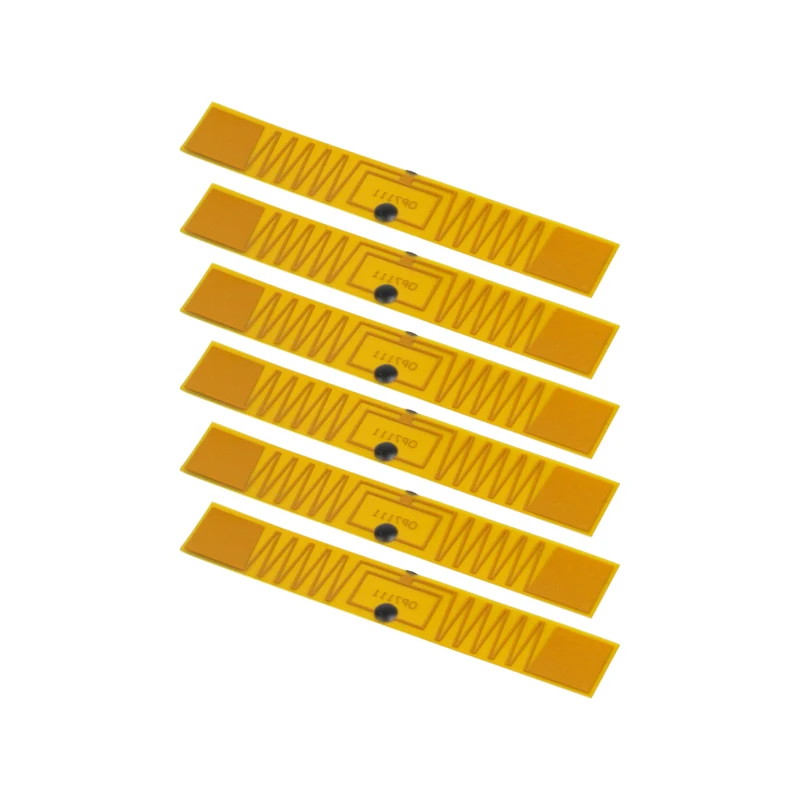

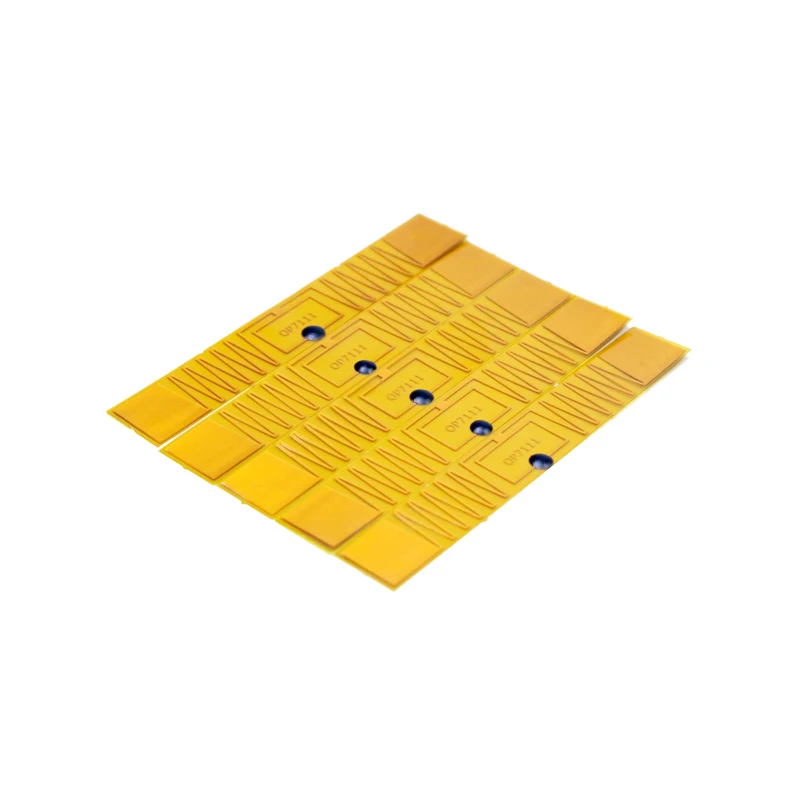

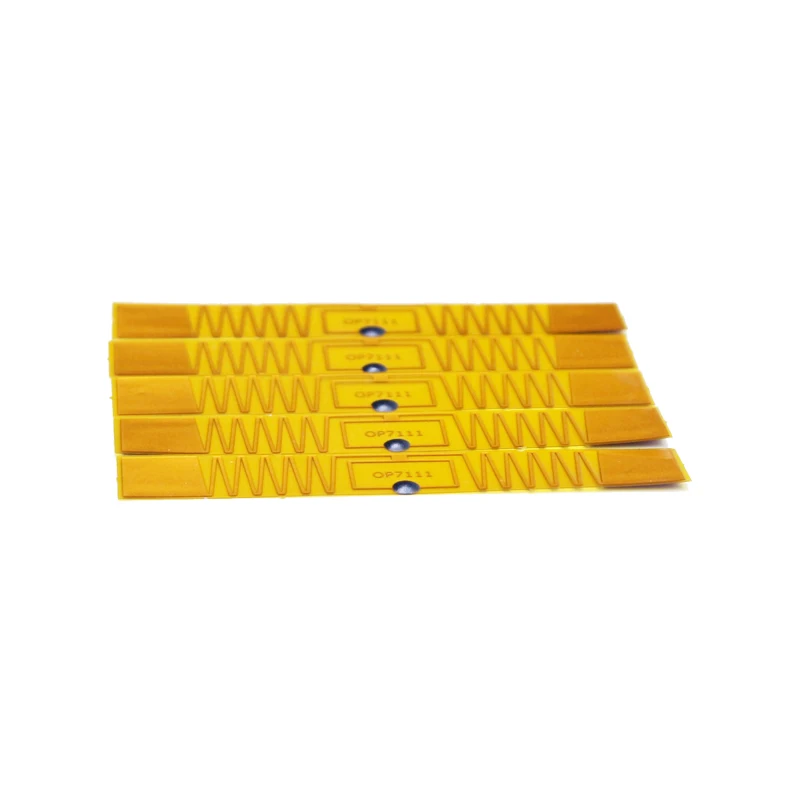

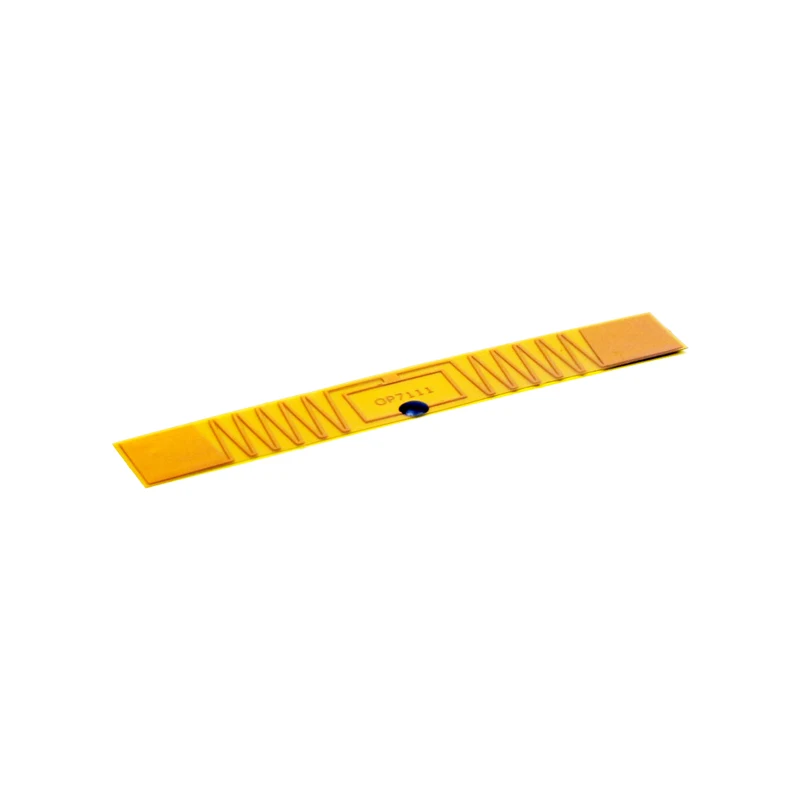

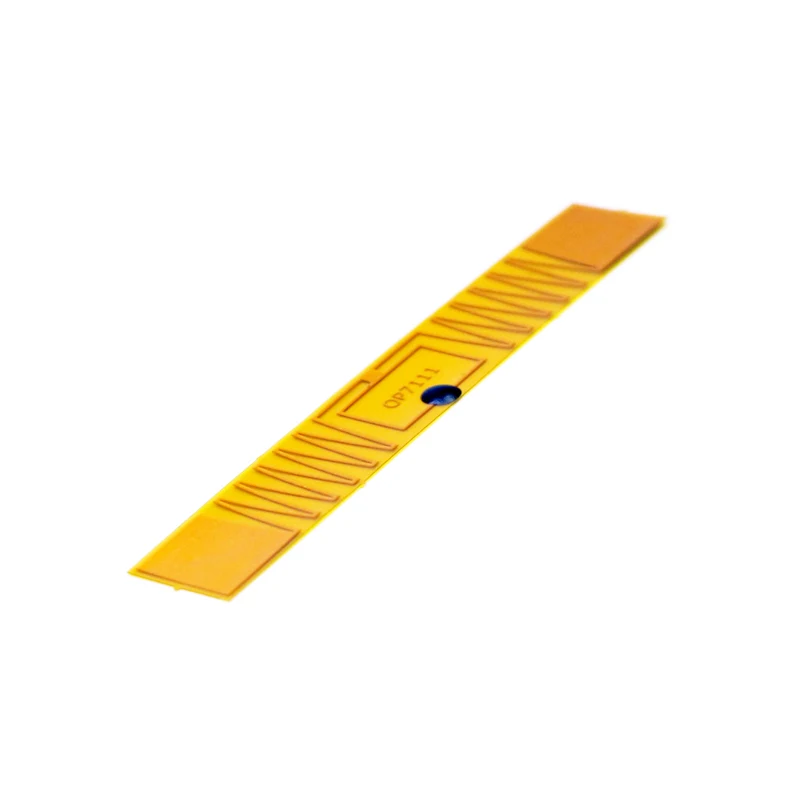

UHF Metal Tag Dolphin series: OPP7111
OPP7111 is a high temperature resistant Flexible printed circuit(FPC) RFID inlay,it is small,light,thinner and Widely used for
industrial equipment, industrial laundry system with high temperature resistant needed & washable products. OPP7111 high temperature rfid inlay specifically designed to provide extremely long read range up to 9.0 meters and high temperature resistance of 200 degrees.
Functional Specifications: | |
RFID Protocol: | EPC Class1 Gen2, ISO18000-6C |
Frequency: | Golbal 840Mhz to 960Mhz |
IC Type: | Alien Higgs-3 |
Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
Write Cycles: | 100,000 times |
Functionality: | Read/Write |
Data Retantion: | Up to 50 Years |
Applicable Surface: | Metal Surfaces |
Read Range: (Fix Reader: ThingMagic FU-M6-E) | Up to 9.0M, off metal |
Read Range: (Handheld Reader: OP9908, R2000) | Up to 5.0M, off metal |
Warranty: | 1 Year |
Physical Specifications: | |
Size: | 71x11mm |
Thickness: | 0.13mm |
Material: | FPC |
Colour: | |
Mounting Methods | |
Weight: | 0.3g |
Environmenal: | |
IP Rating: | IP68 |
Storage Temperature: | -40°С to +200°С |
Operatino Temperature: | -40°С to +100°С |
Certifications: | Reach Approved, RoHS Approved, CE Approved |
