Best Total Station Price Optical Instruments FOIF RTS342
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (62562847801):
Product Overview
Description
Product Description
RTS340 Series Colour-display Total Station
Product features:
Product features:
1.Highlighted colour display (QVGA)
2.LED-backlight alphanumerical keyboard
3.Onboard software and application programs simplify and speed up work in the field
4.Long reflectorless measuring distance reaches 800m (R800), and 1000m(R1000)
5.Multiple data interfaces, mini-USB, RS-232C or SD card data transfer are available.
6.RTS340 can connect to data collector through Bluetooth
2.LED-backlight alphanumerical keyboard
3.Onboard software and application programs simplify and speed up work in the field
4.Long reflectorless measuring distance reaches 800m (R800), and 1000m(R1000)
5.Multiple data interfaces, mini-USB, RS-232C or SD card data transfer are available.
6.RTS340 can connect to data collector through Bluetooth

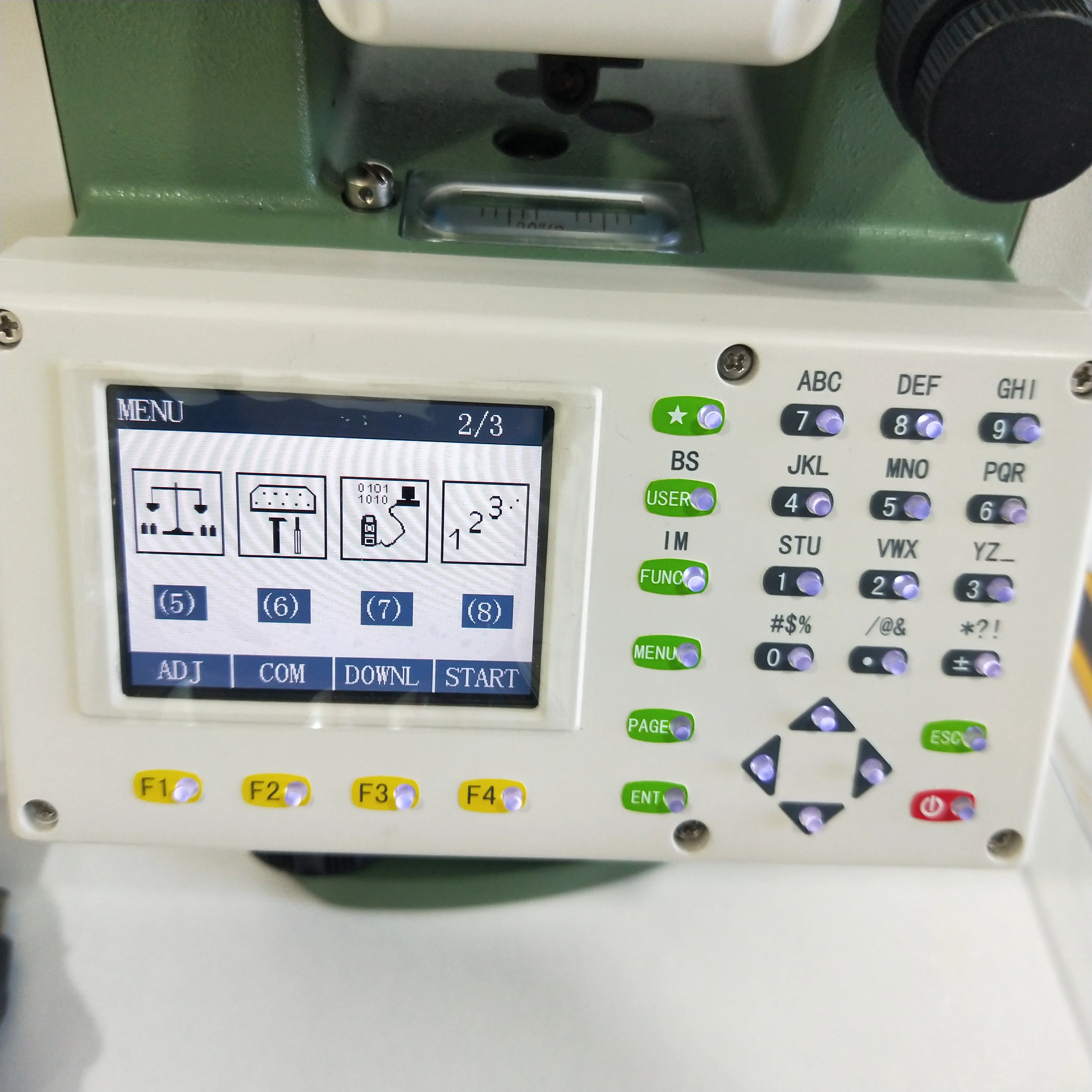

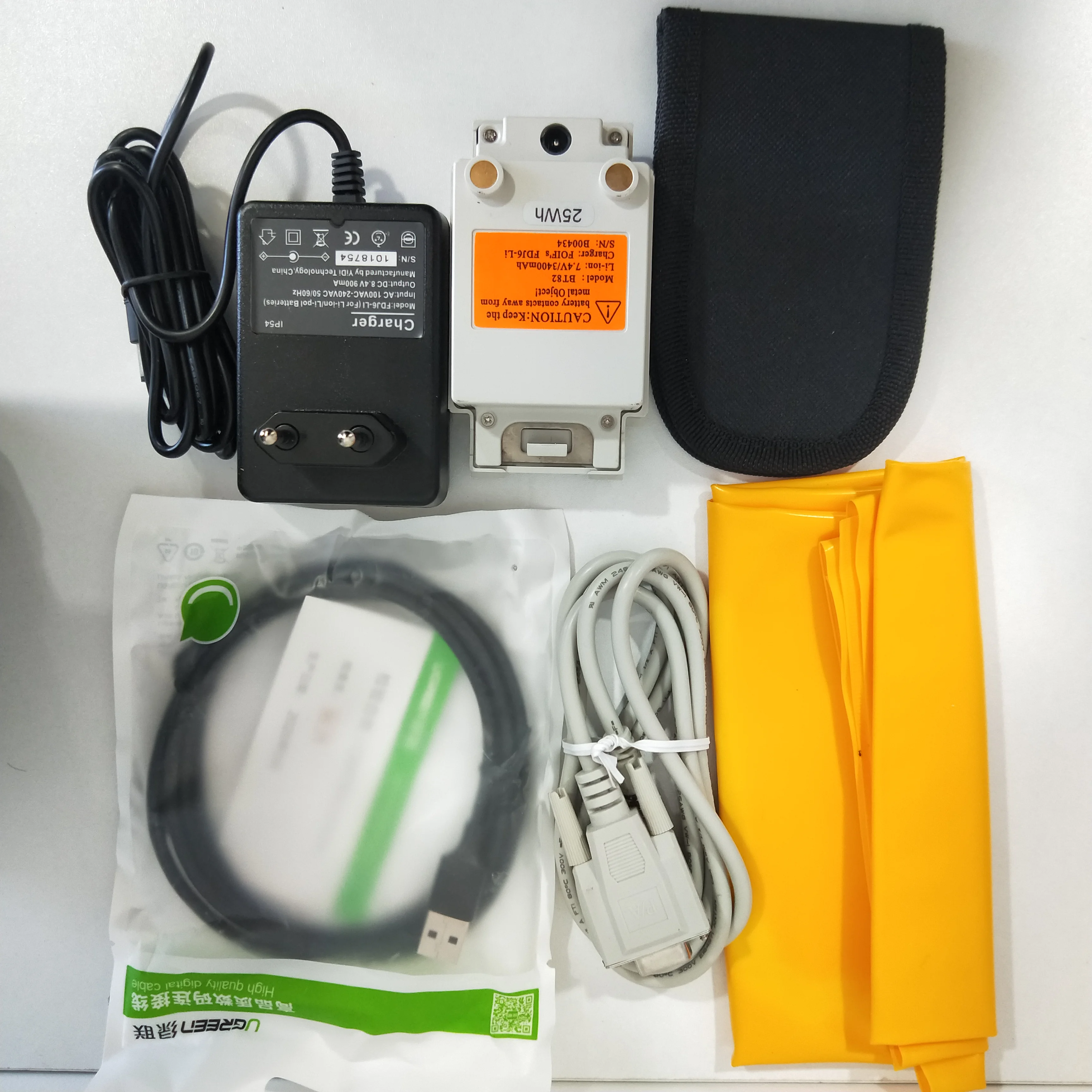

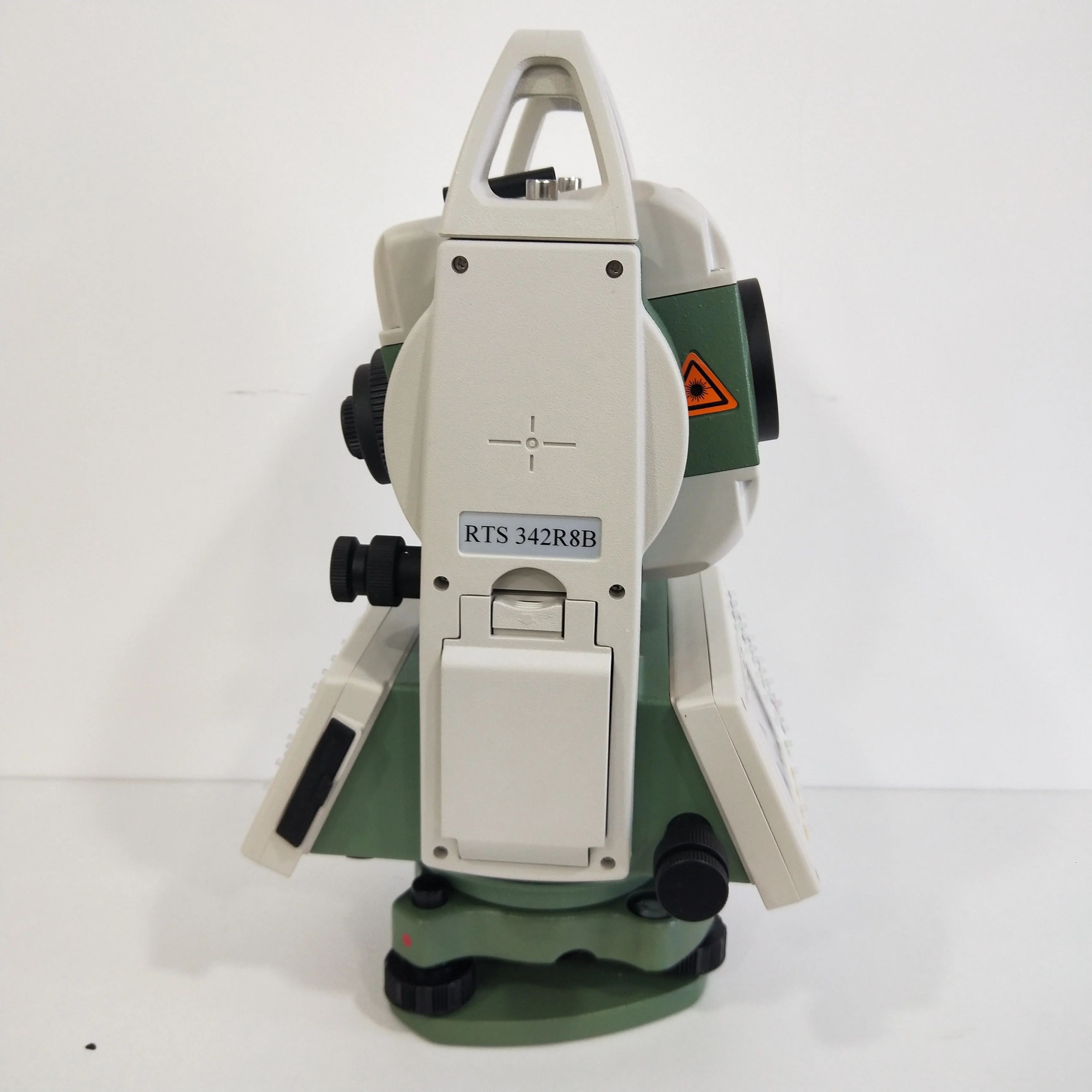

Detailed Images

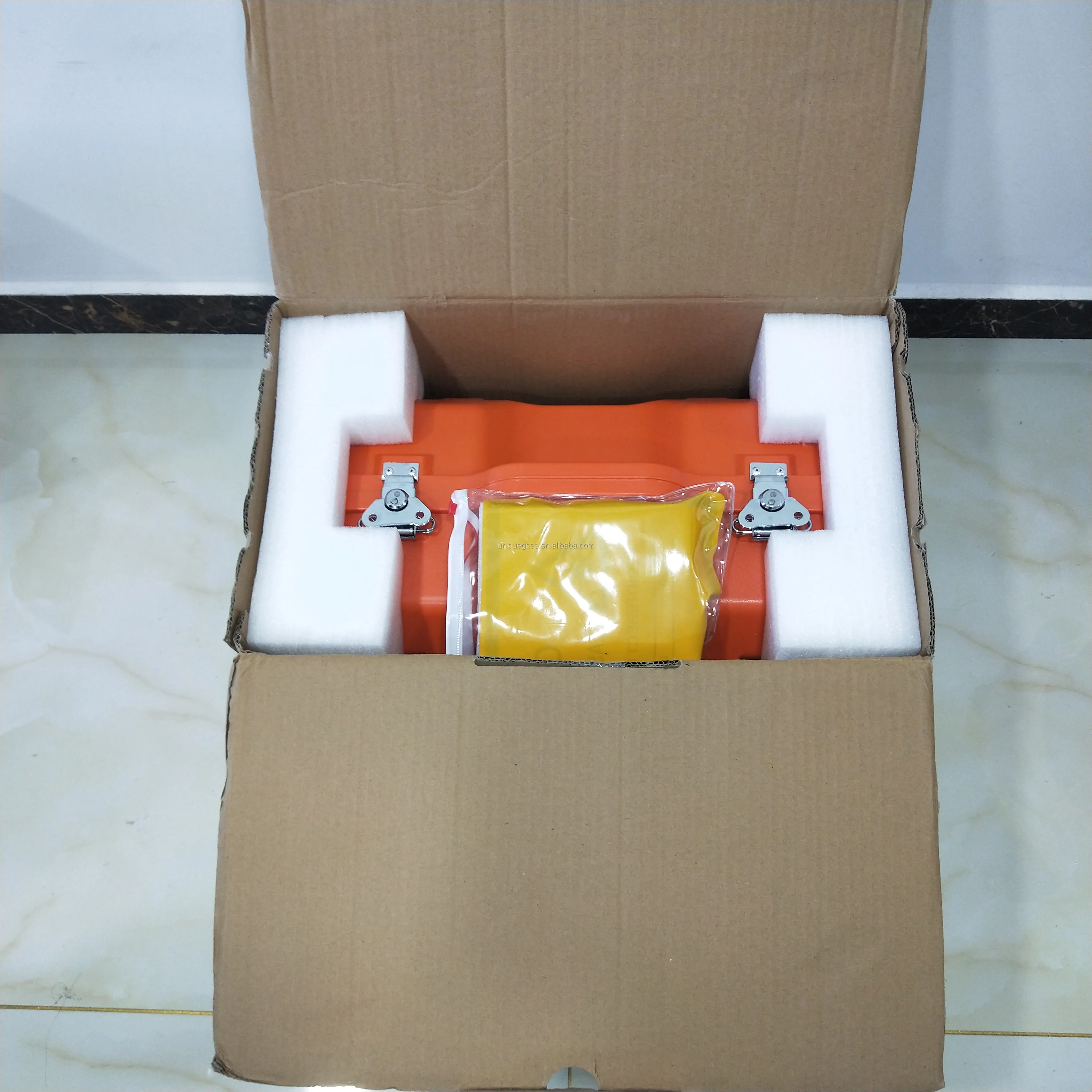

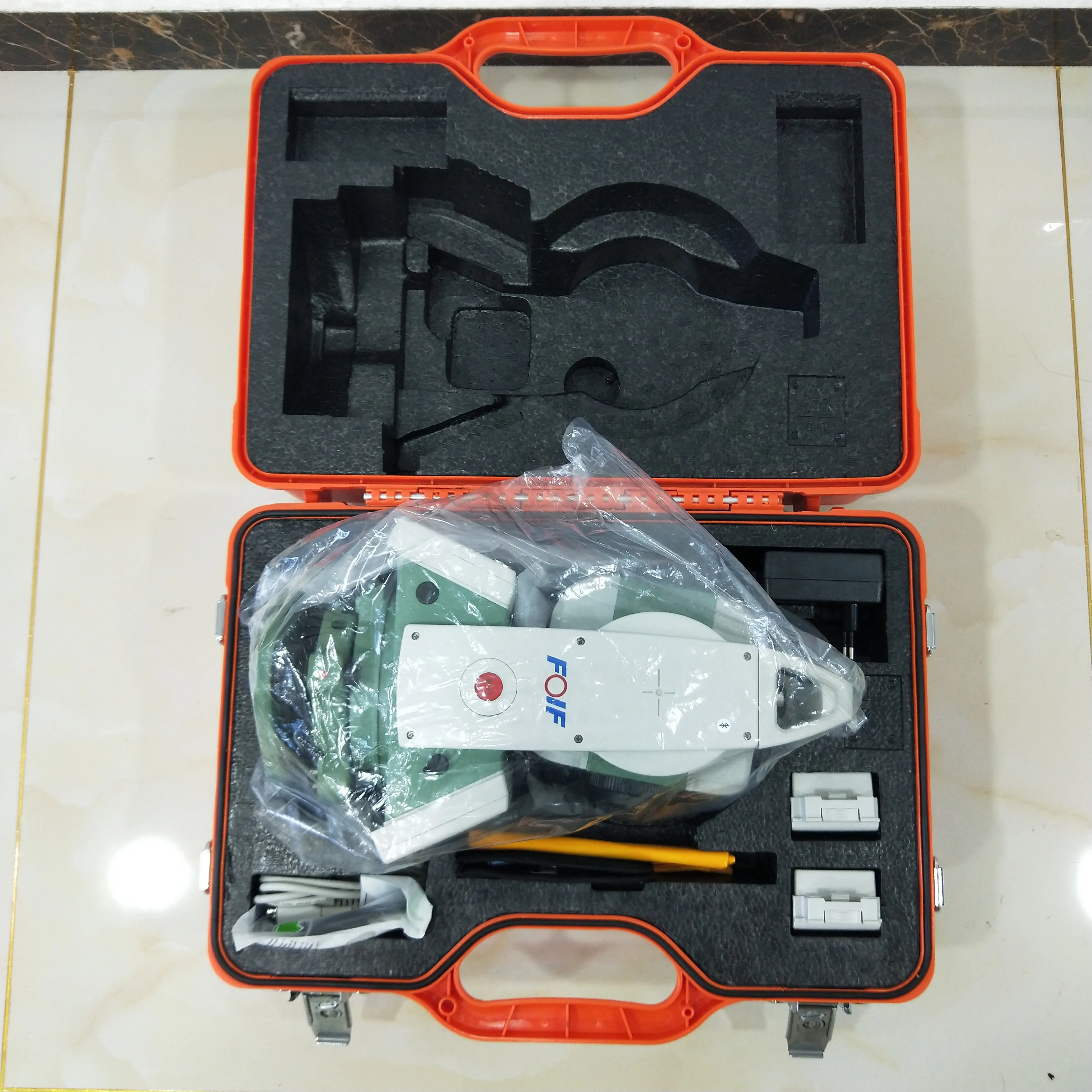

Product packaging
Specification
Technical data | RTS342/ RTS345 | |
Telescope | ||
Length/ Image | 156mm/ Erect | |
Objective aperture | 45mm | |
Magnification/Resolution | 30x/ 3.75” | |
Field of view | 1°30’ | |
Shortest focus distance | 1.0m | |
Angle measurement | ||
Reading systerm | Absolute encoder (Diameter detecting) | |
Angle unit | 360°/400gon/6400mil, selectable | |
Display resolution | 1”/5”/10”(or 0.2/1/2mgon) | |
Accuracy* | 2” | |
Distance measurement (R800) | ||
Display resolution(m/inch selectable) | 0.1mm/1mm | |
Laser class Prism | Class 1 | |
Reflectorless/Reflective sheet | Class 3R | |
Measurement range (Good condition)* | ||
Reflectorless* | 1 to 800m | |
Reflective sheet/ RP60 | 1 to 800m | |
Single prism | 1 to 5000m | |
Accuracy | ||
Prism | 2mm+2ppm | |
Reflective sheet/ RP60 | 3mm+2ppm | |
Reflectorless | 1-200m: 3mm+2ppm/≥200m: 5mm+3ppm | |
Measuring time | Initial: 2s | |
Prism | typ.1.0-1.5s | |
Reflective sheet/ RP60 | typ.1.5s | |
Reflectorless | typ.1.5-5s, max.20s | |
Level vial sensitivity | 30"/2mm | |
Plate level vial | 8"/2mm | |
Circular level vial | Dual-axis compensator | |
Compensator | ±3" | |
Working range | 1" | |
Setting accuracy | ||
Laser plummet(Standard)*4 | ||
Accuracy | ±1mm/1.5m | |
Laser class | Class 2/IEC60825-1 | |
Laser brightness | Adjustable | |
Laser wave length | 635nm | |
H&V drive | Clamps for RTS340series | |
Display | Colour QVGA screen（240×320dots） | |
Power | ||
Battery | 3400mAh Li-ion Rechargeable | |
Output voltage | 7.4VDC | |
Continuous operation time (single distance measurement every 30 seconds) | OVER 8hours | |
Charger | FDJ6-LI(100V-240V) | |
Chargering time (at+20) | Approx.4hours | |
Application progarms | ||
Data collection/Stake out/Resection/REM/MLM AREA/Point to line/Z coordinate/OFFset/ROAD/Tranverse | ||
Others | ||
CPU | 32Bit | |
Memory | 4G internal memory(SD extendable,hot-plug supported) | |
Sensors | Built-in temperature and pressure sensors | |
Keyboard | Alphanumerucal keyboard on both sides,LED backlight | |
Weight(including batteries) | 7.0kg | |
Operating temperature | －20℃to+50℃ | |
Storage temperature | －40℃to+70℃ | |
Interface | USB/RS-232C/Bluetooth(Optional) | |
Water and dust protection | IP55(IEC60529) | |
Data collector | F52G or PS236,fully rugged PDA (Optional) | |
