Портативный мини грузовик с захватом, электрический грузовик, стрела Davit

Product Overview

Description

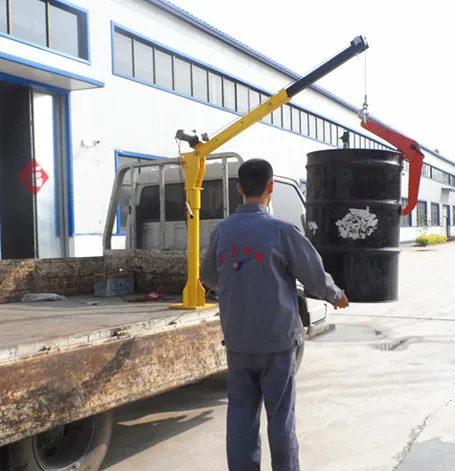

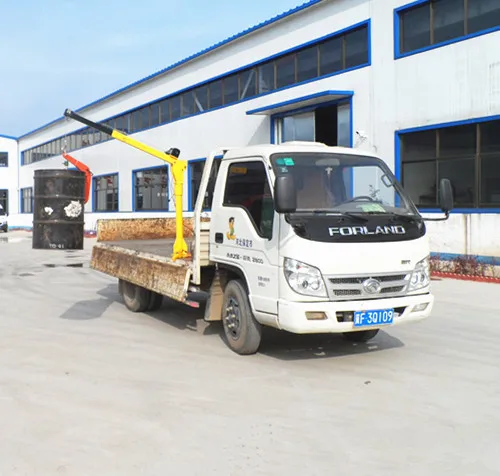

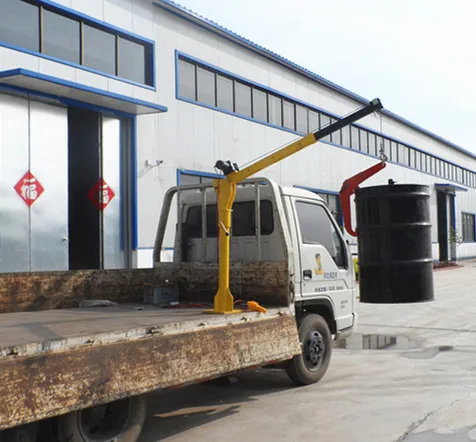

Portable Mini Truck Mounted Pickup Electric Truck Davit Jib Crane

Rated loading capacity: 500kg
Rated lifting moment: loading capacity
Max. lifting Height:1.5m
Span:1.5m Brand
Certification:CE/ISO9001:2008/pvoc/SGS
Operation way: electric operation or manual operation
Specification: flexible rotation arm/up-down looking degree regulation
Rotation way: 360 ° manual operation
arm Length of steel wire: 4.5m-15m
Loading weight: Single rope for 300kg double rope for 500kg
Lifting speed: 3m-4 m/min
Highest size of the lifting arm: 1950mm
Longest size of the lifting arm: 1500mm
Diameter of steel wire: 5.0mm
Power source: 3000lb battery direct current 12V or 24V or 1200 pound hand winch
