a. Standard with manual chuck b. Open or closed hydraulic chuck is optional
Turret
a. Adopting 4-station electrical tool post. And 6-station, 8 -station turret or gang tool post is optional.
b. The optional turret features a robust casting and large coupling face. The extra rigidity results in higer metal removal rates, extended tool life, super finished, and ensures long term accuracy.
Tailstock
a. Heavy duty type tailstock is fitted on the guide way of bed. The heavy casting, large diameter quill and precision morse taper center provide outstanding rigidity. b. hydraulic tailstock is optional.
Automatic loading and unloading
Truss type or joint type robot is optional.
Clamping
a. Hydraulic steady rest is optional.
b. Automatic bar feeder is optional.
Steady rest
a. Manual steady rest, follow rest and hydraulic steady are optional..
Specification
MODELS

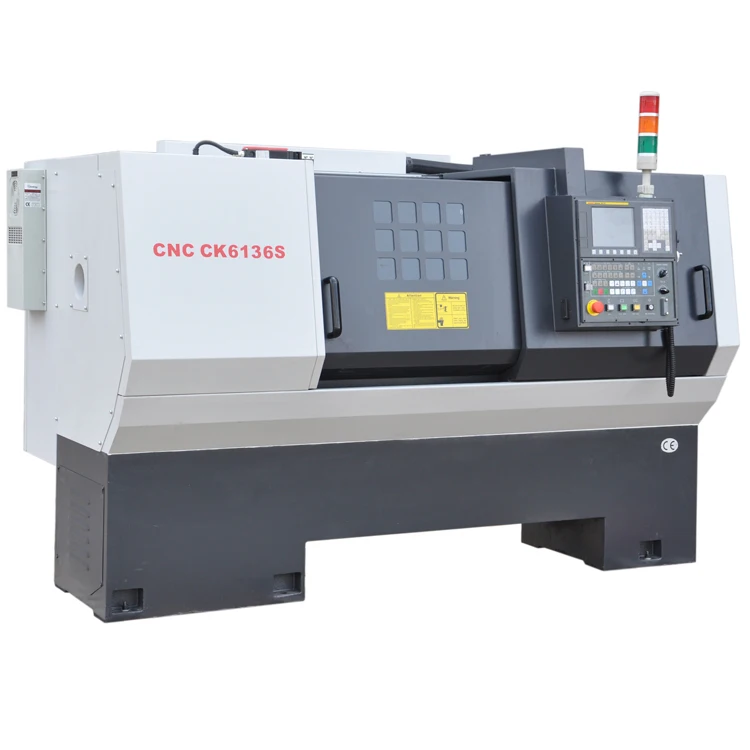

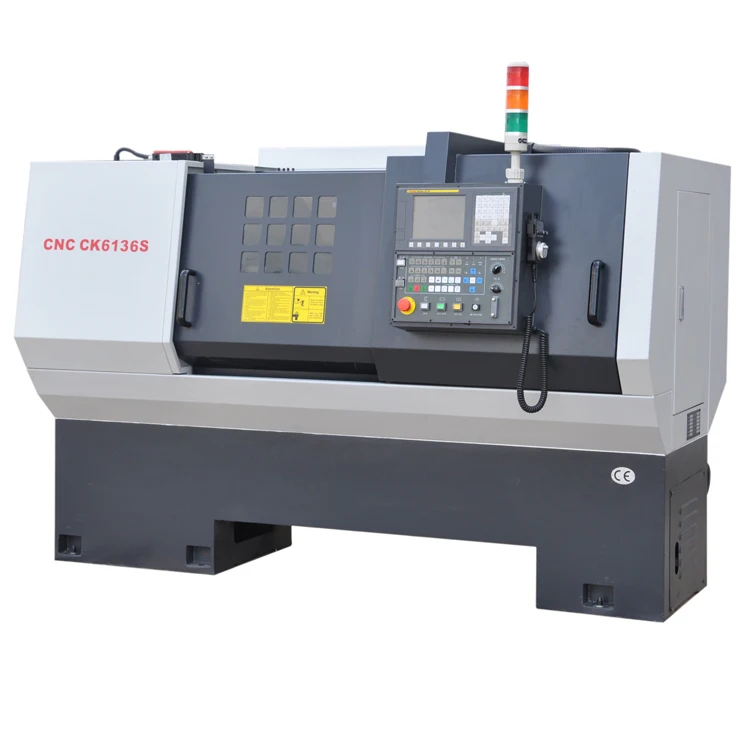

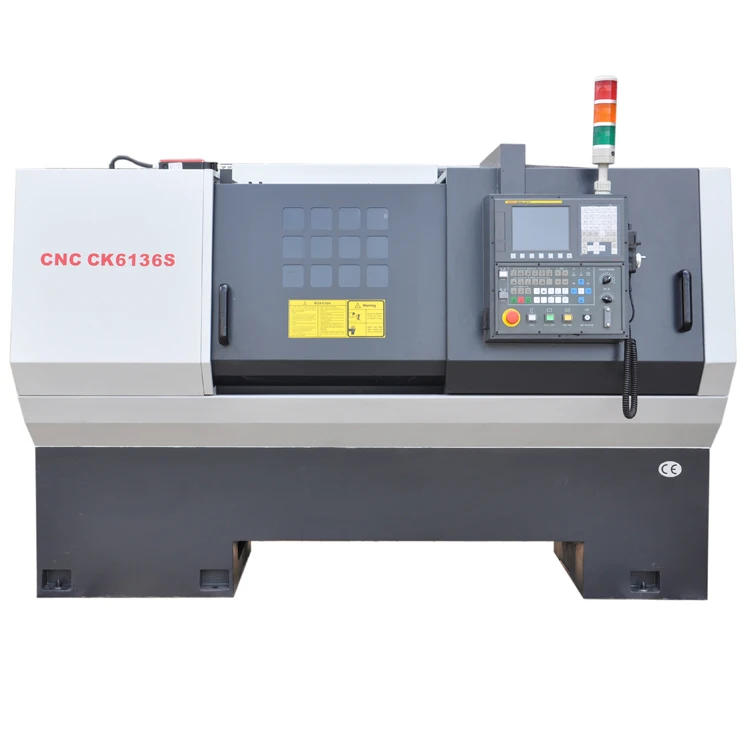

CK6136S
CK6140S
CAPACITY
Max.swing over bed
Ф360 mm
Ф400 mm
Max.swing over carriage
Ф180/Ф135(gang tool) mm
Ф225/Ф195(gang tool) mm
Max. length of workpiece
500/750/1000 mm
Max.turning length
450/700/950 mm
6-way turret max turning length
340/590/840 mm
6-way turret max turning diameter
Ф255 mm
Ф300 mm
TRAVEL
Max.cross travel(X)
215/295(gang tool) mm
235/295(gang tool) mm
Max.longitudinal travel(Z)
490/740/990 mm
FEED
Rapid feed for axis X
8 m/min
Rapid feed for axis Z
10 m/min
SPINDLE
Spindle nose
C5
C6
Spindle bore
Ф40 mm
Ф52 mm
Taper bore of spindle
M.T.NO. 5
M.T.NO. 6
Steps of spindle speed (manual)
Variable
Range of spindle speed
200~2800 rpm
TOOL POST
Tool post stations
4-station/ 6-station/ 8-station turret or gang tool
