UV Light Meter UV Irradiance Meter UV Intensity Meter with Ultra-Small Probe Sensor

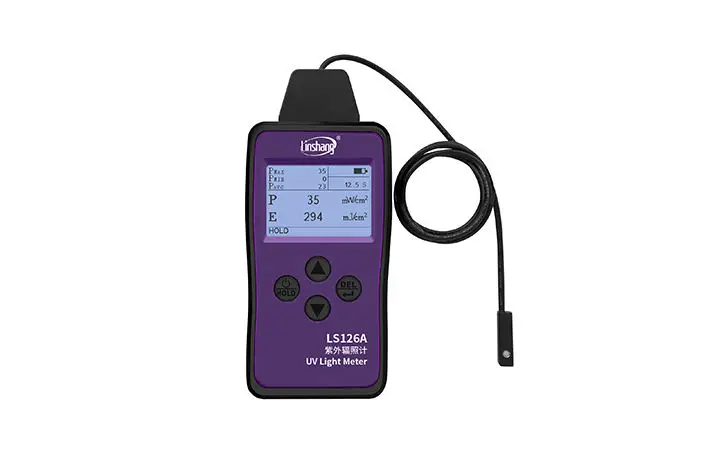

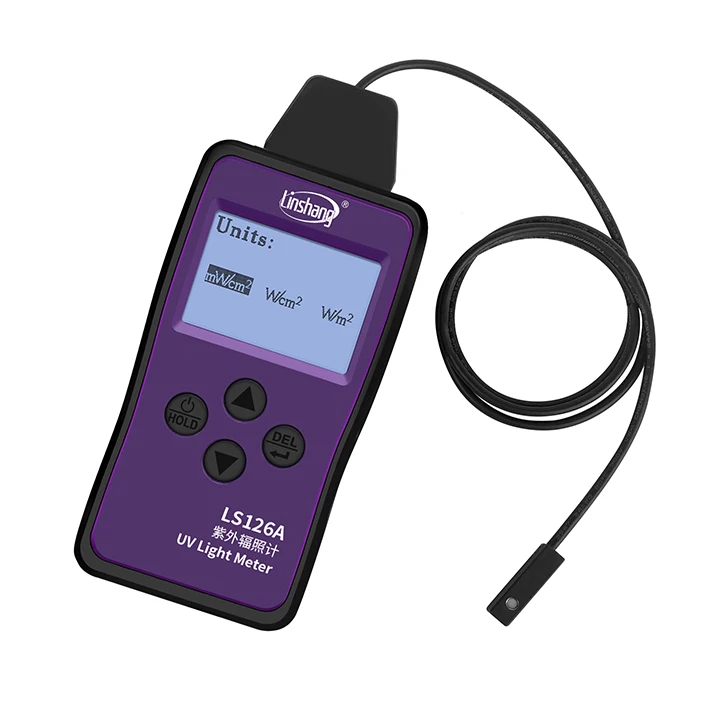

LS126A UV intensity meter is mainly used to measure the intensity and energy of UVA band ultraviolet LED light source. UVA band LED light sources are mainly 365nm, 375nm, 385nm, 395nm, 405nm and other bands. These light sources are mostly used in curing, exposure and other industries. LS126A UV light meter has a wide spectral response and can test any wavelength from 365nm to 405nm. In addition, it adopts an ultra-small probe design with a probe width of only 7.2mm, which is very suitable for measuring narrow spaces where conventional probes are difficult to place.
Features
1. High-speed acquisition, 2048 samples per second, the UV radiometer can accurately calculate UV energy.

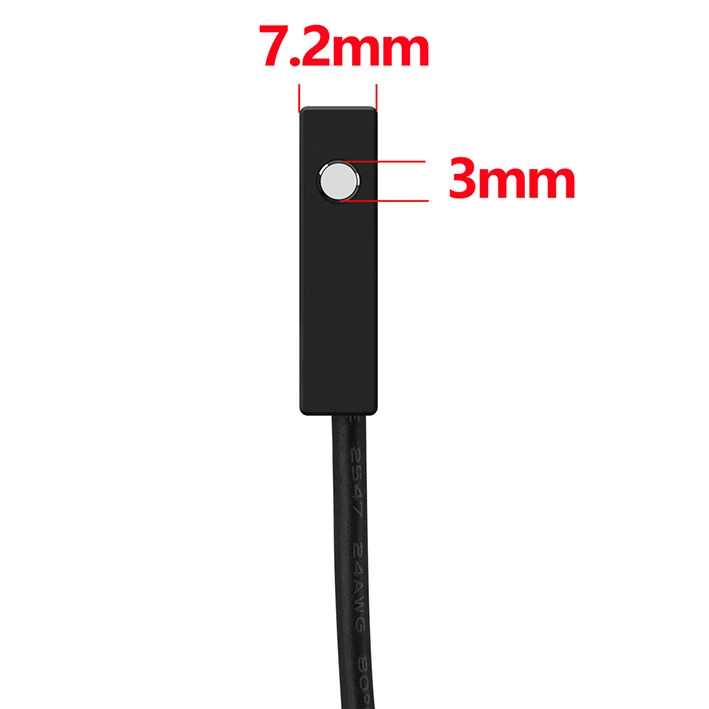

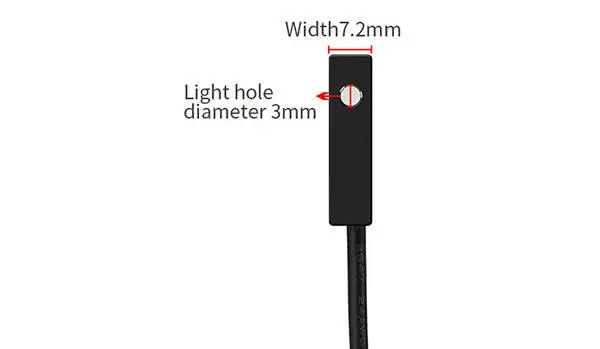

2. The UV measurement device probe adopts ultra-small size design, which can measure the narrowest width of 7.2 mm.

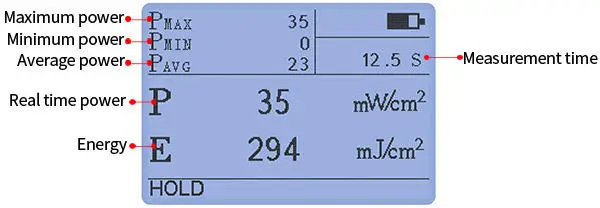

3. Data statistics function, the maximum value, minimum value, average value, and measurement time will be displayed on the interface.
4. It is suitable for the detection of the intensity and energy value of LED light sources in narrow space of 365nm, 375nm, 385nm, 395nm, 405nm and other bands.

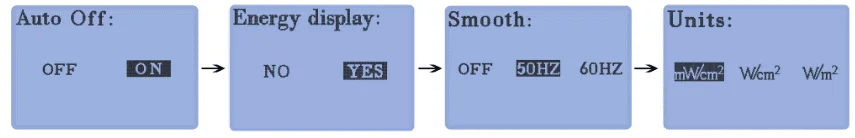

5. Long press the power button in the off state to enter into the following parameter setting interfaces. Customers can set parameters according to their needs.
Product Paramenters
Parameters | LS126A UV Light Meter |
Spectral response | 340nm-420nm, calibrated with 395nm UV LED light source |
Power measuring range | 0 - 20000 mW/cm² |
Resolution | 1 mW/cm² |
Energy measuring range | 0-9999999mJ/cm2 |
Record time | 0-99999s |
Accuracy | ±10 % |
Sampling speed | 2048 times/second |
Optional unit | mW/cm²(default), W/cm², W/m² |
Test hole diameter | ￠=3mm |
Probe dimension | 36mm ×7.2mm ×4.7mm(L*W*H) |

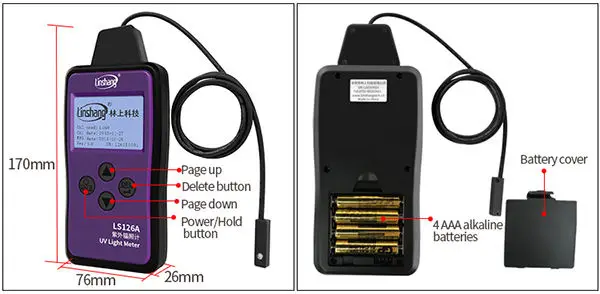

Host dimension | 170mm ×76mm×26mm (L*W*H) |
Probe wire length | 0.8m |
Weight | About 232g (with battery) |
Display | 240*160 dot matrix LCD |
Battery | 4 AAA alkaline dry batteries |
