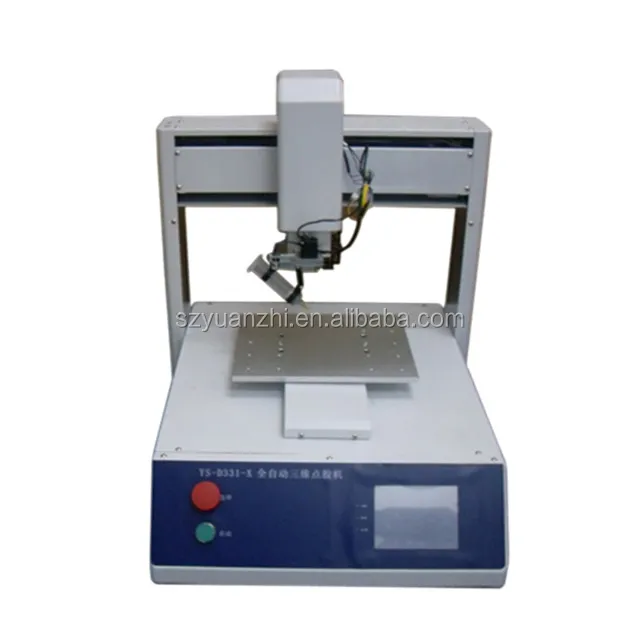

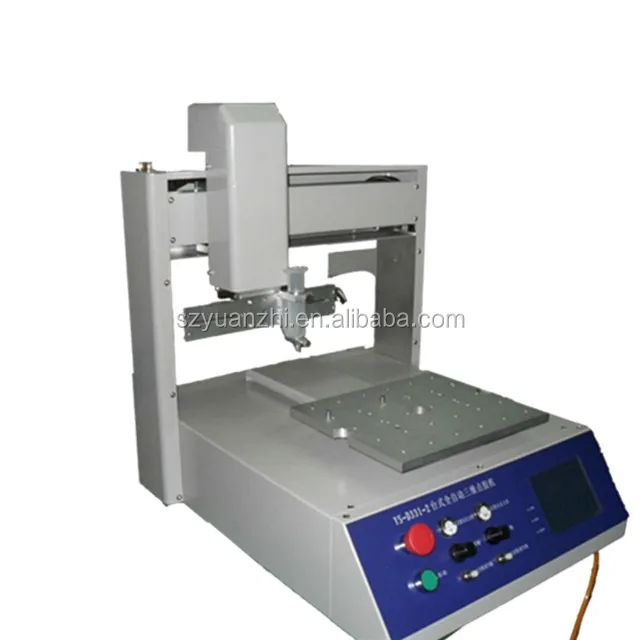

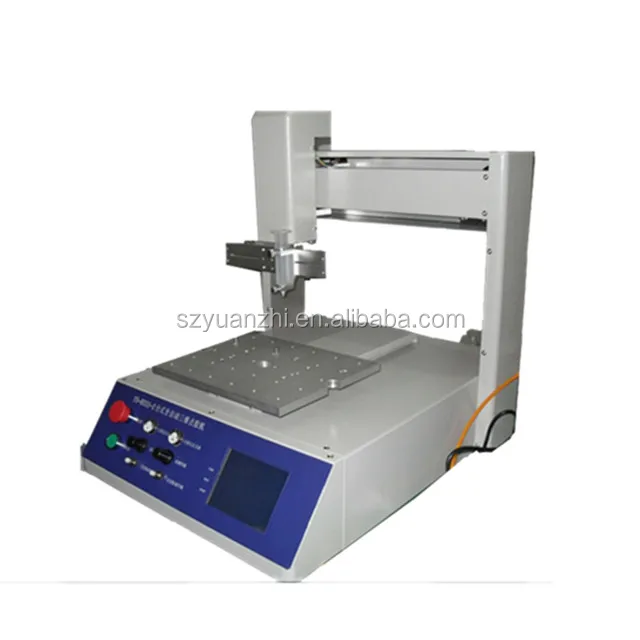

Multifunctional automatic solder paste dispenser

Product Overview

Description

epoxy resin doming machine for dome key chaine



Automatic Glue Dispenser Robot

Suitable for:

Silicone glue, hot melt glue, UV glue, AB glue, EPOXY(black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, etc.

Attention: this robot fit for kinds of glues with different viscosity.

------------------------------------------------------------------------------------------------------------------------------------------

Application

1 Electro-acoustic industry: speakers, buzzers, audio, headphones

2 Inductance industries: small transformers, SMD transformers, relays, small coil motors

3 Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax

4 Computers, digital products, digital elephant machine, MP3, MP4, electronic toys

5 Switches, connectors, wire, plug cable

6 Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screen, etc.

7 Optics: optical lenses, optical head

8 Mechanical hardware, battery box, trademark, steam machinery spare parts

9 LED industries

Usage:

Can dot, draw lines, squares, circles and all kinds of irregular graphics on the surface, on the outside wall, in the vertical plane and the gap of the products.

------------------------------------------------------------------------------------------------------------------------------------------

Features

1. Full automatic robot with 3 or 4 axes.

2. Dispensing path can be set in the robot or imported from out computer.

3. Easy operation, the holder and program easy to amend.

4. Can store multiple independent running programs.

5. High precision, the glue is well controlled.

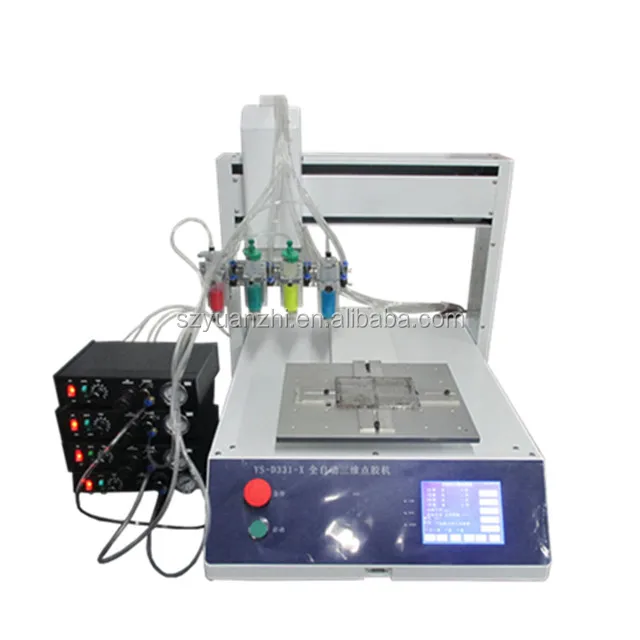

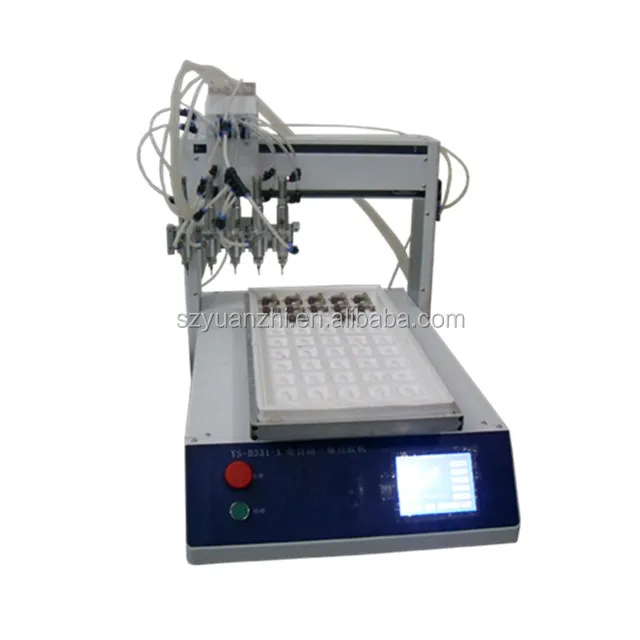

6. Can configure multiple dispensing head.

7. Wide dispensing area which can set several products.

8. The working table can be customized on request.

------------------------------------------------------------------------------------------------------------------------------------------

 Specification:

Model	YS-D331-X	YS-D441-X	YS-D551-X	YS-D461-X
Work area X/Y/Z(mm)	300/300/60	400/400/60	500/500/60	400/600/60
Max material weight	10kg
Max. speed mm/sec	Adjustable
Repeatability	+/-0.01mm
Remember date	100 units,one unit=4000 points
Disply screen	5.7 inch
Moter	Micro stepping motor/belt
Movement	Point to point / continuous line
Transmission	Belt + precision linear guide
Motion interpolation function	3 axis
Edit input	Touch screen or computer input/can work with computer
I/0 signal	16 In puts/16 Out puts
Control style	Integrated controller
Power	220V/110V, 300W
Operation temperature	5-40’C
Operate humidity	20-90%
Size	(L)670*(W)550*(H)610mm
Weight(kg)	90
