Strong carrying capacity underground Engineering dump trucks
- Category: >>>
- Supplier: Shandong Zhichuang Heavy Industry Technology Co. Ltd.
Share on (62563735328):
Product Overview
Description

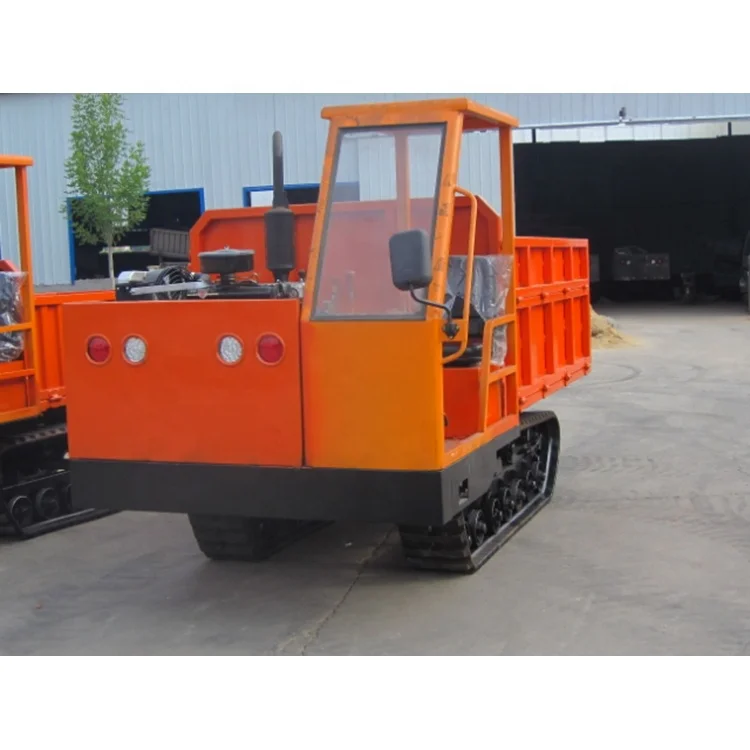

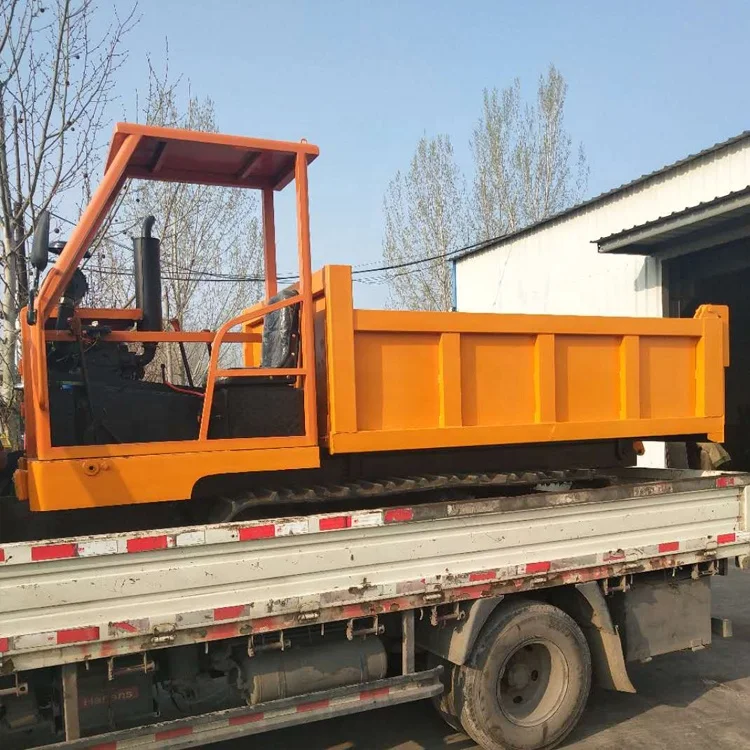

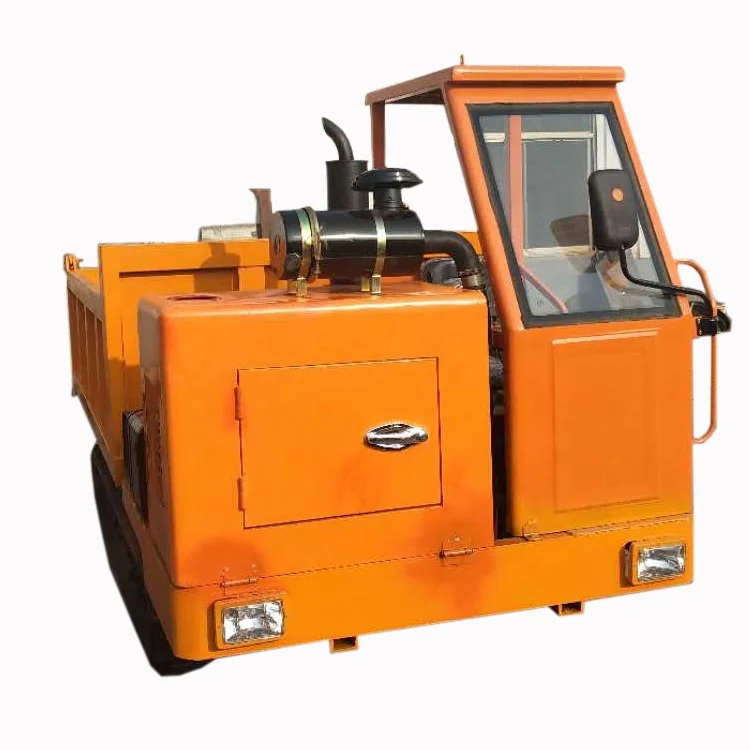

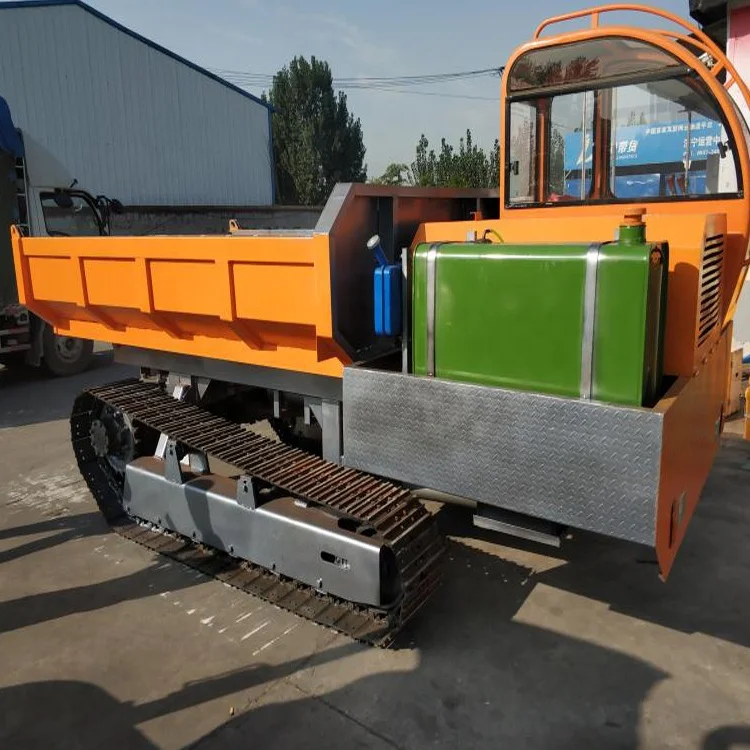

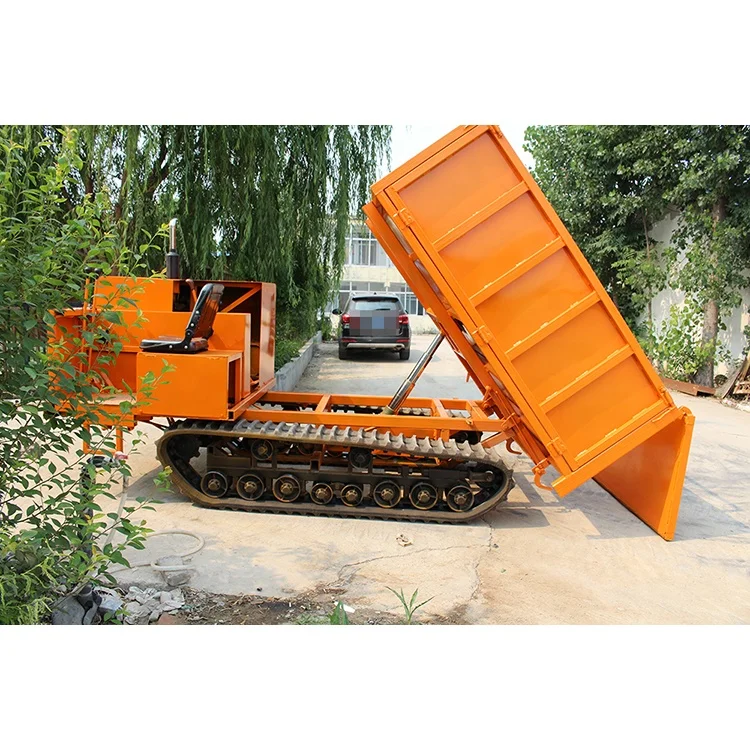

Crawler dump truck
Crawler dumper is suitable for rice paddy, swamp, muddy field road, rugged mountain road, soft grass and desert, wet ice and snow and other complex bad road conditions, and widely used in agriculture, forestry, orchard transport, freight yard transport, water conservancy construction, infrastructure projects and mining sites.
Main Features
1. Wide application range, simple structure, stable transmission, labor-saving operation, easy to realize automatic control.
2, suitable for swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice and other complex road conditions.
3. Large traction, good climbing performance and strong transportation capacity.
4. Small turning radius and flexible maneuverability, especially suitable for narrow sites, reducing the cost of road construction.
5. Equipped with electric start, centralized handle and easy operation.
Parameters:
unit | 1T | 2T | 3T | 4T | 5T | |||||
Weight | kg | 1600 | 1900 | 2500 | 3000 | 3500 | ||||
Loading weight | kg | 1000 | 2000 | 3000 | 4000 | 4000 | ||||
Maximum climbing | ° | 30 | 30 | 30 | 30 | 30 | ||||
Overall dimension | mm | 3500*1600*1850 | 3550*1600*1850 | 3600*1650*1850 | 3700*1750*1850 | 3850*1850*1850 | ||||
Bucket dimensions | mm | 1900*1500*400 | 2000*1600*400 | 2000*1650*400 | 2200*1750*600 | 2350*1850*600 | ||||
Width of track shoe | mm | 350 | 350 | 400 | 320 | 320 | ||||
Length of track shoe | mm | 4100 | 4500 | 4900 | 5000 | 5000 | ||||
Center distance between wheels | mm | 1600 | 1600 | 1600 | 1600 | 1600 | ||||
Crawler type | Agricultural track | Engineering track | ||||||||
Engine | CHANGCHAI | CHANGCHAI/QUANCHAI | CHANGCHAI/QUANCHAI | WEICHAI4105 | WEICHAI4105 | |||||
Number of engine cylinders | piece | 1 | 1 | 2 | 4 | 4 | ||||
Power | HP | 12 | 32 | 45 | 82.2 | 98.64 | ||||
Engine power | kw | 9 | 23 | 33 | 60 | 72 | ||||
Dump function | Dump (rear tipping / skidding) | |||||||||
walking speed | km/h | 0-10 | 0-15 | 0-20 | 0-20 | 0-20 | ||||
Number of supporting wheel | 8 | 10 | 12 | 12 | 12 | |||||
Diesel oil tank capacity | L | 15 | 20 | 25 | 30L | 30L | ||||
Hydraulic tank capacity | L | 3 | 5 | 5 | 7 | 7 | ||||
Battery specifications | 12V 45Ah 2 pieces | 12V 60Ah 2 pieces | 12V 80Ah 2 pieces | 12V 105Ah 2 pieces | 12V 105Ah 2 pieces | |||||
Drive mode | Mechanical transmission / hydraulic drive | |||||||||
Cab | Optional | Optional | Optional | Optional | Optional | |||||
Agricultural dump truck
Agricultural dump truck is a kind of engineering truck which has been widely used in modern society. This kind of truck has very good performance. It selects high quality materials and integrates unique design, so it can play a very good performance when it is used.
Main Features
1.The body adopts normal riveting steel frame, which is more ductile than traditional channel steel welded frame.
2.The key components of this machine adopt international famous brand product.
3.Torque converter and transmission to increase the reliability of the whole machine.
4.The structure components are made of high-strength and low-alloy steel plate with high strength and small deformation.
6 tons rear drive | 6 tons four-wheel drive | |
Engine model | Xichai 490 engine 50 hp | Xichai 490 engine 50 hp |
Transmission model | Wanliyang 530 rear high and low speed | Shangkun 145 gearbox transfer case |
Axle model | Front 1069 | 2040 steering drive front axle (Wanteng) |
Rear 1069 | Rear1069 | |
Car size | 2.8*1.6*0.6 | 3*1.65*0.6 |
Car plate | Bottom 8 sides 6 | Bottom 8 sides 6 |
Tire model | 750-16 rear double wheels | 750-16rear double wheels |
Frame model | 180*60*6 | 180*60*6 |
Hydraulic cylinder model | 115*900 | 115*900 |
Braking method | Air brake | Air brake |
Turn way | Hydraulic steering | Hydraulic steering |
Exhaust treatment | Water treatment | Water treatment |
Driving style | Driving left | Driving left |
Cab | Simple ceiling | Simple ceiling |
Vehicle size | 4.3*1.85*1.6（L*W*H） | 4.6*1.65*1.55（L*W*H） |
Man-machine height | 1.8m | 1.8m |
Gearing | Gear line | Gear line |
Mining dump truck
Mining dump trucks are widely used in off-highway outdoor sites, such as large open pit mines, water conservancy projects, dump trucks for transporting coal mines, metal mines and sands tones. It is often combined with excavators, loaders and other construction machinery to finish the loading, unloading and the complete transportation working lines.
Mining dump truck is the perfect choice for underground Mining transportation. It has been expertly designed for reliable and durable in small-to-medium mining and construction operations. It has good performance for extreme environment and narrow space, with loading capacities from 6 tonnes to 16 tonnes.
Mining dump truck
1.Strong carrying capacity, large climbing ability, simple operation, easy maintenance.
2.Adopting advanced world famous brand components in gear parts and operation parts.
3.Simple structure, easy in installation and low maintenance.
4.The specific size can be customized according to requirements.
Parameters:
6 tons rear drive | 6 tons four-wheel drive | |
Standard | Mine safety standard | Mine safety standard |
Engine model | Xichai 490 naturally aspirated engine 63 horsepower | Xichai 490 naturally aspirated engine 63 horsepower |
Transmission model | Wanliyang 530 rear high and low speed | Shang Hao 145 gearbox transfer case |
Axle model | front axle 1069 | front axle 2040 |
Rear axle 1069 | Rear axle 1069 | |
Car size | 2.8*1.65*0.55 | 3*1.65*0.6 |
Car steel plate | bottom 8 sides 6 | bottom 8 sides 6 |
Tire model | 700-16 mine line tire (after two wheels) | 700-16 mine line tire (after two wheels) |
Frame model | 140*60*8 | 180*60*6 |
Spring plate model | front 10 back 12+6 70m*10mm | front 10 back 12+6 70m*10mm |
Hydraulic cylinder model | 115*900 | 115*900 |
Braking method | Air brake | Air brake |
Steering mode | hydraulic steering steering | hydraulic steering steering |
Exhaust treatment | Water | Water |
Driving style | left | left |
Cab | simple ceiling | simple ceiling |
Vehicle size | 4.4*1.65*1.55(length * width * height) | 4.4*1.65*1.55(length * width * height) |
Man-machine height | 1.8M | 1.8M |
Hanging type | Line gear | Line gear |
Packing & Shipping
Standard packing (Wooden case) or Customized packaging according to customer needs.
Company Profile
Shandong Zhichuang Heavy Industry Technology Co., Ltd. located in Jining City, Shandong Province. The company sets R & D , production, sales in one. mainly produces construction machinery, municipal machinery, and exploration machinery.
Construction machinery mainly includes pile driver, pile planter, spiral ground pile driver, drive mining vehicle , mining dump truck, crawler type truck, truck-mounted excavator, truck-mounted crane, wheel washing machine, etc.
Municipal machinery mainly includes truck-mounted road blowers, hedge trimmers, leaf suction machine, asphalt spreaders, and resistance pumps
Exploration machinery mainly includes backpack rigs, core sample rigs, etc.
Shandong Zhichuang Heavy Industry Technology Co., Ltd. focuses on product development and improvement, attaches importance to innovators and product designers, and adjusts production according to the different requirements of customers. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially in the Middle East, Africa and South America. Our products enjoy a good reputation among our customers. welcome friends from all over the world to contact us and seek cooperation for mutual benefits.
