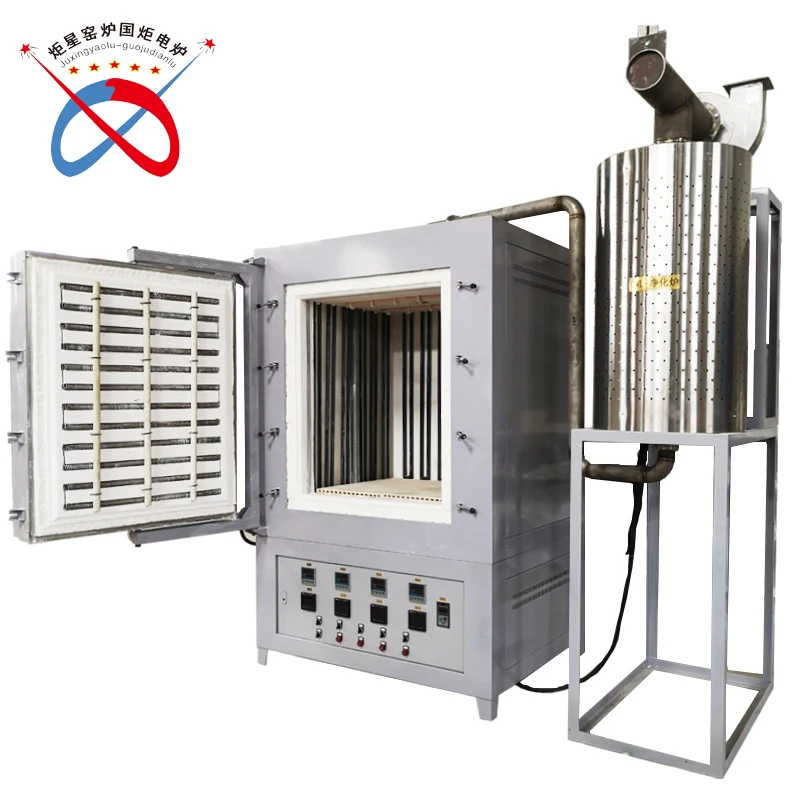

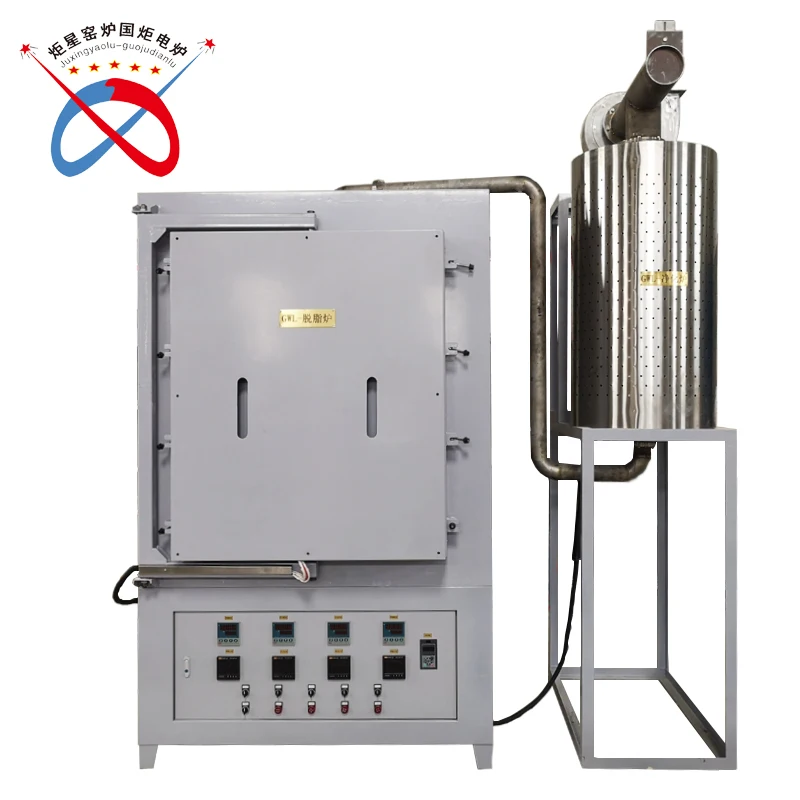

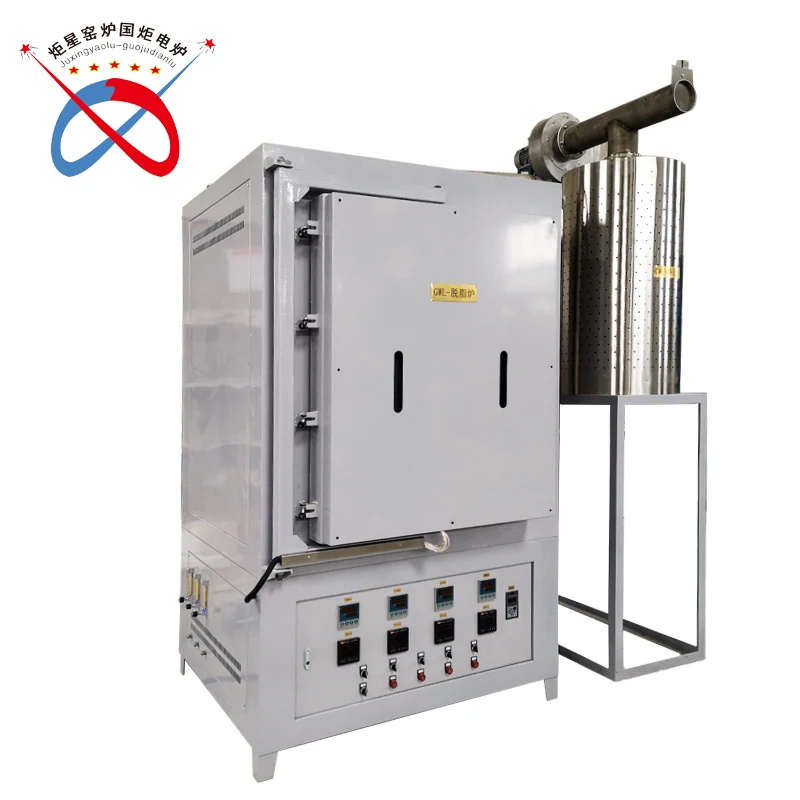

Metal forging degreasing treatment and heat treatment electric Degreasing furnace
- Category: >>>
- Supplier: Luoyang Juxing Kiln Co. Ltd.
Share on (62563735335):
Product Overview
Description
Product Description
Product Name | Box type degreasing furnace + exhaust purification furnace |
Heating Method | Electric resistance type |
Package | Composite wood packaging (fumigation free), or other wooden export packaging. Ensure the safety of the goods. |
Abstract
Degreasing furnace is a kind of mechanical equipment which uses heating method to make the grease on the workpiece surface volatilize and burn away.By combining with the exhaust gas purification furnace, the exhaust gas produced when degreasing can be purified, thus protecting the environment.After the degreasing treatment of the object can be dedicated to the next process.
Principle
Heating on five sides (furnace door and resistance wire at the bottom, silicon carbon rod on both sides and the back), three sets of independent temperature control appliances, one set of furnace door, one set of furnace bottom on both sides and one set of rear.The inlet is at the bottom of the furnace and the inlet flow can be adjusted by a valve.
Performance Feature

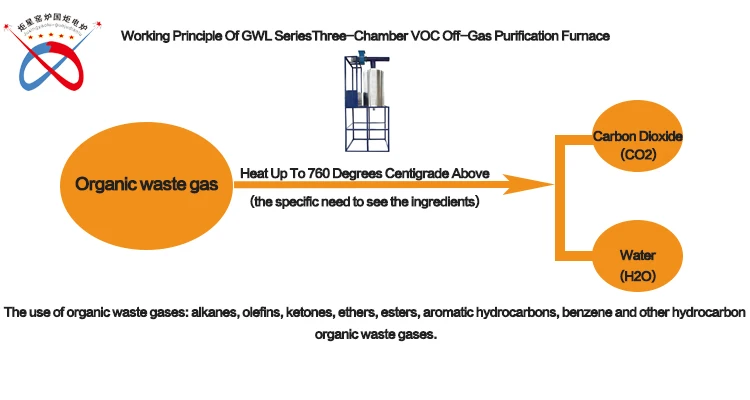

It can deal with almost all waste gas containing organic compounds and can deal with organic waste gas with low air volume and high concentration. The treatment of organic exhaust gas flow rate is very elastic, can adapt to organic exhaust gas composition and concentration of VOC changes, fluctuations. It is insensitive to small amounts of dust and solid particles in the exhaust gas and has the highest thermal efficiency of all thermal combustion purification methods (for 95%).

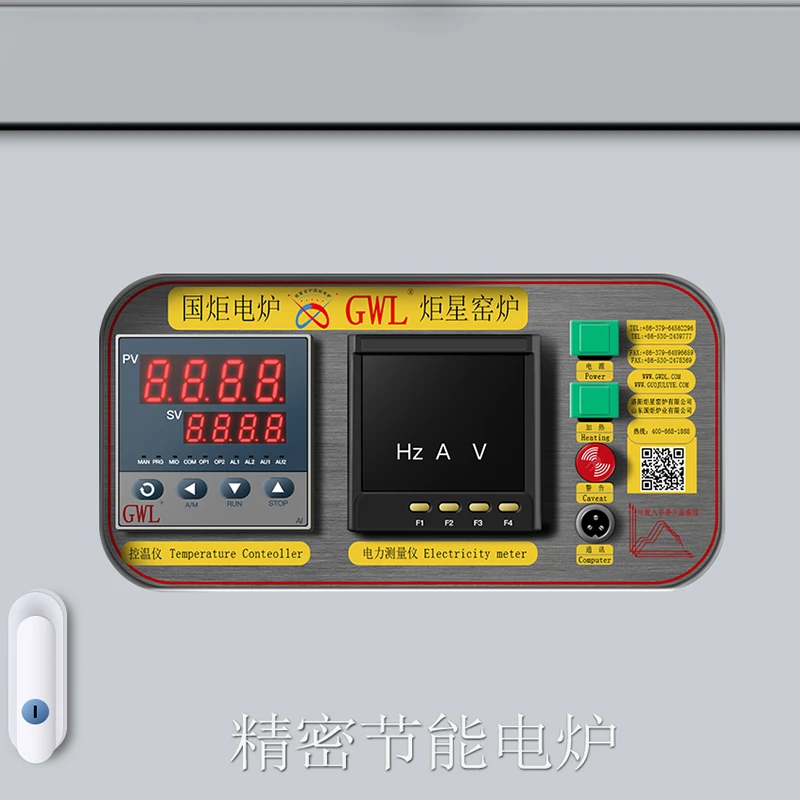

Control Panel
Adopt intelligent temperature controller, equipped with standard PID, artificial intelligence adjustment APID or MPT and other adjustment methods, with self-tuning, self-learning function, no overshoot and no underadjustment excellent control characteristics, with 30 program control function.
Chamber and heating elements
Using three layers of insulation, respectively: aluminum silicate fibreboard, aluminum oxide fibreboard, aluminum oxide (polycrystalline) fibreboard, energy-saving effect is the old-fashioned electric furnace more than 60%.Different types of heating elements are selected according to customers' temperature requirements.
Hot Air Circulation
The hot air circulation blade is made of 310S stainless steel, the highest temperature can reach 1250 ℃, the rotating motor is cooled by circulating water, and the speed is stepless regulated by the frequency converter.The hot air circulation can ensure the constant temperature field in the sintering process.
Product Usage

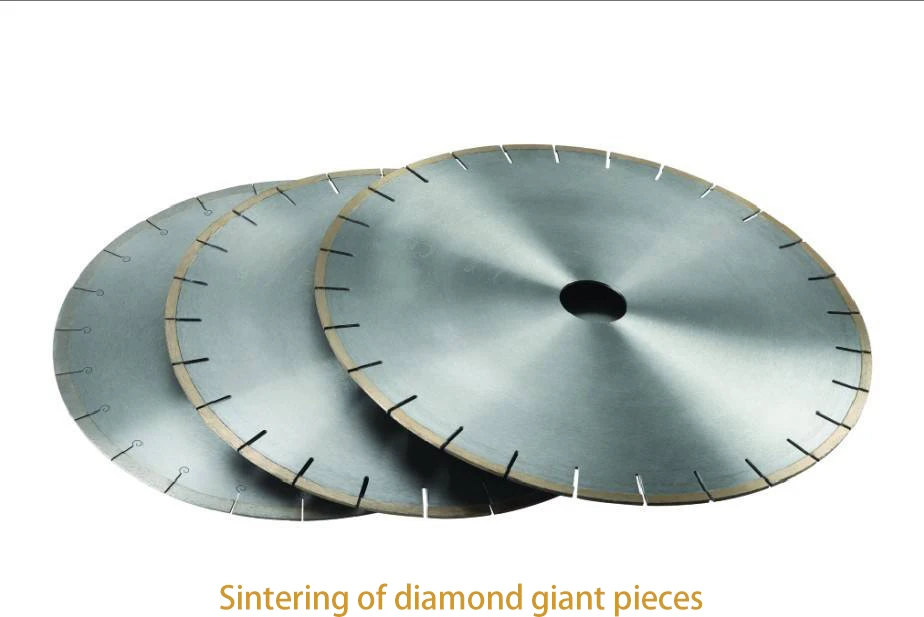

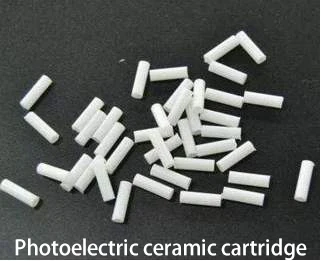

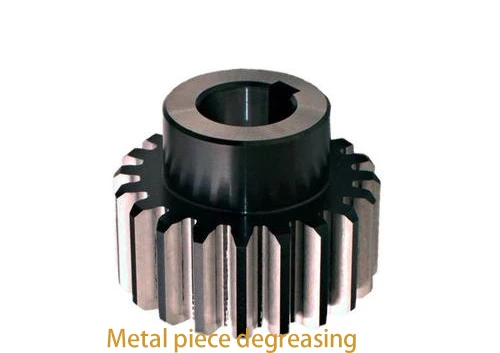

It is widely used in the sintering of ceramic powder, ceramic core and other zirconia ceramics in degreasing furnace, the sintering of diamond saw blade, and the annealing of copper and steel strip in degreasing furnace. It can also be used for high temperature sintering and heat treatment of thick film circuit, thick film resistance of degreasing furnace, electrode of electronic component of degreasing furnace, LTCC, steel heater, solar panel and other similar products.
Packing&Shipping
The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the container is too tight, we will use pe film for packing or pack it according to customers special request.
Shipment by sea, by air or by express as per customer's requirement.Our company has established a cooperative relationship with many logistics enterprises to guarantee the safe transportation of goods and the time limit.
Company Introduction
Luoyang Juxing Kiln Co., Ltd which is a manufacturing company that manufactures good & high-quality electric resistance laboratory furnaces and industrial kilns. The company provides the customized products and OEM service. The factory owns proficient skills and an updated machine. the company has passed the IOS quality management system. and some products have passed the EU CE certificate.
Our Services & Strength
Our product has widely used in ceramics, metallurgy, electronics, glass, luminescent materials, non-ferrous metals, chemical industry, machinery, refractories, new materials development, special materials, building materials, and other fields.And can be customized according to the customer's process requirements.
All kinds of electric furnaces have a high degree of automation and are at the leading level in China. They are sold to more than 20 provinces, municipalities, autonomous regions and special zones in China, national key colleges and universities, national key laboratories, Chinese Academy of Sciences, and High School Research Institute. Countries such as North America, Russia, the Philippines, and Japan. has a high reputation in the industry.
Certifications
Exhibition
Related Products
FAQ
Q: IF I NEED SPECIAL DESIGN ABOUT FURNACE CHAMBER DOES YOUR COMPANY CAN OFFER IT?
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q:IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training
about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service.And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q:IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training
about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service.And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
