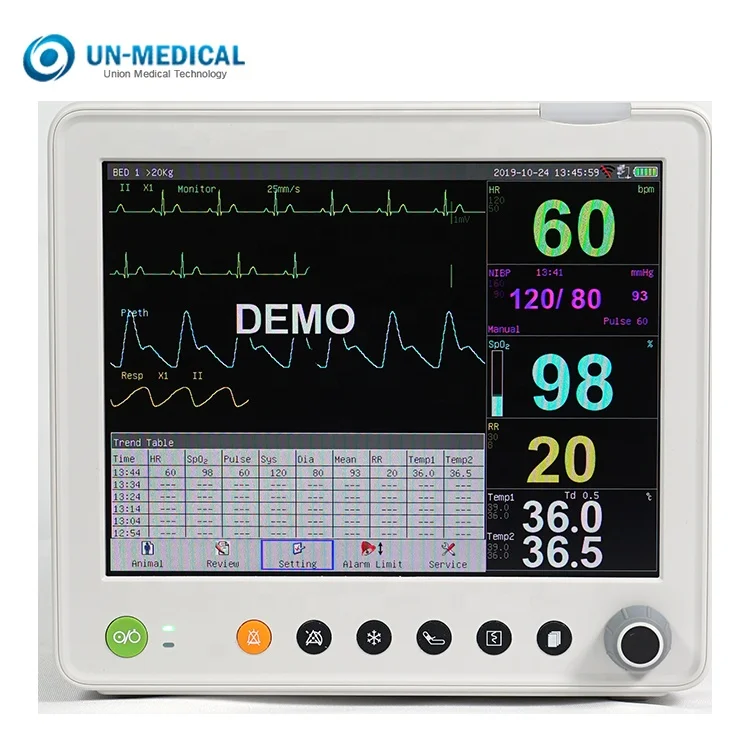

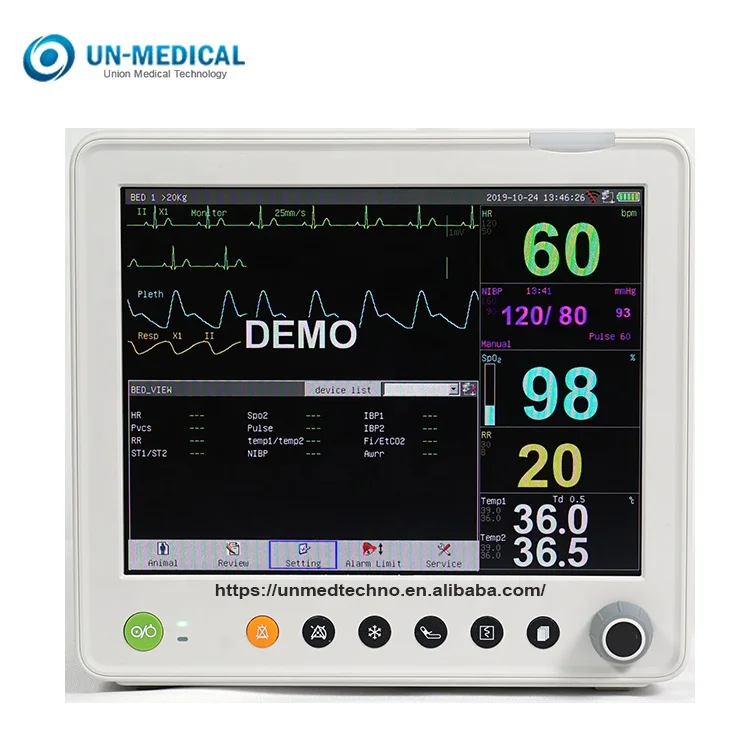

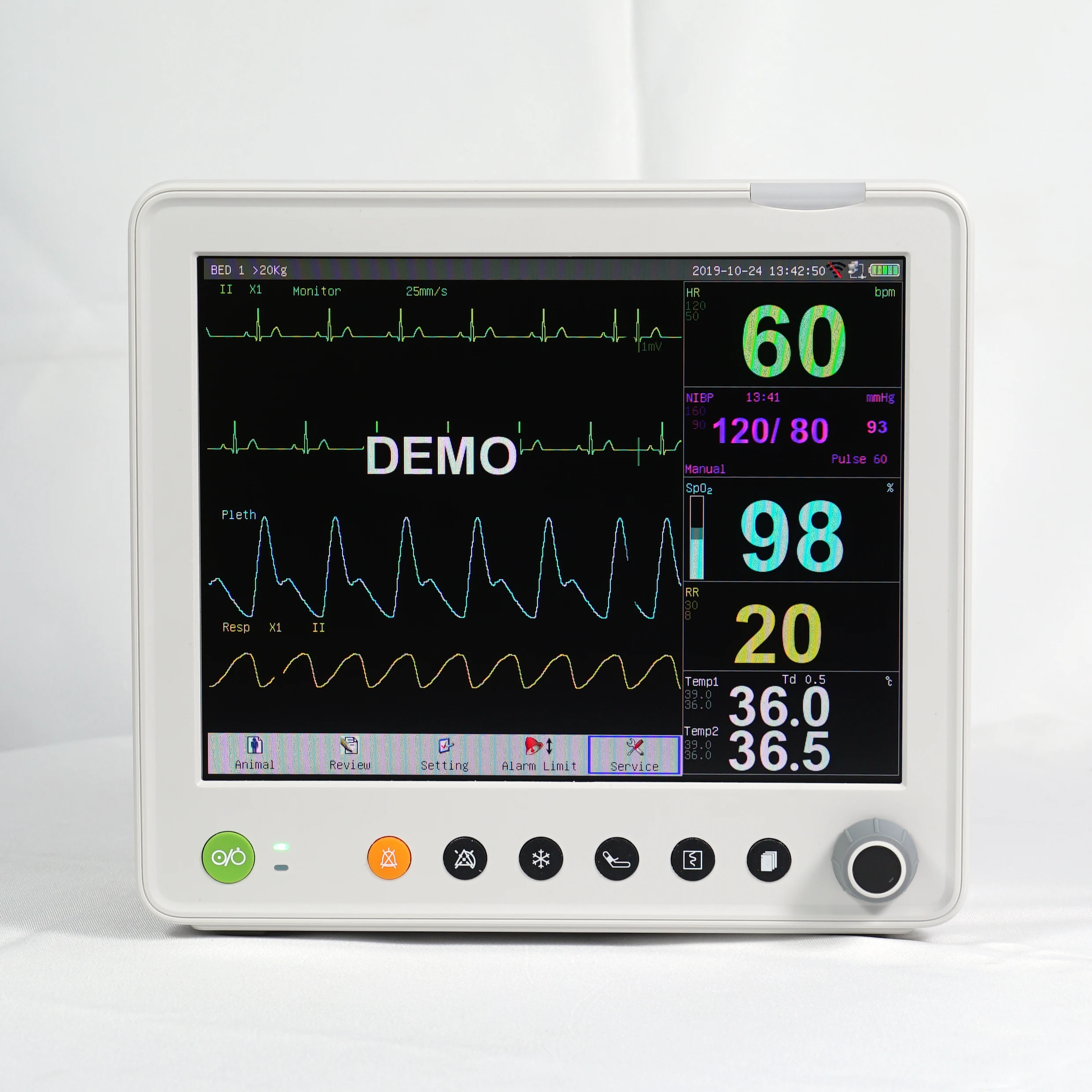

UN8000E 12 inch Medical Portable Multi Parameter Monitor machine
- Category: >>>
- Supplier: Wuhan Union Medical Technology Co. Ltd.
Share on (62563771383):
Product Overview
Description
Product Description
Features
12 inch color TFT display
ECG full lead
Unique human voice alarm
Max 720 hours graphic and tabular trends
Max 12 hours of all waveforms
Nurse Call, Analog output
Optional:recorder,2 IBP,ETCO2,Gas
ECG full lead
Unique human voice alarm
Max 720 hours graphic and tabular trends
Max 12 hours of all waveforms
Nurse Call, Analog output
Optional:recorder,2 IBP,ETCO2,Gas
ECG
1.Lead mode: I、II、III、AVR、AVL、AVF、V
2.Gain:x0.25、x0.5、x1、x2
3.Heart rate:15-300BPM(Adult) 15-350(Neonatal)
Resolution:1BPN
Accuracy:±1%
4.ST measurement Range:-2.0 ~ +2.0mV
5.Pacemaker: Yes
6. Sweep speed: 12.5mm/s
7.Bandwidth : Diagnostic 0.05~130Hz
Monitor 0.5~40Hz
Surgery 1~20Hz
Recorder(Optional)
1.Width: 48mm
2.Speed 25/50mm/s
Channels 2
1.Lead mode: I、II、III、AVR、AVL、AVF、V
2.Gain:x0.25、x0.5、x1、x2
3.Heart rate:15-300BPM(Adult) 15-350(Neonatal)
Resolution:1BPN
Accuracy:±1%
4.ST measurement Range:-2.0 ~ +2.0mV
5.Pacemaker: Yes
6. Sweep speed: 12.5mm/s
7.Bandwidth : Diagnostic 0.05~130Hz
Monitor 0.5~40Hz
Surgery 1~20Hz
SPO2
1.Measure range 0-100%
2.Rsolution 1%
3.Accuracy ±2%(70-100%)
4.Pulse Rate 20-250BPM
5.Resolution 1BPM
6.Accuracy ±3BPM
RESP
1.Measure range 0-150BrPM
2.Resolution 1BrPM
3.Accuracy 2%
TEMP
1.Measure range 0-50℃
2.Resolution 0.1℃
3.Accuracy 0.1℃
NIBP
1.Work mode: manual,mautomatic,continuous
2.Unit: mmHg, kPa
3.Measure range
Adult SYS 40-280mmHg ;DIA 10-225mmHg; MEAN 20-240mmHg
Pediatric SYS 40-220mmHg ;DIA 10-160mmHg; MEAN 20-170mmHg
Neonatal SYS 40-135mmHg ;DIA 10-100mmHg; MEAN 20-110mmHg
4.Resolution 1mmHg
5.Accuracy ±5mmHg
IBP(Optional)
1.Channels: 2
2.Measure range -50 ~ +360mmHg
3.Accuracy ±2%
CO2(Optional)
1.Measure range 0%~13%
2.Resolution 1mmHg
3.Accuracy 2mmHg@ <5.0% CO2(at ATPS)
4.AwRR 3-150bpm
IOC(Optional)
1.IoC 0~100
2.EMG 0~100
3.ESR 0~100
Multi-gas module(Optional)
Measurement range
CO2 0~10%
N2O 0-100%
Des 0~18%
Sev 0~8%
Enf,Iso,Hal 0~5%
AeRR 3~100BrPM
O2 0~100% (Optional)
1.Measure range 0-100%
2.Rsolution 1%
3.Accuracy ±2%(70-100%)
4.Pulse Rate 20-250BPM
5.Resolution 1BPM
6.Accuracy ±3BPM
RESP
1.Measure range 0-150BrPM
2.Resolution 1BrPM
3.Accuracy 2%
TEMP
1.Measure range 0-50℃
2.Resolution 0.1℃
3.Accuracy 0.1℃
NIBP
1.Work mode: manual,mautomatic,continuous
2.Unit: mmHg, kPa
3.Measure range
Adult SYS 40-280mmHg ;DIA 10-225mmHg; MEAN 20-240mmHg
Pediatric SYS 40-220mmHg ;DIA 10-160mmHg; MEAN 20-170mmHg
Neonatal SYS 40-135mmHg ;DIA 10-100mmHg; MEAN 20-110mmHg
4.Resolution 1mmHg
5.Accuracy ±5mmHg
IBP(Optional)
1.Channels: 2
2.Measure range -50 ~ +360mmHg
3.Accuracy ±2%
CO2(Optional)
1.Measure range 0%~13%
2.Resolution 1mmHg
3.Accuracy 2mmHg@ <5.0% CO2(at ATPS)
4.AwRR 3-150bpm
IOC(Optional)
1.IoC 0~100
2.EMG 0~100
3.ESR 0~100
Multi-gas module(Optional)
Measurement range
CO2 0~10%
N2O 0-100%
Des 0~18%
Sev 0~8%
Enf,Iso,Hal 0~5%
AeRR 3~100BrPM
O2 0~100% (Optional)
Recorder(Optional)
1.Width: 48mm
2.Speed 25/50mm/s
Channels 2
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
We,Wuhan Union Medical Technology CO.，Ltd,is a R&D company in patient monitoring solutions,which started in 2009 with leading engineers in China,and established in 2013.Union Medical is committed to the techniques and products of monitoring, diagnosing, supporting and treating the biological information; serving the society; improving human health.
