2 ~8°C and -10 ~ -26°C Combined Medical Refrigerator FreezerSuitable for use in scientific research, cryogenic test on special materials, blood plasma cryopreservation, low temperature resistance test on biological materials, vaccines, biological products and military products, etc. Suitable for use in research institutions, the electronic industry, the chemical industry, hospitals, the health,& disease prevention system, laboratories in colleges & universities, military enterprises, etc.

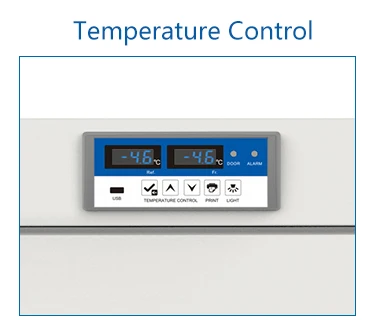

Temperature Control System
·High-precision microcomputer temperature
control system with build-in control/alarm sensors for High/low temperature, ambient temperature and evaporator temperature etc. ensuring the safe and stable running.
·1 inch high brightness digital temperature display with 0.1℃display precision; the temperature can be set freely.
Refrigeration System
· Equipped with high-efficiency compressor and nternational brand fan, ensuring energy saving and silent running.
·Two compressors and separate control
of the upper refrigeration chamber and
the lower freezing chamber.
Detailed Images

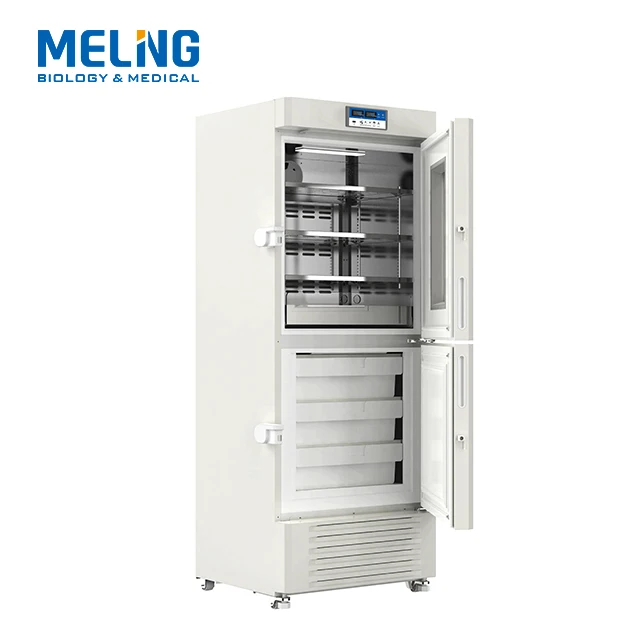

2～8°C /-10～-26°C Medical Refrigerator & Freezer
Model
YCD-EL289
Cabinet Type
Upright
Capacity(L)
289
Internal Size(W*D*H)mm
R:600*510*670，F:500*460*505
External Size(W*D*H)mm
745*650*1845
Package Size(W*D*H)mm
830*750*1945
NW/GW(Kgs)
140/162
Temperature Range
R:2～8，F:-10～-26
Ambient Temperature
16-32℃
Cooling Performance
R:4, F:-26
Climate Class
N
Controller
Microprocessor
Display
Digital display
Compressor
2pcs
Cooling method
R: Forced air cooling , F:Direct cooling
Defrost Mode
R:Automatic, F:Manual
Refrigerant
R134a
Insulation Thickness(mm)mm
R：50, F：100
External Material
Carbon steel spraying
Inner Material
304 Stainless steel
Drawer
R:3(coated steel wired shelf),F:3(ABS)
Door Lock with key
Yes
Access test port
2
Casters
4(2 caster with brake)
Door with heater
Yes
Data Logging/Interval/Recording Time
USB/Record every 10 minute / 2 years
Alarm
High/Low temperature, High ambient temperature . Power eailure,Low battery Sensor error,Door ajar,USB datalog failure, Communication failure .
Power Supply(V/HZ)
220/50, 220/60, 110/60
Rated Power(W)
295
Input Power(W)
345
Current Consumption(KWh/24h)
3.11
Rated Current(A)
2.23
Options Accessory
Printer
Related Products
Packing&Shipping
Choose high quality wood packaging, including aluminum alloy edge and metal buckle Wood packaging with ordinary wood packaging and thickened wood packaging
After Sales Service
After Sales Service
Provide after-sales and pre-sales training, invite customers to visit the factory to learn
Company Introduction
MELING BIOLOGY & MEDICAL, or Zhongke Meiling Cryogenics Co., Ltd., is a joint venture which was founded in 2002 by
Hefei Meling Co., Ltd. and Chinese Academy of Sciences. We are awarded as a national new high-tech enterprise,
engaging in life science, family health and cold chain solutions.
Our Services & Strength
The company has a research and development center of more than 5,000 square meters,a main workshop of more than 60,000 square meters, an internationally leading production line of automatic low-temperature equipment, a testing line, and a well-equipped pilot workshop and type laboratory.After 17 years of intensive cultivation in the professional field, we have built a high-quality research and development team, and obtained a number of scientific and technological innovation achievements,invention patents and utility model patented technology. Among them, "new mixed working medium throttling refrigeration technology and its application" with independent intellectual property rights won the second prize of National Technical Invention and the first prize of China Refrigeration Society.
FAQ
What method should be adopted if the freezer or refrigerator cannot be charged? Please check whether the power line is well connected. What method should be adopted if there are noises in the freezer and refrigerator? What method should be adopted if the refrigerator is thickly frosted inside? What method should be adopted if the temperature cannot reach the set point? What method should be adopted if the filter net gets dirty? What method should be adopted when the refrigeration function is abnormal？
