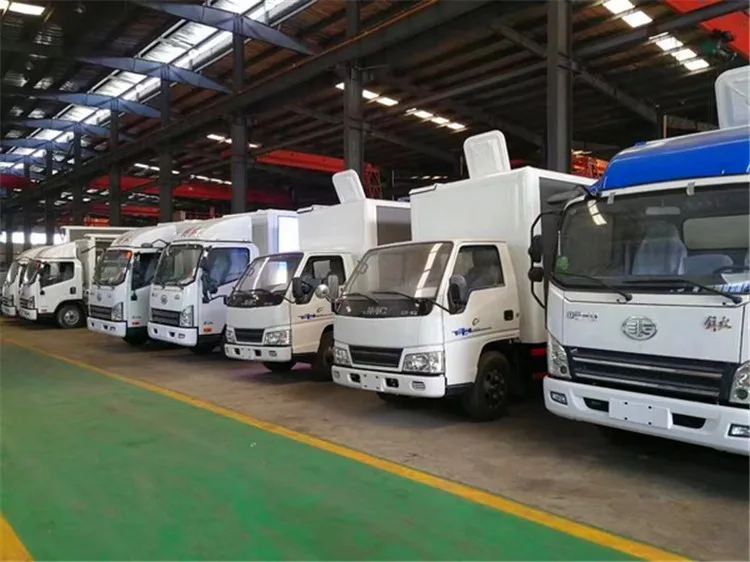

XDR Brand New LED advertising truck | ||||||
Vehicle Parameters | ||||||
General | Vehicle Model | YZR5049XXC-A2 | ||||
Vehicle Brand | XDR | |||||
Chassis Brand | FOTON | |||||
Overall Dimension(mm) | 5995*2025*3030mm | |||||
GVW/Curb Weight(kg) | 4495/4250 | |||||
Chassis Parameters | ||||||
Cab | Cab Seat | 2 | ||||
Air Conditioner | Optional | |||||
Engine | Fuel Type | diesel | ||||
Engie Model | F3.8s3141 | |||||
Engine Brand | Cummins | |||||
Emmission Standard | Euro 4 | |||||
Chassis | Drive Type | 4*2 | ||||
Wheelbase(mm) | 3600 | |||||
Tyre Specification | 7.00-16LT 8PR | |||||
Tyre No.(pcs) | 6 | |||||
Max Speed(km/h) | 99 | |||||
Leaf Spring | 3/6+7 | |||||
Axle Load | 1850/2645kg | |||||
F/R Tread | 1665/1525kg | |||||
F/R Overhang | 1095/1540mm | |||||
Super structure | ||||||
Standard equipment | 1. one side waterproof P10 or P6 LED panel | |||||
2 one computer system and one sound equipment | ||||||
3. Lifting-up1.5m system is optional | ||||||
4. 4 hydraulic legs | ||||||
5. The other side advertising light box with LED subtitle | ||||||

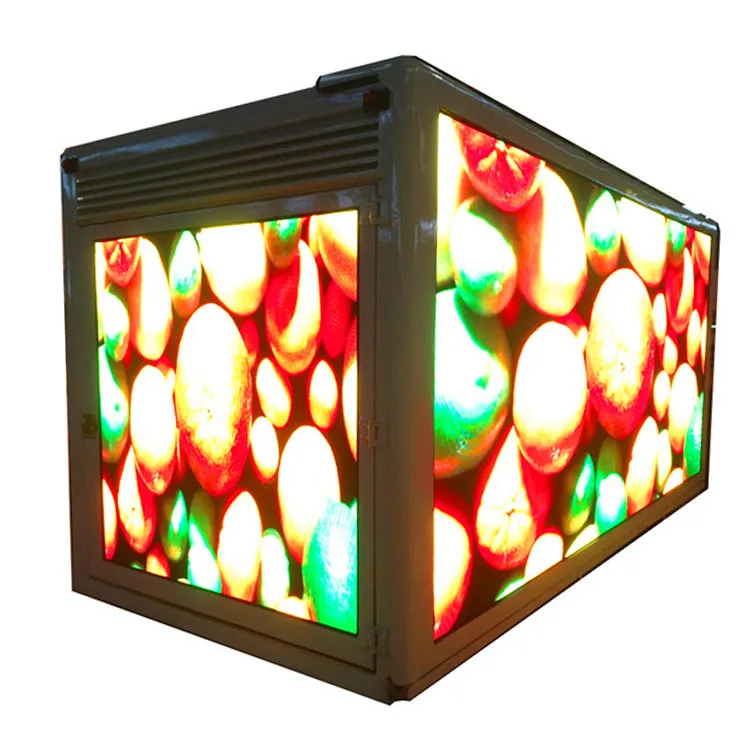

Type of Screen | Customized 1& 2& 3 sides full color LED screen, roller screen and lifting screen |
LED Screen Size (L*H) | 3840X1760 (mm) |
Led Side Screen Area | 6.8 m2 |
Screen Lift Height | 1.2 -- 1.5 m |
LED's Pixel Pitch | Optional:3/4/5/6 mm |
Roller/LED Screen Size | 3840*1460/1760 (mm) |
Rear Screen Size | 1280*1440 (mm) |

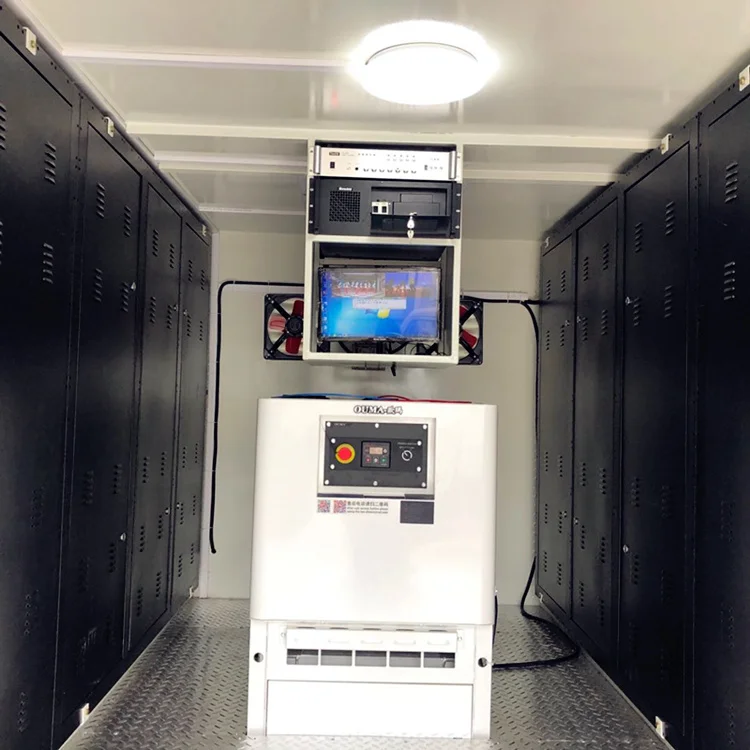

Standard Accessories | Silent generator, aluminum floors, lighting, ventilation fans, skylights, computers, stereos, amplifiers and other facilities within the body, and 220V external power connector outside the body. |
