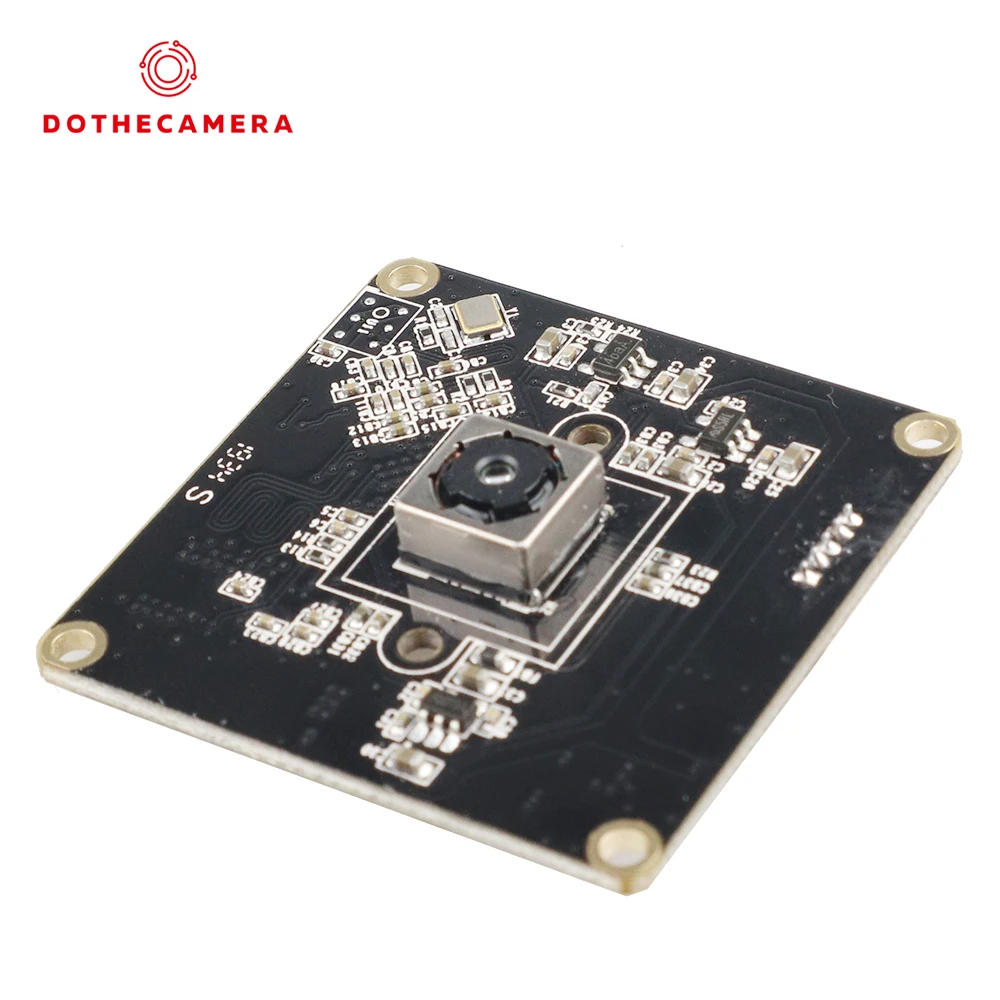

Модуль камеры 13 МП USB IMX214 датчик AF с фиксированным фокусом 38x38 мм USB2.0
- Category: Webcams >>>
- Supplier: Shenzhen Licam Technology Co. Ltd.
Share on (62564244339):
Product Overview
Description
Product Description
Module No. | WN-L189.L48-13MP | |
Module Size | 38*38mm | |
Object distance | 15CM-∞ (Adjustable) | |
Focus | Fixed Focus/ Auto Focus | |
Image quality | Colorful | |
Audio | no microphone/ 1pc microphone | |
Interface | USB 2.0/ USB3.0 | |
Voltage | DC 5V | |
Temperature (Operation) | -30°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
Operating system request | WinXP/Vista/Windows 7 (32bit/64bit)/Windows 8/Windows 10/MAC OSX EI captain 10.11.4 and Linux /Android | |
Sensor Type | ||
Sensor No. | IMX214 | |
Sercor Type | 1/3.06″ | |
Active Array Size | 4192H*3104V | |
Pixel Size | 1.12μm x 1.12μm | |
Resolution @ Frame Rate | MJPG: 4192*3104@8fps,3264×2448@10fps,2592×1944@15fps, 2048×1536@15fps,1920×1080@30fps,1280×720@30fps, 800×600@30fps, 640X480@30fps | |
Wide Dynamic Range | / | |
LENS | ||
FOV | H=77.9° | |
IR Filter | 650±10nm | |
Distortion | <1% | |
LED | ||
LED | no LEDs | |
DSP Type | ||
GC/EC/Whiter balance | Auto | |
Output Formats | YUV/MJPG | |
Main Feature

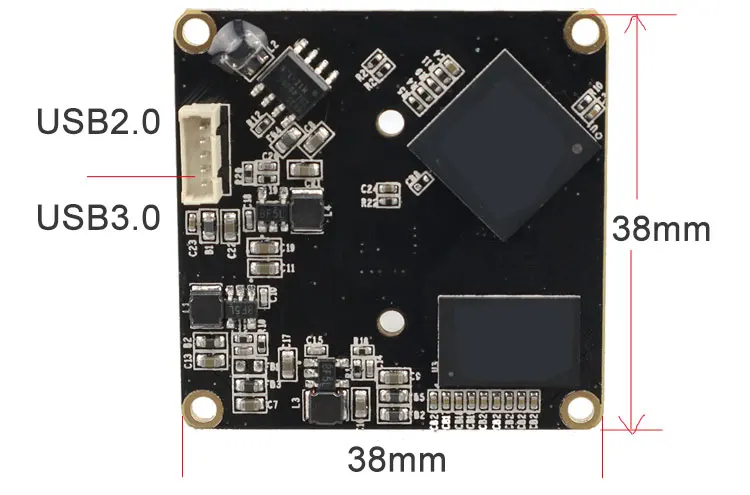

* 38*38mmn PCB Board

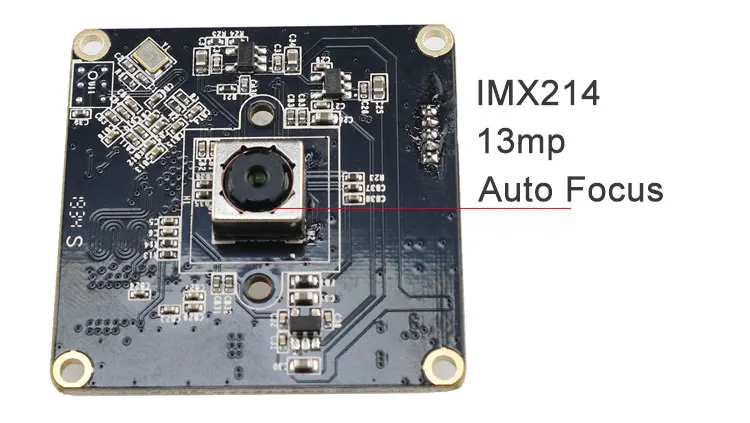

* IMX214 13mp Sony Sensor
* USB2.0 / USB3.0 5pin 1.00mm pitch
* Compatible with 2 kinds focsing method- Auto Focus and Fixed Focus.
* There’s 1pc microphone on camera module, if you don’t need it for your project, we would also remove it.
* Different FOV lens are available 60~160° HFOV, please contact us to make it happen.
* can be used for high-technology, high-end applications, such as cellphones, tablets, IOT, Robotics, Drone, Medical Machine, 3D
printing, laser and so on.
* High quality image- colorful
* UVC compliant, Plug & Play
* Support USB2.0 USB3.0 OTG
* IMX214 13mp Sony Sensor
* USB2.0 / USB3.0 5pin 1.00mm pitch
* Compatible with 2 kinds focsing method- Auto Focus and Fixed Focus.
* There’s 1pc microphone on camera module, if you don’t need it for your project, we would also remove it.
* Different FOV lens are available 60~160° HFOV, please contact us to make it happen.
* can be used for high-technology, high-end applications, such as cellphones, tablets, IOT, Robotics, Drone, Medical Machine, 3D
printing, laser and so on.
* High quality image- colorful
* UVC compliant, Plug & Play
* Support USB2.0 USB3.0 OTG
CONTACT US
Email: lis@dothecamera.com
Web: www.dothecamera.com
Mob/ Wechat/ Whatsapp: +8613662378504
Details Images
222
1pc USB Slot
We will provide 1pc 1 meter USB cable for testing.
Product Usage
Application
IMX214 Sensor
IMX214 is designed for use in cellular phones or tablet devices
Related Products
Packing&Shipping
If you have any special requirement on package, please talk with us.
Company Introduction
Dothecamera® is a start-up company rooted in the Shenzhen City, hold by Shenzhen LiCam Technology Co.,Ltd., the innovation center of P.R. China. During the recent years, our dual lens cameras has been installed in more than 10Kpcs of facial recognition devices. Our cameras have served hundreds of clients from over 15 countries with RELIABLE performance and highly-EFFECTIVE costs.
Our talented team includes professional optical engineers, software developers and electronic technicians. Our TANDARD models are capable of carrying out a broad range of detection/inspection tasks. In addition, we also offer CUSTOMIZED solutions for our clients’ specific demands.
Our talented team includes professional optical engineers, software developers and electronic technicians. Our TANDARD models are capable of carrying out a broad range of detection/inspection tasks. In addition, we also offer CUSTOMIZED solutions for our clients’ specific demands.
“Detect your World better with DoTheCamera®”
Why Choose Us
Quality Control
All cameras would be strictly according to AQL Ⅱ 0/2.5/4
Warmly welcome the 3rd party inspection company
12 months guarantee after selling
Supply Chain
Located in Shenzhen China
Complete Electronic Industry Chain
Make Personalized Customization Possible
Faster Delivery Time
Team
Our members have been in the camera industry for an average of more than 5 years.
Rich Experienced R&D team and sales team to provide you with quality service.
FAQ
1. How to buy our product?
You can buy the products from our company directly. Normally the procedure is, sign the contract, make the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 12 months from the date of commissioning qualified. During the free warranty period, if there's any fault because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best to make your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
