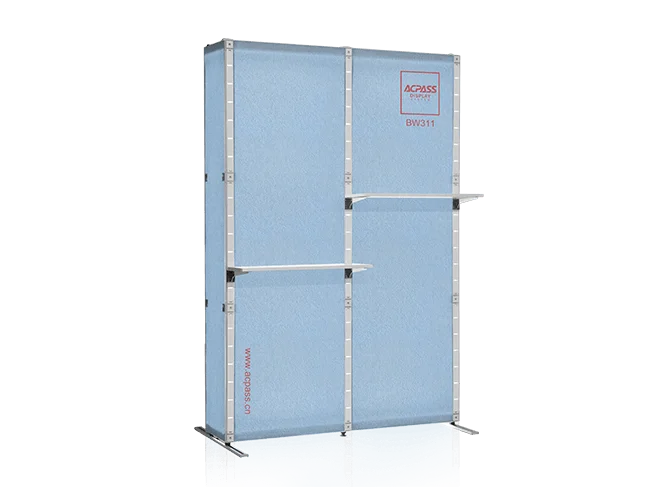

aluminum double sided SEG fabric pop up slatwall display BW311 2x3
aluminum double sided SEG fabric pop up slatwall display BW311 2x3
aluminum double sided SEG fabric pop up slatwall display BW311 2x3
aluminum double sided SEG fabric pop up slatwall display BW311 2x3
aluminum double sided SEG fabric pop up slatwall display BW311 2x3
aluminum double sided SEG fabric pop up slatwall display BW311 2x3

aluminum double sided SEG fabric pop up slatwall display BW311 2x3

Share on (62564304745):


Price:RUB 5,641.99 - RUB 23,101.63

Quantity:


Product Overview

Description





BW311-2x3

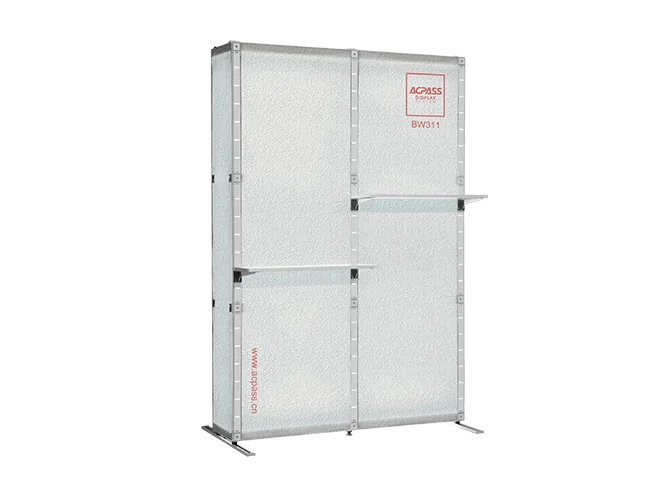

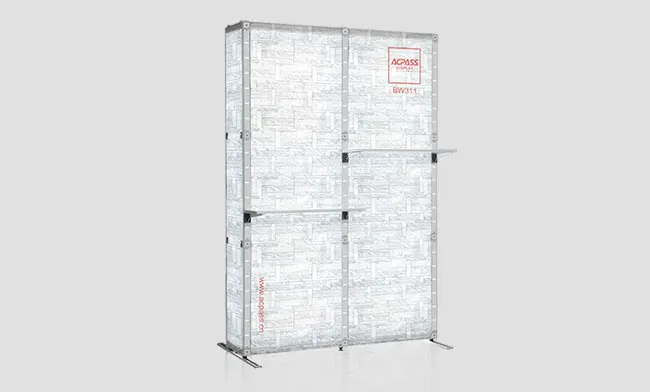

1.Lightbox slatwall BW311-2x3 is suitable for indoor tradeshow,commercial promotion.
2.The product specification is (W)1490x(D)365x(H)2245mm；58.66x14.37x88.39in.

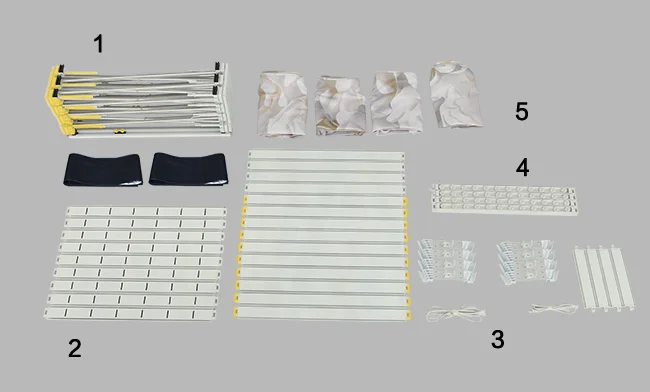

Component
1.Collapsable aluminum frame
2.Channel bar
5.Fabric graphics

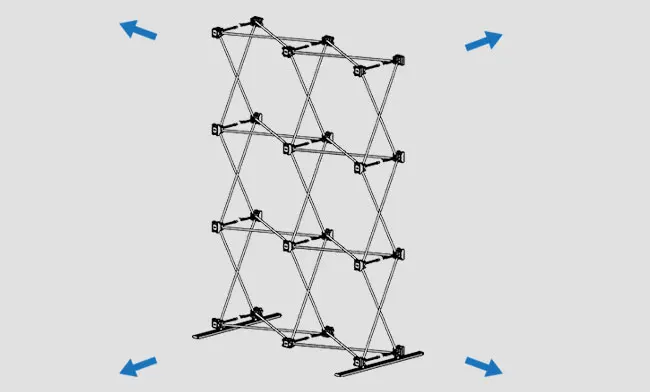

Frame
Pull out to expand the concertina frame.


Channel bar installation
1.Slide the channel bar into the slot of frame to fix whole display stand.
2.The yellow accessory is in the back.

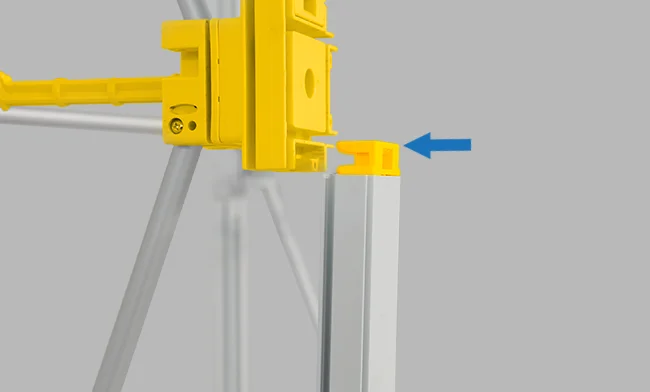

Locking arm
1.Snap the locking arm together.
2.The yellow accessory is in the back.

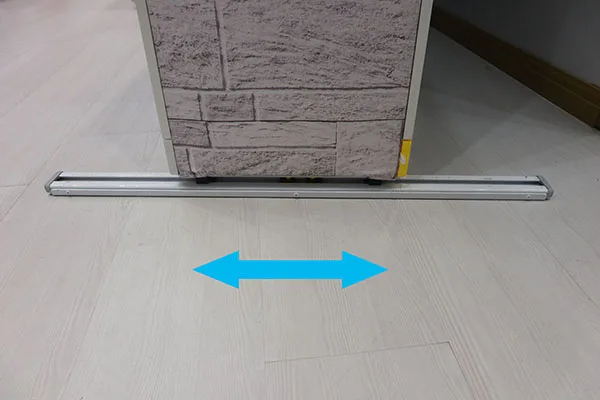

Feet
1.The feet mounted on the bottom of the frame make the entire frame more stable.The feet can slide forward or backward.
2.Size: 830(W)x55(D)x20(H)mm
3.The yellow accessory is in the back.

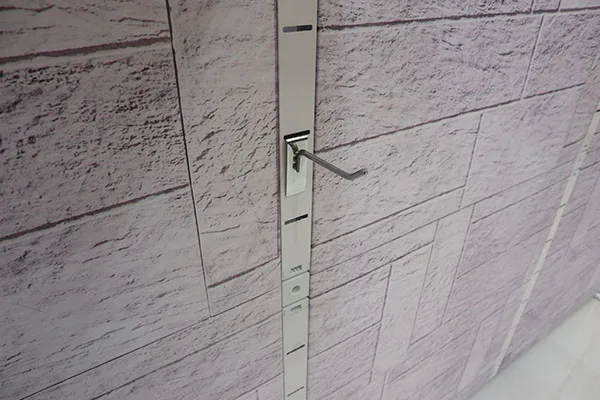

Hook
1.Exhibit your products by hanging on the metal hook.
2.Max bearing weight: 6kg

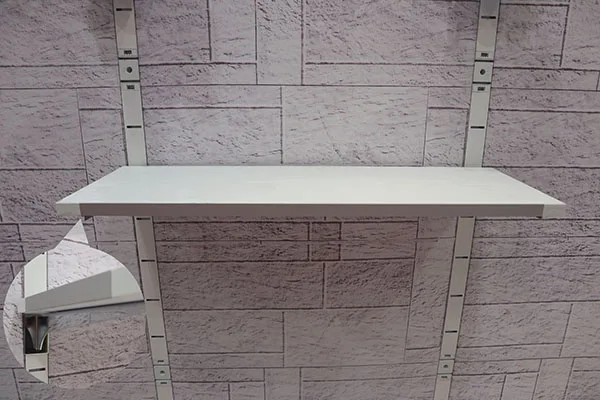

Shelf
1.Exhibit your product by putting on the rectangular shelf: 780(W)x260(D)x21(H)mm.
2.Max bearing weight: 9kg

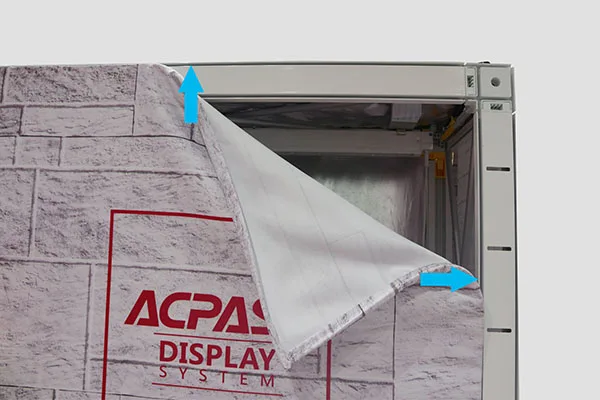

SEG graphic
1.The SEG graphic make installation more convenient.
2.The groove size for silicon strip: (W)4.3x(D)13.5mm
3.The yellow accessory is in the back.

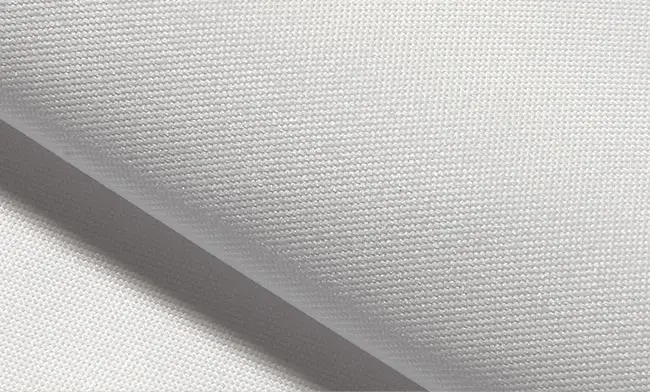

Printing
1.Graphic is printed by 6 color UV printer make it more bright-coloured.
2.Thickness:0.22mm
3.Gramage:140g/㎡

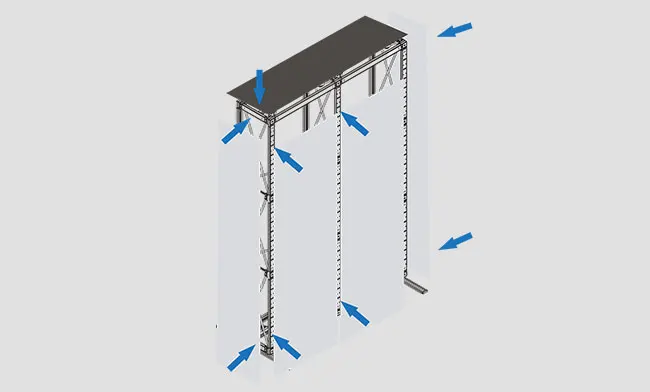

Graphic installation
The light rectangle are SEG graphics and the dark rectangle are cloth which can reflect light.



Vertical channel bar
1.Spacing between slot and end is 90mm
2.Spacing between two slots is 100mm
3.Size: 675(W)x50(D)x20(H)mm
4.Slot: 31x5mm

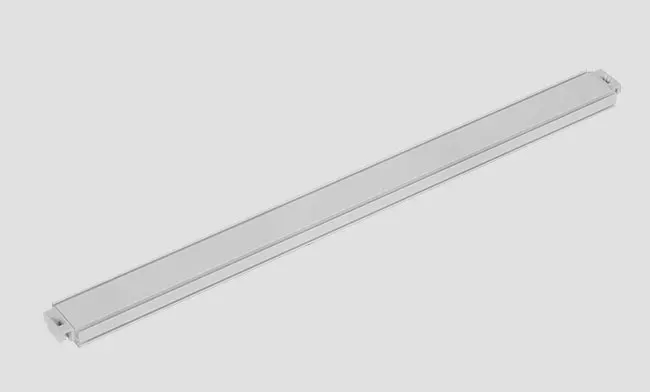

Horizontal channel bar
Size: 675(W)x50(D)x20(H)mm




Hooks
All types of slatwall hooks are suitable.

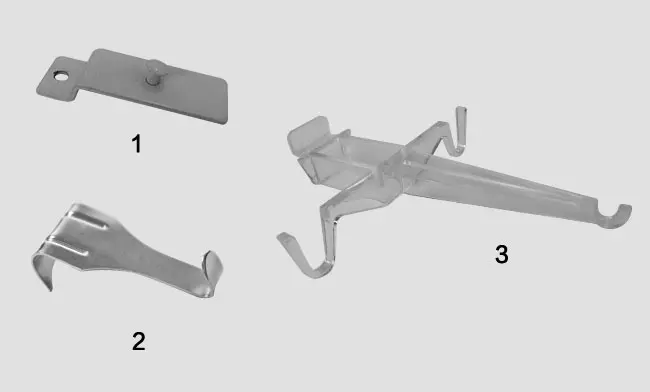

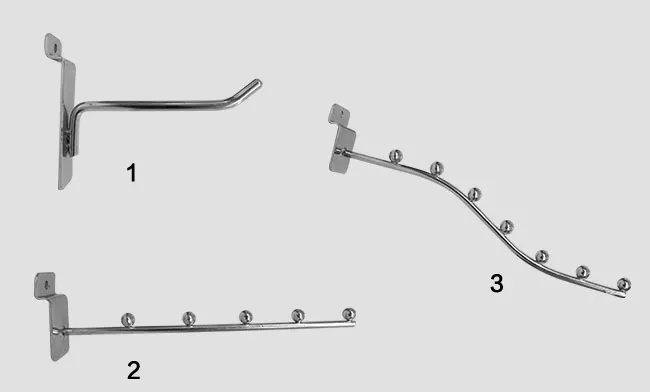

Hooks
1.It is used to hang photo frame.
2.It is used to hang box.
3.It is used to place glasses.
Packing & Delivery





Package

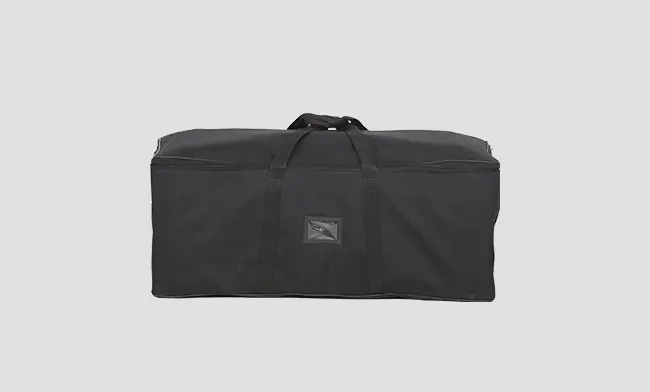

It is packaged by oxford bags.
Package Bag
EPE Oxford Bag
Inner Package Size
N/A
Product Quantity / Inner Carton
N/A
Packaged Shipping Size
Carton: (W)880x(D)350x(H)320mm；34.6x13.8x12.6in
Product Quantity / Outer Carton
1PCS
Shipping Gross Weight
20kg(44LB)
Parameter
ACPASS Portable Lightbox BW311 2x3
Product Name
Portable Lightbox
Product Code
BW311
Product Spec
2x3
Product Other Spec
1x3 3x3 4x3
If it can be customized
N/A
Product Feature
You can put your product on the front board or hang your product on the hook.The edge-lit led and led spotlight on the top of frame will illuminate your displayed product.
Product Frame Specs
Frame Size
(W)1490x(D)365x(H)2245mm；58.66x14.37x88.39in
Frame Main Material
Aluminum and Plastic
Product Frame Weight
17kg(37.4LB)
Product Gross Weight
20kg(44LB)
Product Accessories
Instruction
Product Package Specs
Package Bag
EPE Oxford Bag
Inner Package Size
N/A
Product Quantity / Inner Carton
N/A
Packaged Shipping Size
Carton: (W)880x(D)350x(H)320mm；34.6x13.8x12.6in
Product Quantity / Outer Carton
1PCS
Shipping Gross Weight
20kg(44LB)
Graphic Specs
Graphic Size
front single panel(2pcs):675x2200mm
side panel(2pcs):330x2200mm
Back Double panels(1pcs):1390x2200mm (reflective fabric)
Top part(1pcs):330x1450mm (reflective fabric)
Graphic Material
Polyester
Thickness of Graphic Material
0.22mm
Grammage of Graphic Material
140g/㎡
Printing Technology
UV Printing
Product Shiping Specs
20GP(General Purpose Container)
285pcs
40GP(General Purpose Container)
570pcs
40HQ(High Cube Container)
693pcs
Express Service
Available, MOQ: 1pcs
Product Maintenance
Warranty
365D（exclude force majeuce,aritificial factors）
