Gecen 5 2400Mhz 8 way satellite splitter model GS01 08
Gecen 5-2400Mhz 8 way satellite splitter model GS01-08

Gecen 5 2400Mhz 8 way satellite splitter model GS01 08

Share on (62564501093):


Price:$1.00

Quantity:


Product Overview

Description

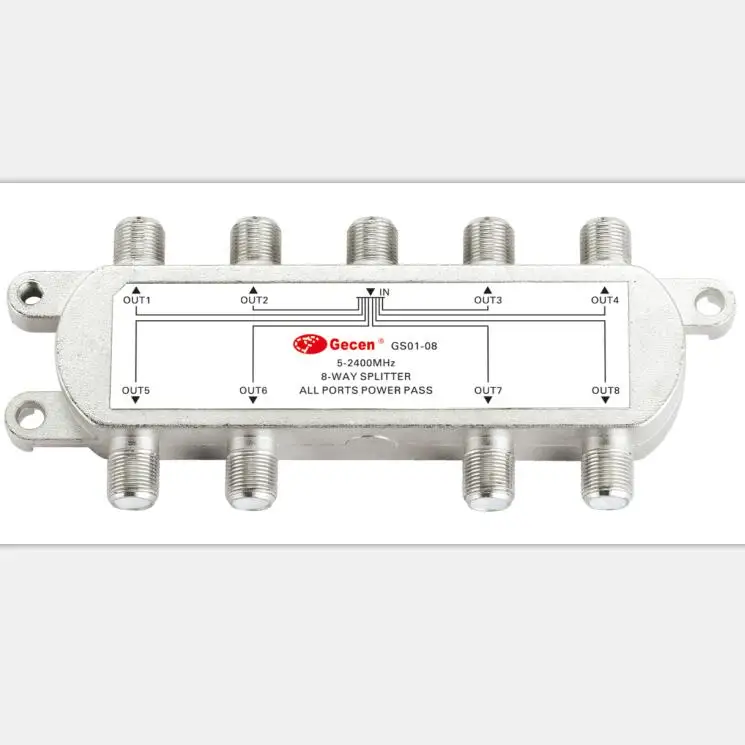

                                 5-2400Mhz 8 way satellite splitter model GS01-08








Features:

  • Zinc die-cast housing, tin-plated
  • Light weight and compact size
  • Easy installation with two edge hole sites
  • Screening factor: 5-2400MHz≥100dB
  • Low insertion loss, high isolation, perfect performance index
  • Designed for SATV/CATV
  • Power passing-24V 0.8A(MAX.)
  • All ports F-(f)connector,75Ohm



Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤3.5

≥14

≥10

40-1000

≤3.8

≥22

≥12

1000-1750

≤4.0

≥20

≥12

1750-2400

≤4.5

≥20

≥10



Our Services






Company Information











Packaging & Shipping


FAQ

Q1. Can I get some samples beore mass prduction?
A: Yes, samples can be offered for testing.


Q2. What is the delivery time?

A:30-35days




Q3. OEM can be supported?

A: Yes, OEM can be support. Package, specification can be supported.




Q4: What is the guarantee for the products?

A: One year.
