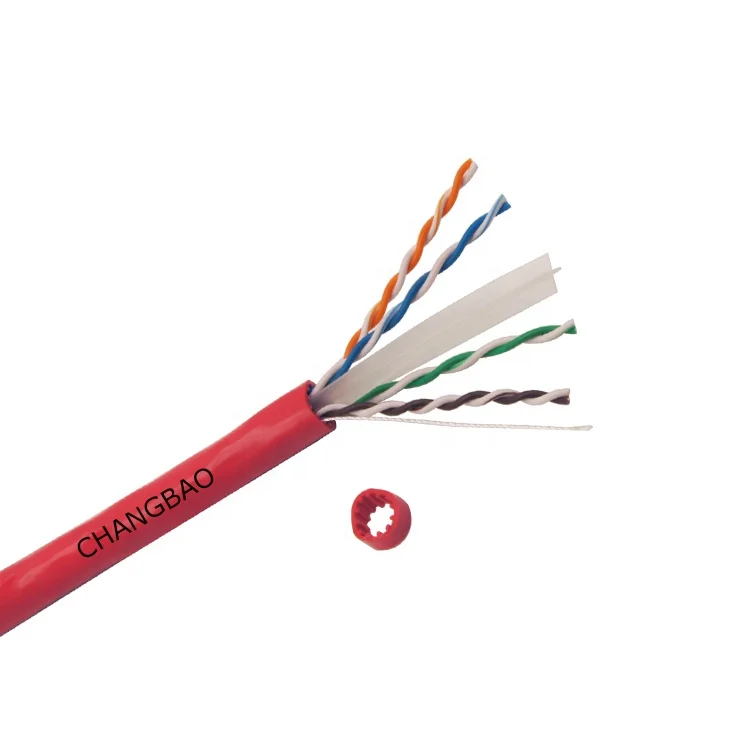

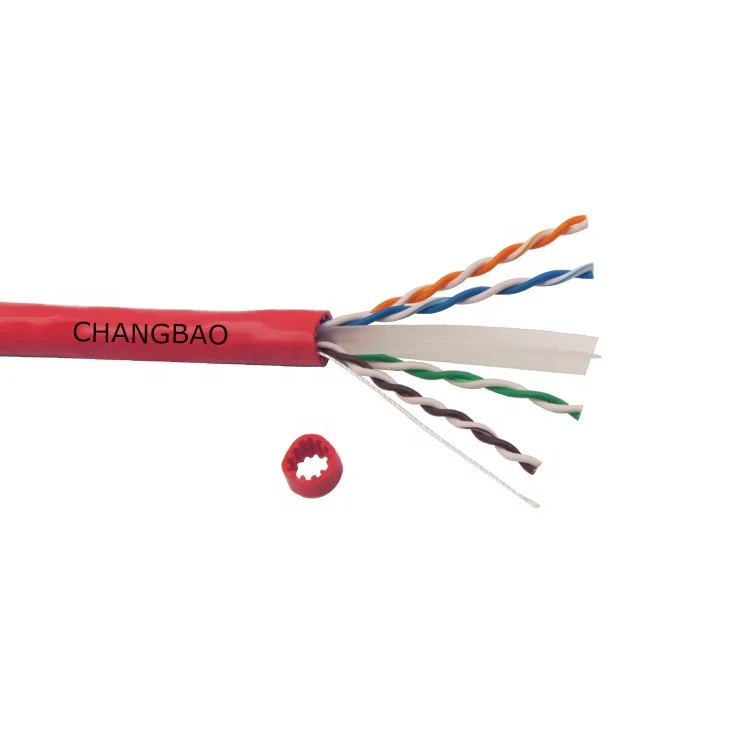

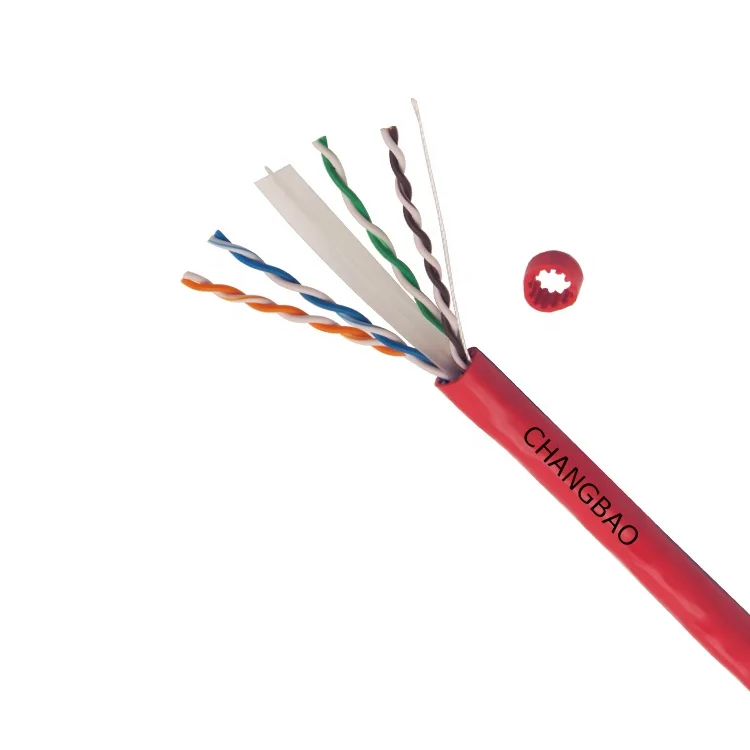

Changbao Cat5e Cat6 Cat6a 305m 23AWG Networking Lan Cable Wire rj45 Computer Cat 6a Ethernet Cable
- Category: >>>
- Supplier: Chang Bao Technology Co. Ltd.
Share on (62564536994):
Product Overview
Description
Changbao Cat5e Cat6 Cat6a 305m 23AWG Networking Lan Cable Wire rj45 Computer Cat 6a Ethernet Cable
Features
· Cat6A UTP Unshielded Twisted Pair Cable
· Pass FLUKE Test High Performance Computer Networking Cable
· Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
· Digital Communication Applications of up to 750MHz Bandwidth
· Exceeds ANSI/TIA-568-C.2 , ISO/IEC 11801 Standards
· ETL Listed, CMX / CM / CMG / CMR / CMP Rated PVC or LSZH Jacket Use Indoors
· Pass FLUKE Test High Performance Computer Networking Cable
· Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
· Digital Communication Applications of up to 750MHz Bandwidth
· Exceeds ANSI/TIA-568-C.2 , ISO/IEC 11801 Standards
· ETL Listed, CMX / CM / CMG / CMR / CMP Rated PVC or LSZH Jacket Use Indoors
Construction Characters | ||||
Conductor | Material | Solid Bare Copper | ||
Size | 23AWG X 4P | |||
Construction | 1/0.585±0.005mm | |||
Insulation | Material | HDPE | ||
Diameter | 1.02±0.01mm | |||
Colors | Blue-White/Blue | |||
Orange-White/Orange | ||||
Green-White/Green | ||||
Brown-White/Brown | ||||
Filler | Filler | PVC | ||
Jacket | Material | PVC | ||
Diameter | 7.60±0.10mm | |||
Colors | Per request | |||
Rip Cord | Nylon | |||
Electrical & Physical Characters | ||||||
rating | 75℃ 30V | |||||
Conductor Resistance | Max 68.5ohm/km at 20℃ | |||||
Dielectric Strength | Min AC1.5KV | |||||
Spark Test | 5.0KV | |||||
AC Leakage Current Through overall Jacket | AC 1500V <=10mA | |||||
Insulation | Unaged | Tensile Strength | 16.5 Mpa | |||
Elongation | 500% | |||||
Aged | Tensile Strength | 14.2 Mpa(100℃ 168h) | ||||
Elongation | 250%(100℃ 168h) | |||||
Jacket | Unaged | Tensile Strength | 13.8 Mpa | |||
Elongation | 150% | |||||
Aged | Tensile Strength | 11.7 Mpa(100℃ 168h) | ||||
Elongation | 80%(100℃ 168h) | |||||
Cold Bend Test | -20℃ 4hours No Cracking | |||||
DC Resistance Unbalance | Max 5% | |||||
Pair-to-Ground Capacitance Unbalance | Max 3300pF/km | |||||
Characteristic Impedance | 1~500MHZ 100±15OHM | |||||
Propagation Delay | 500MHZ Max 536ns/100m | |||||
Delay Skew | 1~500MHZ Max 40ns/100m | |||||
>>>Click Here To Get Price From Us Now
Company Introduction
CHANG BAO TECHNOLOGY CO., LTD,established in 2001, is a professional manufacturer engaged in the research, development,production, sale of Communication cables, Speaker & Audio cables, Security & Alarm cables, Telephone cables, Control & Automation cables, series of Composite cables and Electronic wires, etc.
We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.
We are located in Shunde Foshan city with convenient transportation access. Selling well in cities around China, our products are also sold to more than 60 countries or regions around the world like America, Europe, the Middle East, Africa, Asia, etc. We are an ODM and OEM manufacturer of many well-known foreign integrated wiring brands. We have obtained ISO 9001, ISO 14001, ETL, CE certificates; all products are RoHS and REACH compliant.
We warmly welcome customers from at home and abroad to cooperate with us for a common success.
