TURIN scara robot, industrial robot arm

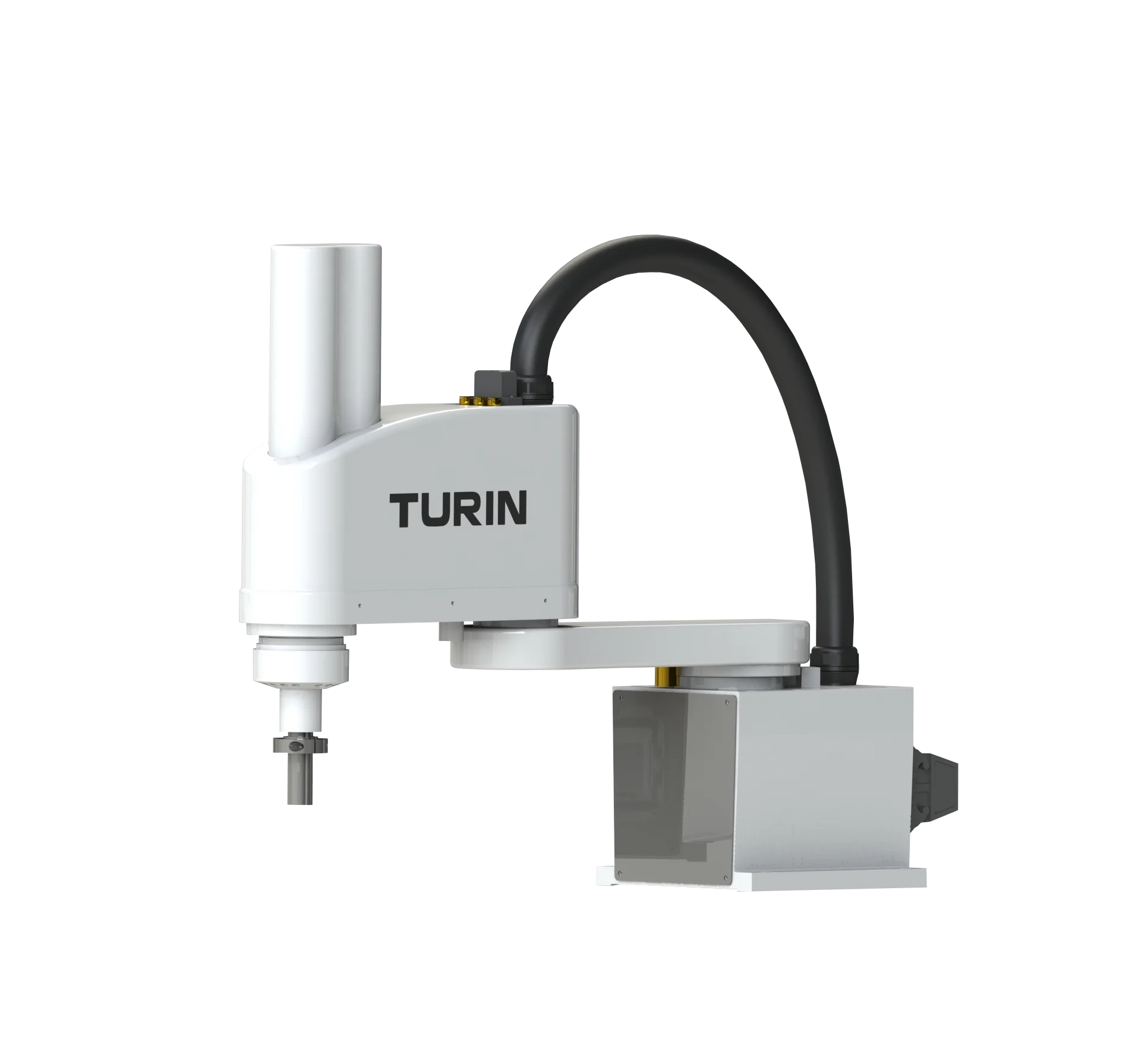

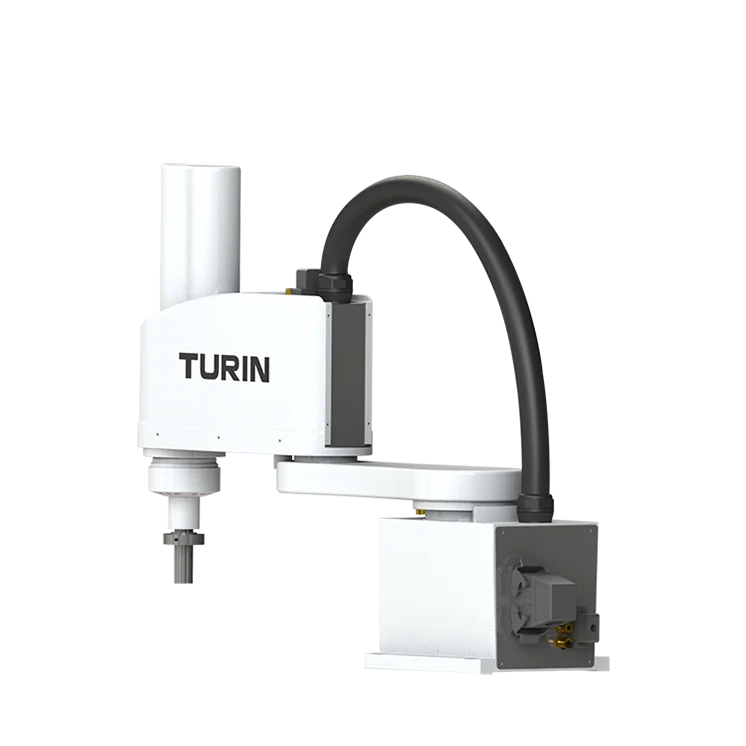

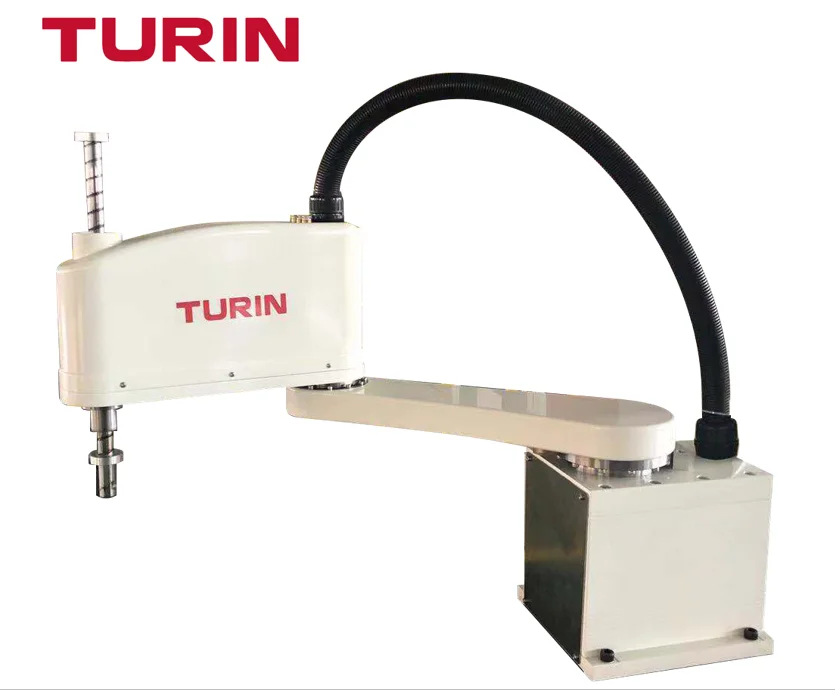

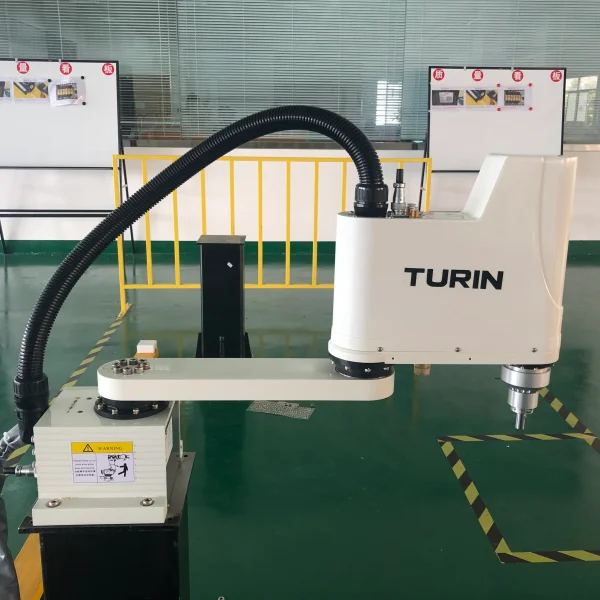

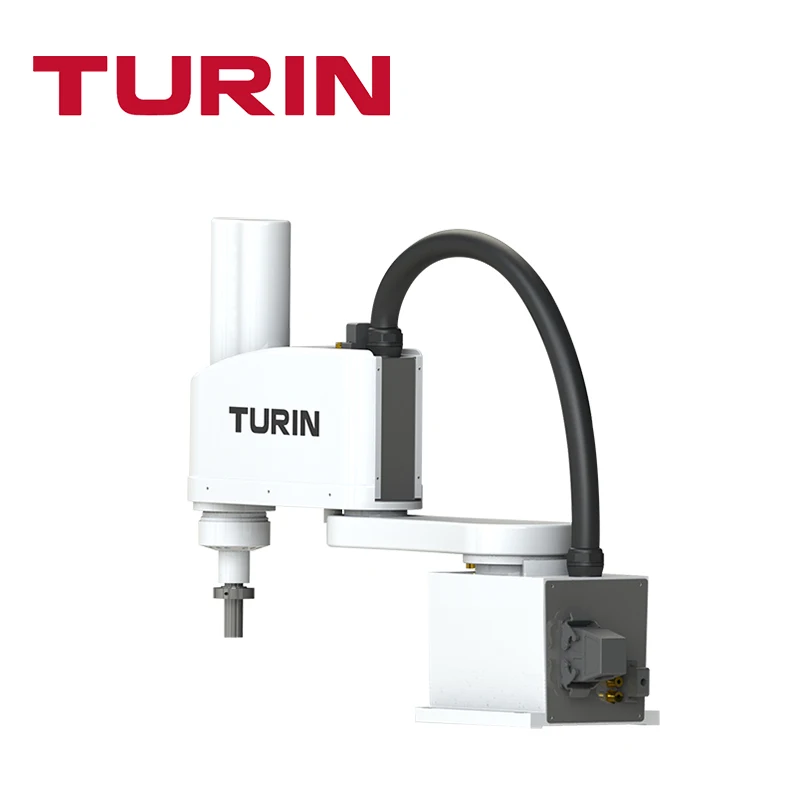

TURIN scara robot introduction:

The STW060 industrial robot features fast motion performance, light weight and compact mounting conditions. The small and refined size is suitable for the automation of various processes, and its advantages are particularly obvious in a limited production space.

Features
Lightweight:
The weight of the robot body is reduced to at least 26kg, and the structural design size. The installation direction is diverse, and it can flexibly respond to the setting requirements of various work places and work spaces.

Optimize the scope of work:

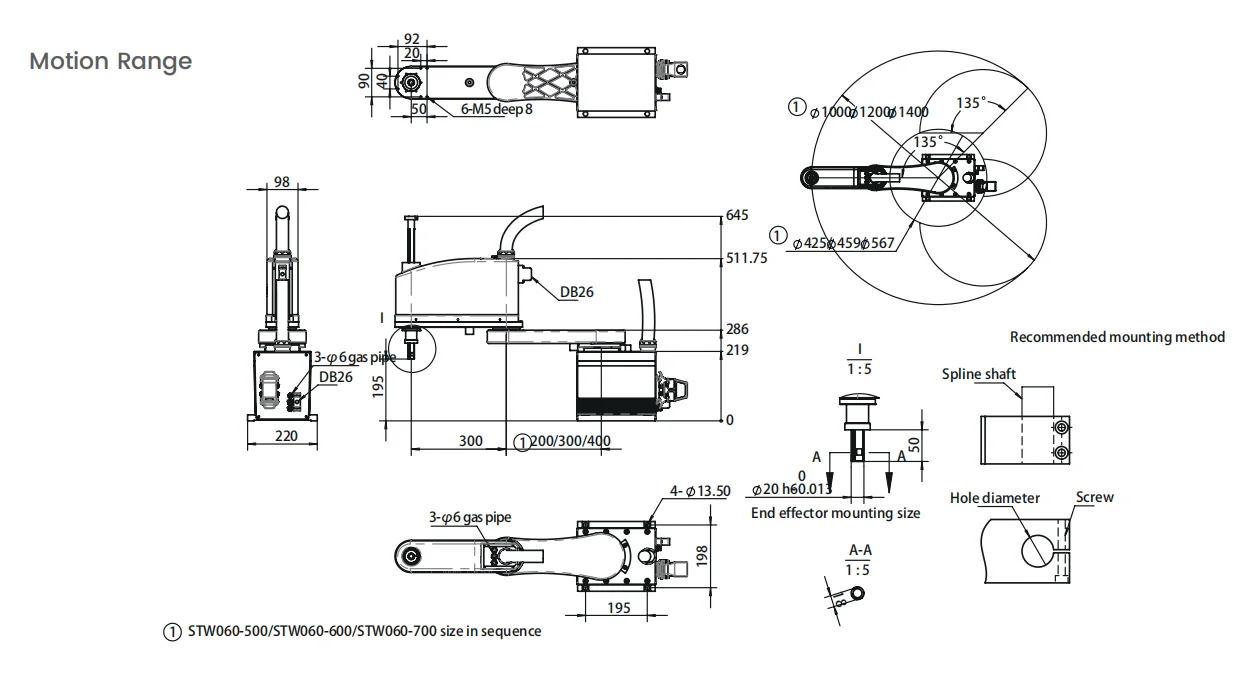

Small size and working range up to 600mm. A wide range of work. The rotating spindle is extremely small and can be mounted close to other equipment, and the slim wrist increases the accessibility of the arm.

Excellent performance:
Equipped with a lightweight AC servo motor, the STH030 is lightweight and powerful, enabling high-acceleration operation of the robot, ensuring excellent accuracy and agility in any application.

Easy to operate and program:

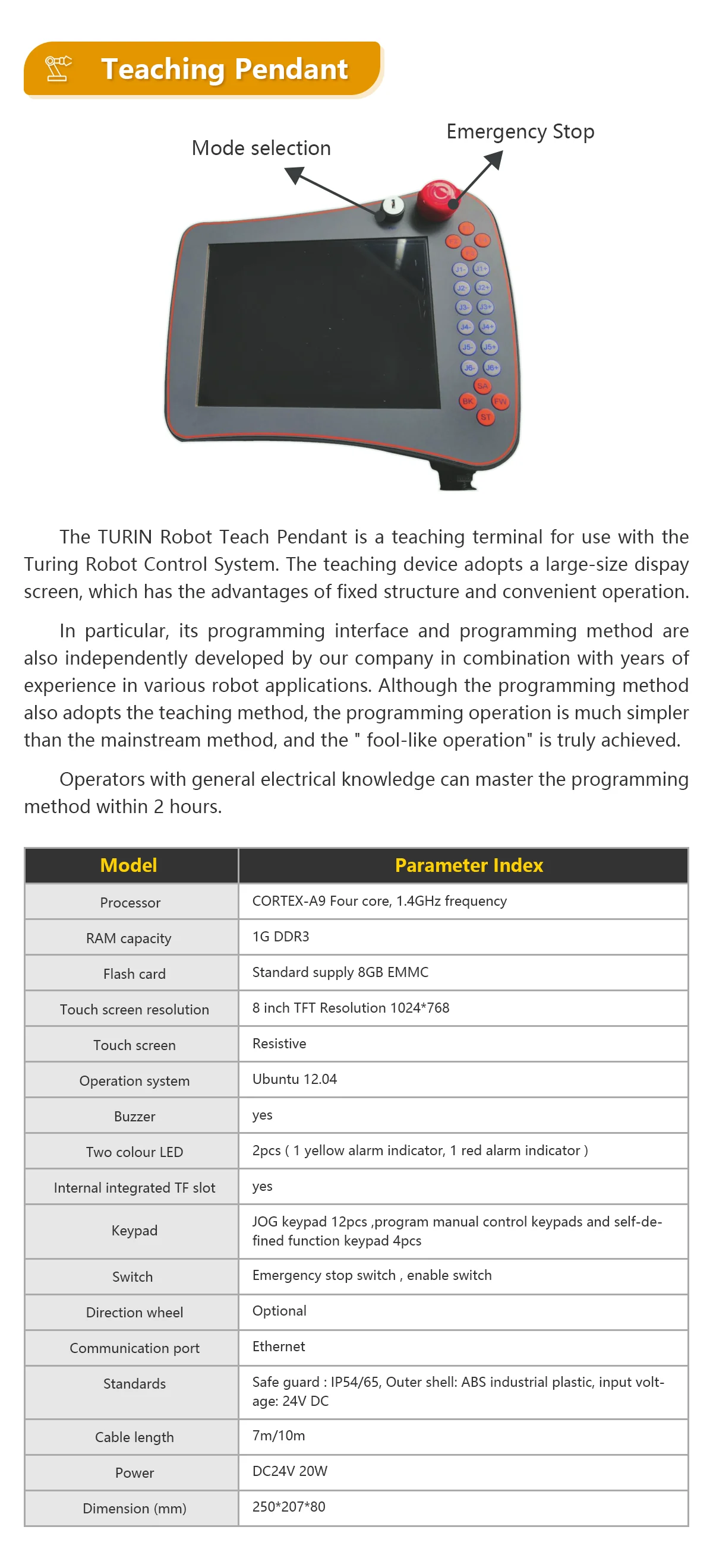

Programming and maintenance of the robot and arc welding process is easy with an intuitive and friendly teach pendant. The teach pendant uses a popular PC graphical interface, no matter the control robot or the specific process equipment, the operator has no strangeness.

Quick support and service:
Proactive and timely customer service, regular maintenance. Spare parts are of high quality and low price and can be quickly replaced. Quality service escorts your production.

Standard Robotic Arm Package Component List :
1,Robot body.

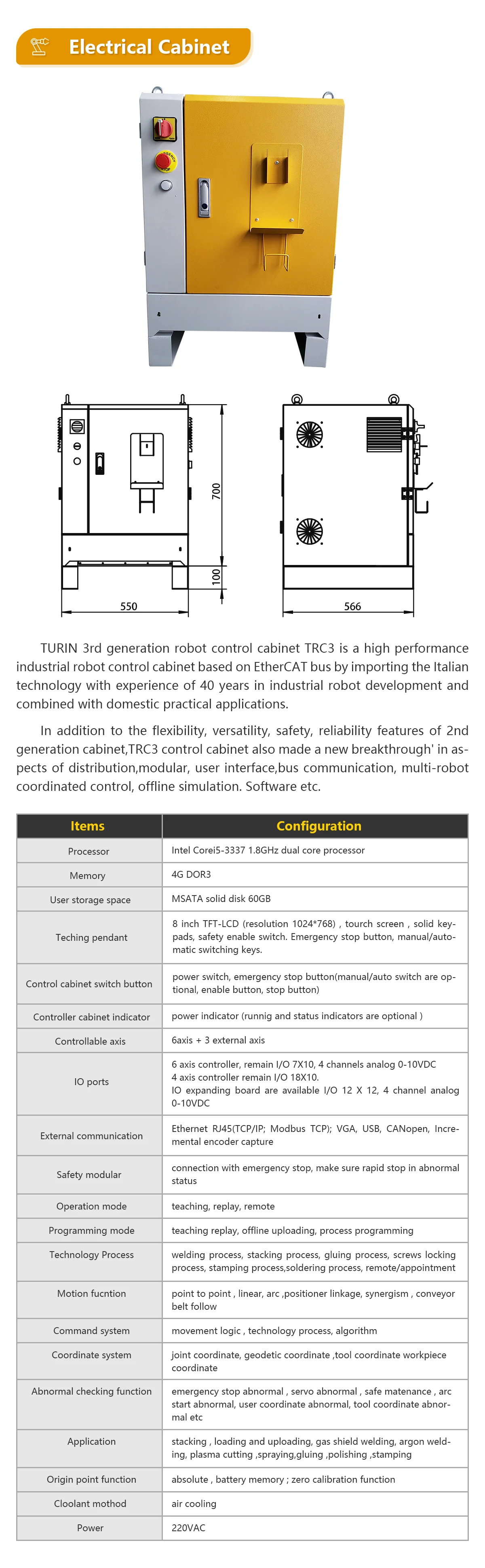

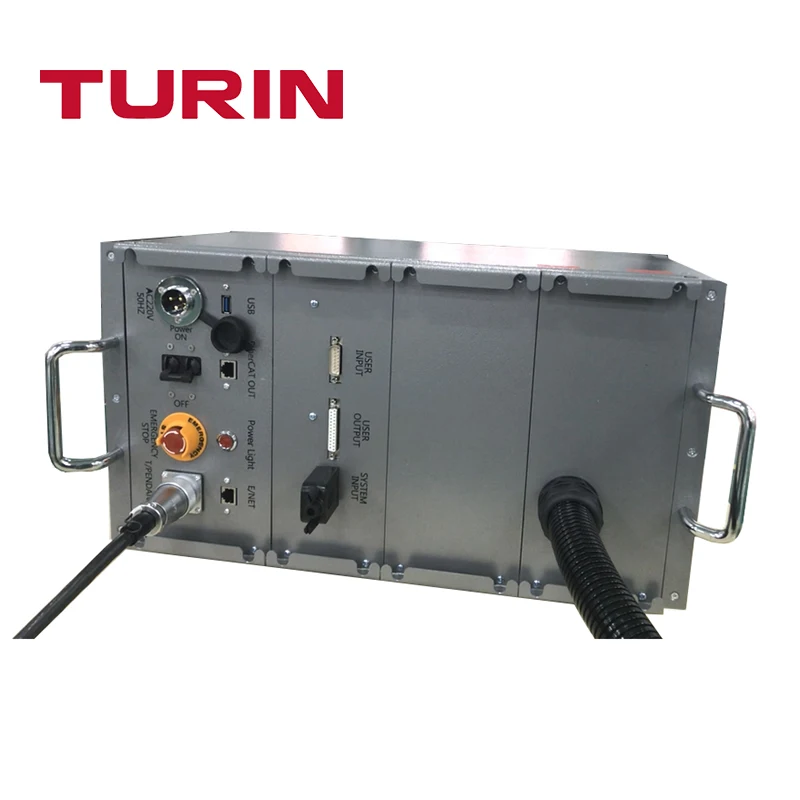

2,Electrical Cabinet (including controller, drives, transformer etc).
3,Teaching pendant.
4,Wirings.
5,Working process software.
6,One remote operation box.

We offer high quality multi axies industrial robots with payload 3kg 5kg, 6kg, 10kg, 20kg, 30kg, 50kg, 60kg, 80kg, etc. We have both robot controller technology and robot body technology. Our controller have get the largest user market in China.

          Our History:

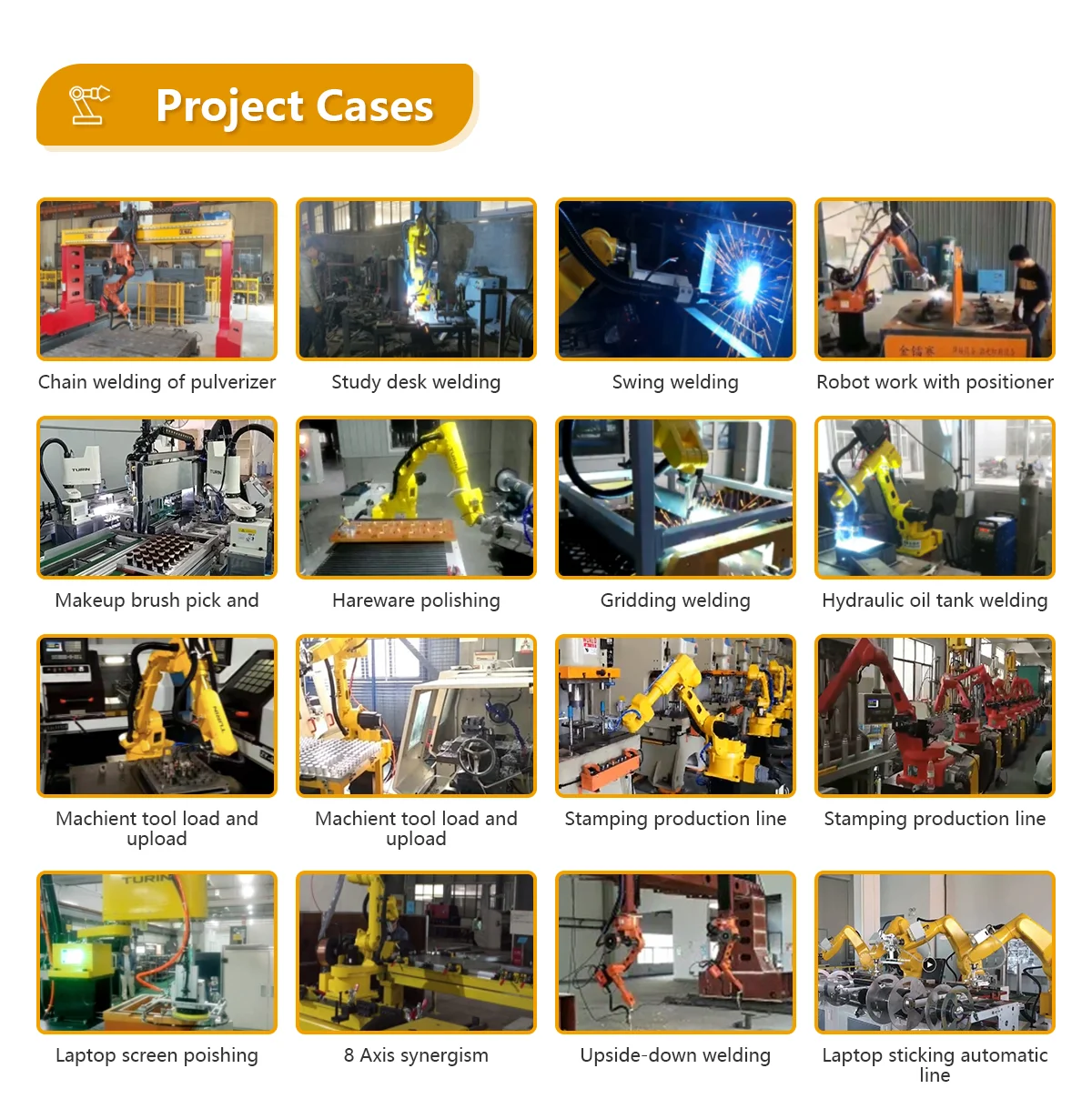

          TURIN was Founded in 2007 with a registered capital of 121.60 million yuan invested by the China famous college-Shanghai Jiao Tong University and focused on Intelligent control research and development. In 2011, TURIN purchased the Italian company RRRobotica by holding 100% shares and started to research and development of Robot controller . In 2013, TURIN started to manufacture industrial robots and became the first batch of robot producer in China. Now TURIN is a leading robotic arm manufacturer in China focusing on welding robots, 6 axis robots for handling,polishing, spraying,cutting, 4 axis robots for stamping , high precision SCARA robots for pick and place applications.

         Why choose TURIN:
         1) Agency protection policy:Our company don't sell to end users directly, we authorize 2-5 stragetic partners in every country and give price control,protecting resonable profit of our partners and ensuring timely service support to end users.
         2) Reliable Quality: 6-year market validation, total sales more than 20000 robot sets. TOP10 robot manufacturer in China.
         3) Italian Design Technology: use Italian mechanical and circuit design, and take in ABB wiring layout techology in our robot body manufacturing
         4) Strong R&D ability: 90% of the whole R & D team members come from the famous university--Shanghai Jiaotong University, Supplying you strong software bottom framework and wonderful expansibility robot controller
         5) Guaranteed after sales service: Two-year warranty period. On-line sales Consulting and video technical support. Completed documents with operation videos and free training at factory
         6) Customer oriented service concept: Our CEO-Mr Xu worked in ABB more than 10 years and our Technical Manager-Mr Chen is Doctor of Jiaotong University, they are well understanding of the professional and rigorous work style of foreign customers and give great support in all aspects.
         7) The operating system language supports English; you can customize Japanese, and other languages.

         Why choose SOT:
         1) We strictly follow the TURIN agent market protection mechanism to rapidly promote and develop overseas agents to further protect the agent's rights and price system.
         2) We are the exclusive overseas agent of TURIN's overseas market. All overseas business problems of Turing Robot will be handled by SOT Company. Turing does not participate in any overseas business and does not have any foreign trade department.
         3) We will cooperate with and promote Turing technicians to provide 7*24 hours of robot consulting and technical services to provide better service to customers.

FAQ:

Q1: Your equipment is very similar to Yaskaw, is there a relationship between Yaskawa and TURIN Robotics?.
SOT: Thanks for high attention. TURIN Robotics design is based on Dynamics and Mechanical principles to achieve the combination of strength and lightweight. J1-J3 joint uses ductile iron, J4-J6 joint uses aluminum and hollow design to ensure the rigidity of the robot while maximizing the speed of the robot.
Q2: What is the brand for the Servomotors and Speed Reducer of your robots? As yu know is the most important part of the manipulator.
Yes,you're absolutely right ! all our Robot components are China famous brands.
J1-J3 we use RV reductor from Shuanghuan brand
J4-J6 we use harmonic reducer from Leadedriver brand
Q3: Has the main control an ethernet port available?
Yes, it is baisc configuration.
Q4: What kind of fieldbus are available for the control? (DeviceNet, Profinet, Profibus, etc)
DeviceNet
Q5: Do you have a simulator software?
So far our company don't have own simulator software, can support SprutCAM simulator software.
Q6: What kind of training offers your company?
Free training at our factory for 3-5 days depends on customer's requriements;
Paid engineer assignment service
Free on-line videos for technical guide, we upload installation, wiring,programming and other operation guide videos on our YouTube channels at irregular time
Q7: Do you have an estimated data for MTBF kpi? (MTBF= Medium Time Before Failure).
>5000 hours
Q8: Is could be posible to connect a Fronius, Miller, Lincoln or SKS welding power sources (analog and/or digital communication)?
yes, our Robot can connect to Fronius, Miller, Lincoln or SKS welding power sources with analog control mode(any brand welding power sources which has robot interface can do) ;
but for digital welding power source, need matching and test (so far we only support Magmeet and OTC brand digital welder)
Q9: What's your payment term :
SOT: 20% deposite in advance and 80% payment balance before shipment.
Q10: What's your delivery time ?
If there are robots in stock, can ship out within 3 days; if no stock, will need around 12-15days for preparation.
