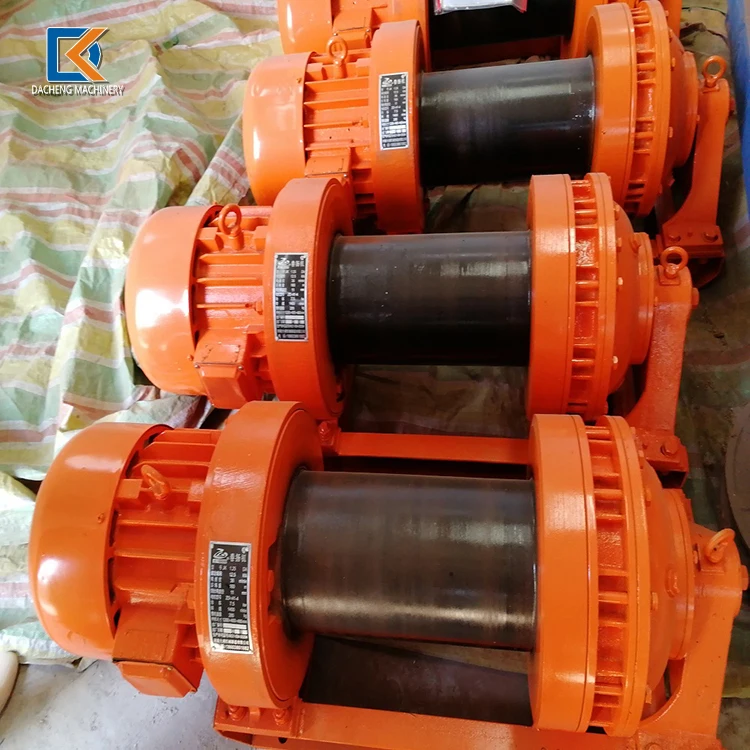

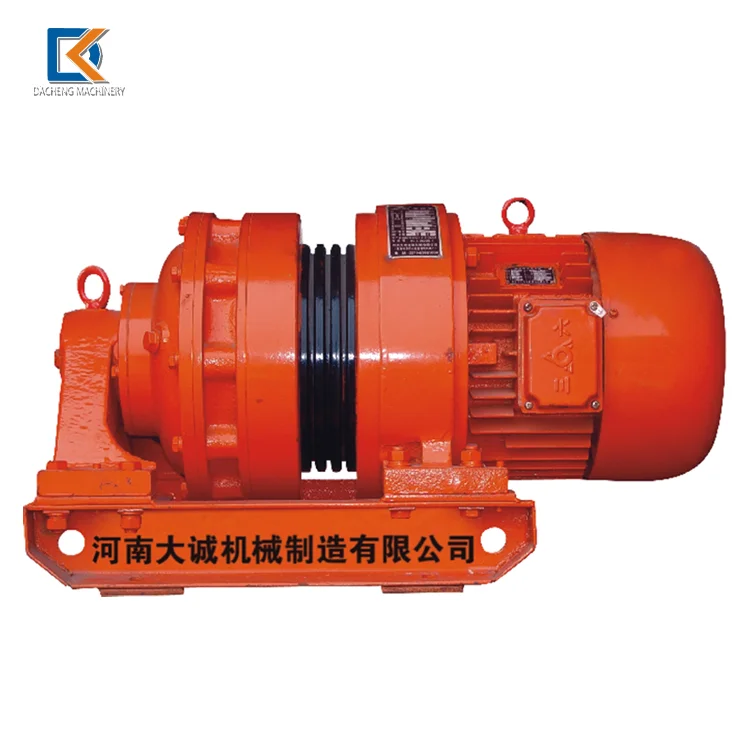

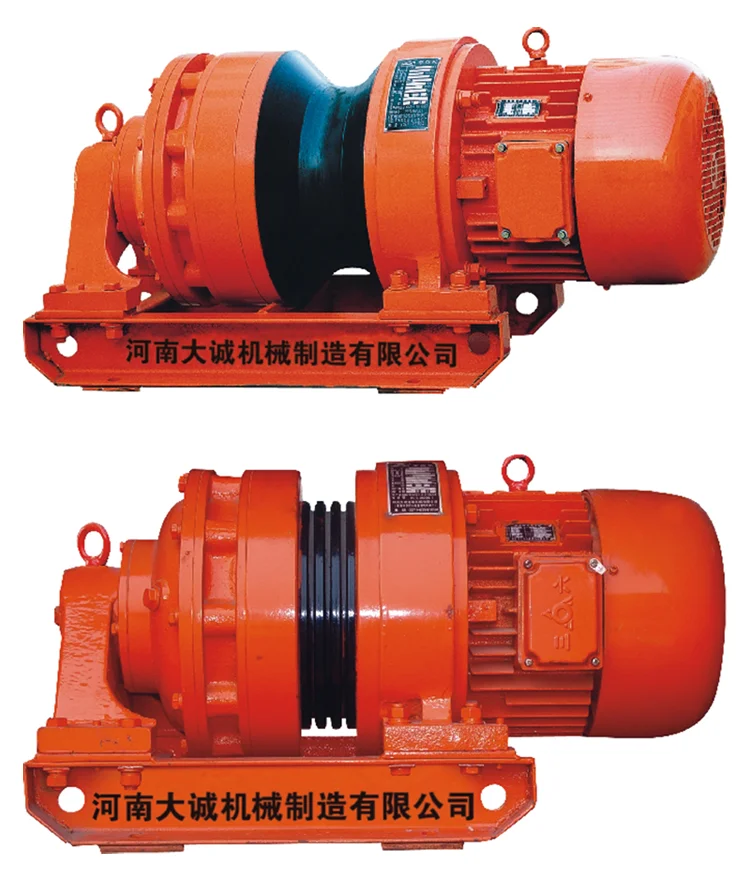

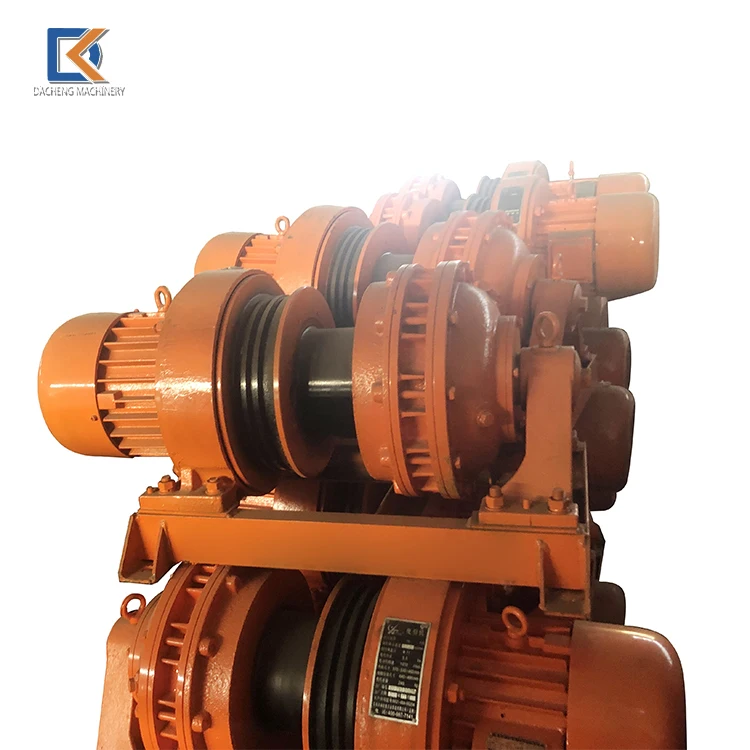

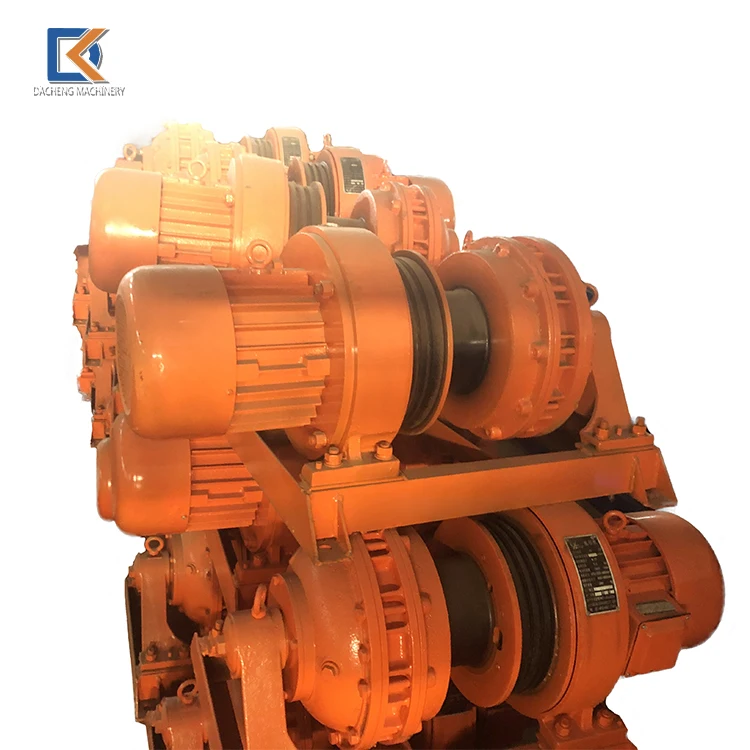

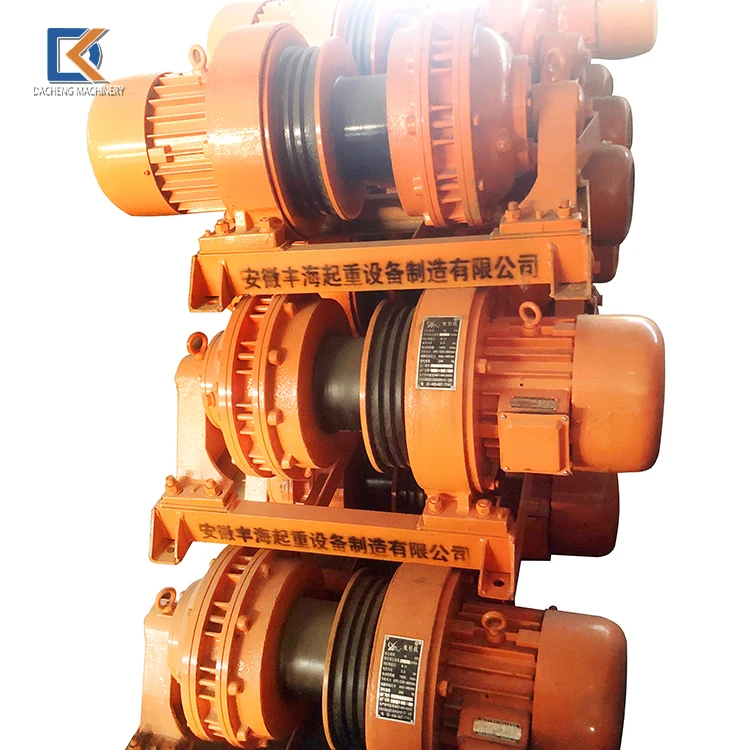

JK-D1 traction machine is a double hanging bar hoist which is a new model developed on the basis of the JK-D model windlass, is the efficient equipment supporting the construction derrick double hanging bar, but also can be used to horizontally or aslant pull the heavy things.

| Model | Unit | Jk1.25D1 | JK1.6D1 |
| Wire rope rated pulling force | KN | 12.5 | 16 |
| Wire rope rated speed | m/min | 40 | 28 |
| Friction wheel diameter | mm | Φ255 | Φ375(255) |
| Wire rope diameter | mm | Φ11 | Φ12.5 |
| Motor type | ZD1 41-4 | ZD1 41-4 | |
| Motor power | kw | 7.5 | 7.5 |
| Motor running speed | r/min | 1400 | 1400 |
| Outer length*width*height | mm | 1000*400*450 | 970*440*560 |
| Total weight | Kg | 300 | 330 |
| Foot installation size | mm | 450*360 | 450*400 |



1. Are you manufacturer or Trade Company?
A:We are construction hoist manufacturer in China, and we also export our machine to other countries.
2. What's the difference between converter motor and constant frequency motor?
A: Converter motor hoist is steadier in the process of going up and down than constant frequency motor hoist.
3. Can we visit your factory?
A: Yes, of course, you will be warmly welcome to visit our factory.
4. Do you have CE certificate?
A: Yes, we have CE certificate.
