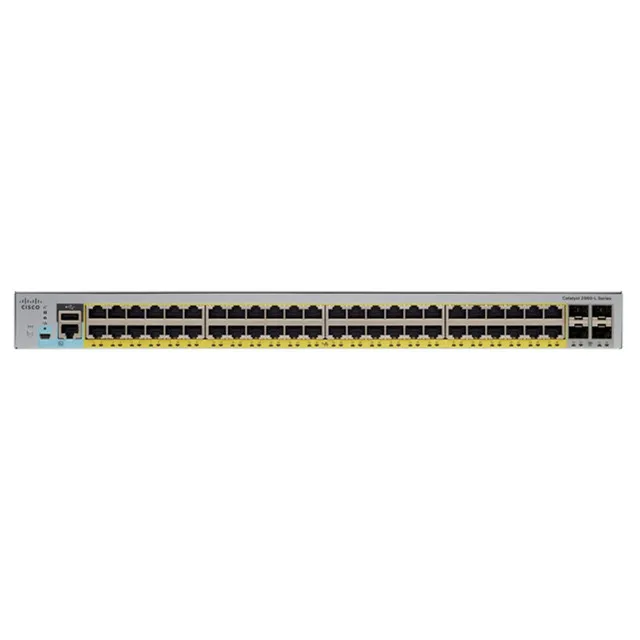

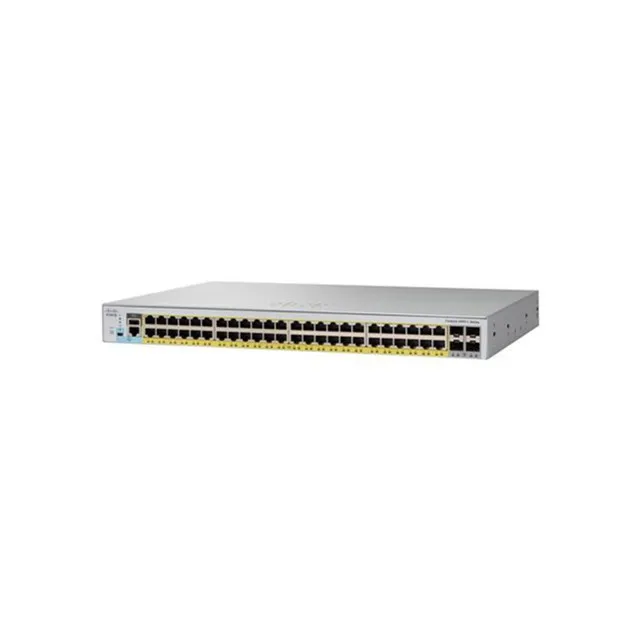

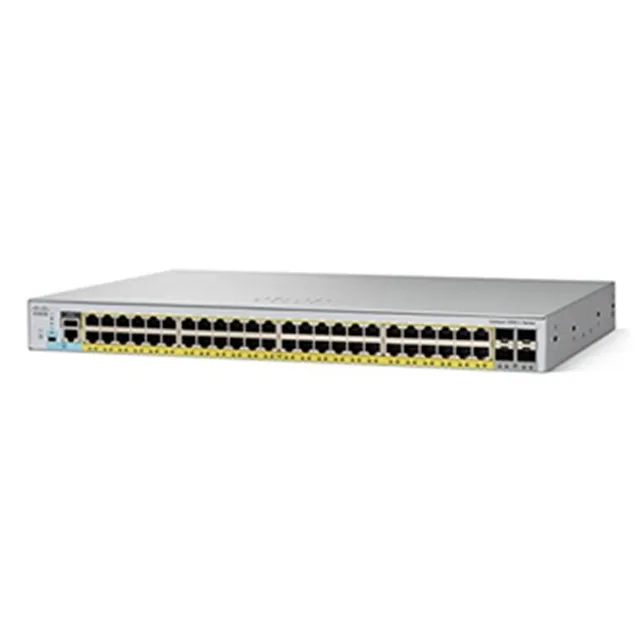

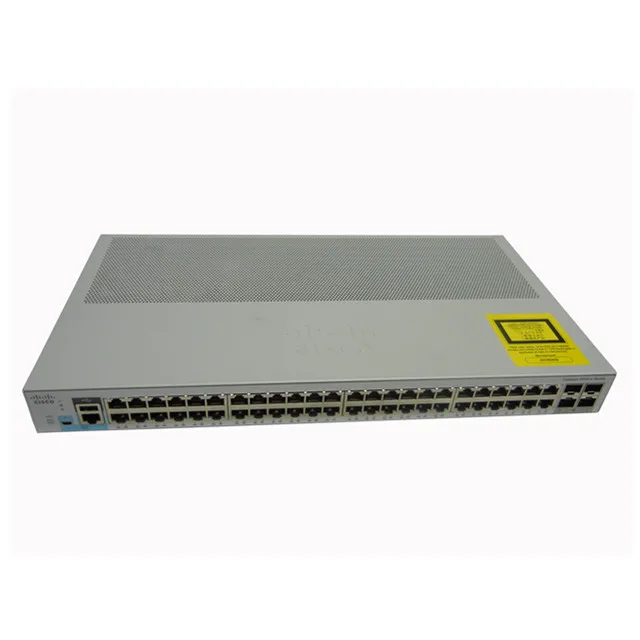

New Original 2960 L Series Gigabit Switch 48 Ports PoE Switch WS C2960L 48PQ LL
- Category: >>>
- Supplier: Shenzhen Helpyou Information Technology Co. Ltd.
Share on (62564909129):
Product Overview
Description
Products Description
WS-C2960L-48PQ-LL
Product overview

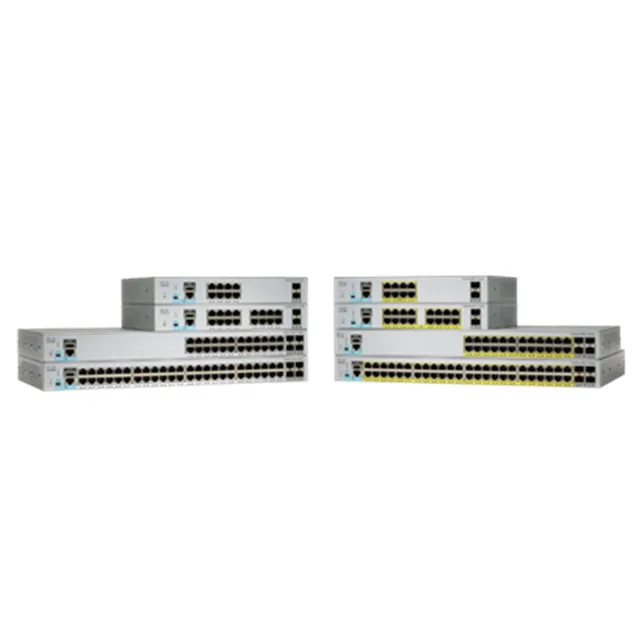

Cisc0® Catalyst® 2960-L Series Switches are fixed and smart-managed Gigabit Ethernet switches that provide enterprise-class access switching for branch offices, out-of-the-wiring-closet applications, and critical Internet of Things (IoT) deployments, as well as small and medium-sized businesses. They operate on Cisc0 IOS® Software and support simple device management and network management via Command Line Interface (CLI) as well as an on-box web interface.
Catalyst 2960-L Smart Managed Switches are secure, reliable, enterprise grade switches built for small office deployments. These switches can be configured and managed via an on-box web interface allowing customers a quick and reliable way to get a small branch or office network up and running within minutes. These switches also feature limited CLI support for troubleshooting and monitoring.
The Cisc0 Catalyst 2960-L Series and 2960-L Smart Managed Switches are fully managed switches that offer advanced Layer 2 features as well as Power over Ethernet Plus (PoE+) power. These switches deliver enhanced network security, network reliability, and operational efficiency.
Product Highlights
Cisc0 Catalyst 2960-L Switches feature:
● 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
● 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 4 fixed 10 Gigabit Ethernet SFP+ uplinks
● Perpetual PoE+ support with a power budget of up to 370W
● Enhanced version of Cisc0 IOS LAN Lite software
● CLI and/or intuitive Web-UI manageability options
● Device management support with:
◦ Over-the-air access via Bluet00th, Simple Network Management Protocol (SNMP), RJ-45 or USB console access
◦ Network management with Cisc0 Prime®, Cisc0 Network Plug and Play, and Cisc0 DNA Center
● Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
● Basic Layer 3 features with Static routing and Routing Information Protocol (RIP)
● Fanless operation with operating temperature up to 45°C
● Compact design with a depth of less than 11.5 inches
● Reliability with higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty (E-LLW)
● 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 4 fixed 10 Gigabit Ethernet SFP+ uplinks
● Perpetual PoE+ support with a power budget of up to 370W
● Enhanced version of Cisc0 IOS LAN Lite software
● CLI and/or intuitive Web-UI manageability options
● Device management support with:
◦ Over-the-air access via Bluet00th, Simple Network Management Protocol (SNMP), RJ-45 or USB console access
◦ Network management with Cisc0 Prime®, Cisc0 Network Plug and Play, and Cisc0 DNA Center
● Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
● Basic Layer 3 features with Static routing and Routing Information Protocol (RIP)
● Fanless operation with operating temperature up to 45°C
● Compact design with a depth of less than 11.5 inches
● Reliability with higher Mean Time Between Failures (MTBF) and an Enhanced Limited Lifetime Warranty (E-LLW)
Product Details
Environmental Parameters | ||
Min Operating Temperature | 23 °F | |
Max Operating Temperature | 113 °F | |
Humidity Range Operating | 5 - 95% (non-condensing) | |
Min Storage Temperature | -13 °F | |
Max Storage Temperature | 158 °F | |
Header | ||
Compatibility | PC | |
Manufacturer | Cisc0 Systems | |
Packaged Quantity | 1 | |
Product Line | Cisc0 Catalyst | |
Model | WS-C2960L-48PQ-LL | |
Brand | Cisc0 | |
Interface Provided | ||
Interface | 48 | |
Connector Type | USB | |
PoE Power | PoE+ | |
Qty | 15.4 W | |
Type | 1000Base-T | |
Miscellaneous | ||
Compliant Standards | AS/NZS 60950-1, AS/NZS CISPR22:2004 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2011/65/EU, EN 300386, EN 60950-1 Second Edition, EN55022 Class A, EN55024, EN61000-3-2, EN61000-3-3, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, Plug and Play, RoHS, UL 60950-1 Second Edition, USGv6, VCCI Class A | |
Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ | |
MTBF | 1,370,769 hours | |
Color Category | Gray | |
Networking | ||
Type | Switch | |
Connectivity Technology | Wired | |
Remote Management Proto | HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP | |
Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z | |
Status Indicators | Port duplex mode, Port transmission speed, Status, System | |
Ports Qty | 48 | |
Features | Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, DHCP snooping, DHCP support, DiffServ support, Dynamic IP address assignment, Dynamic Trunking Protocol (DTP) support, IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), Load balancing, MAC Address Notification, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Port Security, Power over Ethernet (PoE), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Syslog support, Unicast Storm Control, VLAN support | |
Subcategory | Network hubs and switches | |
MAC Address Table Size | 8000 entries | |
Stackable | Stackable | |
Subcategory | Network hubs and switches | |
Power Over Ethernet (PoE) | Poe+ | |
Advanced Switching | Layer 3 | |
Manageable | Yes | |
Form Factor | Desktop, Rack-mountable | |
Jumbo Frame Support | Jumbo Frame Support 9018 bytes | |
Subtype | Fast Ethernet | |
Power Device | ||
Frequency Required | 50/60 Hz | |
Nominal Voltage | AC 120/230 V | |
Installed Qty | 1 | |
Max Supported Qty | 2 | |
Nominal Voltage | AC 120/230 V | |
Power Redundancy | Optional | |
Power Redundancy Scheme | 1+1 (with optional power supply) | |
Type | Internal power supply | |
Service | ||
Support Details Type | New releases update | |
Support Details Service Inc | Replacement | |
Support Details Full Contract Period | 5 years | |
Slot Provided | ||
Type | Expansion slot | |
Total Qty | 1 | |
Free Qty | 1 | |
Software | ||
Type | Cisco IOS LAN Lite | |
Dimensions & Weight | ||
Width | 17.7 in | |
Depth | 11.5 in | |
Height | 1.7 in | |
Weight | 10.25 lbs | |
Service & Support | ||
Type | Limited lifetime warranty | |
Capacity | ||
Type | VLANs supported | |
Value | 4049 | |
Flash Memory | ||
Installed Size | 256 MB | |
Performance | ||
Type | Switching capacity | |
Value | 128 Gbps | |
Ports | ||
Qty | 48 | |
Type | 10/100/1000(POE) | |
Ports (2nd) | ||
Qty | 4 | |
Type | Gigabit SFP | |
Ports (3rd) | ||
Qty | 2 | |
Type | 10/100/1000 | |
RAM | ||
Installed Size | 512 GB | |
