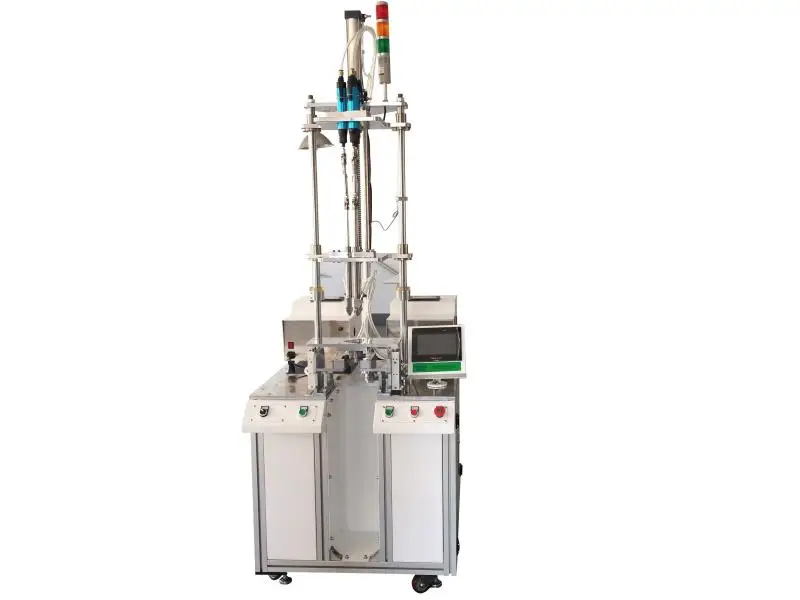

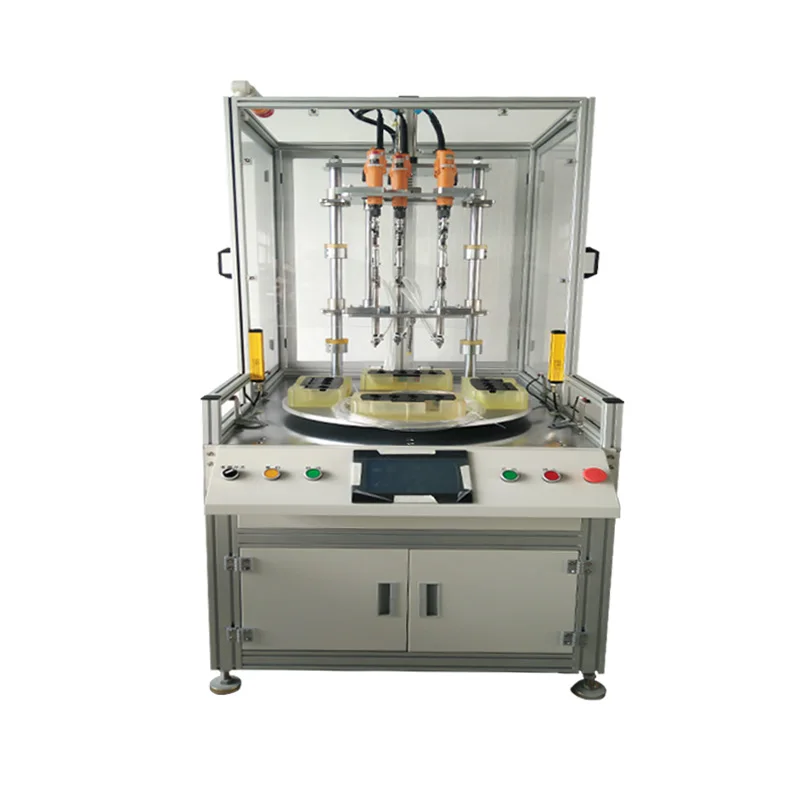

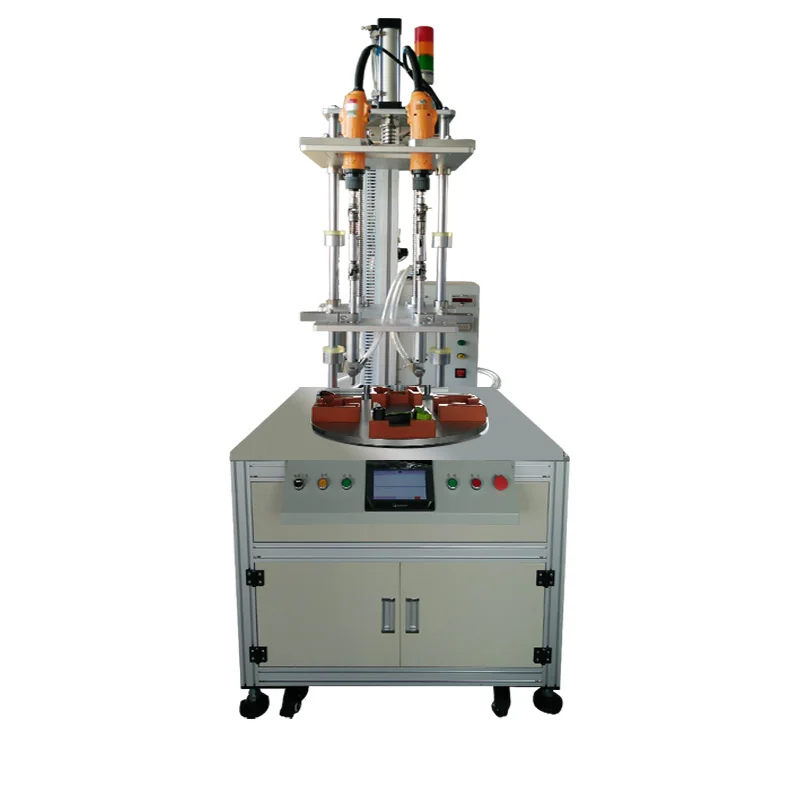

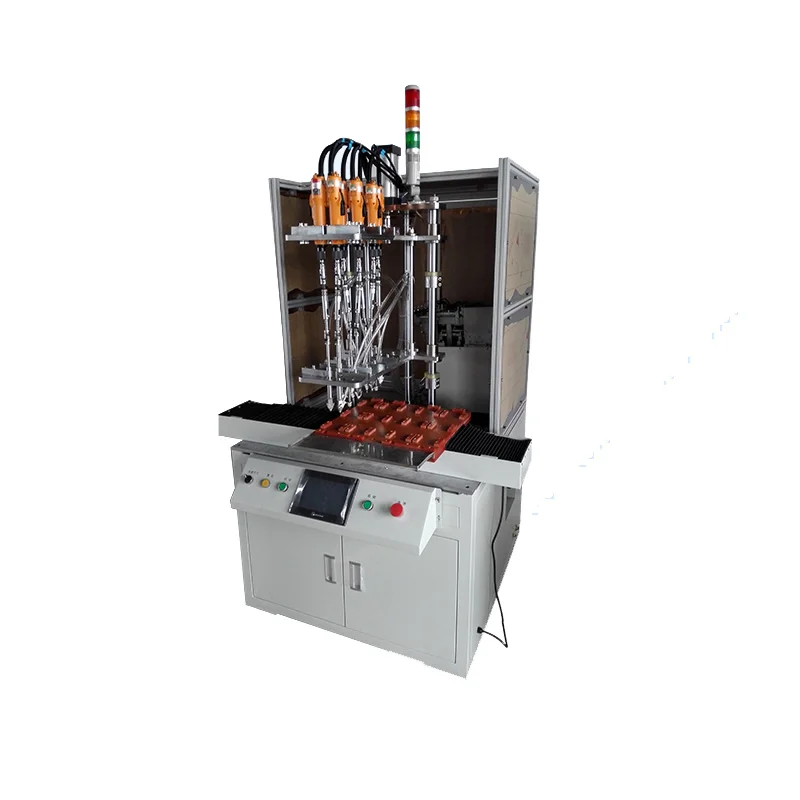

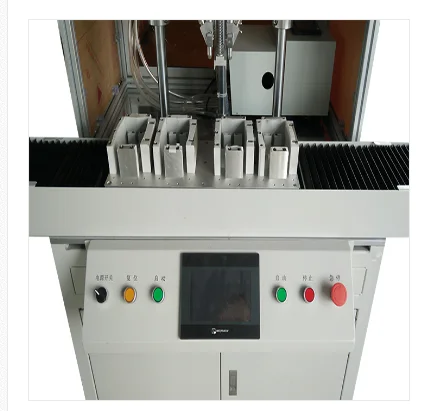

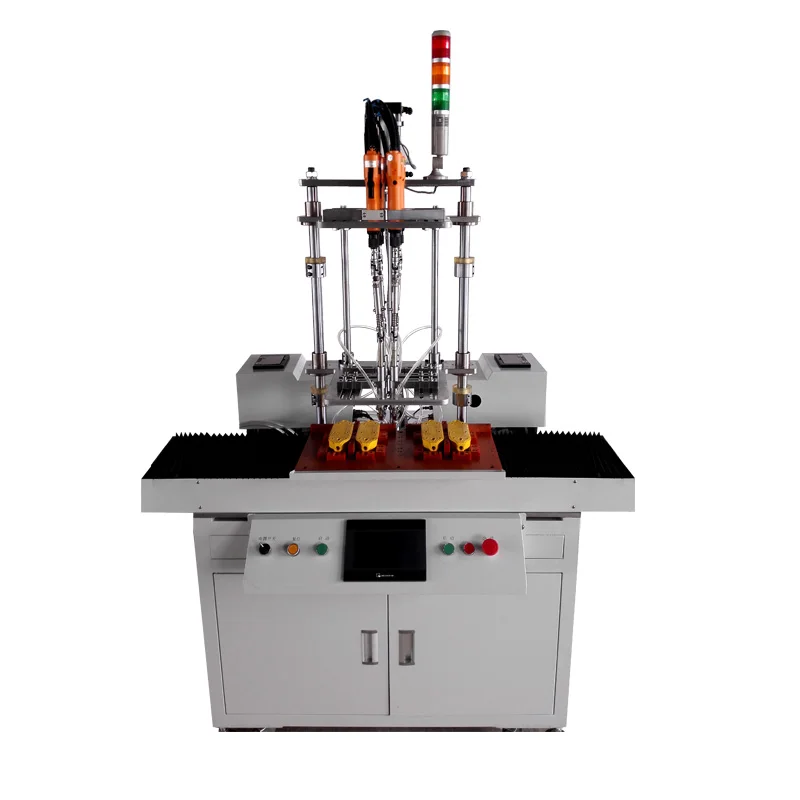

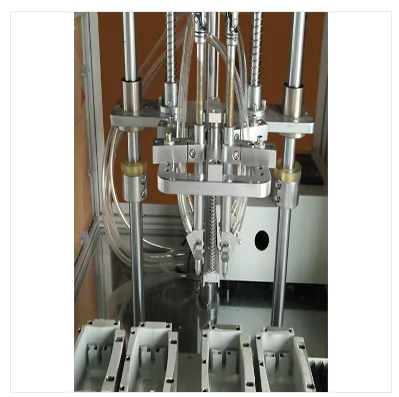

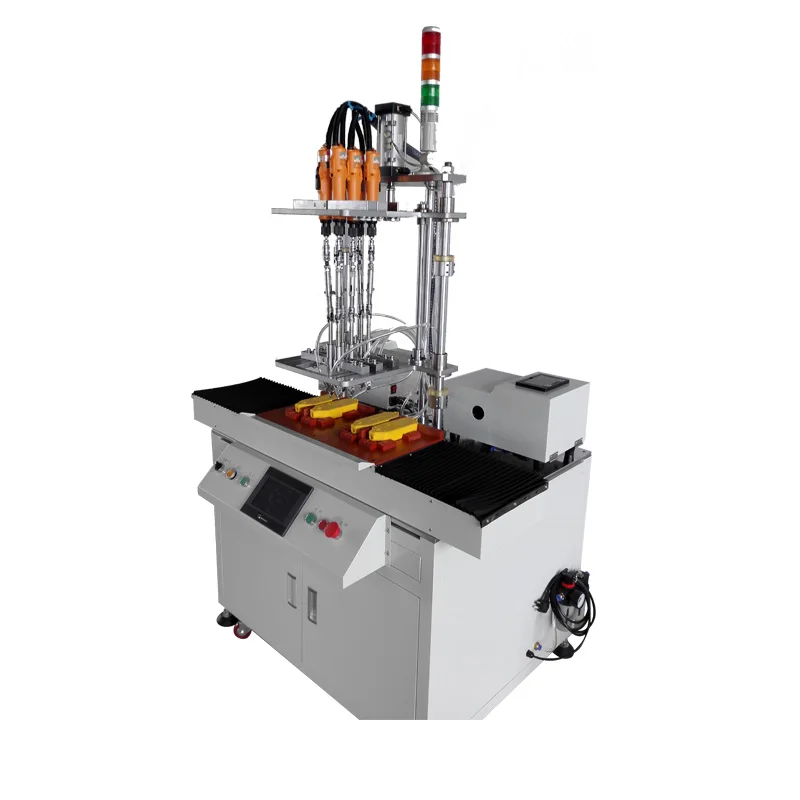

Automatic Multi spindle Robotic Electric Screw Fastening System For Aluminum Product Assembly

Automatic Multi-spindle Robotic Electric Screw Fastening System For Aluminum Product Assembly is one of the multi-axis automatic lock screw machines. In addition, the multi-axis type custom-made by TECHLEADER currently includes: single-axis automatic lock screw machine, double-axis automatic lock screw machine , Seven-axis automatic locking screw machine, six-axis automatic locking screw machine, seven-axis automatic locking screw machine and eight-axis automatic locking screw machine seven categories.

Features:

The fixed four-axis automatic locking screw machine meets the requirement of locking 4 screws at the same time, and the specific number of shafts can be customized according to customers.

The electric batch adopts a universal drive shaft for torque transmission, which has strong versatility and simple product replacement; turbine feeding screen material has the characteristics of smaller volume, less noise and more convenient maintenance; if the screw lock is abnormal when the screw is locked, the screw will issue an alarm to remind you.

The fixed four-axis automatic locking screw machine is mainly composed of three parts: a screw lock payment system, a conveying system, and an electrical control system. Different fixtures can be used to replace the lock payment for different products.

Specification:

1. Structural composition: It is mainly composed of automatic screw conveying system, screw locking mechanism, electrical control system, etc.

2. Product replacement: The jig can be replaced directly, and the shaft position can be adjusted.

3. The time to lock a product is around 3S. (The length of the screw is slightly different).

4. The locking screw is the screw samples provided by customers, which allows the incoming material size tolerance to be ± 0.2mm.

5. The locking product is the sample provided by the customer.

6. Fixture: According to product design, accurate positioning, simple and convenient replacement are required.

7. The product shall not be damaged during the use of the equipment (such as product deformation, scratches, appearance damage, etc.).

8. Reliability and stability: Under the premise of qualified product quality, the equipment can work continuously and steadily every day, with low failure rate, and is suitable for large-scale production of single products.

Other Products:

Ordering Instructions

1. Product ordering: Customer need to provide us with 1000 screws to be locked and 10-20 products to be locked for debugging and testing of the machine.

2. Scope of use: handheld screw machine for the same type of screw (screw cap and screw tooth diameter is the same) can be used, such as: M3X8,M3X10. If the difference is large, need to be customized.
