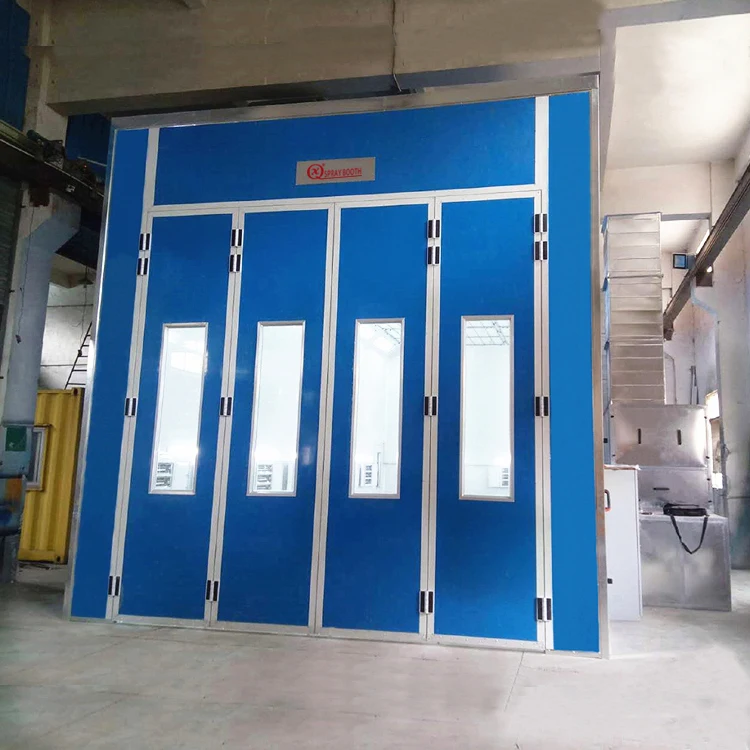

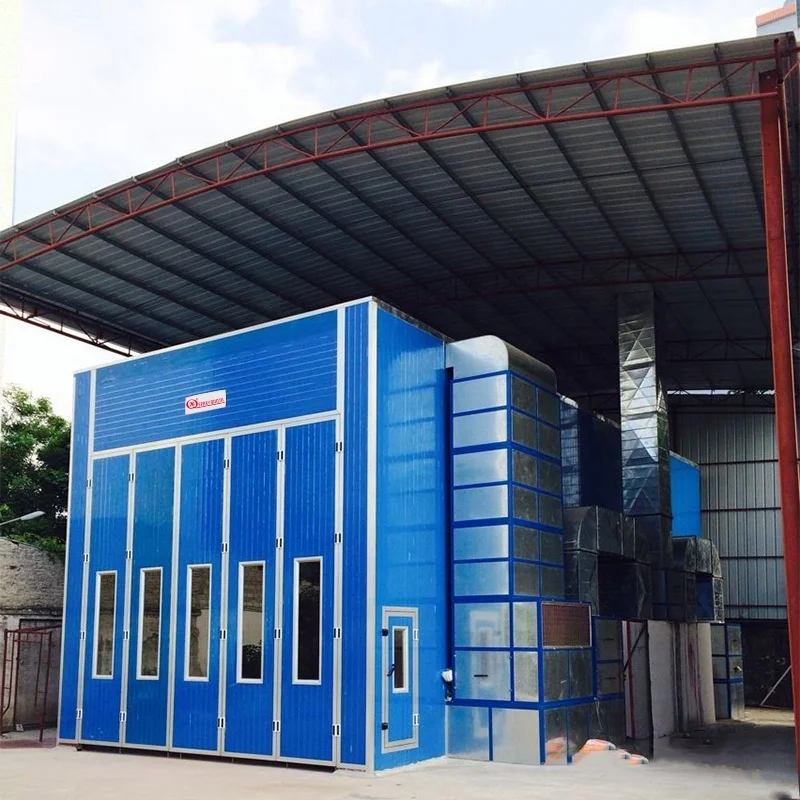

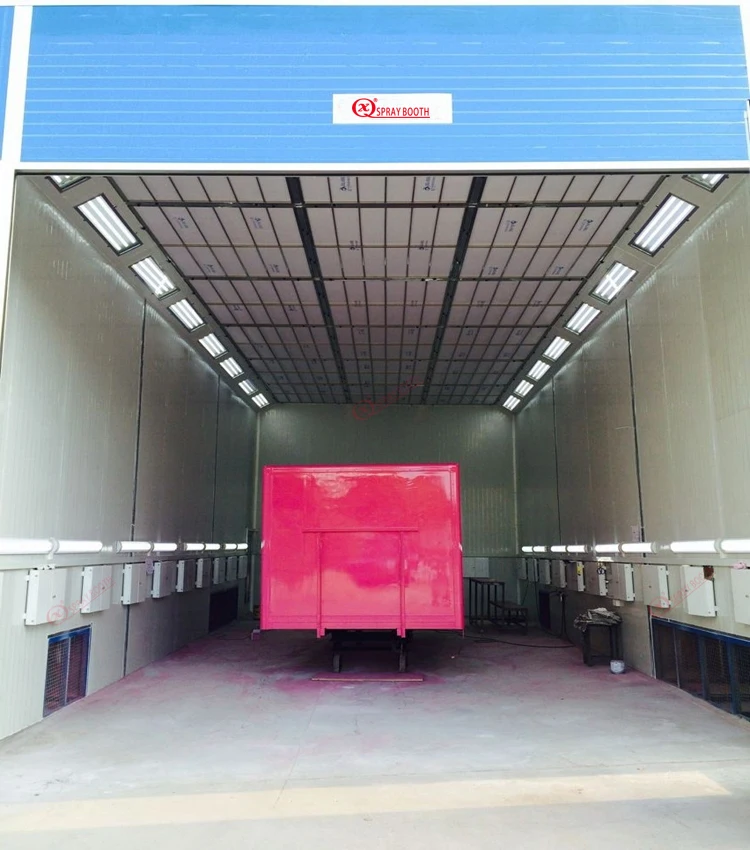

Large size truck and bus spray paint booth with down side draft air flow
- Category: >>>
- Supplier: Guangzhou Qiangxin Environmental Protection Electromechanical Equipment Co. Ltd.
Share on (62565156053):
Product Overview
Description
Guangzhou Qiangxin EP Eletromechanical Co., Ltd.
with more than 10 years production experience
Product Description
Inside Dimension | 14850*4850*4550mm(L*W*H) | ||||||
Outside Dimension | 15000*6500*5125mm(L*W*H) | ||||||

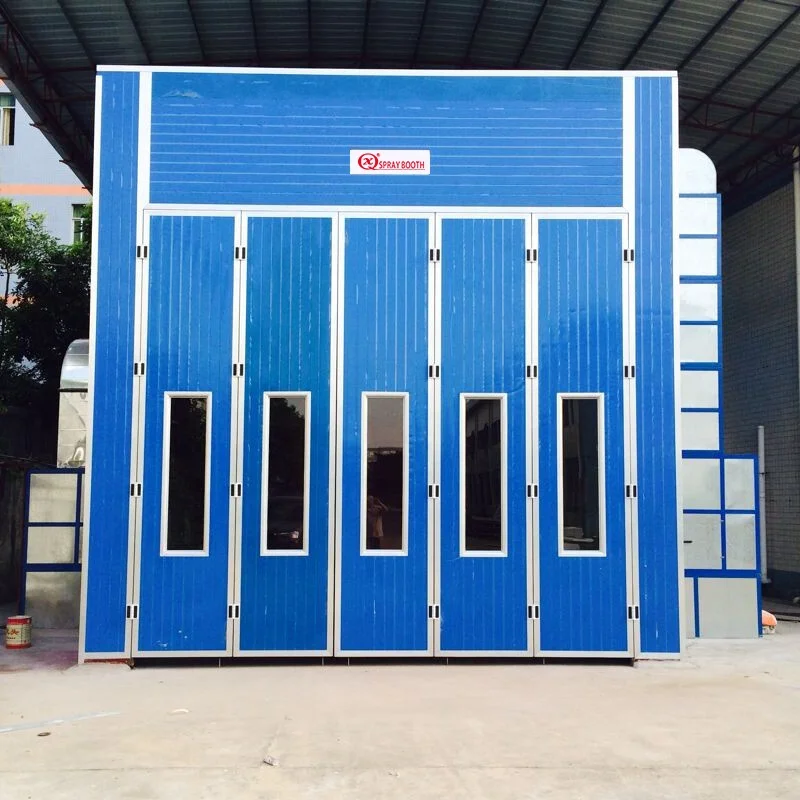

Entrance Door | Aluminum alloy binding framework(1.8mm) 1 set folding door size:4000*4500mm((L*W*H) | ||||||
Personal Door | 2 set side hung door:700*1700mm(W*H) | ||||||
Wallboard | 75mm EPS(Epispastics Polystyrene) insulation material with S=0.526 two side steel panel | ||||||

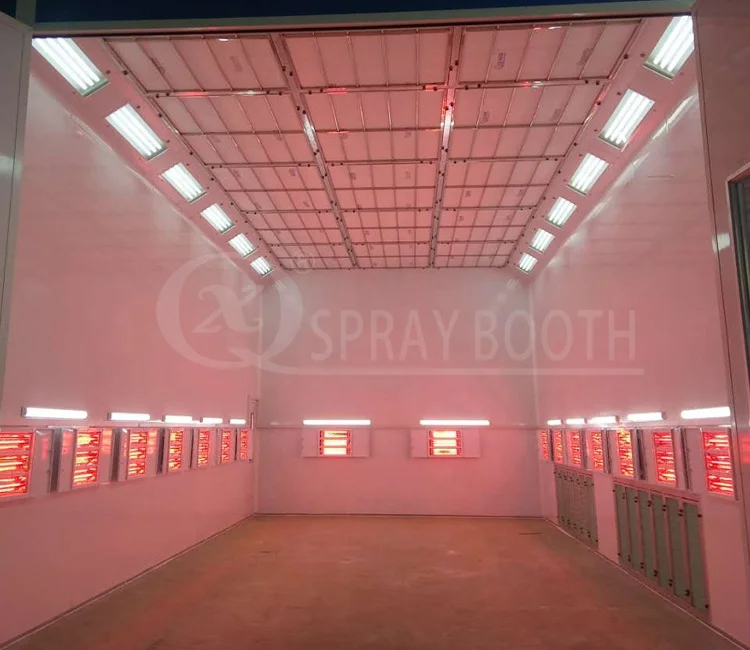

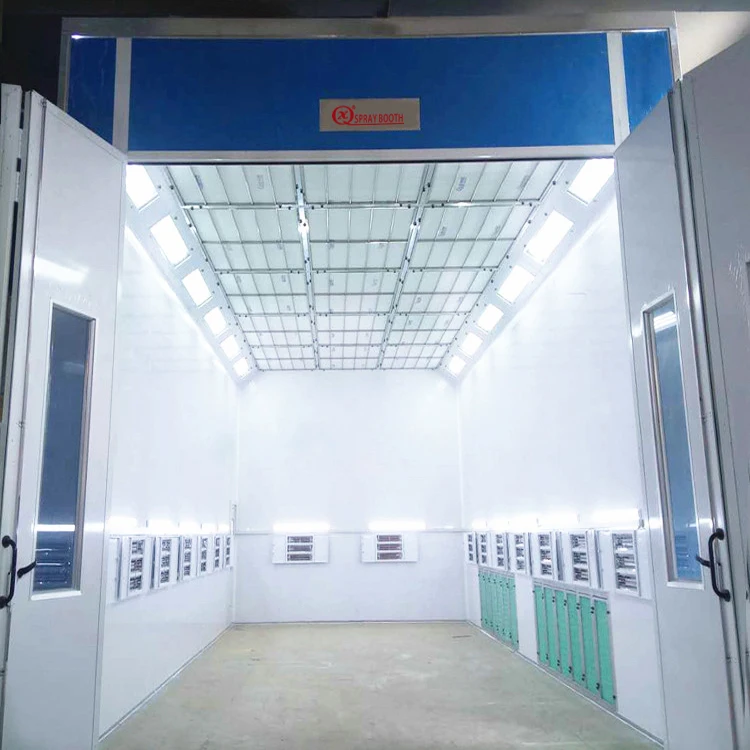

Lighting System | Lamp boxes are 45° fixed on upper two side with 18group*3pcs=54pcs 20w energy saving LED lamp, with 18 groups side light. | ||||||
Air Intake and Exhaust System | 4pcs centrifugal air blowers, Single parameter:YDW5.6m. 4kw.125000m³/h 2pcs centrifugal air blowers, Single parameter: YDW-710H. 7.5kw.20000m³/h | ||||||
Cabinet setting | Intake air from upside, downside exhaust wind. Frame is made of tube 50*50mm, body plate is made of galvanized plate(Thickness:0.8mm) | ||||||

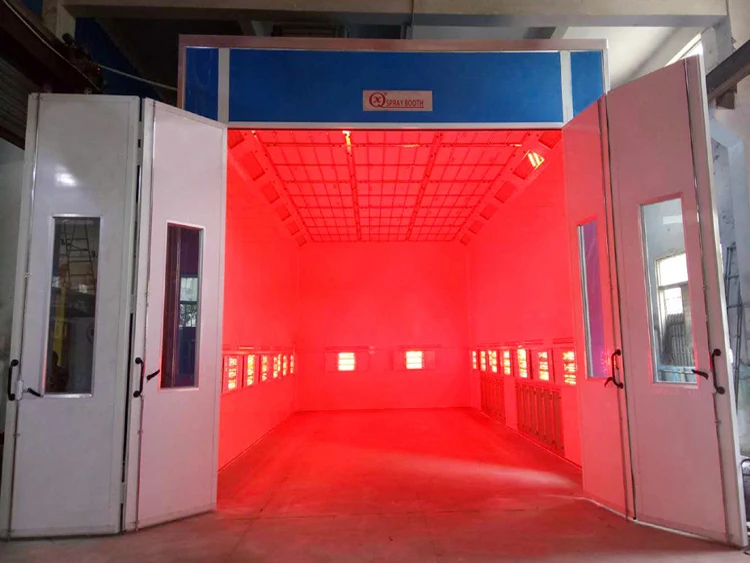

Heating System | Equipped with 20 groups*3=60pcs of infrared carbon fiber heating lamps, 1000w/piece. The operating temperature. 50-60°C. Max. Temperature: 75° | ||||||
Air duct | Made of galvanized plate(Thickness is 0.8mm), 700*700*1000mm, 3pcs straight, 1pc elbow. | ||||||
Filtration System | 4 filtters 1. Air inlet with prefilter 2. Ceiling equipped with CC-650type high efficency filter which can effectively filter the 5PM dust particles. The top filter cotton mesh is light stainless steel. 3. With three layers of activated carbon in exhaust cabinet. 4. Outlet with filter cotton. | ||||||
Roof | 75mm EPS(Epispastics Polystyrene) insulation material with S=0.526 two side steel panel | ||||||
Total Power | 92kw | ||||||
Package&Shipping
One set car spray booth with 60-65CBM 3 Tons can be loaded in 40 feet container.
Company Profile
Guangzhou Qiangxin EP Eletromechanical Co., Ltd. is a professional direct manufacturer of spray booth, industrial coating equipment, automobile maintenance equipment.
Located in Guangzhou city, Guangdong province with connvenient transportation access. We have more than ten years exported experience in the market.
With CE, ISO, RCM certificate, all of our products comply with international standard. Our well-equipped facilities and excellent quality control to guarantee customers satisfication.
If need further information, kindly send inquiry or call us.
