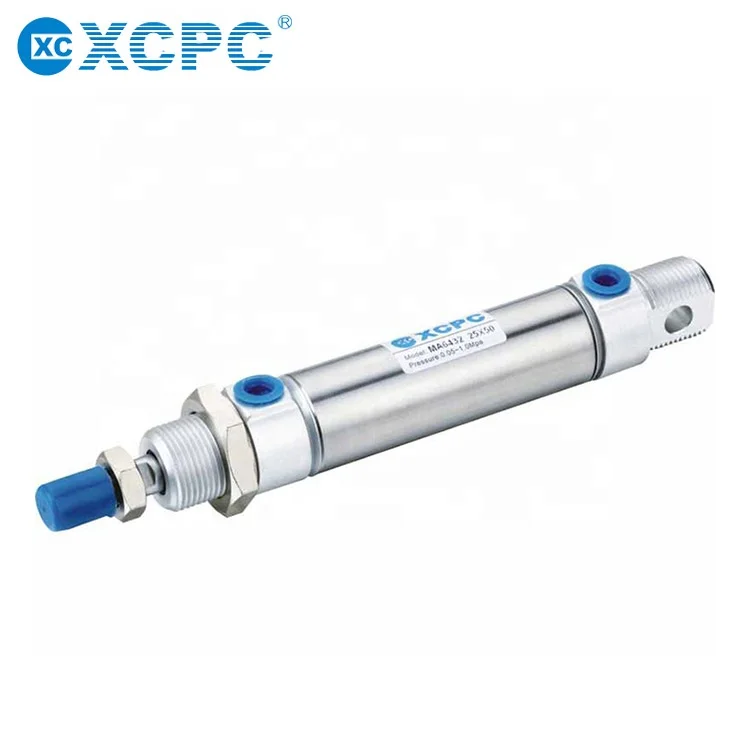

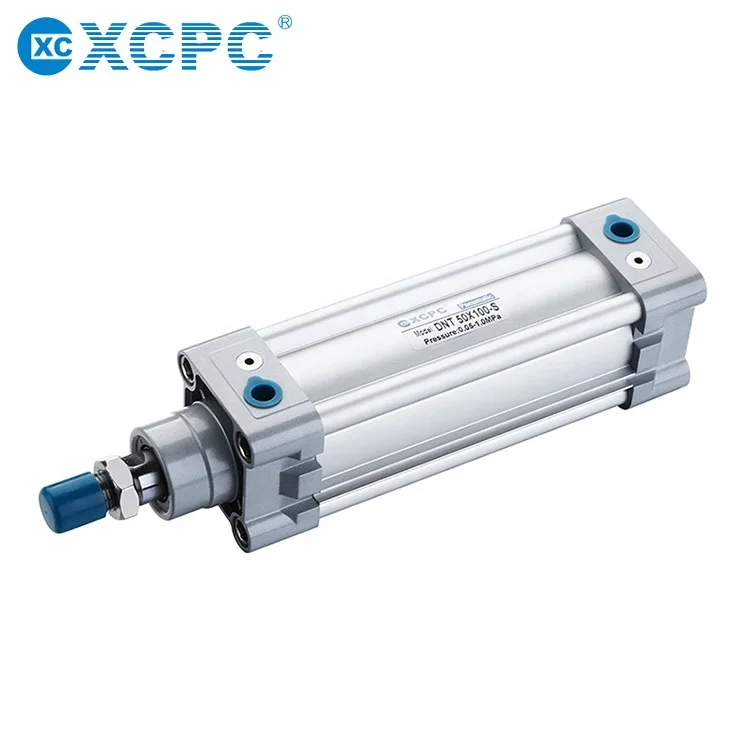

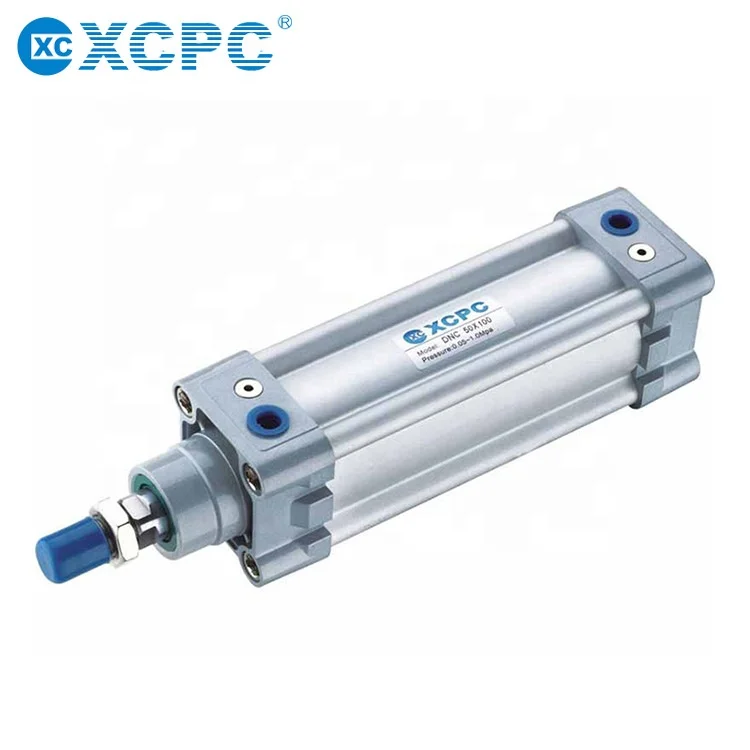

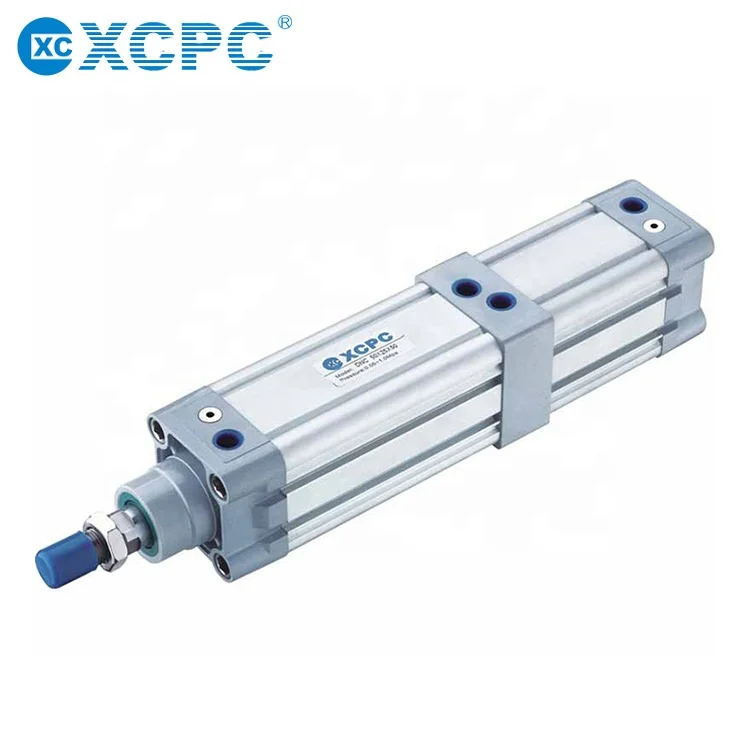

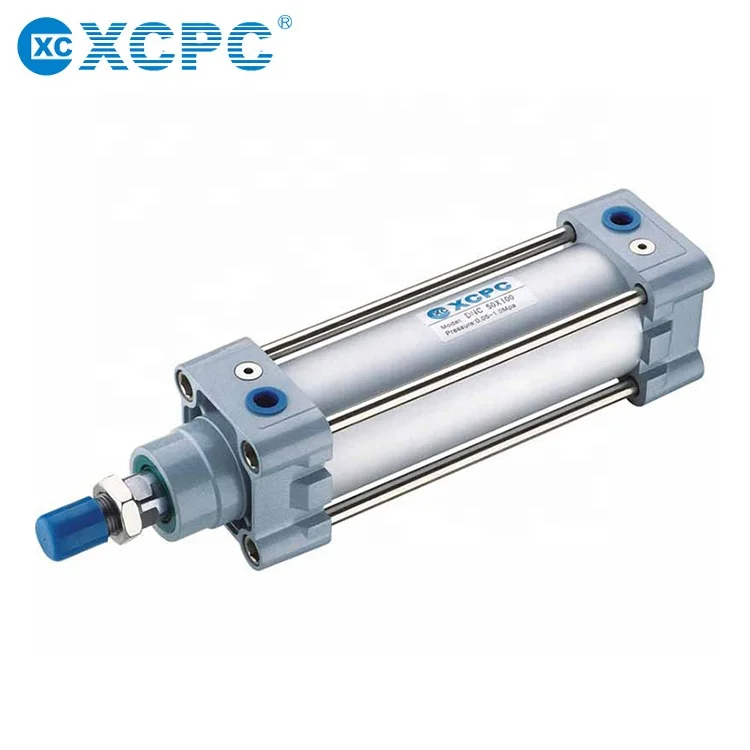

ISO Standard Pneumatic Air Cylinder

Share on (62565213838):


Price:$10.00 - $14.00

Quantity:


Product Overview

Description


DNC Series ISO15552 Standard Cylinder





Product Description

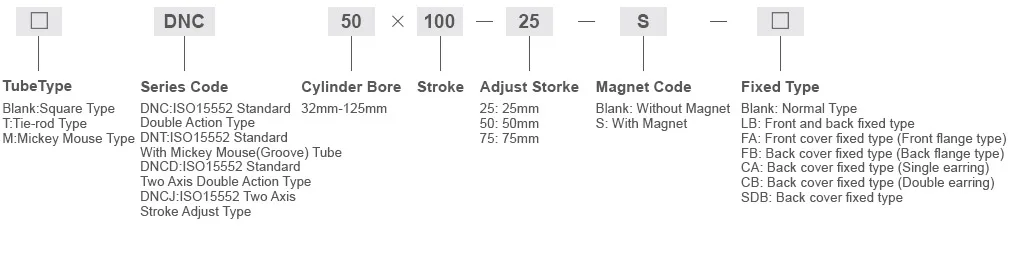

 1. Ordering Code

1DNC-Order Code.jpg



2. Specification

Bore(mm)3240506380100125
Working MediumDouble Action
Motion PatternFitered Air
Compression Pressure1.5MPa
Max.Operating Pressure1.0MPa
Min.Operating Pressure0.1MPa
BufferAir Buffer(Standard)
ConditionTemperature-5~70℃
Operating Speed50~800mm/s
Port SizeG1/8"G1/4"G3/8"G1/2"

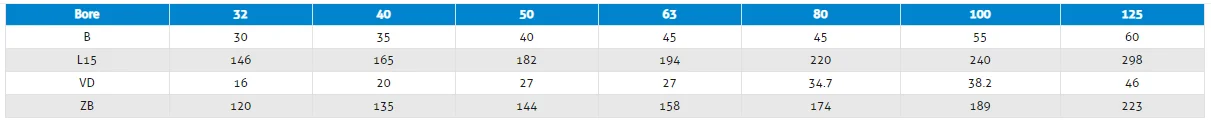

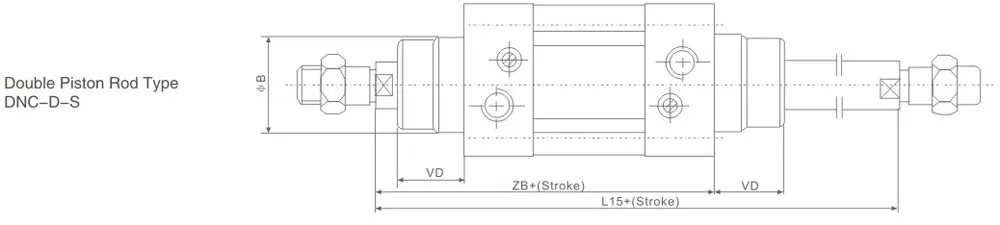

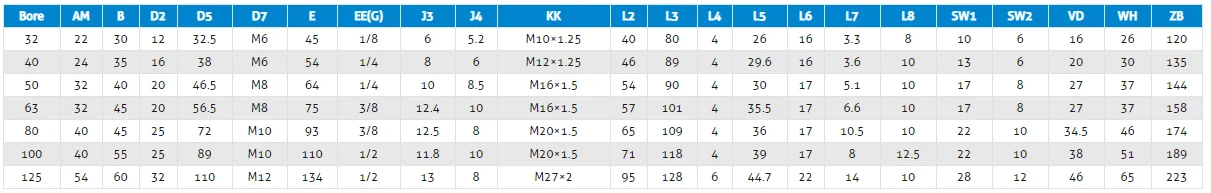

3. Overall Dimension
