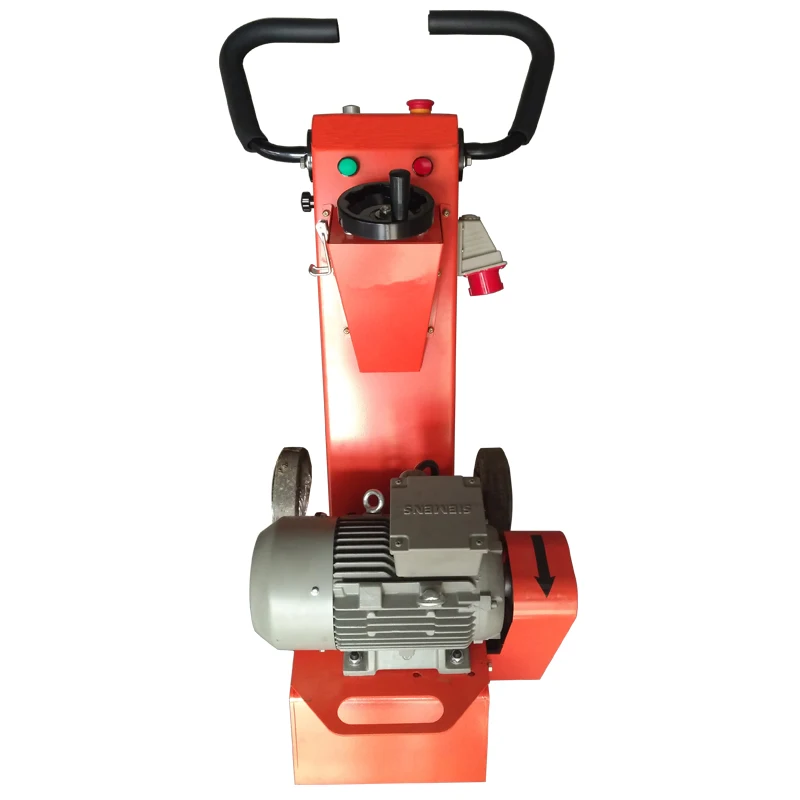

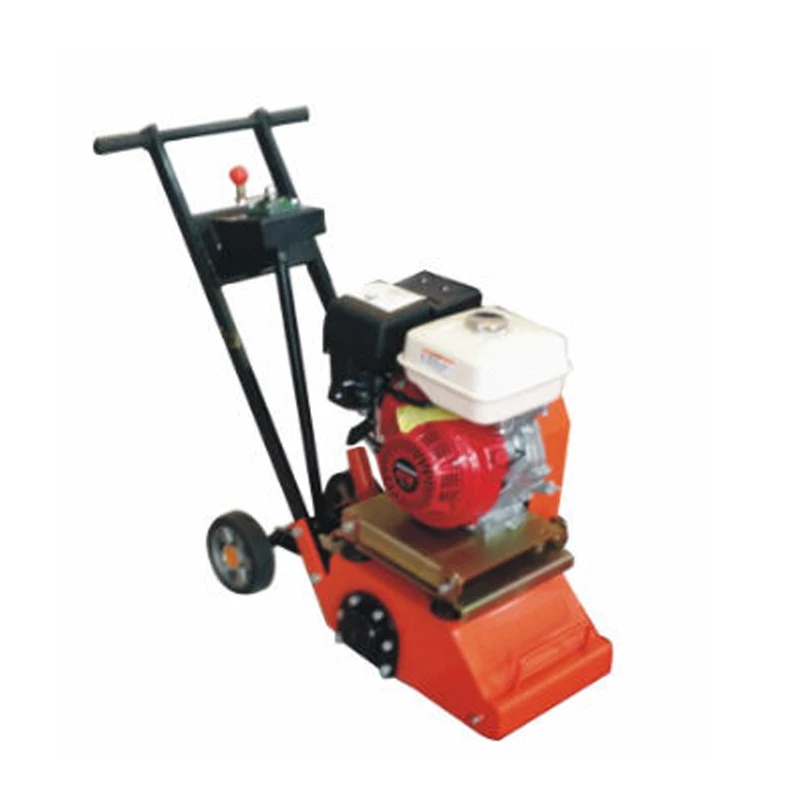

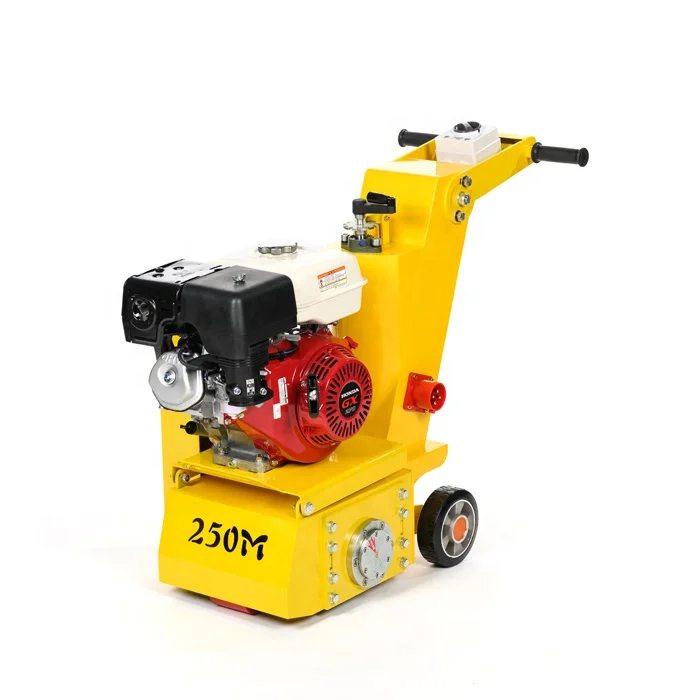

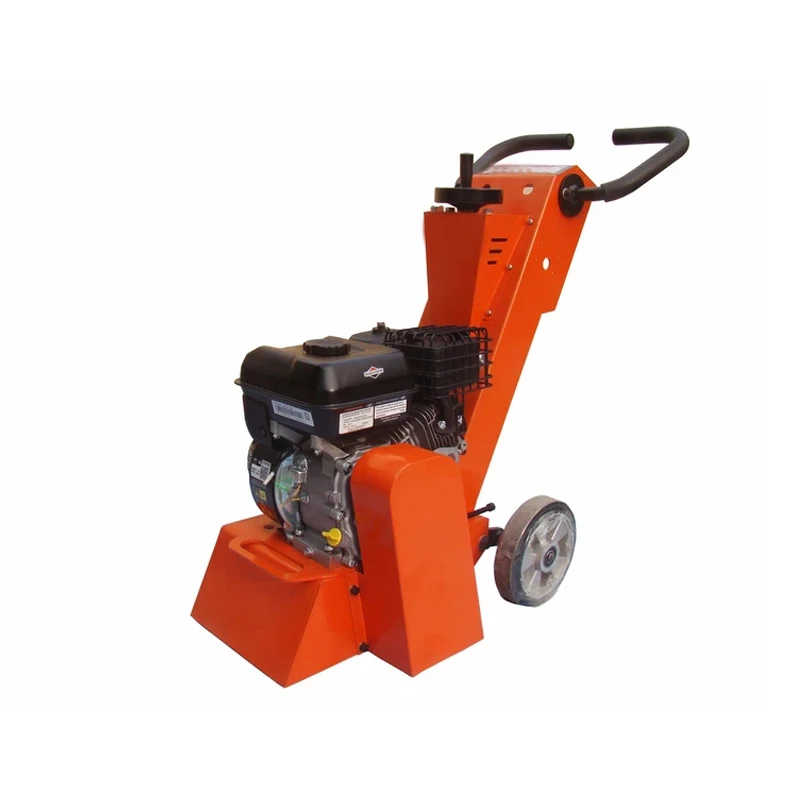

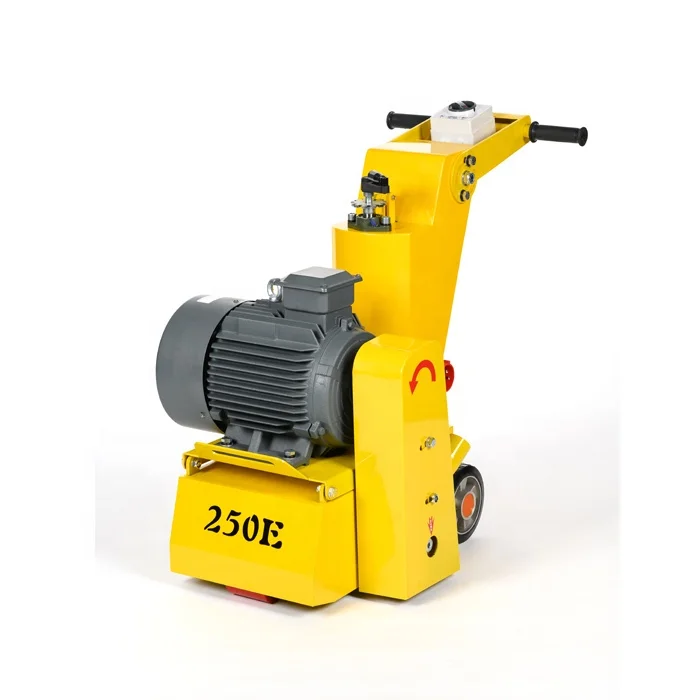

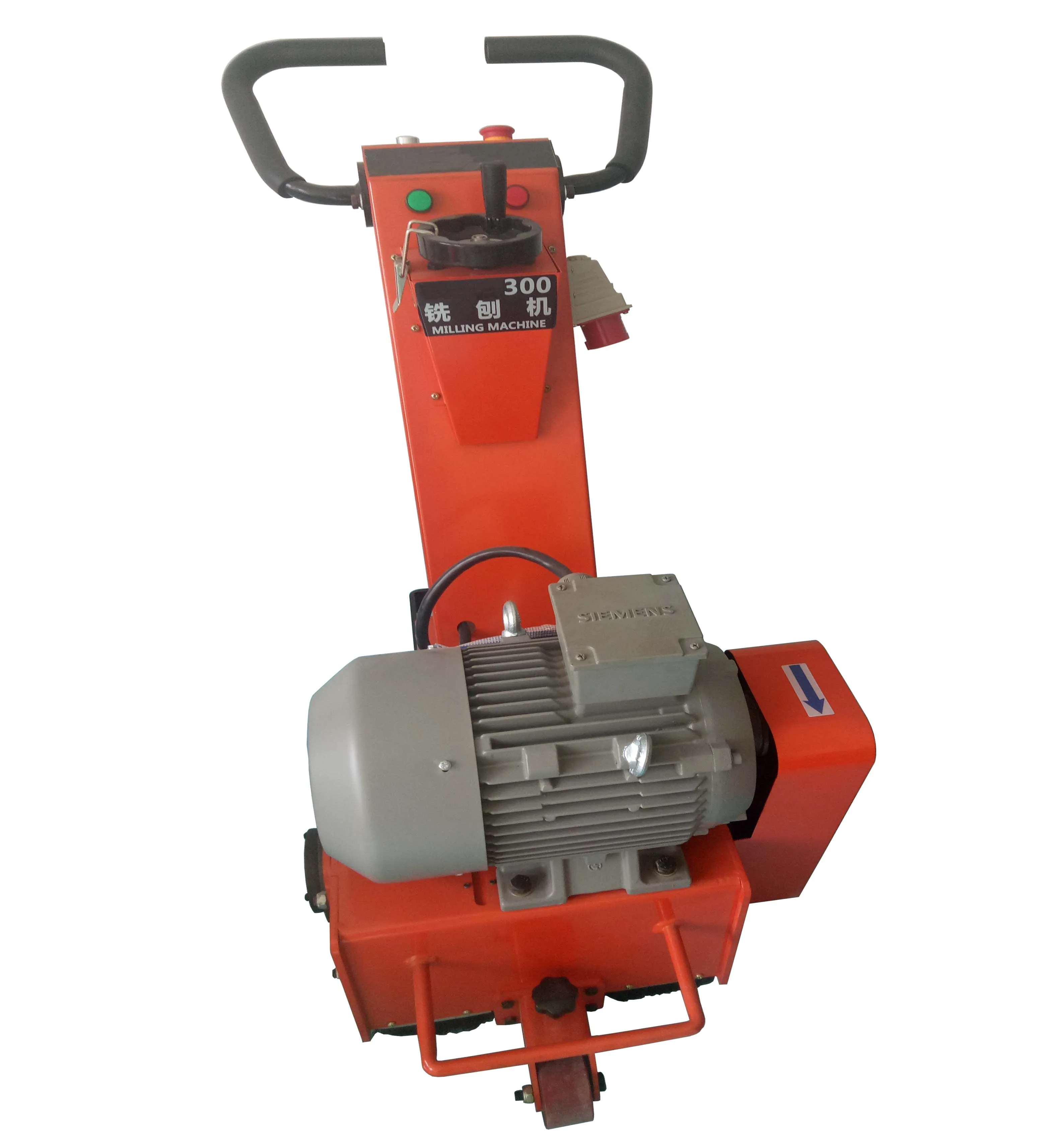

Manual asphalt concrete scarifier grooving cutter machine is for concrete floor scarifying and milling, clearing worn epoxies and adhesives in large area, also can be used to clear highway lines,the control frame system is provided with self-locking function.
Features:Equipped with vacuum connecting devices
Precise adjustable scarifying depth,the milling depth is controlled freely and the operation is flexible which can up to 3-5mm/0.2 inch
Durable tungsten steel cutting tools, diameter 48mm/2 inch
Flexible braking to adjust walking speed
Model
sw200
sw250
sw300
Engine
Siemens/Honda/Briggs & Stratton
Siemens/Honda/Briggs & Stratton
Siemens/Honda/Briggs& Stratton/Diesel
Power
2.2kw/5.5HP/5.5HP
7.5kw/9HP/10HP
7.5KW/13HP/13.5HP
Weight
75kg
120kg
160kg
Working width
200mm
250mm
300mm
Milling Depth
0-3mm
3-5mm
5-8mm
Blade quantity
72pcs
102pcs
160pcs
Shaft of Blade
4pcs
6pcs
8pcs
Product feature
What's the Specifications?
9HP Honda GX270 engine and super four or six bearings;
Drum is heat treated specially;
Machine supply good quality cutter;
Drum can be replaced easily;
With durable blades and could connect with a dust-proof device,make the working area clean, no dust.
The concrete floor scarifier machine could also use many different power, such as the electric simens motor or Chinese motor, and gasoline Honda engine.
Related Products
We have different styles of the concrete floor scarifier machine
