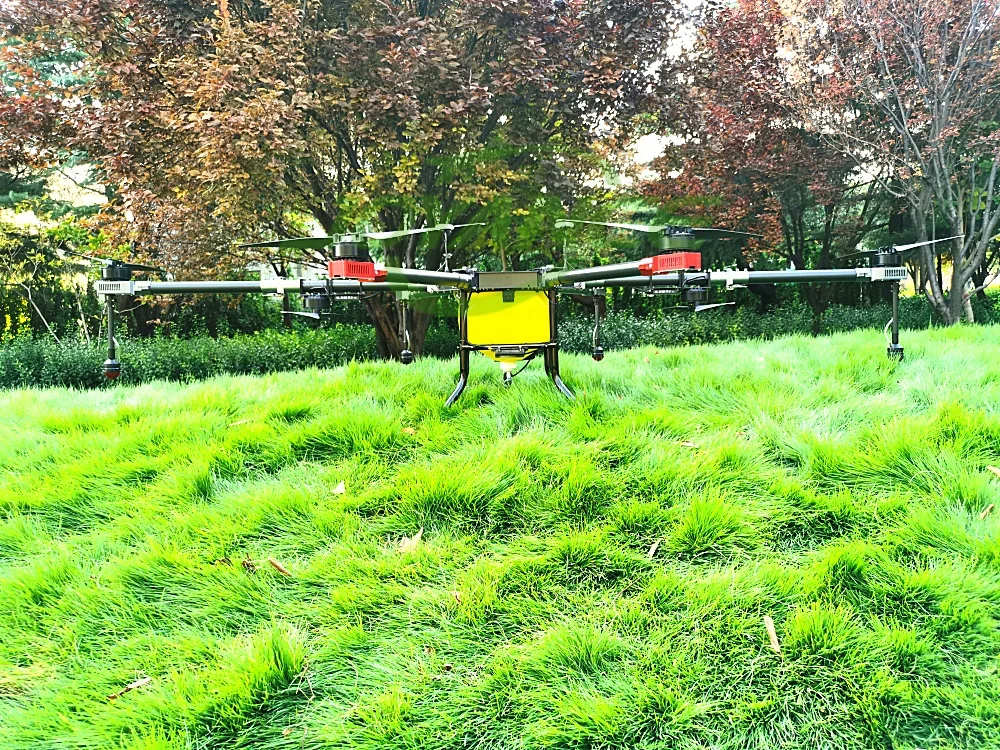

Payload 15L crop sprayer drone agricultural UAV for farmer

Product Overview

Description

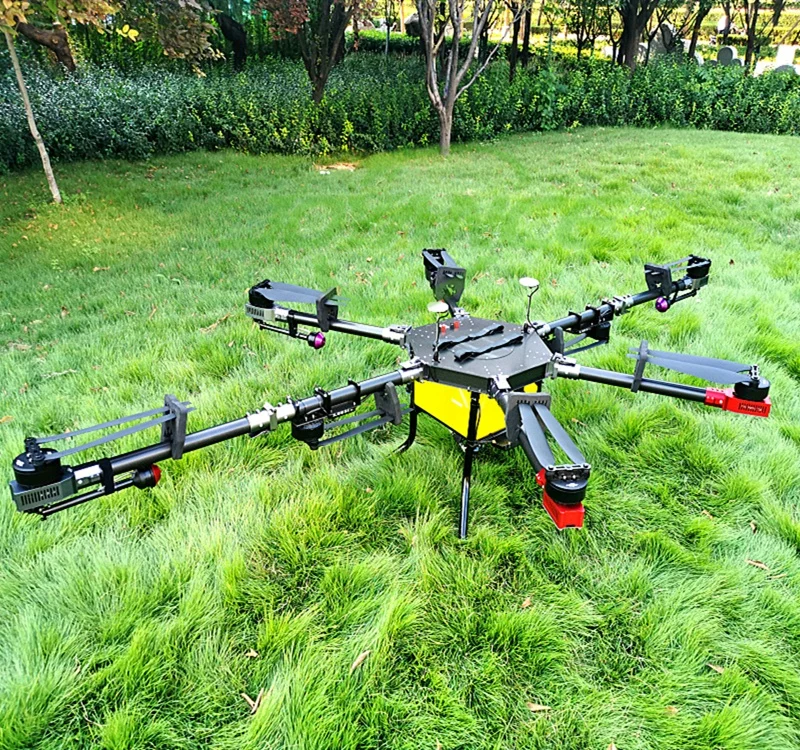

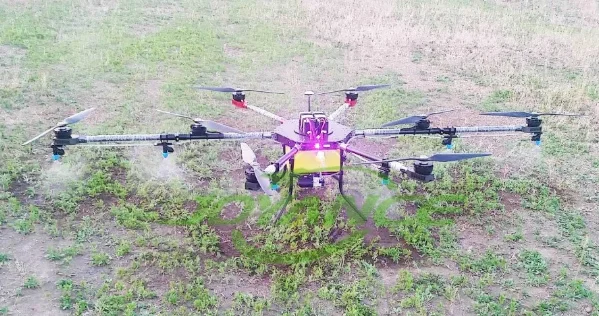

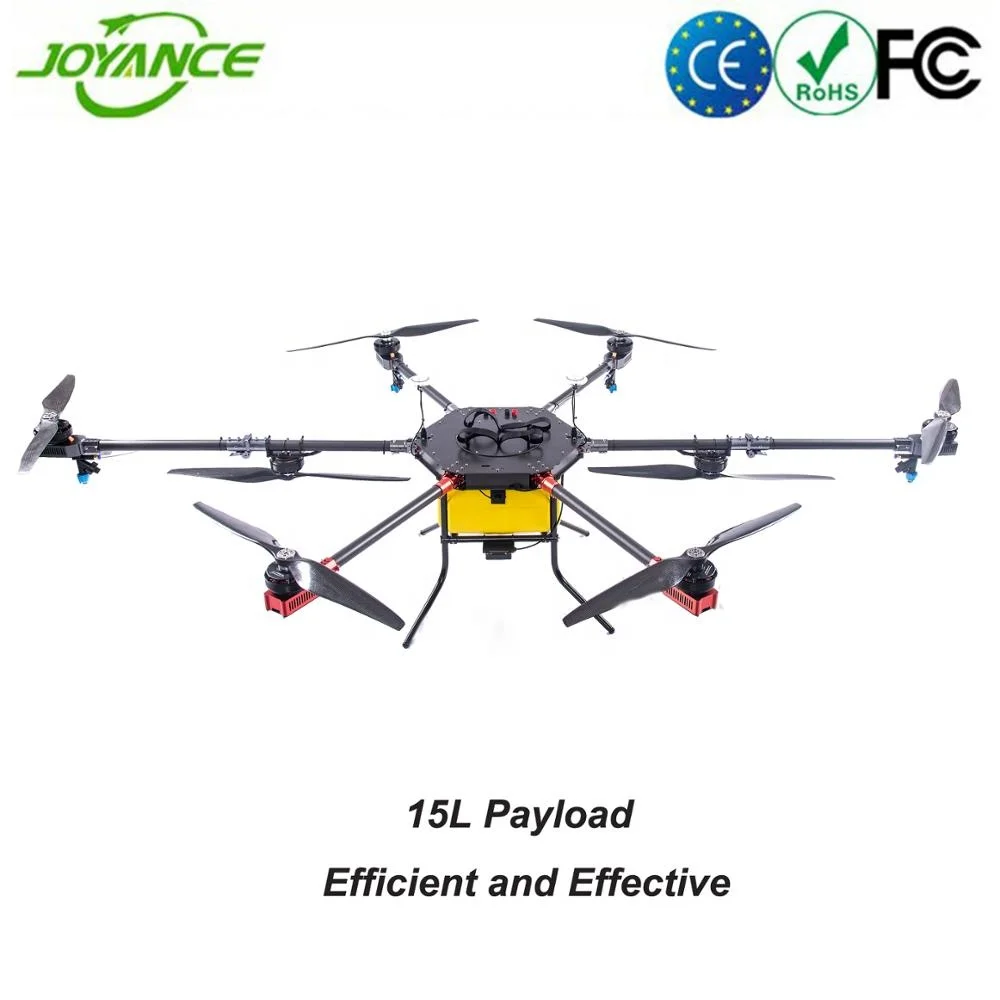

Payload 15L crop sprayer drone agricultural UAV for farmer

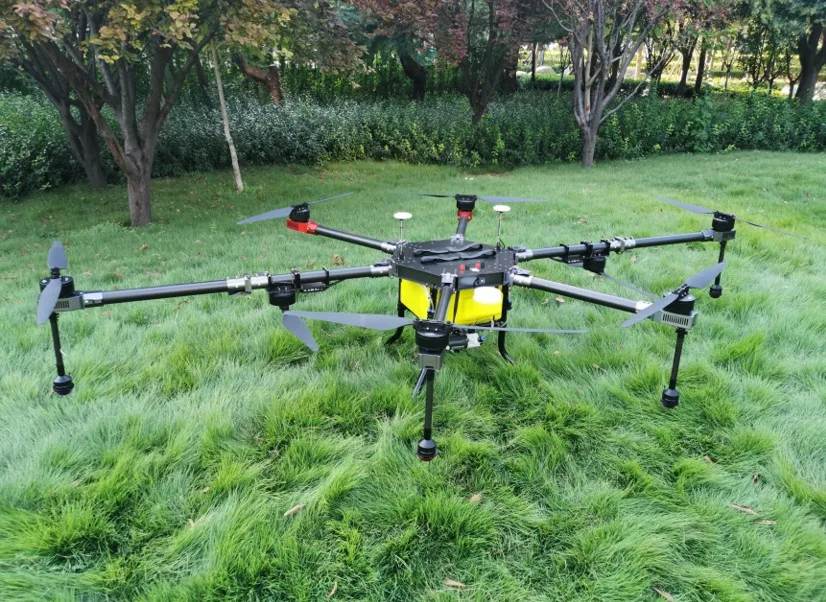

Model: 15L-608Pro

Agricultural spayer drone is widley used for spraying crops,fruits, trees,ect, also can adapt spreader device to scatter fertilizer,seeds granual.









Features:



1.Ready to fly,easy to use.

2.Selected material and components,strictly QC assures durable quality.

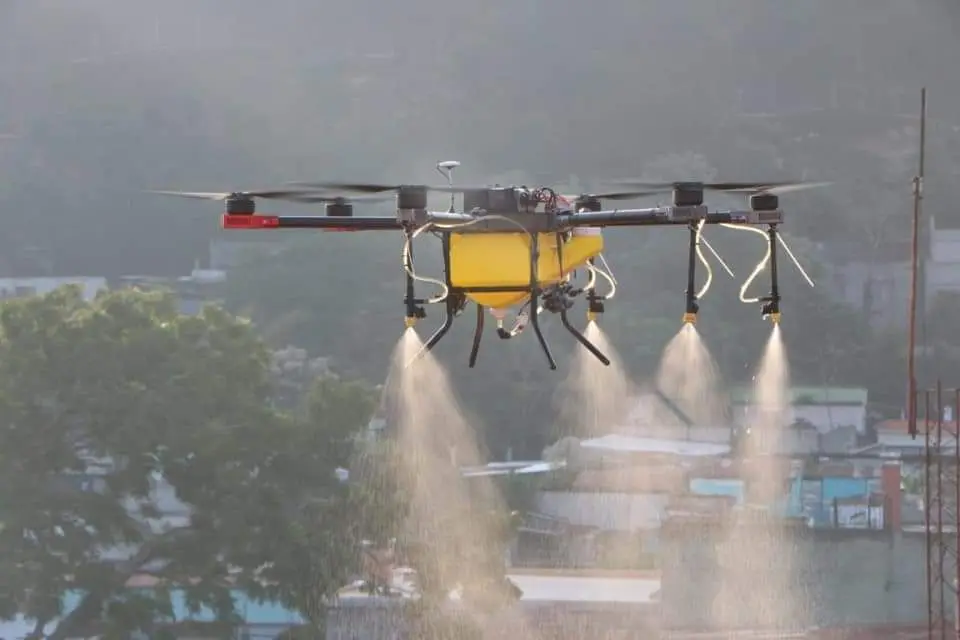

3.Efficient and Effective.New design of all nozzles under propeller.

4.Autonomous flight,terrain following and Obstacle avoidance radar function.

5.Water dosage saving and labor saving,safety and Eco friendly.

6.Easy for maintance and upkeep.

7.Reliable and fast response aftersale serivce team.







Application:

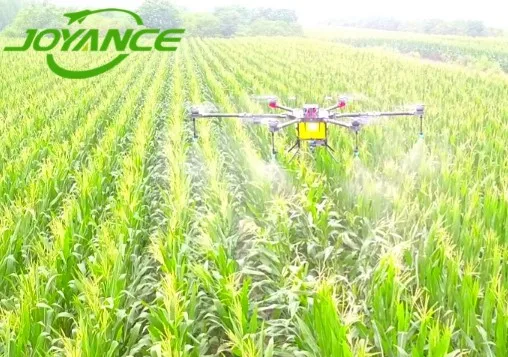

Joyance drones are multifunctional, can spray liquid pesticide, herbicide,insecticide, bactericide, foilar fertilizer,ect on crops,vegerables and orchard,also can be applied for seed spreading,feed spreeding,granule fertilizer scattering,ect.















Description and Parameter:





Main Aircraft Body	JT15L-608Pro
Material	Carbon fiber,aviation aluminum

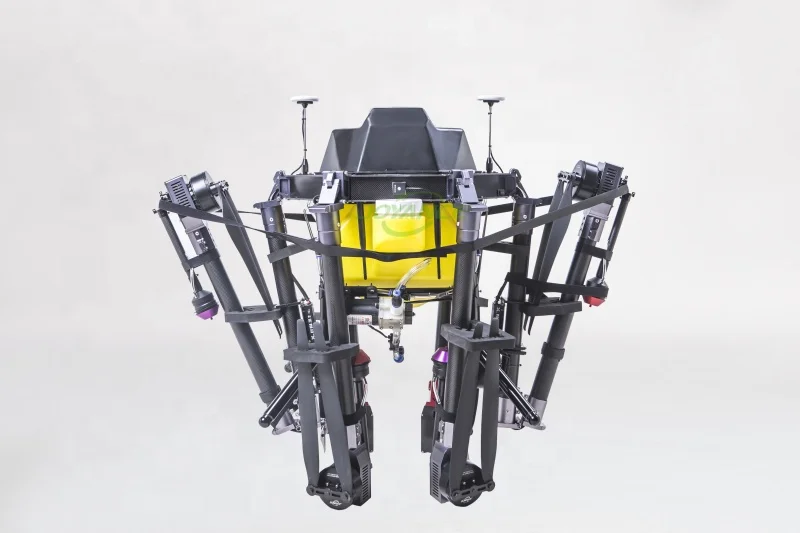

Structure	Umbrella foldable structure,6Axles
Diagonal wheelbase	2700mm
Size(Arm Unfolded)	2700x1550x500mm

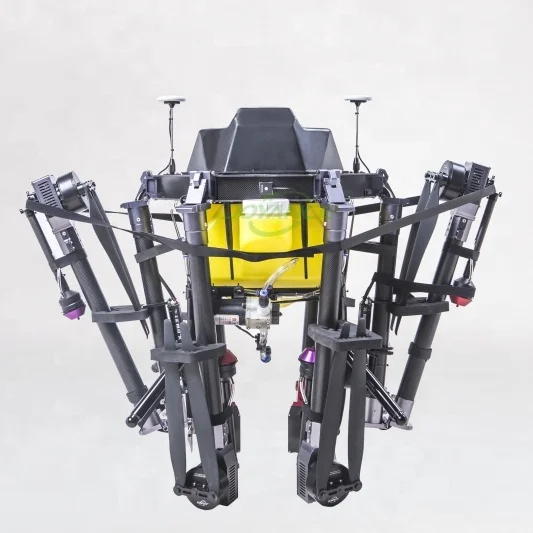

Size(Arm Folded)	850x750x700mm
Total weight(without battery)	20kg
Standard take off weight	39kg
Hovering accuracy range	±0.6m Horizontal,±0.3m Vertical
Hovering time	22min without load,10min full load
Max operating speed	8m/s
Recommended flight hight	0-50m
Max wind speed resistance	8m/s
Recommended operating temperature	0-40°C









Power System	JT15L-608Pro
Motor	IP55,waterproof,dustproof,good heat dissipation, durable brushless motor;8Rotors
ESC	Waterproof,high quality
Propeller	Carbon fiber+plastic material,foldable structure

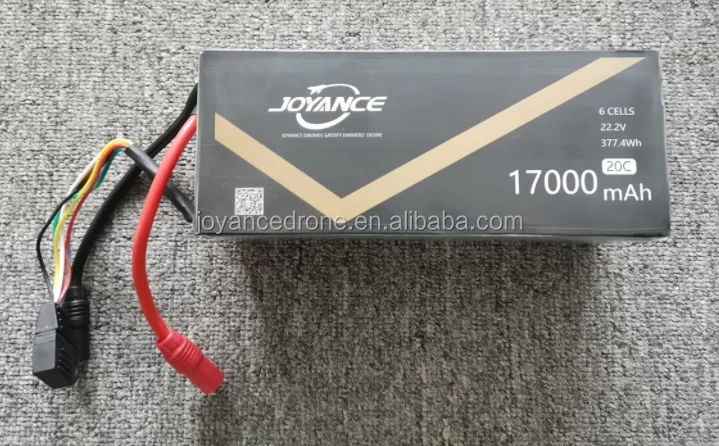

Battery	LiPo battery,Smart Battery for option
Battery charger	Synchronous balance charger







Flight Control System	JT15L-608Pro

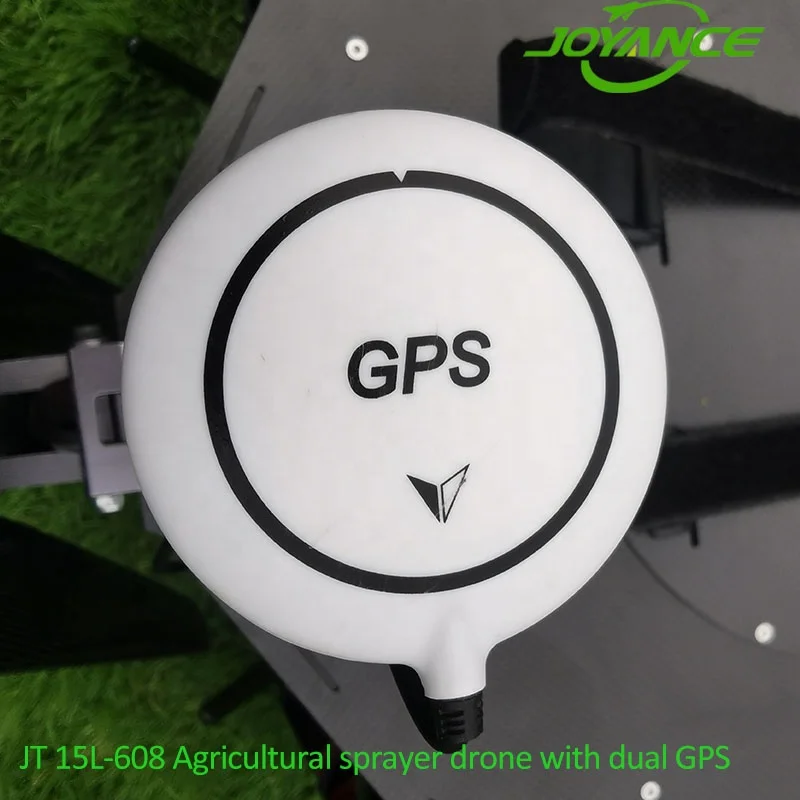

GPS	U-blox m8n GPS stand,Accuracy0.5m
Main control unit	K3APro,K++

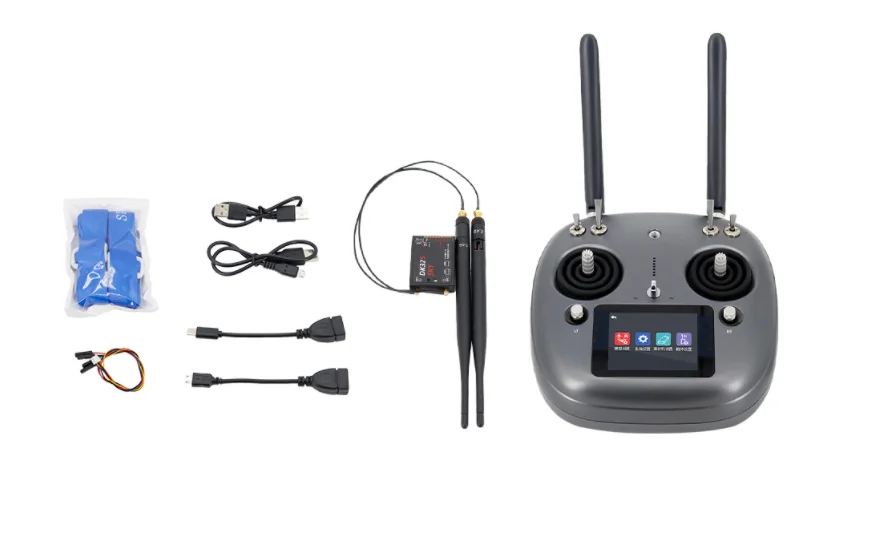

Remote controller	DK32,VD32, 0-3km effective distance
High precision terrain following radar	Optional
High precision obstacle avoid radar	Optional
FPV camera+spotlight	Optional
GPS waypoint edition	Optional
RTK	Optional
Flight mode	GPS,Manual,Autonomous flight mode
Mobile APP	Available







Spray System	JT15L-608Pro
Standard payload	15kg
Tank volume	15L
Operating efficiency	8hectares/hour
Nozzle quantity	4pc

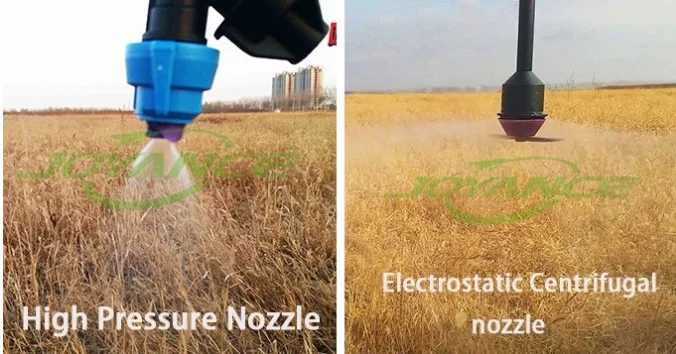

Nozzle type	centrifual nozzle,high pressure nozzle
Max spray rate	4L/min
Droplet size	50-200µm/100-200µm
Spray width	8m
Dynamic flow control	Available
Granule spreader	Available
Dosage control spray	Available

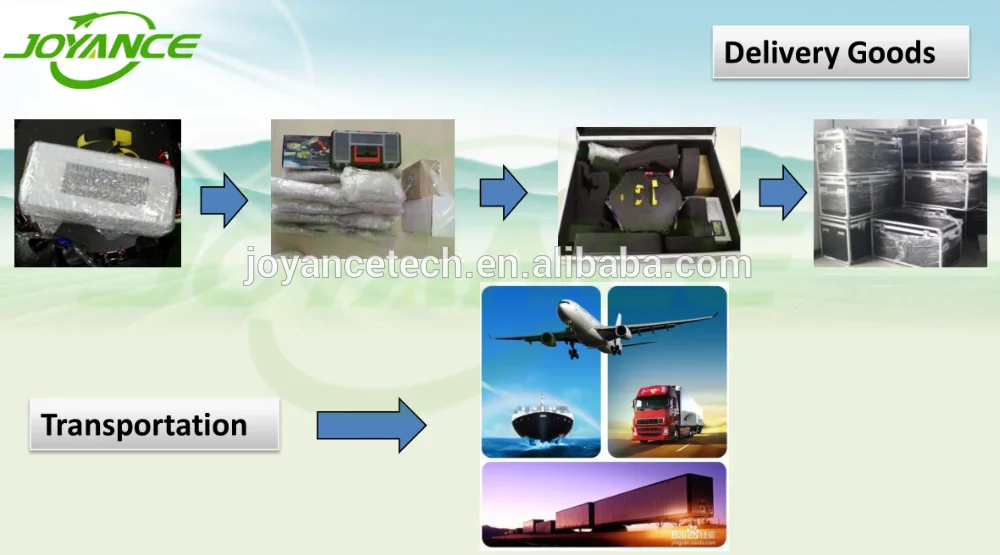

Package and Delivery:



Each 1 unit drone is packed in aluminum case for transporation.

Sea freight,air parcel,courier,express can be chosen as demand.







FAQ:

1.Are you factory or trade company?

We are factory.

2.Have your products got certification?

We has passed CE,FCC,RoHS Certification.

3.What's the MOQ?

MOQ=1set.

4.What's the delivery time?

Less than 10 sets available in stock, can send immediately;

Over 10 sets takes 7-15 days for delivery.

5.What's the payment term?

50% T/T in advance, balance before shipment.





Company Profile and Certification:



Shandong Joyance Intelligence Technology Co.,Ltd is a high-tech enterprise located at Weifang City,Shandong province,China.Engaged in the agricultural sprayer drone industry since 2012,officially registered with capital 60million RMB in May,2016.The company has professional R&D,experienced management and severly QC team, we has been only concentrated on commercial grade Unmanned Aerial Vehicles and UAV application solution for years.The monthly production capacity is 100 units drones,products has been approved by CE,FCC,RoHS Certification and successfully exported to Brazil,Japan,Australia,Sri Lanka,Panama,Columbia,El Salvador, Indonesia,Ireland,France,ect.



We seek for Honesty,Preciseness Innovation Development,with high quality and excellent sale service,we are your reliable partner in agricultural drone business.
