XL6436CLW power feed swivel head rotary table universal manual milling machine
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (62565631812):
Product Overview
Description

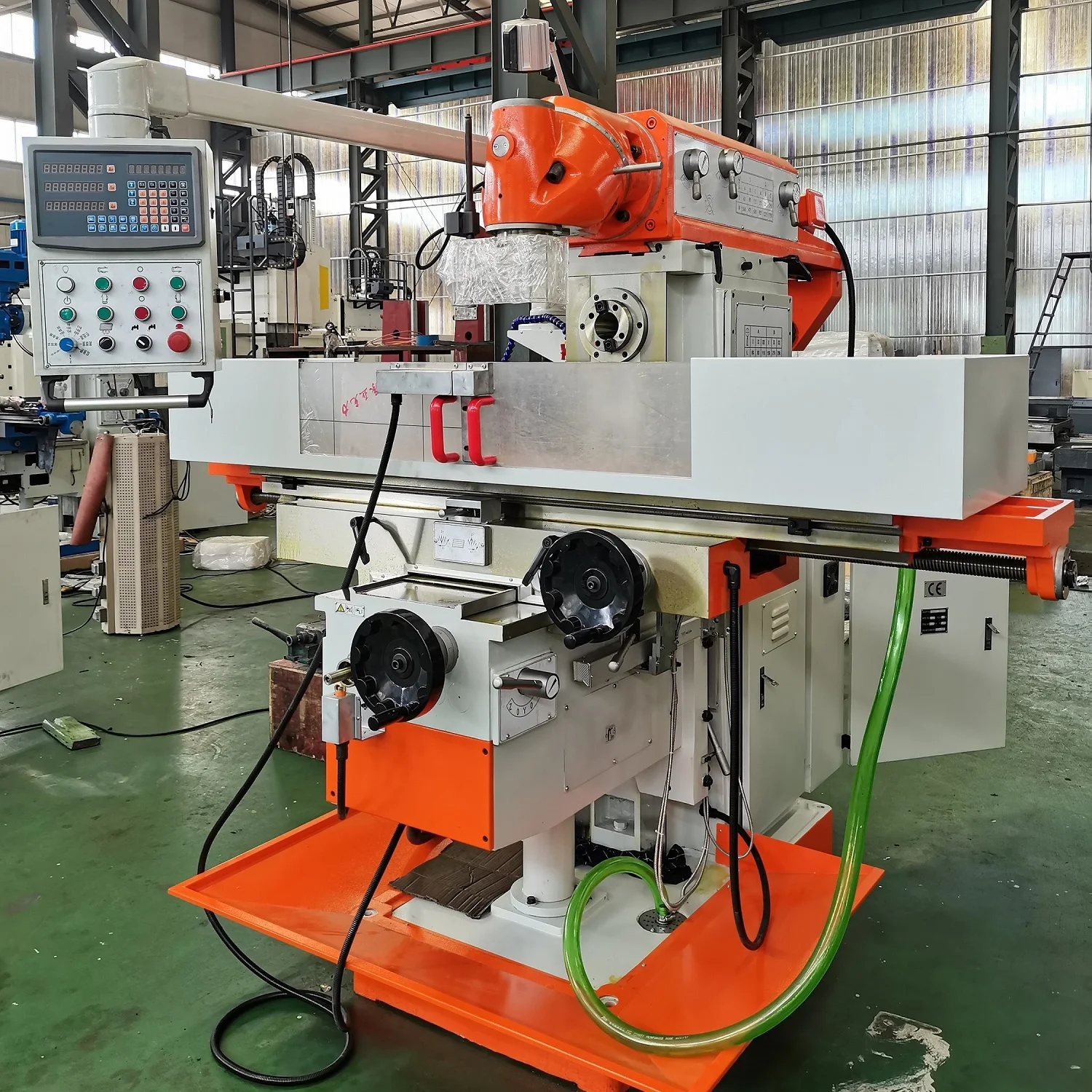

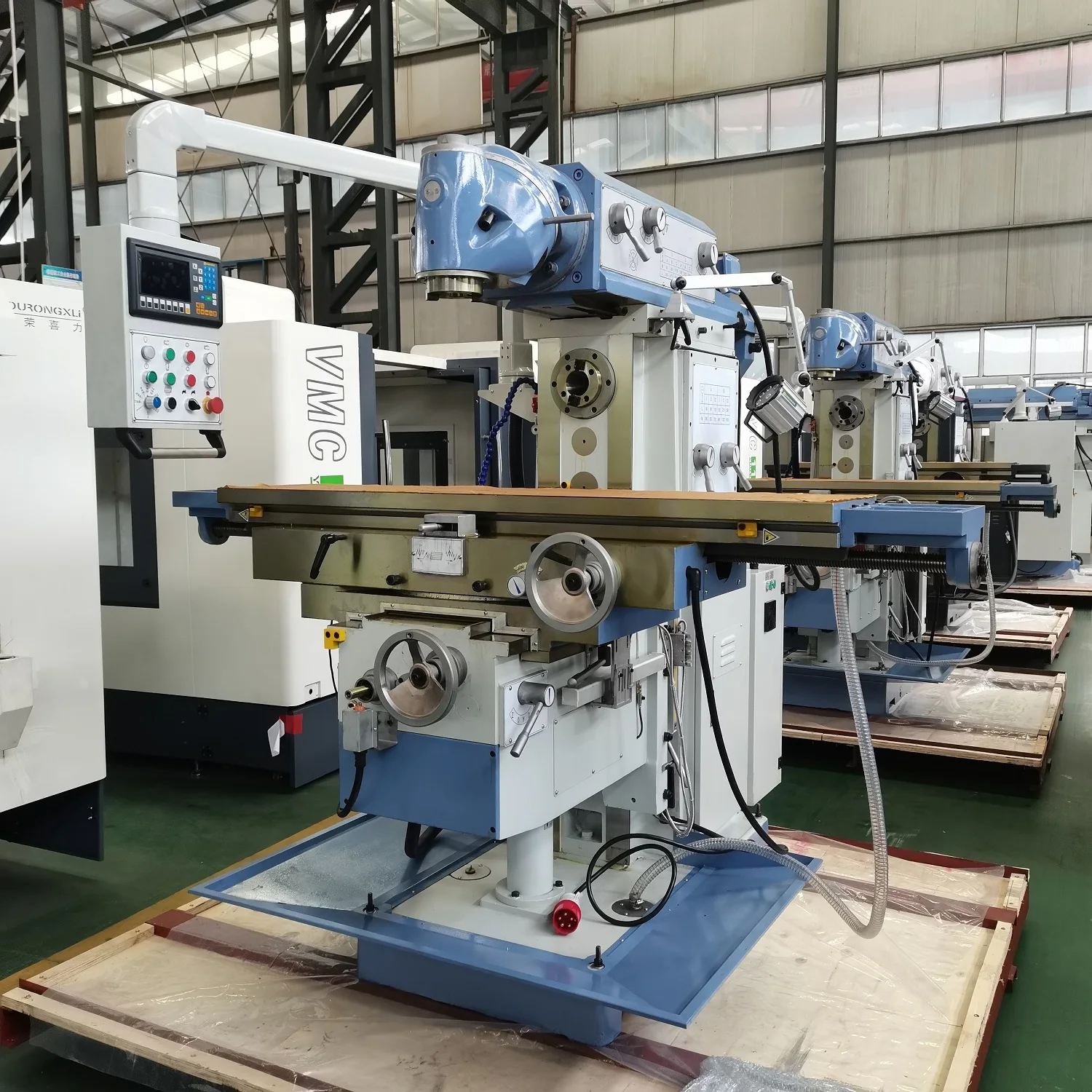

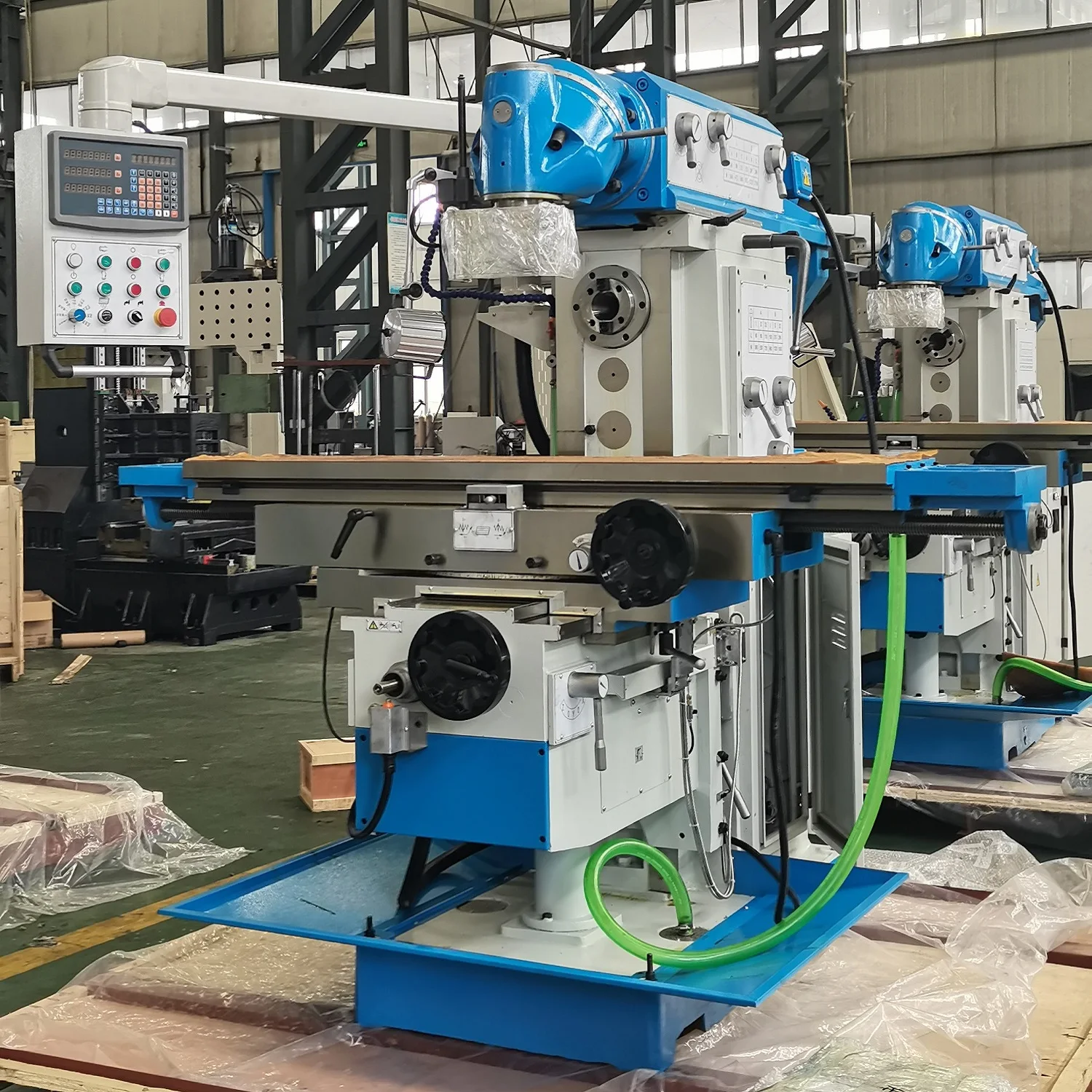

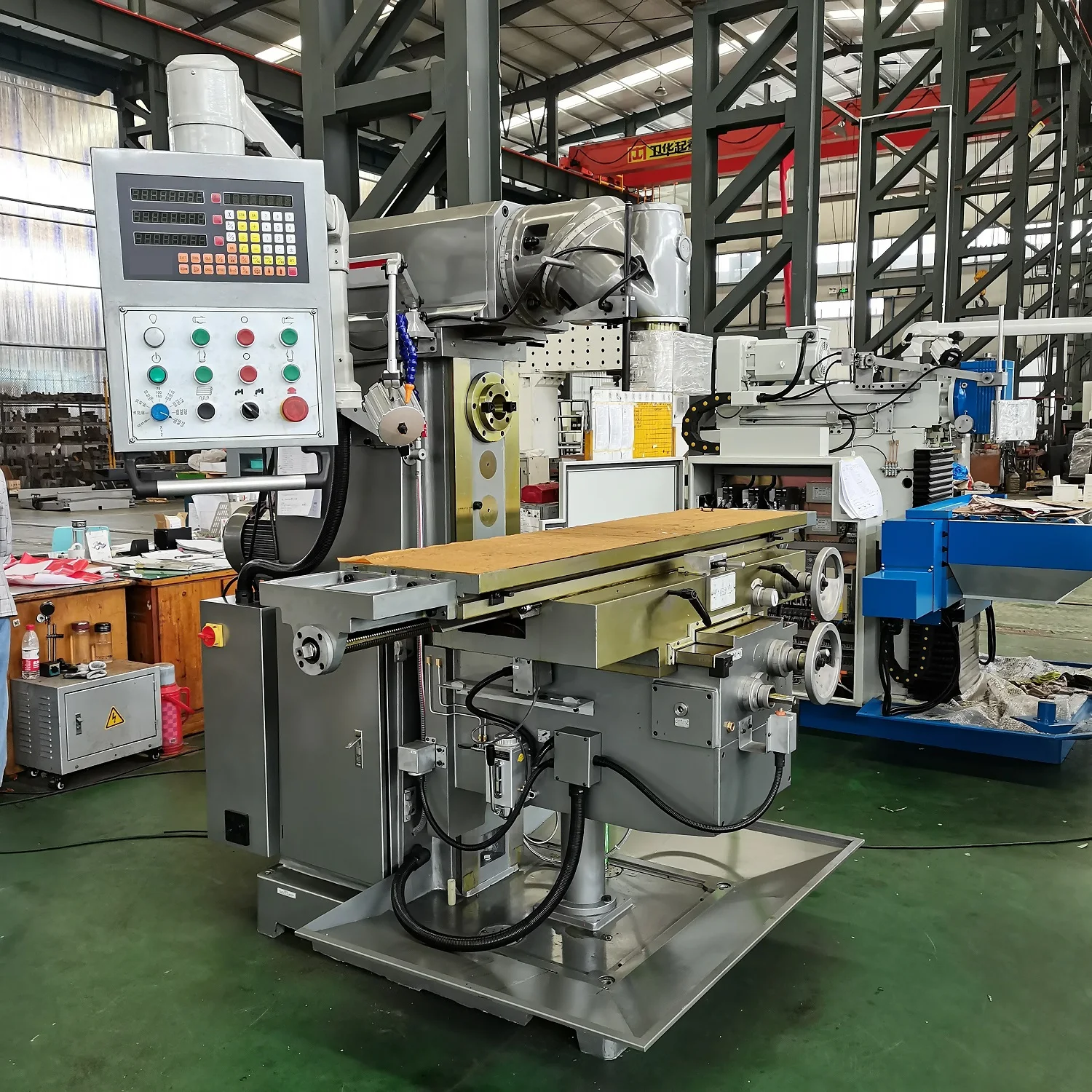

XL6436CLW power feed swivel head rotary table universal manual milling machine
Brief Introduction
√ 360° rotary mill head, wide processing angle
√ extra horizontal spindle, for quick flexible change between vertical & horizontal mode
√ spindles are driven by gearbox directly, ensures powerful milling
√ X/Y/Z-axis feedings are driven by servo motor, good accuracy & low noise

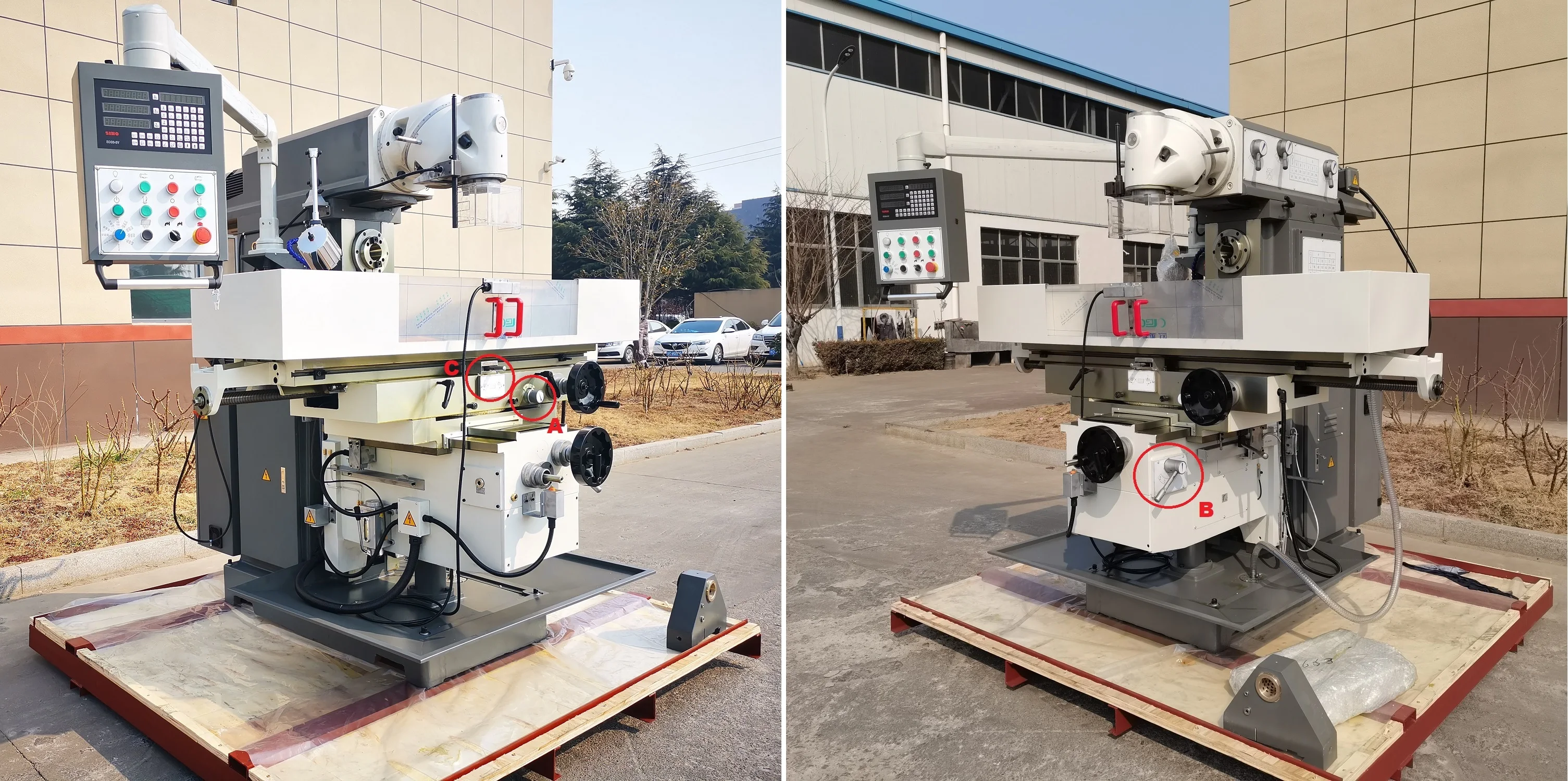

√ machine is easy to operate (as shown in figure: A knob select manual / automatic feeding mode, B lever select X/Y/Z feeding, C
lever select +/- feeding direction)

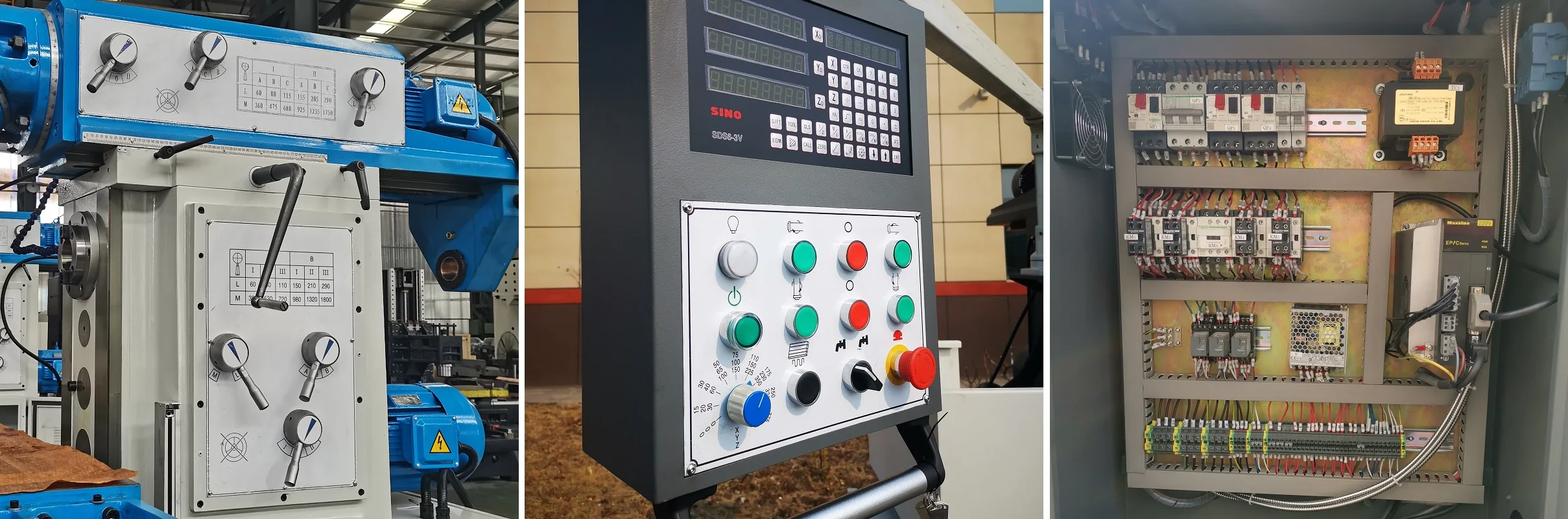

√ brief design control panel, easy to operate
√ reasonable circult routing in electrical cabinet, easy for maintenance
√ water cooling system, lubrication system are included
Specificaitons of This Series
ITEM | UNIT | XL6436W | XL6436CW | XL6436CLW | ||
Table size | mm | 1325*360 | 1600*360 | |||
Table travel (X/Y/Z) | mm | 750/320/400 | 1100/320/400 | 1300/320/400 | ||
Table feed(X/Y/Z) | mm/min | 30-750/20-500/15-375 | ||||
Spindle taper | (V)IS050 (H)IS050 | |||||
Arm travel | mm | 550 | ||||
Distance between spindle nose and table surface | mm | 190-590 | ||||
Distance between horizontal axis and table surface | mm | 20-420 | ||||
Distance between spindle axis and arm surface | mm | 200 | ||||
Spindle speed range | r.p.m | (V)12 steps, 60-1750rpm (H)12steps, 60-1800rpm | ||||
Slots (NO./width/pitch) | mm | 3/18/80 | ||||
Main motor power | Kw | (V)4kw (H)5.5kw | ||||
feed servo motor torque | N.m | 10 | ||||
Overall size | mm | 1800*2100*2000 | 2245*2100*2000 | 2520*2100*2000 | ||
Net weight | kg | 2650 | 2750 | 2800 | ||
smaller models:
ITEM | UNIT | XQ6432W | XQ6432AW | XQ6432BW | XQ6432CW | |||
Table size | mm | 1270*320 | 1370*320 | 1270*320 | 1370*320 | |||
Table travel (X/Y/Z) | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 | |||
Table feed (X/Y/Z) | mm/min | 30-830 / 30-830 / 23-625 | ||||||
Table rapid speed (X/Y/Z) | mm/min | 1335/1335/1000 | ||||||
Spindle taper | (V)IS040 (H)IS040 | |||||||
Arm travel | mm | 460 | ||||||
Distance between spindle nose and table surface | mm | 220-620 | ||||||
Distance between horizontal axis and table surface | mm | 35-435 | ||||||
Distance between spindle axis and ram | mm | 180 | ||||||
Spindle speed range | r.p.m | (V)11 steps, 45-1660rpm (H)12steps, 35-1500rpm | ||||||
Slots (NO./width/pitch) | mm | 3/14/80 | ||||||
Main motor power | Kw | (V)2.2 or 3kw (H)3kw | ||||||
feed servo motor torque | N.m | 10 | ||||||
Overall size | mm | 1720*1680*1860 | 1820*1680*1860 | 1720*1680*1860 | 1820*1680*1860 | |||
Net weight | kg | 1850 | 1900 | 1900 | 1950 | |||
Packing & Shipping
Delivery time: generally 60 days production time after confirmation of order

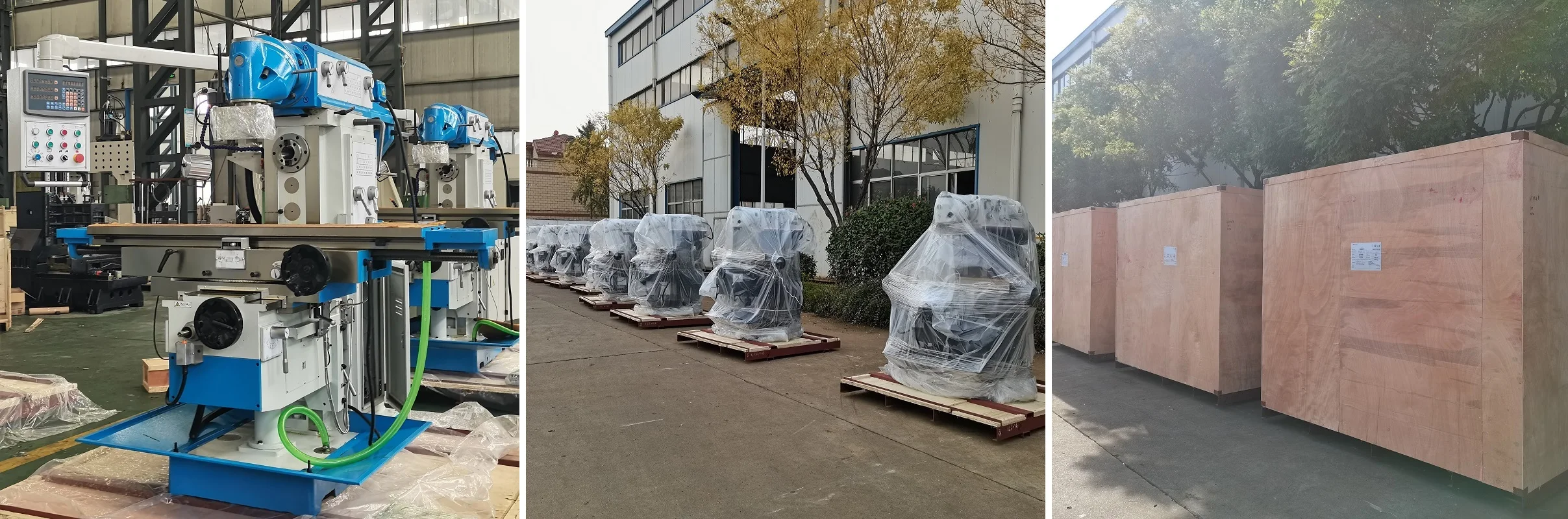

Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Delivery type: 20GP container is enough to load
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Delivery type: 20GP container is enough to load
Certificate
Products are strictly according to European standard, with CE, ISO9001 certificates.

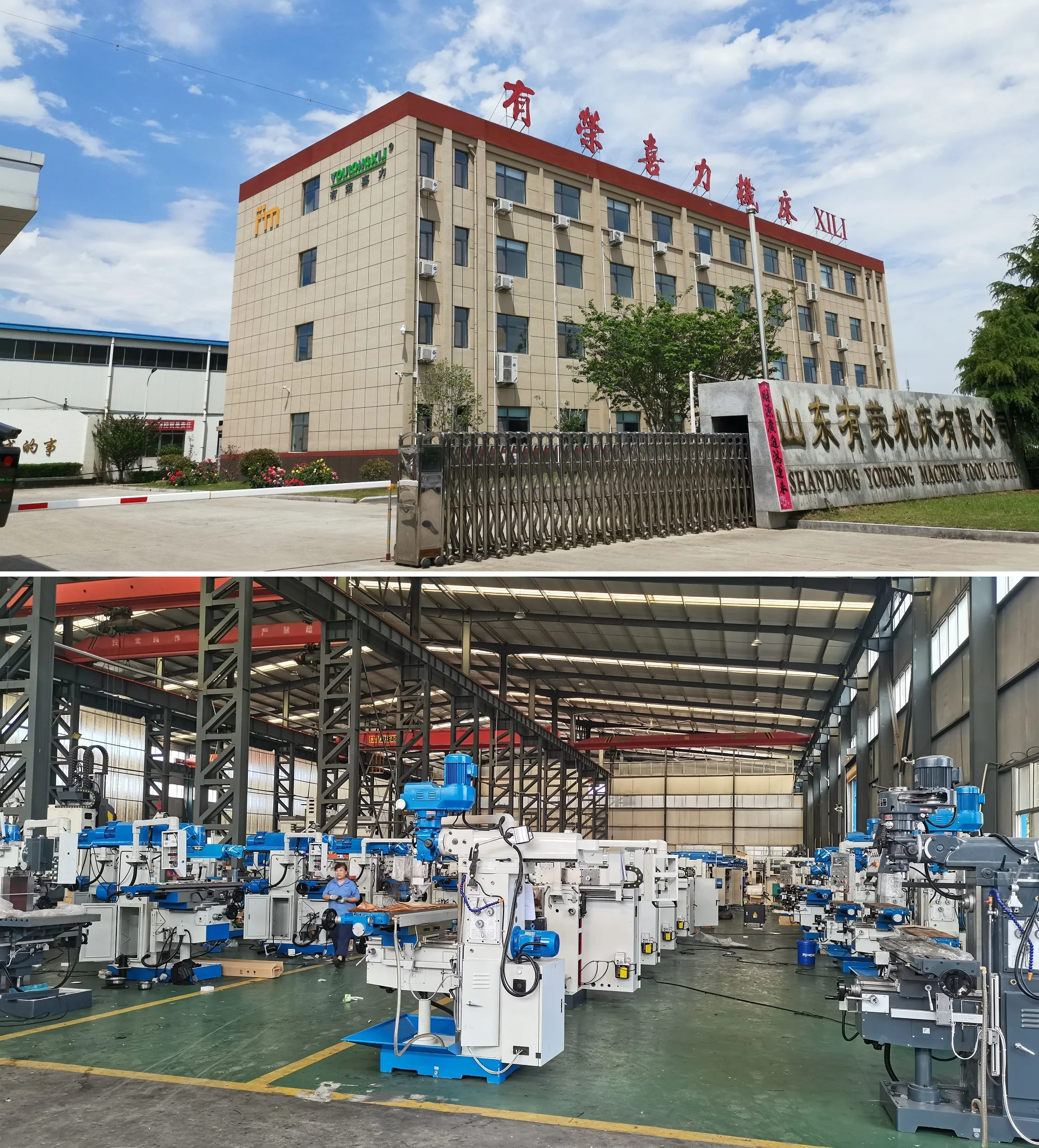

Our Company
XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees. Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.
Welcome your inquiry and visiting.
