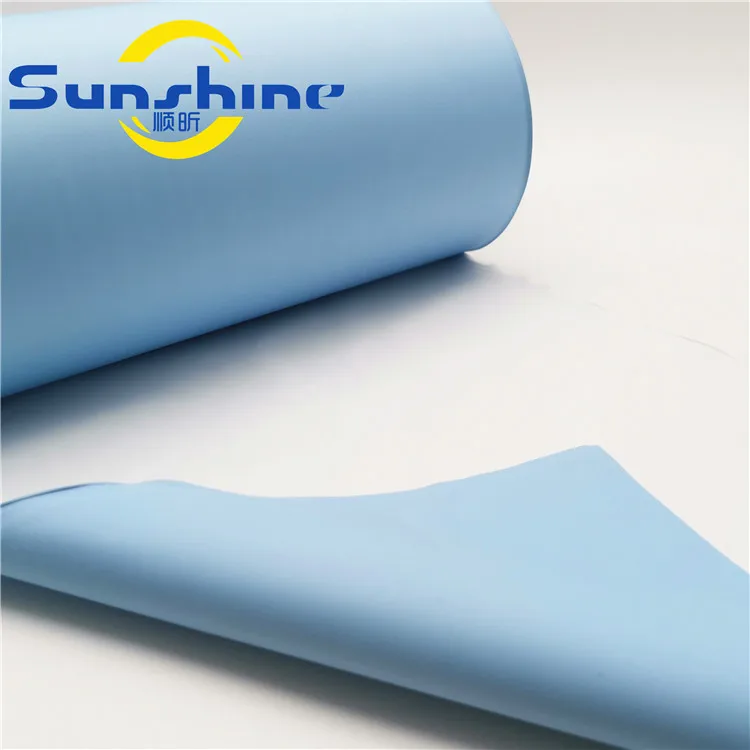

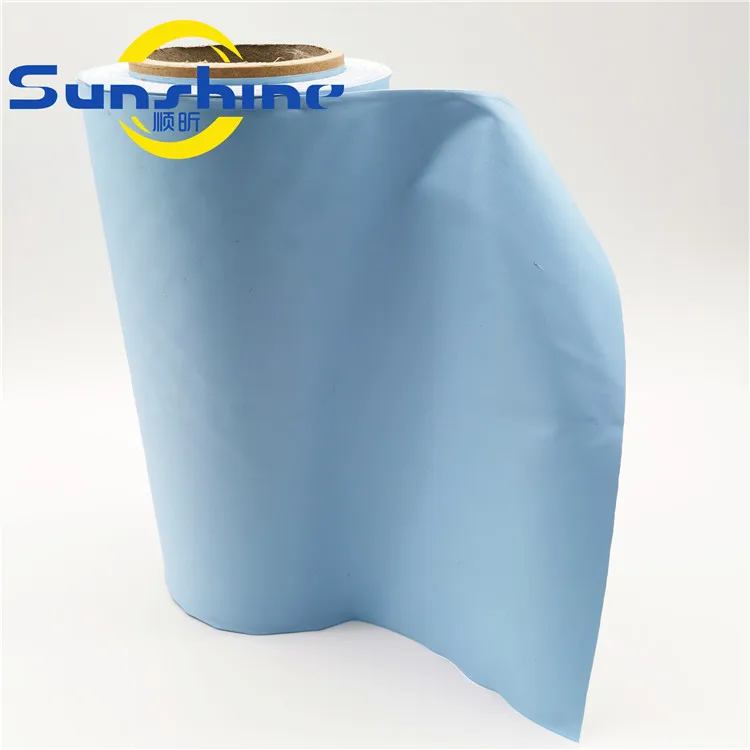

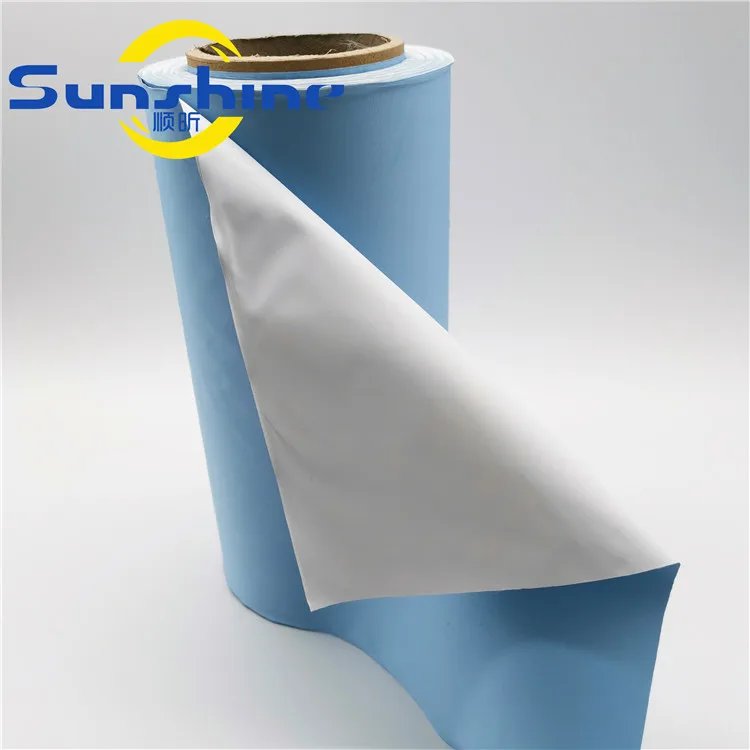

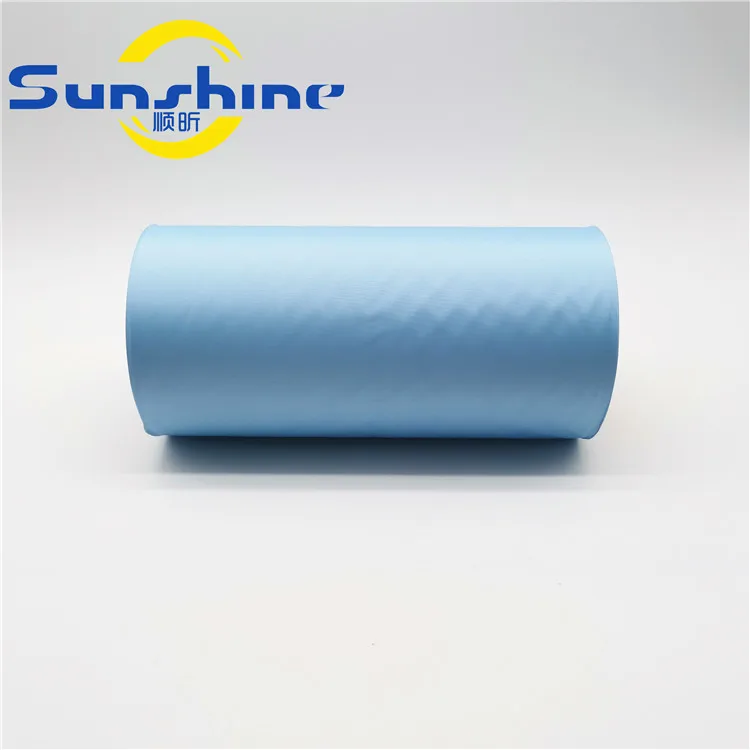

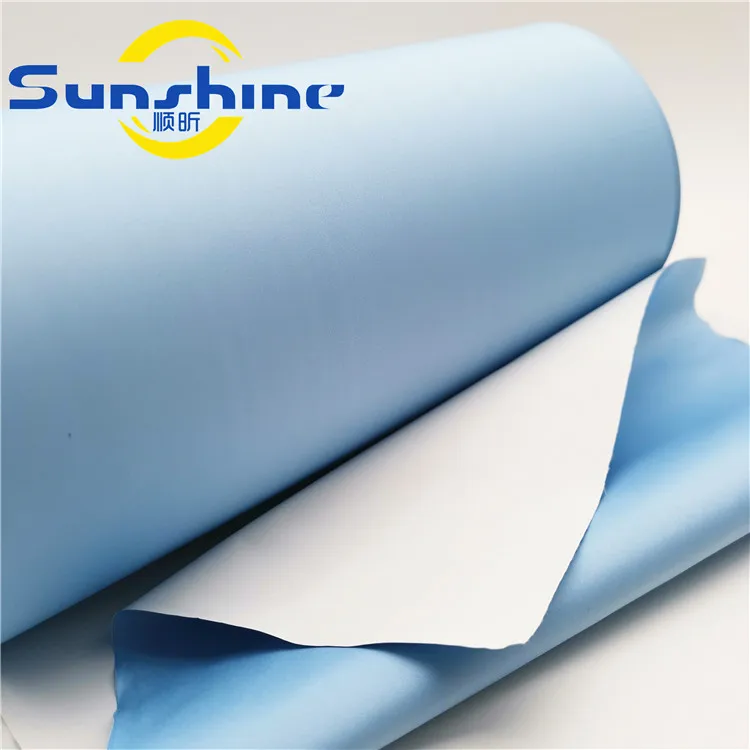

Blue color VAP membrane for prepreg vacuum process
- Category: >>>
- Supplier: Tongxiang Sunshine Trading Co. Ltd.
Share on (62565715785):
Product Overview
Description
Products Description
Vacuum assisted process membrane is an unidirectional breathable membrane,which is a material that can block resin and allow gas to pass through. It consists of two parts: release cloth and semi-permeable membrane, and is used in the "vacuum resin infusion" process and the "wet vacuum bag forming process (prepreg or hand lay-up)".
The membrane can continuously extract air and volatiles to prevent the resin from being lost. In order to make the cured product easy to be demolded, the semi-permeable membrane surface of the unidirectional gas-permeable membrane can face the glass fiber laminate, but note that this surface cannot be used as a mold release cloth.
The membrane can continuously extract air and volatiles to prevent the resin from being lost. In order to make the cured product easy to be demolded, the semi-permeable membrane surface of the unidirectional gas-permeable membrane can face the glass fiber laminate, but note that this surface cannot be used as a mold release cloth.
Typical Types
Product No. | SXVAP115 |
Color | Blue and White |
Area weight（g/m2） | 115±10 |
Width | 30-1830mm |
Moisture permeability（g/m2/24h） | ≥3500 |
Hydraulic resistance(mmH₂O） | ≥8000 |
Temperature-resistance（℃） | ≥150 |
Applications
With the continuous improvement of low viscosity, low exotherm, and thermosetting resin system on manufacturing technology, the core material with good diversion performance, the vacuum resin infusion processing is gradually widely used in composite materials production, so as to achieve the desire of improving FRP product quality, maintaining the integrity of its structure, reducing weight, and reducing overall costs becomes possible. This process has been successfully applied to large wind blades and nacelle covers, train head covers, safety helmets, yachts, ship, sports equipment, etc.
Vacuum Infusion processing is a new type of low-cost composite material large-scale forming technology, which eliminates the air of fiber reinforcement materials under vacuum, the use of auxiliary materials can help exhaust excess air, control the resin flow well, achieve impregnation to the fibers and fabrics, so that it can be cured successfully and perfectly.
Vacuum Infusion processing is a new type of low-cost composite material large-scale forming technology, which eliminates the air of fiber reinforcement materials under vacuum, the use of auxiliary materials can help exhaust excess air, control the resin flow well, achieve impregnation to the fibers and fabrics, so that it can be cured successfully and perfectly.
Packing and Shipping
PACKAGING
Product is manufactured in form of a roll wound on a paper tube. Each roll is packed in a plastic bag and placed within a cardboard carton. Positioned securely on to a pallet, strapped and covered.
Customized dimension and packaging also are welcome.
SHIPPING
For large cargo and not urgent needed, we recommend to ship by sea.
For urgent needed goods, by air is more suitable.
For samples, it is available to ship by DHL/Fedex/UPS/TNT/EMS or other way express
STORAGE
It is recommended that the product are stored in a cool and dry environment .
Recommended temperature range of storage is between 10-30℃ and relative humidity between 50-75%.
The product should remain in the packaging until just prior to use. Pallets should be stacked only one high.
Product is manufactured in form of a roll wound on a paper tube. Each roll is packed in a plastic bag and placed within a cardboard carton. Positioned securely on to a pallet, strapped and covered.
Customized dimension and packaging also are welcome.
SHIPPING
For large cargo and not urgent needed, we recommend to ship by sea.
For urgent needed goods, by air is more suitable.
For samples, it is available to ship by DHL/Fedex/UPS/TNT/EMS or other way express
STORAGE
It is recommended that the product are stored in a cool and dry environment .
Recommended temperature range of storage is between 10-30℃ and relative humidity between 50-75%.
The product should remain in the packaging until just prior to use. Pallets should be stacked only one high.
Related Products
Why Choose Us
High quality
Processes and batch tracing management
Raw material,carton,tube stock
Quality control management
Lead time
Lead time for new customer Within 7 days for trial order
Lead time for regular customer- we have their order in scheme Within 15 days for one container order
Considerate service
Customer oriented, OEM service
We accumulated rich experiences in client service
Deal with customer feedback within 24 hours
We take responsibility for every batch of products shipped out
Processes and batch tracing management
Raw material,carton,tube stock
Quality control management
Lead time
Lead time for new customer Within 7 days for trial order
Lead time for regular customer- we have their order in scheme Within 15 days for one container order
Considerate service
Customer oriented, OEM service
We accumulated rich experiences in client service
Deal with customer feedback within 24 hours
We take responsibility for every batch of products shipped out
Company Profile
SUNSHINE
We“Tongxiang Sunshine Trading Co., Ltd. “ is located in Tongxiang City, Zhejiang Province, which is in the center of three prosperous cities, Shanghai, Hangzhou and Suzhou. Growing in the economic belt of the Yangtze River Delta, its traffic is extremely convenient. There is a national 5A-level tourist scenic spot - Wuzhen, which is also the permanent venue of the World Internet Conference.
It also has the world's outstanding fiberglass manufacturer - China Jushi Group and many large composite materials’
manufacturers. We have factories in Tongxiang City and Jiangsu province. Relying on such a superior environment, we have an experienced management team and a group of passionate and young salesman, will serve you sincerely. Our main business covers vacuum infusion materials,fiber materials and structral core materials.As a hot selling product,PEEL PLY has been exported to dozens of different countries and regions in the world and served many large wind-blade manufacturers in domestic and abroad as well as different kinds of FRP products manufacturers. We sincerely seek opportunities at home and abroad.
We will provide high quality and considerate service for you. We wish to establish long-term and stable relationship with you from all over the world based on a win-win situation.
manufacturers. We have factories in Tongxiang City and Jiangsu province. Relying on such a superior environment, we have an experienced management team and a group of passionate and young salesman, will serve you sincerely. Our main business covers vacuum infusion materials,fiber materials and structral core materials.As a hot selling product,PEEL PLY has been exported to dozens of different countries and regions in the world and served many large wind-blade manufacturers in domestic and abroad as well as different kinds of FRP products manufacturers. We sincerely seek opportunities at home and abroad.
We will provide high quality and considerate service for you. We wish to establish long-term and stable relationship with you from all over the world based on a win-win situation.
FAQ
Queston1 What does your company doing?
Answers: Sunshine company main doing with peel ply and FRP materials, we can provide all range of products
Queston2 What is your payment?
Answers: Sunshine Company normal payment is 30% deposit and balanced according the copy of B/L. Trade Assurance also is acceptable.
Queston3 Can you provide sample?
Answers: Yes, we can provide sample which costs is under USD 50.00 and weight less than 2 kgs.
Queston4 What about the lead time?
Answers: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Answers: Sunshine company main doing with peel ply and FRP materials, we can provide all range of products
Queston2 What is your payment?
Answers: Sunshine Company normal payment is 30% deposit and balanced according the copy of B/L. Trade Assurance also is acceptable.
Queston3 Can you provide sample?
Answers: Yes, we can provide sample which costs is under USD 50.00 and weight less than 2 kgs.
Queston4 What about the lead time?
Answers: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
