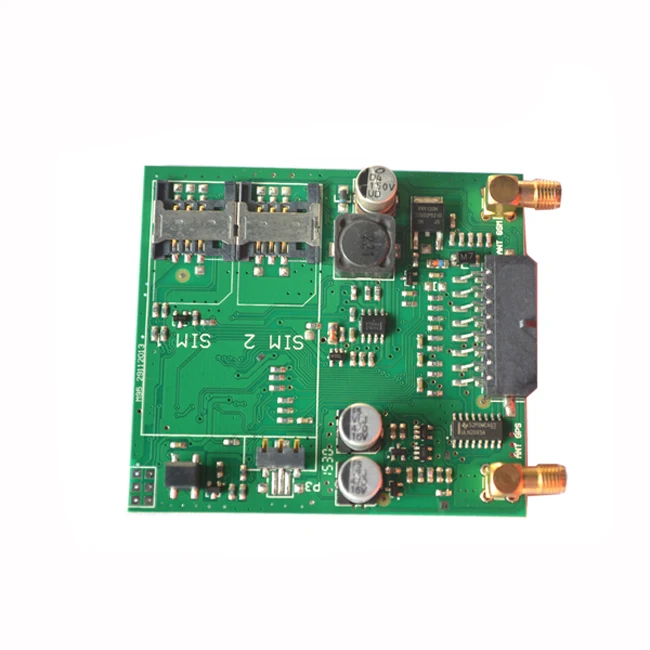

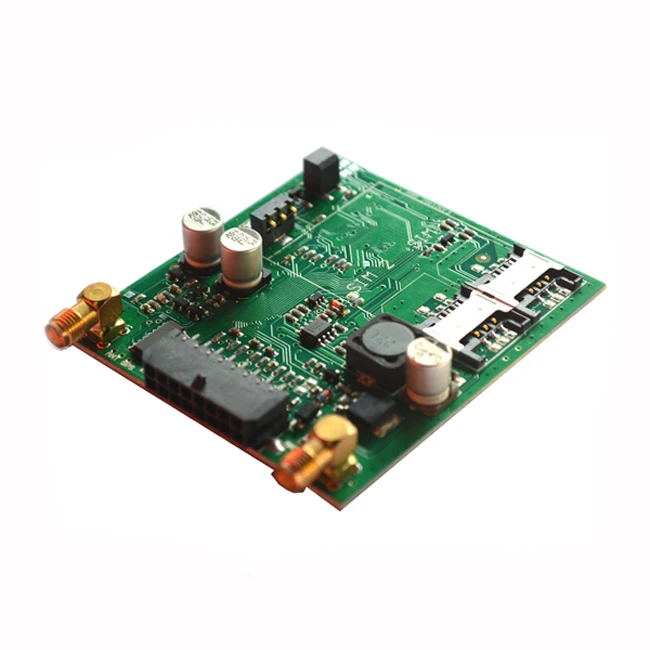

Cheap Pcb Control LED Circuit Board Assembly Company in China 12 Aluminum 40 MOKO 1oz 1.6mm 0.075/0.075 880*580 914*602 CN;GUA
- Category: >>>
- Supplier: Shenzhen Moko Technology Ltd.
Share on (62565720342):
Product Overview
Description
Product Description
* PCB Processing Capacity:
Base Material | Normal Tg FR4, High Tg FR4, PTFE, Rogers, Low Dk/Df etc. | ||||||
Solder Mask Color | Green, Red, Blue, White, Yellow, Purple, Black | ||||||
Legend Color | white, yellow, black, red | ||||||
Surface treatment type | ENIG, HASL, HAF, HAF LF, OSP, flash gold, gold finger, sterling silver | ||||||
Max. layer-up(L) | 50 | ||||||
Max. unit size (mm) | 620*813 (24"*32") | ||||||
Max. & Min. board thickness (mm) | 0.3/12 | ||||||
Board thickness tolerance (mm) | T<1.0mm: +/-0.1mm; T≥1.0mm: +/-10% | ||||||
Min. mechanical drilling hole (mm) | 0.15 | ||||||
Min. laser drilling hole diameter(mm) | 0.075 | ||||||
Min. innerlay clearance(mm) | 0.15 | ||||||
Min. hole edge to hole edge space(mm) | 0.28 | ||||||
Max. finished copper thickness(um) | Outer Layer: 420 (12oz) Inner Layer: 210 (6oz) | ||||||
Min. & Min. trace width (mm) | 0.075 (3mil) | ||||||
Solder mask thickness (um) | line corner : >8 (0.3mil) upon copper: >10 (0.4mil) | ||||||
BGA pad (mm) | ≥0.25 (HAL or HAL Free：0.35) | ||||||
V-CUT blade position tolerance (mm) | +/-0.10 | ||||||
Impedence tolerance (%) | +/-5% | ||||||
Min. legend width (mm) | 0.1 | ||||||
Fire flame calss | 94v0 | ||||||
Processing Service | One Stop PCB Assembly service, include components & plastic mold sourcing, SMT&DIP assembly and enclosure installation service. |
SMT Assembly | 5 SMT Lines(10 million chips per day (0402, 0201 with 8 million per day) |
DIP Assembly | 3 Production Lines(1.2 million pcs per day) |
Cable & Wire Assembly | Standard & Customized |
Enclosure Assembly | 3 Production Lines(Each line has 15 assemblers and 2 quality control engineers) |
Components Package | Smallest with 01005, various chips package as QFN,BGA,SSOP,PLCC,LGA |
Testing | E-test, Probe flying, Function testing, Temperature cycling, X-ray, AOI |
Equipment | DSP1008, XPM2820,YG200,YV88-XG, YV100XGP, UNI-AX8200,WS-4501,XPM2820 |
Conformal Coating | Yes |
PCBA Packing | Bubble, Anti-Static package (or in your requirement) |
MOQ | No MOQ(1PCS) |
Factory Certificate | ISO9001:2015 |
Products Application
Industrial Control
Medical Device
Smart Home
Consumer Electronic
GPS Location
Security Device
Simplified Production Flow
Factory Overview
Office
Factory Building
SMT line
DIP line
Programming & Testing Room
Final product Assembly line
Certifications
ISO9001
ROHS
FCC
CE
UL
SGS
Company Profile
MOKO TECHNOLOGY LTD
We are an expert at PCB and PCBA manufacture, could provide R&D support, prototype service, technical consultation, material sourcing, PCB assembly, conformal coating,washing, in-circuit test, function test, burn-in test, environment test, logistics and after-sales service.
We have got the ISO9001:2015 and UL RoHS certifications, and we will carry on the management concept of "Quality superior, Service supreme, Reputation first" to provide the best service in production and sales to our global customers.
FAQ
Q:What format of Bom List you prefer?
A:We prefer in MS-Excel with Components Part No.,Manufacturer,Quantity,Value info, other format are also accepted.
Q:What files do you use in bare pcb fabrication?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q:How long will we get the quotation after providing pcb gerber file, completed bom list,part datasheet and PNP file?
A: The quotation will be sent in 2work days, for some special components, you also could recommend supplier to us.
Q:If all PCBAs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent with good quality.
Q:What's the MOQ?
A:We have no MOQ, could also provide the fast prototype service
Q:How to know more about MOKO?
A:Welcome to visit MOKO or contact our sales via email.
