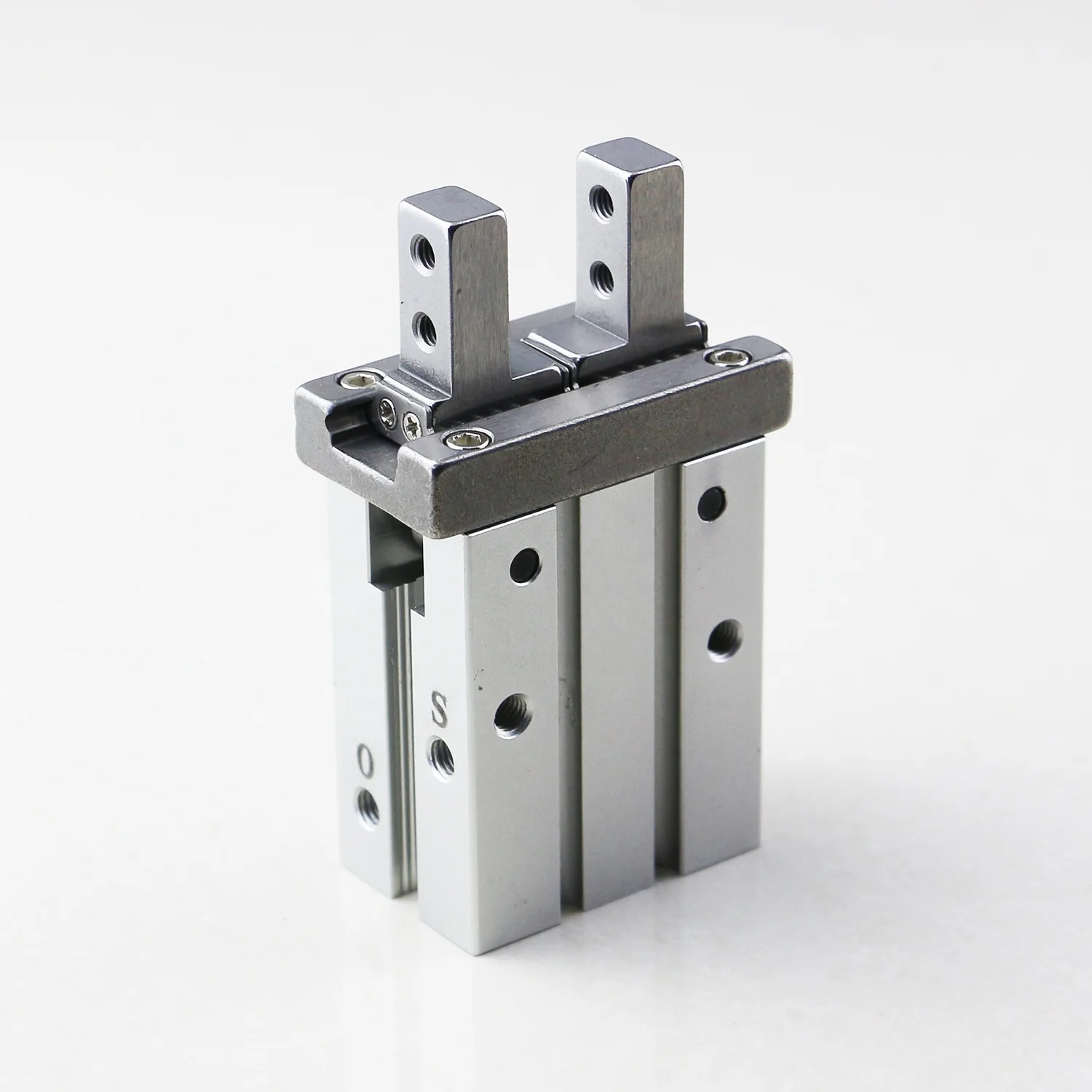

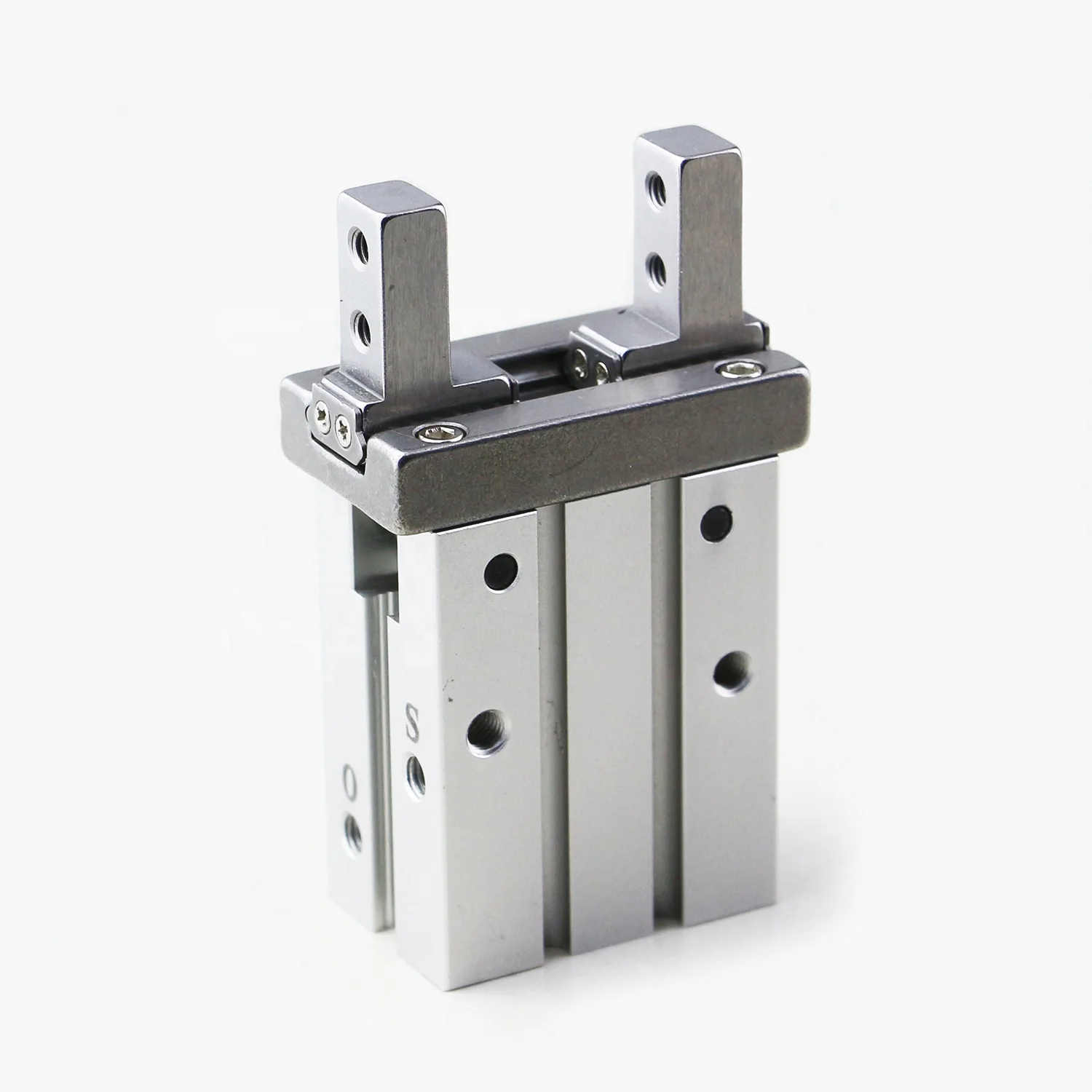

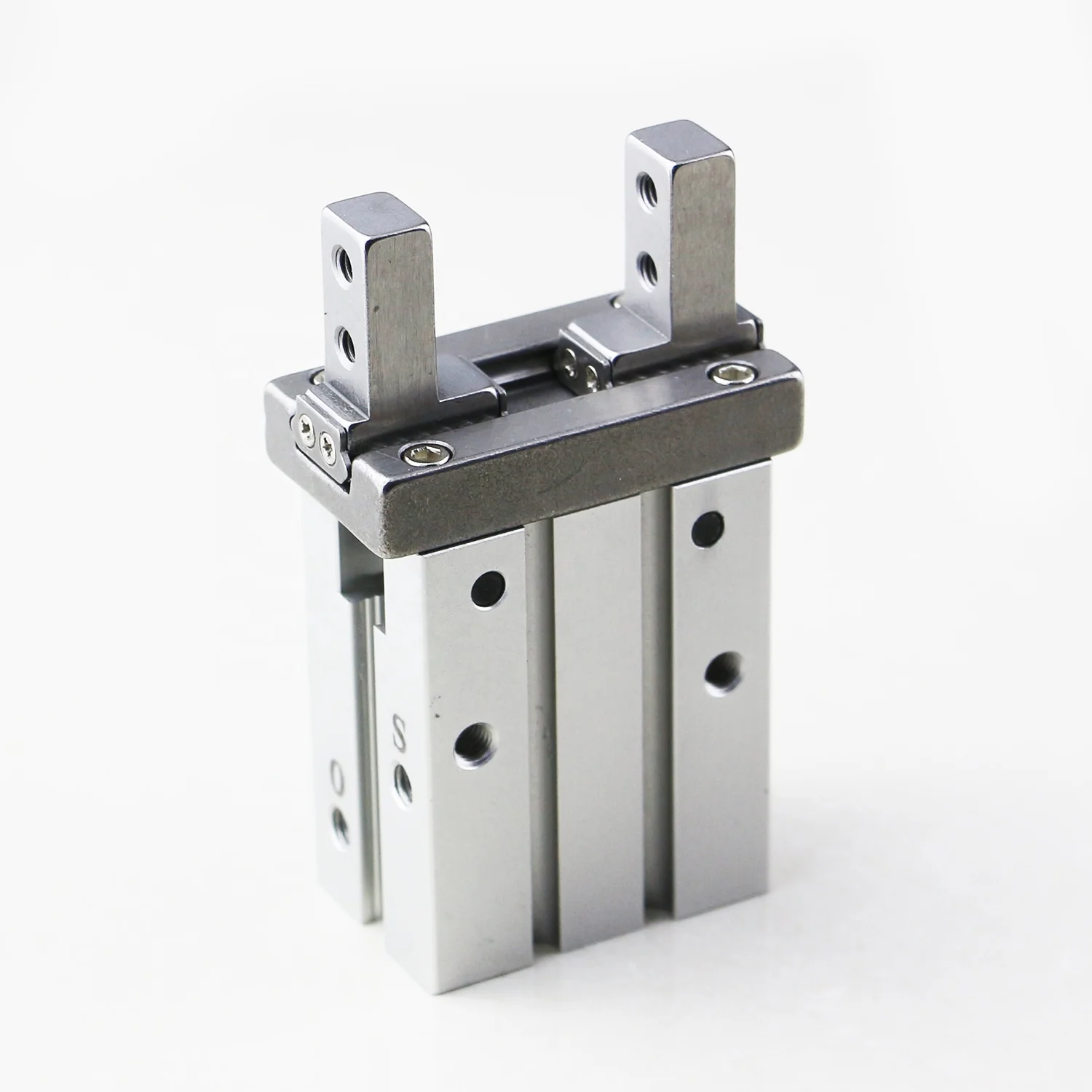

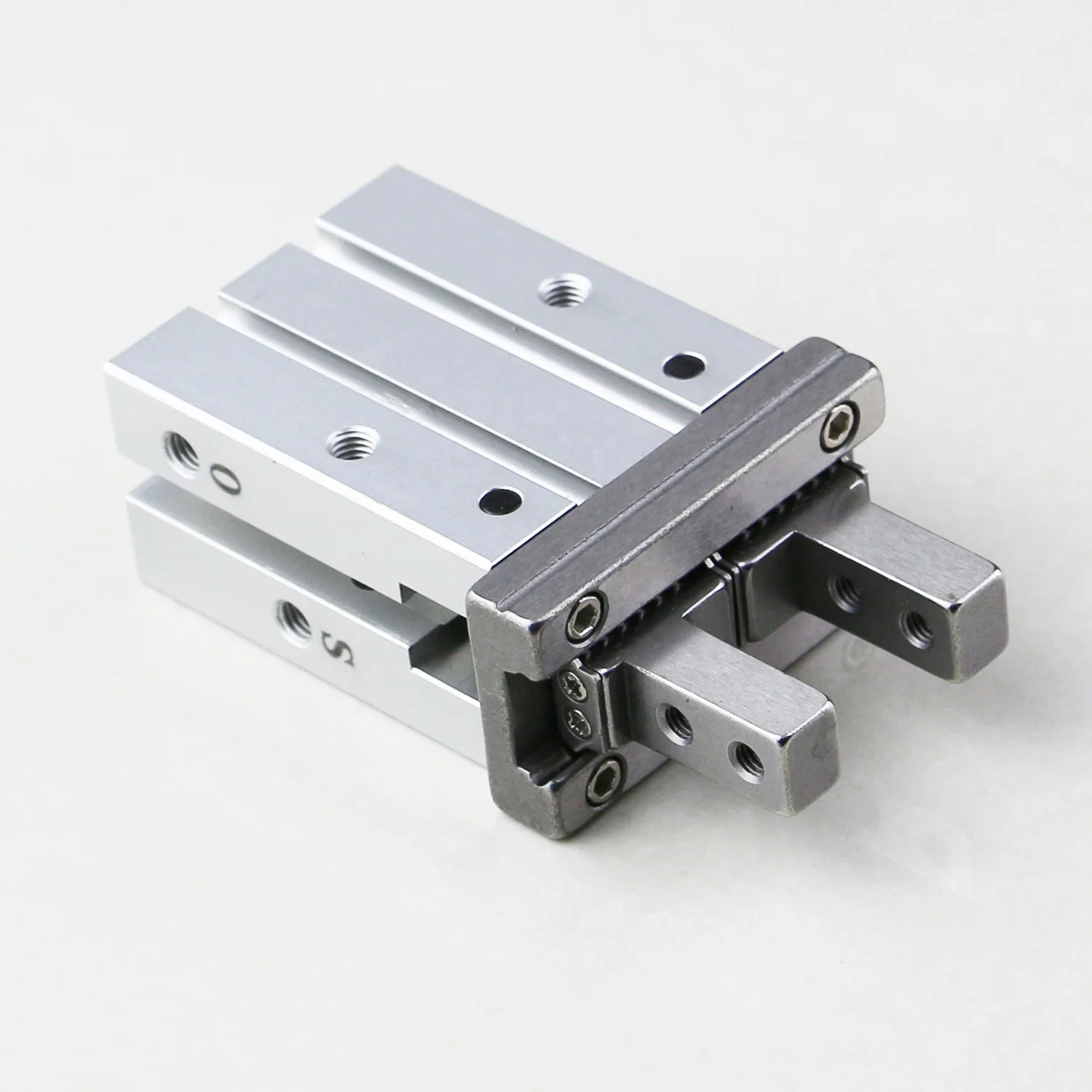

Pneumatic Air Clamping Cylinder SMC Standard HFZ MHZ2 6D/10D/16D/20D/25D/32D/40Dmm Robot Gripper Finger Pneumatic Air Clamp
- Category: >>>
- Supplier: Taizhou Chenming Automation Technology Co. Ltd.
Share on (62565739529):
Product Overview
Description
Pneumatic Air Clamping Cylinder SMC Standard HFZ MHZ2 6D/10D/16D/20D/25D/32D/40Dmm Robot Gripper Finger Pneumatic Air Clamp
Product Description
Ordering Code
MHZ2 - 20 D
Modle Bore size
MHZ2 6 D:Double acting Nil:Basic type
10 S:Single acting 1:Side tapped mounting
16 (normally open) 2: Through hole mounting
20 C:Single acting 3: Bottom mounting
25 (normally close)
32
40
Inner structure and material of major parts:
| NO | Item | Material | NO | Item | Material |
| 1 | Rod packing | NBR | 11 | Piston | Aluminum alloy/Stainless steel |
| 2 | O-ring | NBR | 12 | Magnet fixed | Stainless steel |
| 3 | Bumper | TPU | 13 | Screw | Carbon steel |
| 4 | Magnet | Sintered metal | 14 | Piston rod | Aluminum alloy/Stainless steel |
| 5 | Magnet washer | NBR | 15 | Pin | Stainless steel |
| 6 | Piston seal | NBR | 16 | Pin | Stainless steel |
| 7 | Body | Aluminum alloy | 17 | Curved bar | Stainless steel |
| 8 | O-ring | NBR | 18 | Pin | Stainless steel |
| 9 | C clip | Spring steel | 19 | Countersink screw | Carbon steel |
| 10 | Back cover | Aluminum alloy | 20 | Assembly of clamping jaw and guide rail | Stainless steel |
Specifications
| Bore size | 6 | 10 | 16 | 20 | 25 | 32 | 4 | ||
| Acting type | Double acting Single acting | ||||||||
| Fluid | Air(to be filtered by 40 µm filter element) | ||||||||
| Operating pressure | Double acting | ∅6, ∅10 | 0.2MPa~0.7MPa(28~100psi)(2~7.0bar) | ||||||
| Others | 0.15MPa~1.0MPa(22~100psi)(1.5~7.0bar) | ||||||||
| Single acting | ∅6, ∅10 | 0.35~0.7MPa(50~100psi)(3.5~7bar) | |||||||
| Others | 0.25~0.7MPa(36~100psi)(2.5~7bar) | ||||||||
| Temperature °C | -20~70 | ||||||||
| Lubrication | Not required | ||||||||
| Repeatability mm | ±0.01 | ±0.02 | |||||||
| Max.frequency | 180(c.p.m) | 60(c.p.m) | |||||||
| Port size | M3×0.8 | M5×0.8 | |||||||
Stroke
| Acting type | Double acting(MHZ) | Single acting_NO (MHTZ) | Single acting_NC(MHSZ) | |||||||||||||||||||
| Bore size | 6 | 10 | 16 | 20 | 25 | 32 | 40 | 6 | 10 | 16 | 20 | 25 | 32 | 40 | 6 | 10 | 16 | 20 | 25 | 32 | 40 | |
| Gripping force per finger Effective value(N) | External | 3.3 | 11 | 34 | 45 | 69 | 160 | 255 | 1.9 | 7 | 27 | 35 | 55 | 133 | 220 | - | - | - | - | - | - | - |
| Internal | 6.1 | 17 | 45 | 68 | 102 | 195 | 320 | - | - | - | - | - | - | - | 3.7 | 13 | 38 | 59 | 87 | 163 | 270 | |
| Opening/ Closing stroke (Both sides)(mm) | 3 | 4 | 6 | 10 | 14 | 22 | 30 | 3 | 4 | 6 | 10 | 14 | 22 | 30 | 3 | 4 | 6 | 10 | 14 | 22 | 30 | |
Dimensions
Product Details
Main Product
Company Information
Our Service
FAQ
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each Cylinder by one box packing.
Q: How to choose cylinder?
A: Please contact us, we are always online!
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
