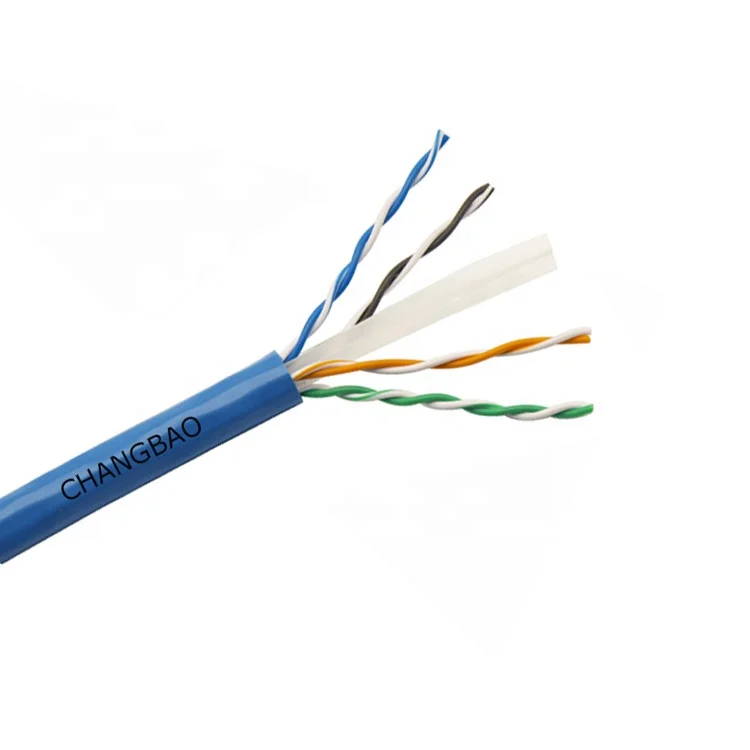

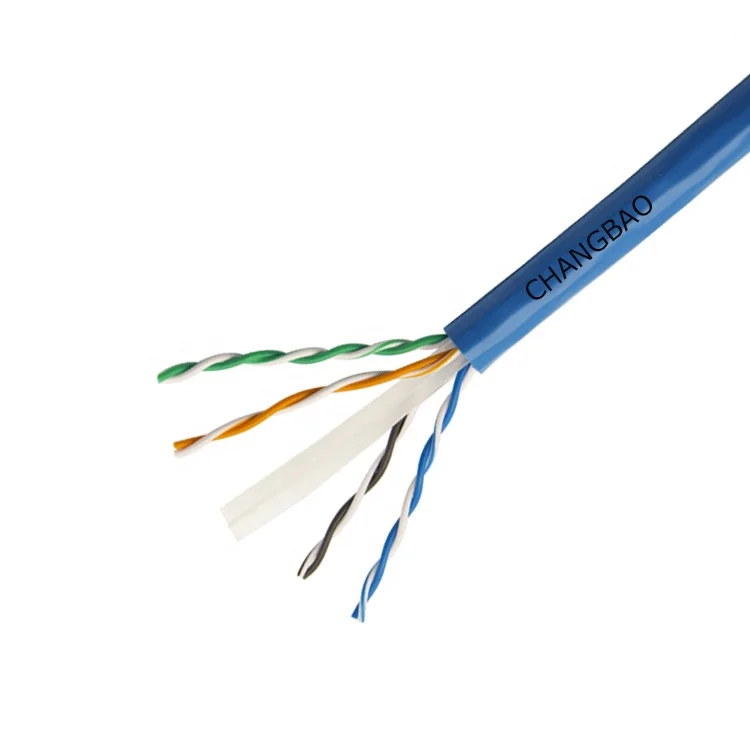

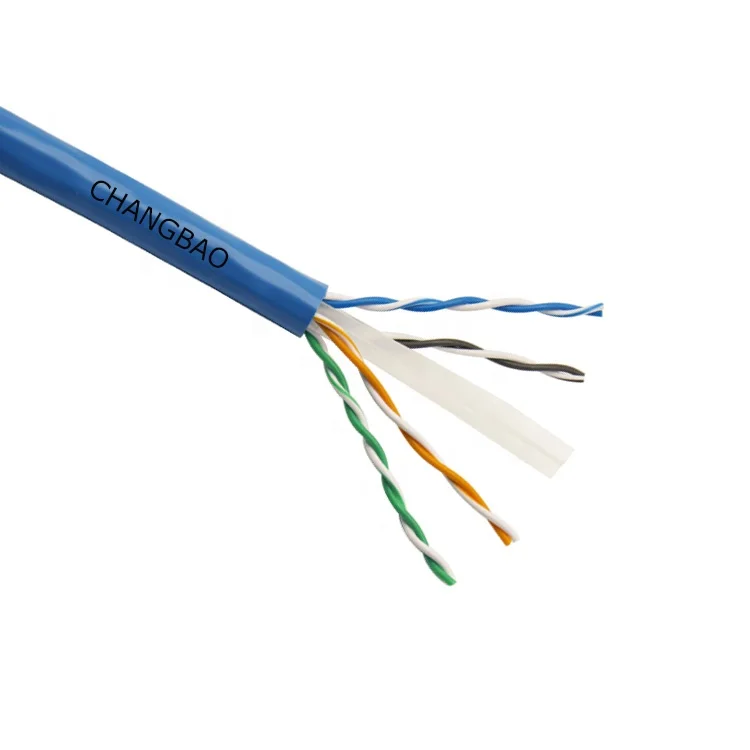

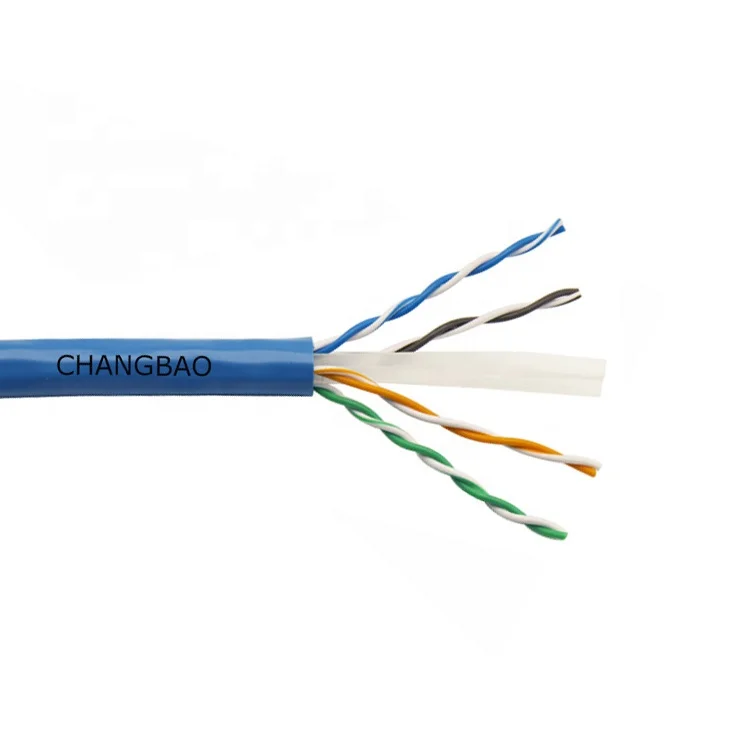

Construction Characters | ||||
Conductor | Material | Solid Bare Copper | ||
Size | 23AWG X 4P | |||
Construction | 1/0.57±0.005mm | |||
Insulation | Material | HDPE | ||
Diameter | 1.01±0.01mm | |||
Colors | Blue-White/Blue | |||
Orange-White/Orange | ||||
Green-White/Green | ||||
Brown-White/Brown | ||||
Filler | Filler | PVC | ||
Jacket | Material | PVC | ||
Diameter | 6.00±0.20mm | |||
Colors | Per request | |||
Rip Cord | Nylon | |||
Electrical & Physical Characters | ||||||
rating | 75℃ 30V | |||||
Conductor Resistance | Max 72.2ohm/km at 20℃ | |||||
Dielectric Strength | Min AC1.5KV | |||||
Spark Test | 5.0KV | |||||
AC Leakage Current Through overall Jacket | AC 1500V <=10mA | |||||
Insulation | Unaged | Tensile Strength | 16.5 Mpa | |||
Elongation | 500% | |||||
Aged | Tensile Strength | 14.2 Mpa(100℃ 168h) | ||||
Elongation | 250%(100℃ 168h) | |||||
Jacket | Unaged | Tensile Strength | 13.8 Mpa | |||
Elongation | 150% | |||||
Aged | Tensile Strength | 11.7 Mpa(100℃ 168h) | ||||
Elongation | 80%(100℃ 168h) | |||||
Cold Bend Test | -20℃ 4hours No Cracking | |||||
DC Resistance Unbalance | Max 5% | |||||
Pair-to-Ground Capacitance Unbalance | Max 3300pF/km | |||||
Characteristic Impedance | 1~500MHZ 100±15OHM | |||||
Propagation Delay | 500MHZ Max 536ns/100m | |||||
Delay Skew | 1~500MHZ Max 40ns/100m | |||||
