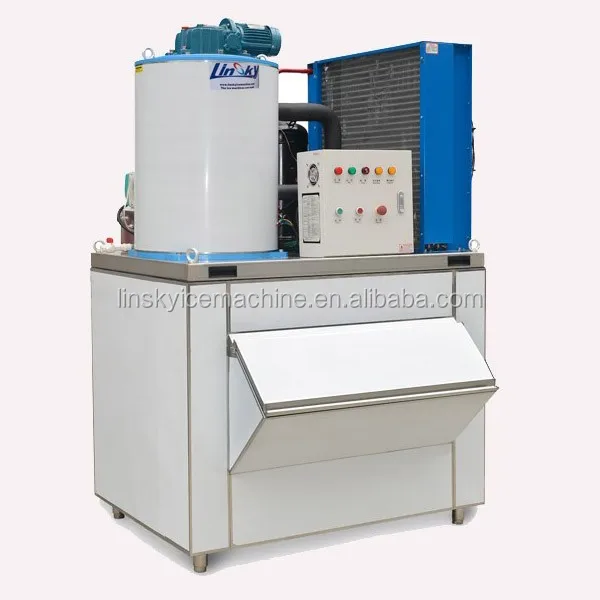

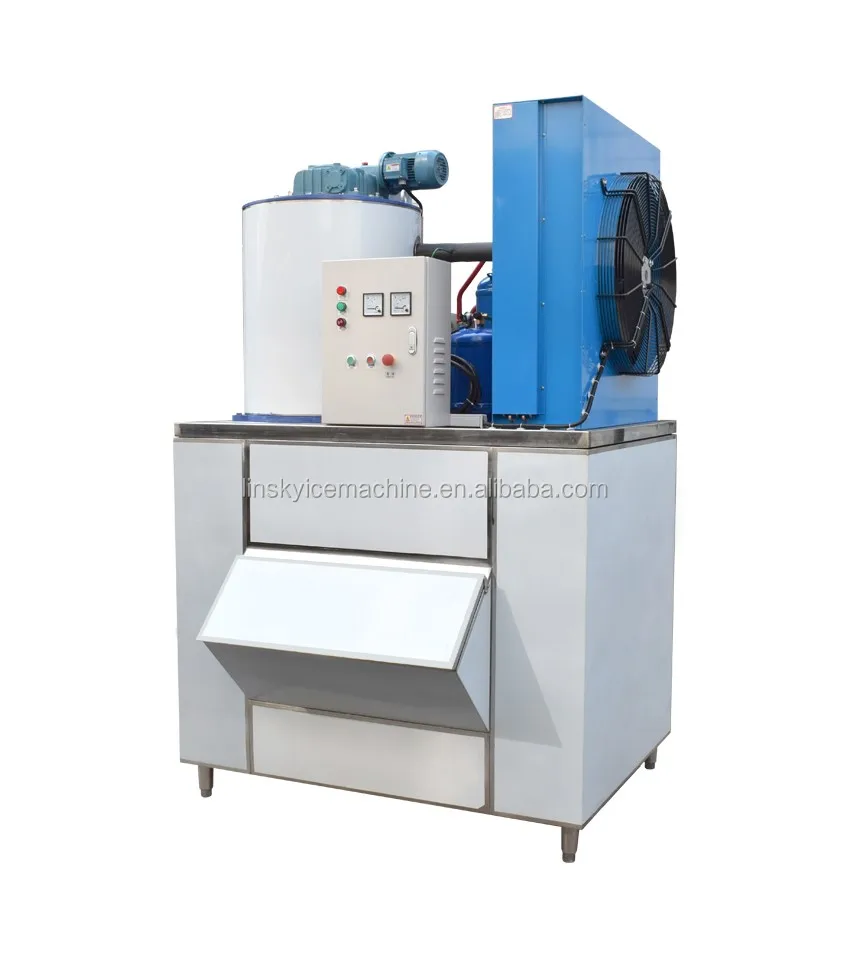

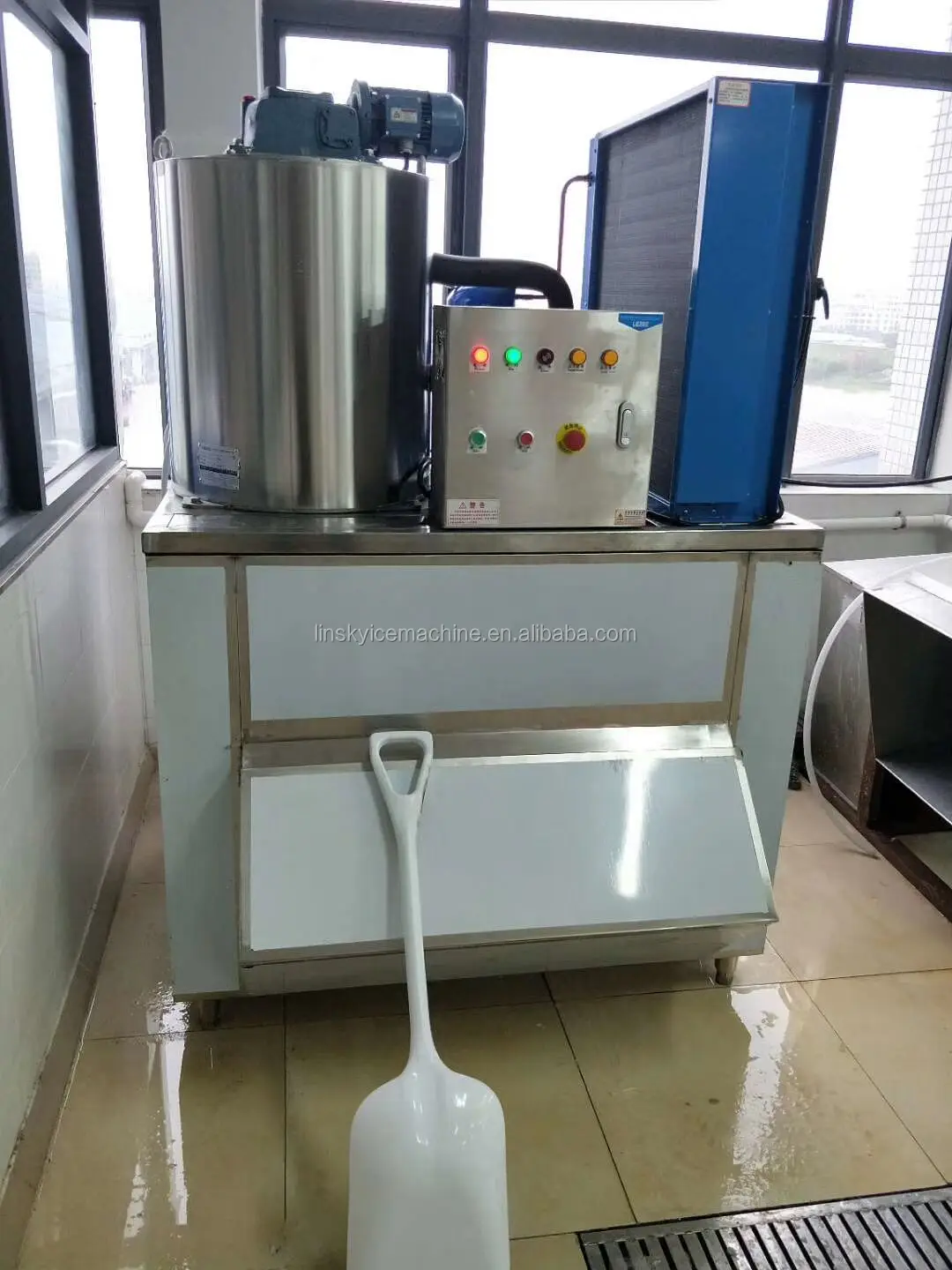

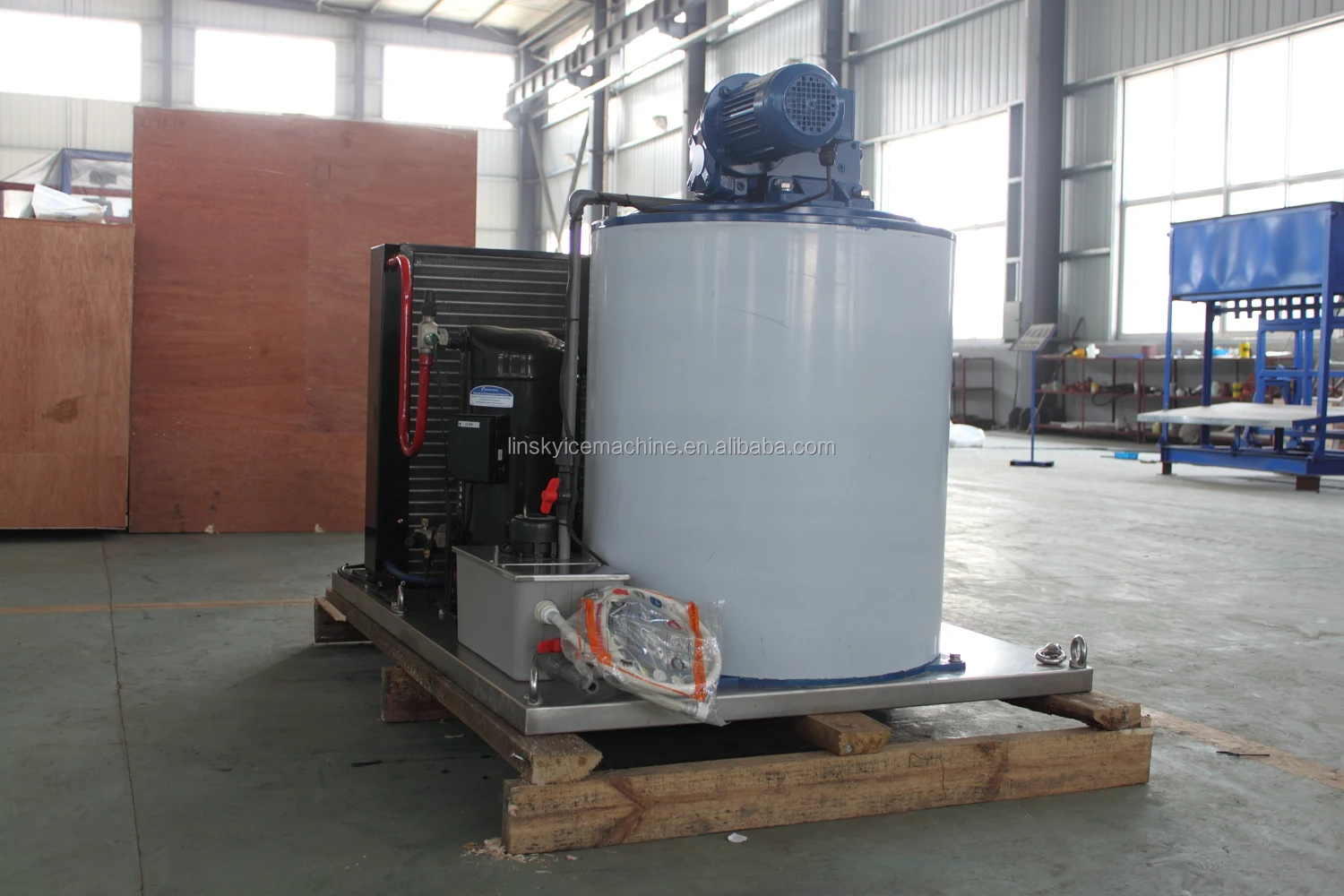

2 ton ice machine for fish automatic flake ice equipment
- Category: >>>
- Supplier: Shanghai Snowdream Refrigeration Equipment Co. Ltd.
Share on (62565823545):
Product Overview
Description
Ice Machine Description
2 ton ice machine for fish automatic flake ice equipment | ||
Model | LIF-20K | |
Daily capacity | 2000kg/24hr | |
Ice storage capacity | 500kg | |
Power supply | 380V/50Hz/3P | |
Compressor | Copeland | |
Dry filter | CASTEL | |
Liquid supply expansion valve | ALCO | |
Ice Machine Application

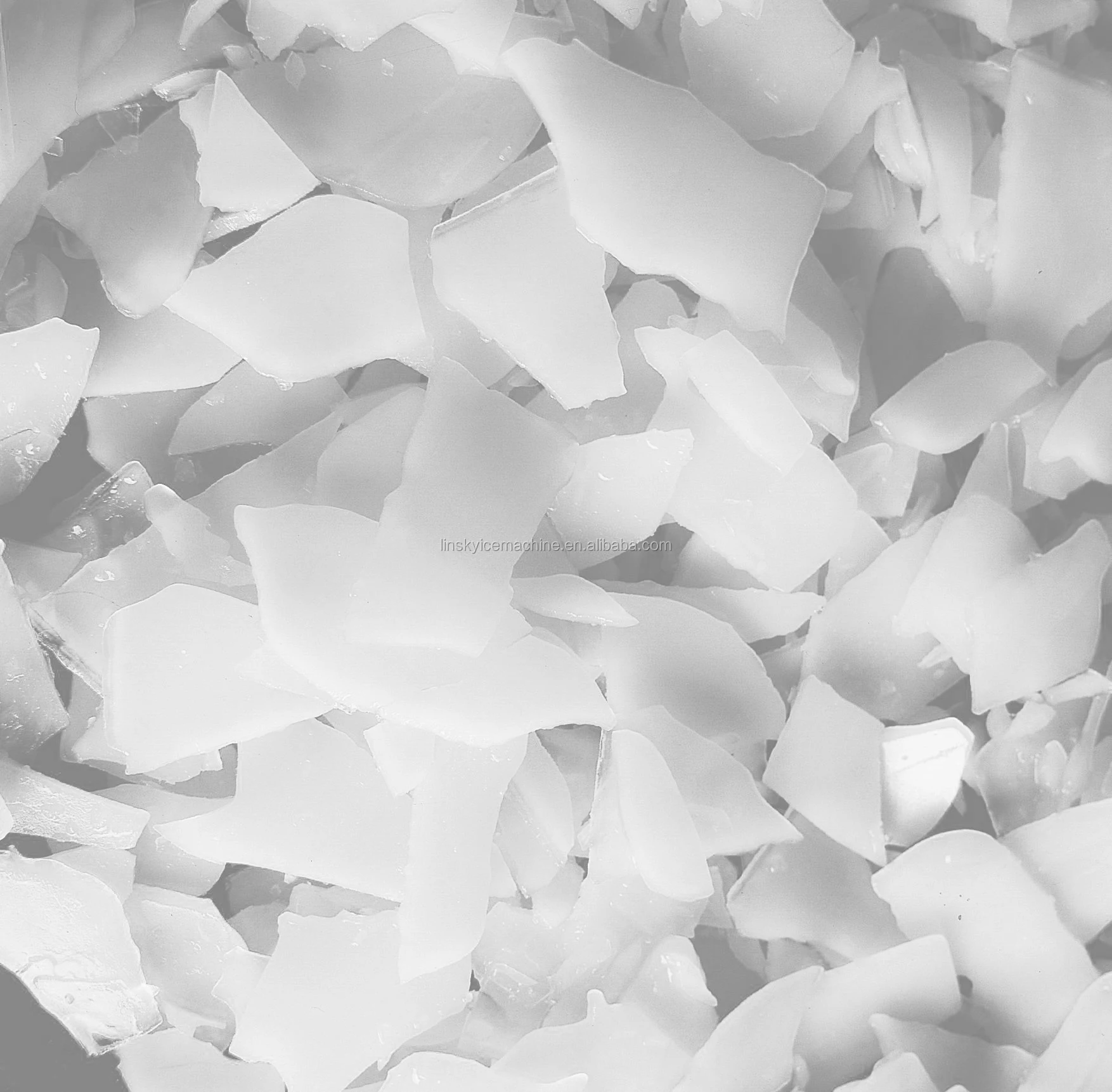

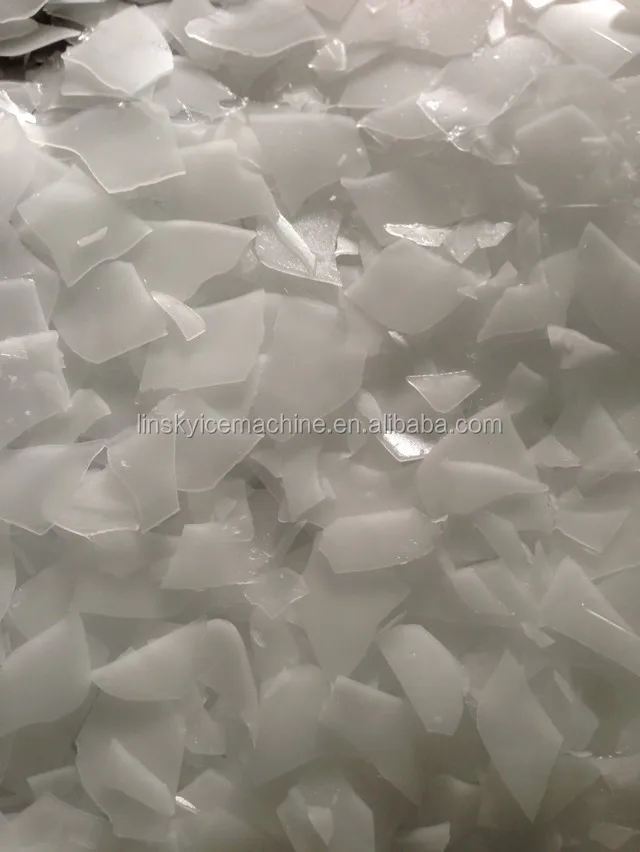

Flake Ice Features-2 ton ice machine for fish automatic flake ice equipment
Flake Ice irregular, thin scale shape ice at the size of around 40x40mm, thickness is between 1.5~2.5mm. (Note: flake ice has two ice forms. Scale ice and granular ice, Linsky flake ice machine series mostly refer to the scale ice, granular ice machine is available on request). Flake ice can be made from fresh water and seawater.
2 ton ice machine for fish automatic flake ice equipment
* white attractive appearance;
* sub-cooled, fast product cooling. Temperature approx. -8℃, with greater cooling efficiency. Fit for perishable product
immediate cooling;
* completely dry, it won't rapidly freezing together in a low-temperature storage bin or clog screw conveyors or pneumatic
delivery systems, easier for storage and distribution;
* large contact area, good mobility, which means large heat exchange surface area, faster and better cooling effect than other types of ice and its flat shape won’t damage the delicate or fragile seafood products;
* thin piece, easy to melt rapidly and dissipate heat, add moisture to mixtures and assist the mixing process;
* the thin ice is easy to crush, mold, and shovel.
* sub-cooled, fast product cooling. Temperature approx. -8℃, with greater cooling efficiency. Fit for perishable product
immediate cooling;
* completely dry, it won't rapidly freezing together in a low-temperature storage bin or clog screw conveyors or pneumatic
delivery systems, easier for storage and distribution;
* large contact area, good mobility, which means large heat exchange surface area, faster and better cooling effect than other types of ice and its flat shape won’t damage the delicate or fragile seafood products;
* thin piece, easy to melt rapidly and dissipate heat, add moisture to mixtures and assist the mixing process;
* the thin ice is easy to crush, mold, and shovel.
Flake Ice Applications - 2 ton ice machine for fish automatic flake ice equipment
Fish industry, food processing industry, supermarkets, retail shops, bakery, laboratory, chemical and
pharmaceutical industry, hospitals, medical offices, concrete mixing plants, skiing ground and other entertainment services etc.,
pharmaceutical industry, hospitals, medical offices, concrete mixing plants, skiing ground and other entertainment services etc.,
Ice Machine details
Flake Ice Machine Features-2 ton ice machine for fish automatic flake ice equipment
* Internally-scraping ice remover helps to reduce energy loss, guarantee the supply of refrigerant, and
prevent leakage of refrigerant;
* Stainless steel materials, advanced processing equipment and heat treatment to ensure the best heat transfer efficiency;
* The large-area design of low water pan prevents the leakage of water from the bottom of the evaporator;
* Install photoelectric switch at the bottom of the evaporator instead of ice bin;
* Directly liquid feeding, dry-type evaporation make simple, safe and reliable control;
* Integrated modular equipment to facilitate installation and maintenance on the spot;
* Make ice from fresh water or seawater, installs on land or onboard vessels;
* Ice thickness can be varied by changing the speed of the rotor
prevent leakage of refrigerant;
* Stainless steel materials, advanced processing equipment and heat treatment to ensure the best heat transfer efficiency;
* The large-area design of low water pan prevents the leakage of water from the bottom of the evaporator;
* Install photoelectric switch at the bottom of the evaporator instead of ice bin;
* Directly liquid feeding, dry-type evaporation make simple, safe and reliable control;
* Integrated modular equipment to facilitate installation and maintenance on the spot;
* Make ice from fresh water or seawater, installs on land or onboard vessels;
* Ice thickness can be varied by changing the speed of the rotor

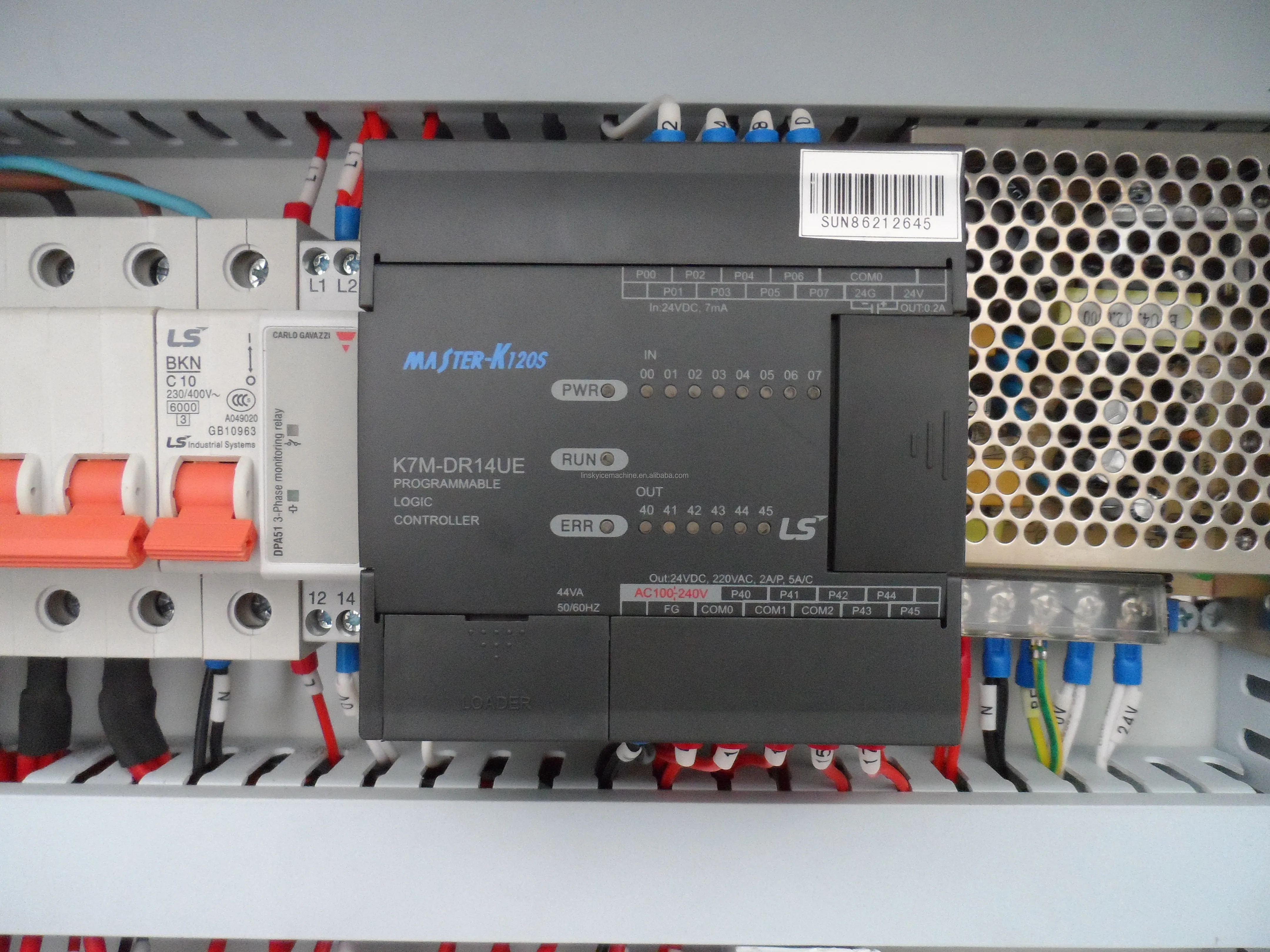

Electric box
Microcomputer Intelligent control: the flake ice machine is using PLC control system with world famous brand components. Meanwhile, it can portect the flake ice machine when there are water shortage, ice full, H / L pressure alarm, and motor reversal.

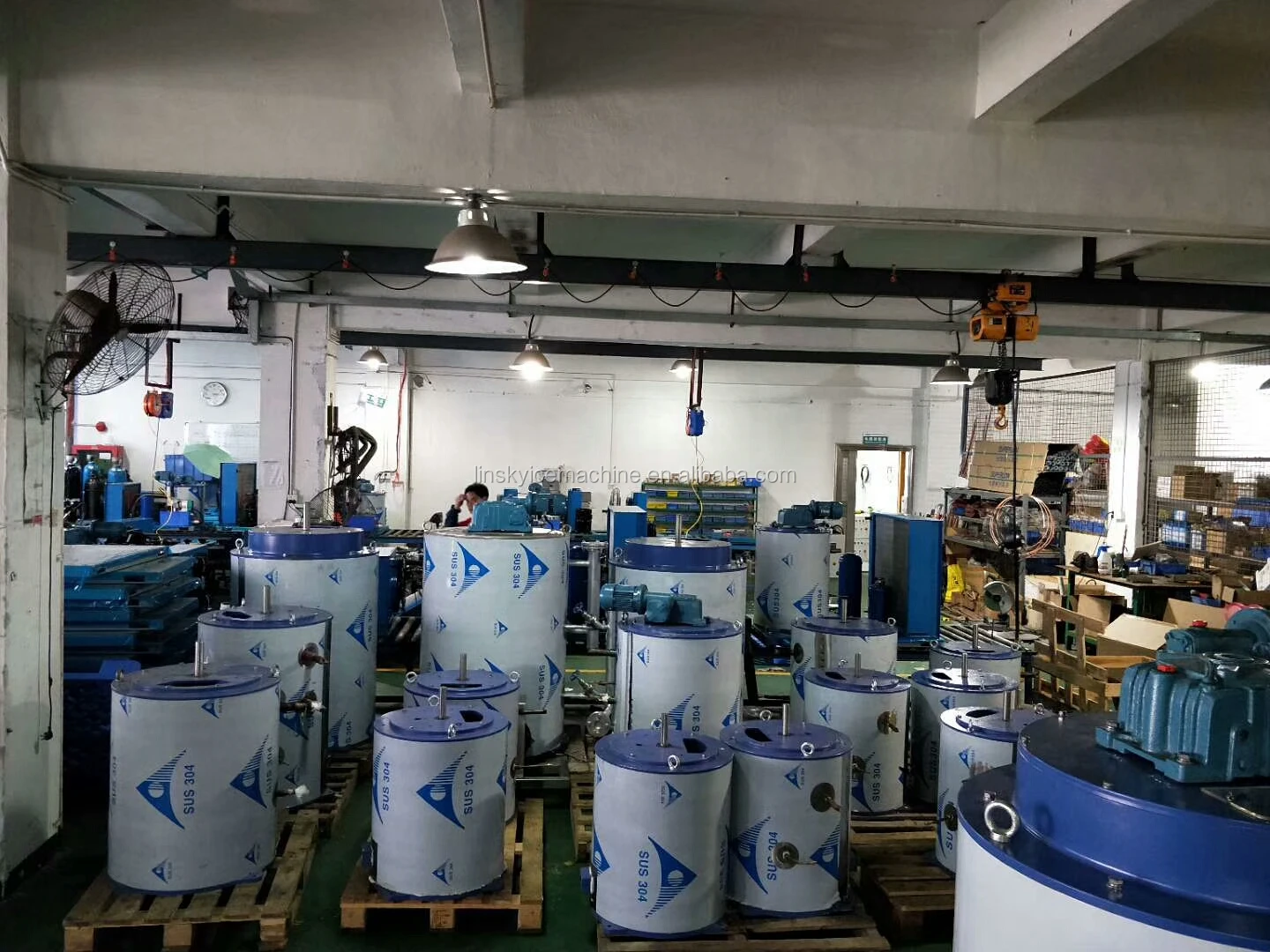

Evaporator drum
Use stainless steel material or carbon steel chrominum. The style of inside machine ensures constant running at
the lowest power consumption.
the lowest power consumption.
Stainless steel materials, advanced processing equipment and heat treatment to ensure the best heat transfer efficiency;
Directly liquid feeding, dry-type evaporation make simple, safe and reliable control.

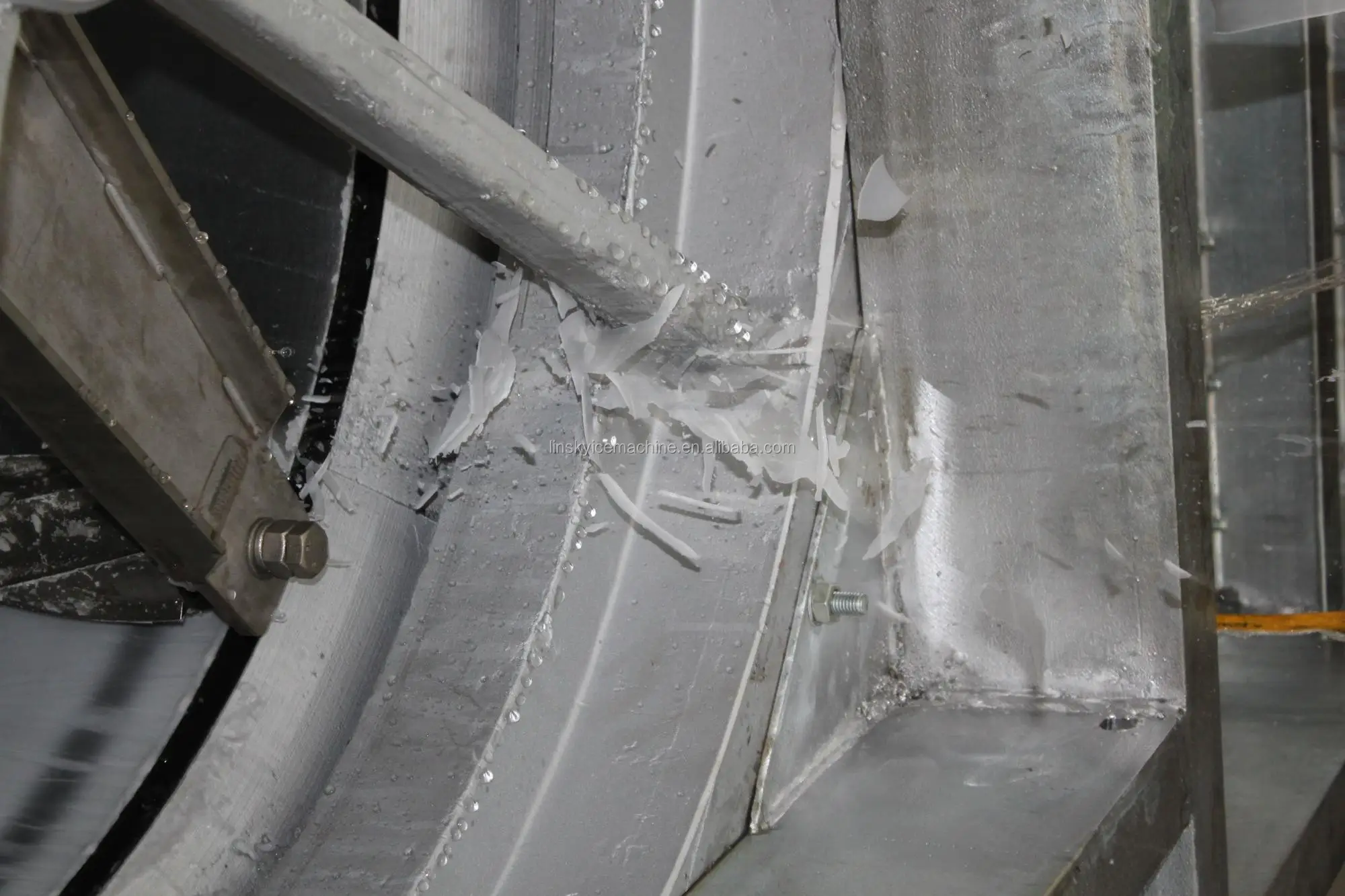

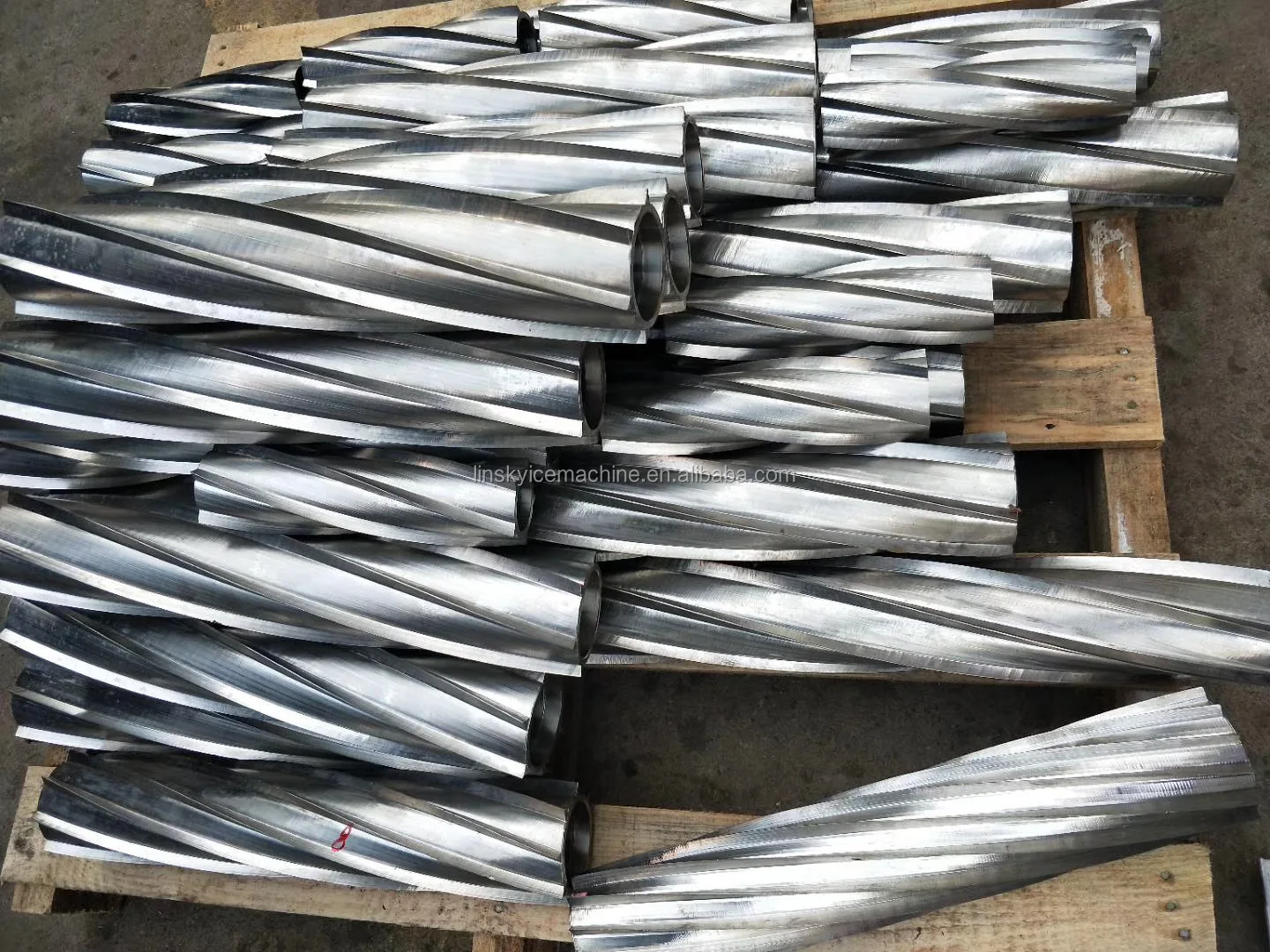

Ice cutter
Internally-scraping ice remover helps to reduce energy loss, guarantee the supply of refrigerant, and prevent leakage of refrigerant;
Ice thickness can be varied by changing the speed of the rotor
Ice thickness can be varied by changing the speed of the rotor

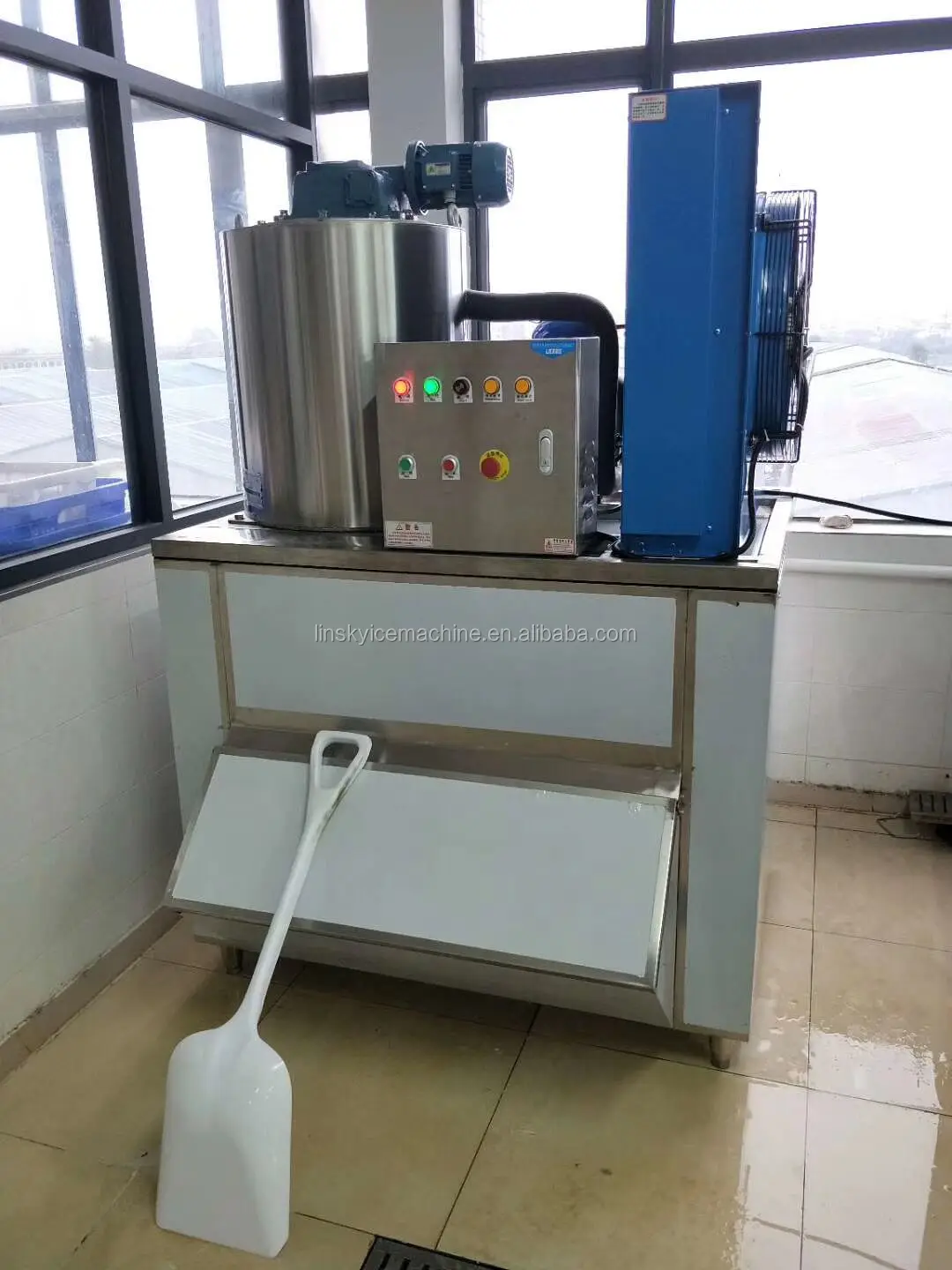

Ice bin/Ice storage
The standard models of small capacity equip with ice bin. Please ask for it in your inquiry if you need one.
Linsky offers different looks ice bin for various applications.
Linsky offers different looks ice bin for various applications.
Manufacturing Technique

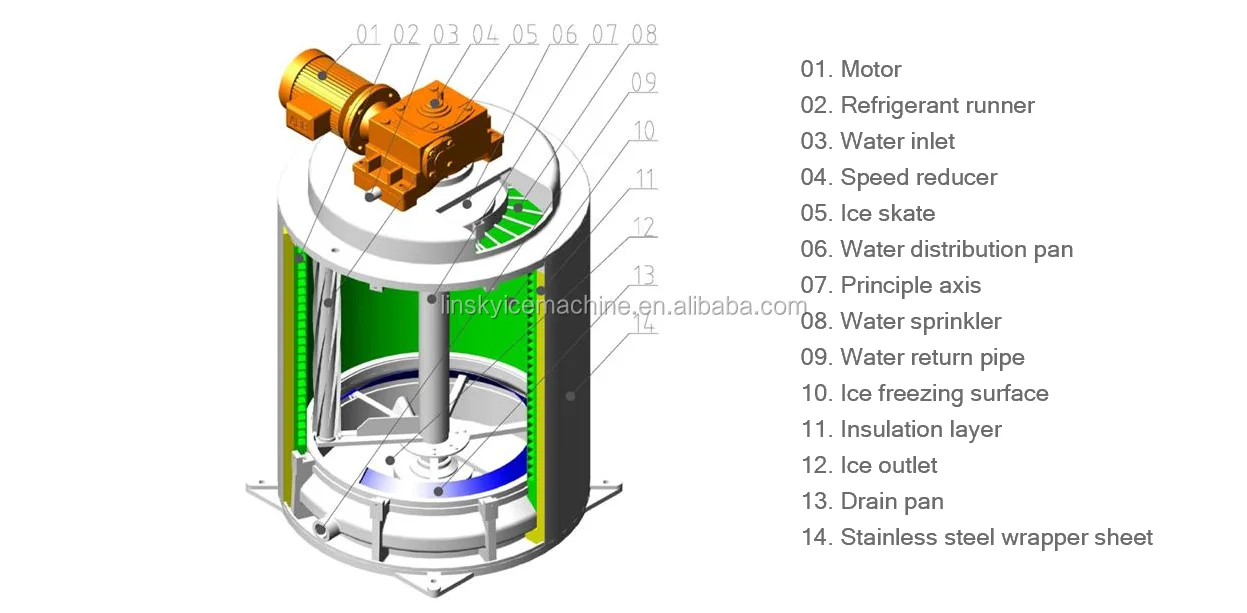

The diagram of flake ice machine working principle-2 ton ice machine for fish automatic flake ice equipment
As shown, motor (01) drives speed reducer (04) running. Ice skate (05), Water distribution pan (06), principle axis (07), water sprinkler (08) and drain pan (13) are driven by reducer and run continuously. From water inlet (03), water flows into water distributor pan (06) then sprinkles water on Ice freezing surface (10) evenly, herein a film of water is formed.
While the ice machine is running, refrigerant evaporate in refrigerant runner (02). The temperature of water decreases quickly till a layer of thin ice is formed on ice freezing surface. Under the extrusion of ice skate (05), the thin ice layer turns into ice flake and then falls from ice outlet (12) below evaporator. And the partial unfreezing water returns to the cold water tank through drain pan from water return pipe (09).
As shown, motor (01) drives speed reducer (04) running. Ice skate (05), Water distribution pan (06), principle axis (07), water sprinkler (08) and drain pan (13) are driven by reducer and run continuously. From water inlet (03), water flows into water distributor pan (06) then sprinkles water on Ice freezing surface (10) evenly, herein a film of water is formed.
While the ice machine is running, refrigerant evaporate in refrigerant runner (02). The temperature of water decreases quickly till a layer of thin ice is formed on ice freezing surface. Under the extrusion of ice skate (05), the thin ice layer turns into ice flake and then falls from ice outlet (12) below evaporator. And the partial unfreezing water returns to the cold water tank through drain pan from water return pipe (09).
Ice Machine packaging&Shipping
For 2 ton ice machine for fish automatic flake ice equipment:
1.Standard wooden case for packing main frame of flake ice machine. Containerized design no need packing. 2.Machine installed completely and strictly tested in our factory before shipping.
3.Completely machine:ice machine, cooling tower, water pumps, water pipes, water pipe fittings.
4.Cutomer only need prepare power and water for running the machine.
5.All required components for install the machine will be provide.
Linsky Ice Machine Factory Introduction
Shanghai Snowdream Refrigeration Equipment Co., Ltd, as the leading manufacturer and exporter of commercial and industrial ice machines in China, with a decade of professional experience in ice cooling field, has been approved with CE and ISO9001-2000.Brand is "Linsky".
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
Linsky's products lineup include high quality tube ice machine, aluminum direct system block ice machine, brine system ice block machine, flake ice machine, plate ice machine, cube ice machine, water chiller, cold room units and other associated equipments,such as rake type automatic ice storage, screw type automatic ice storage, pneumatic ice delivery system, screw ice delivery system, ice crusher, ice weighing system, ice packaging machine and more.
We don't just make ice machines. We also help customer design ice cooling solutions. The main feature of Linsky product is tailored specifically to the demands of the customer. Above all else, this includes energy efficient, longevity and hassle-free.
FAQ
1. What should I prepare to buy the ice machine from you?
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C or Trade Assurance Order on Alibaba.com directly) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All Linsky ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
(1) We will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
(2) The install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V/50Hz/3P, most North and South America countries are using 220V/60Hz/3P, please confirm with our salesman and make sure it is available in your factory.
(3) With all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment (T/T or L/C or Trade Assurance Order on Alibaba.com directly) to close the deal, for all our standard design, we will need about 35~45 working days on the production.
(4) After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2. How to install the ice machine?
(1) For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
(2) For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3. What if I buy your ice machine, but I cannot find the solution for the problem?
All Linsky ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
Recommend Products

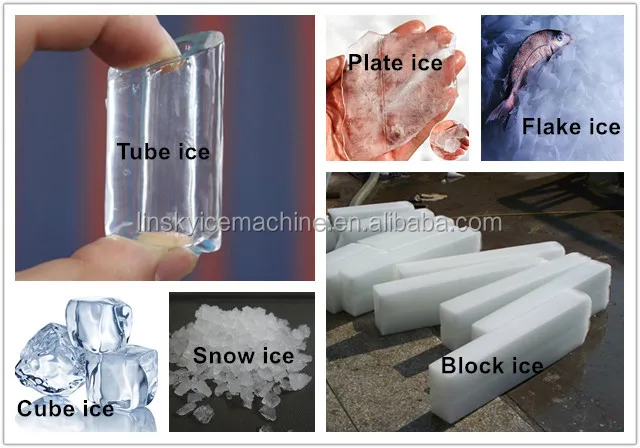

1.Linsky Industrial ice machine:
