Product Overview
Description
printable RFID label - coated paper or PET version
CL7203L3
* 100% tested by the European label conformance testing system to ensure stability during use
* raw material passed environmental protection certification
* Different size optional
* Support RFID printer P113 and other brands
* Application: Warehousing, Vehicle Management / Logistic / Trucking
Details Images

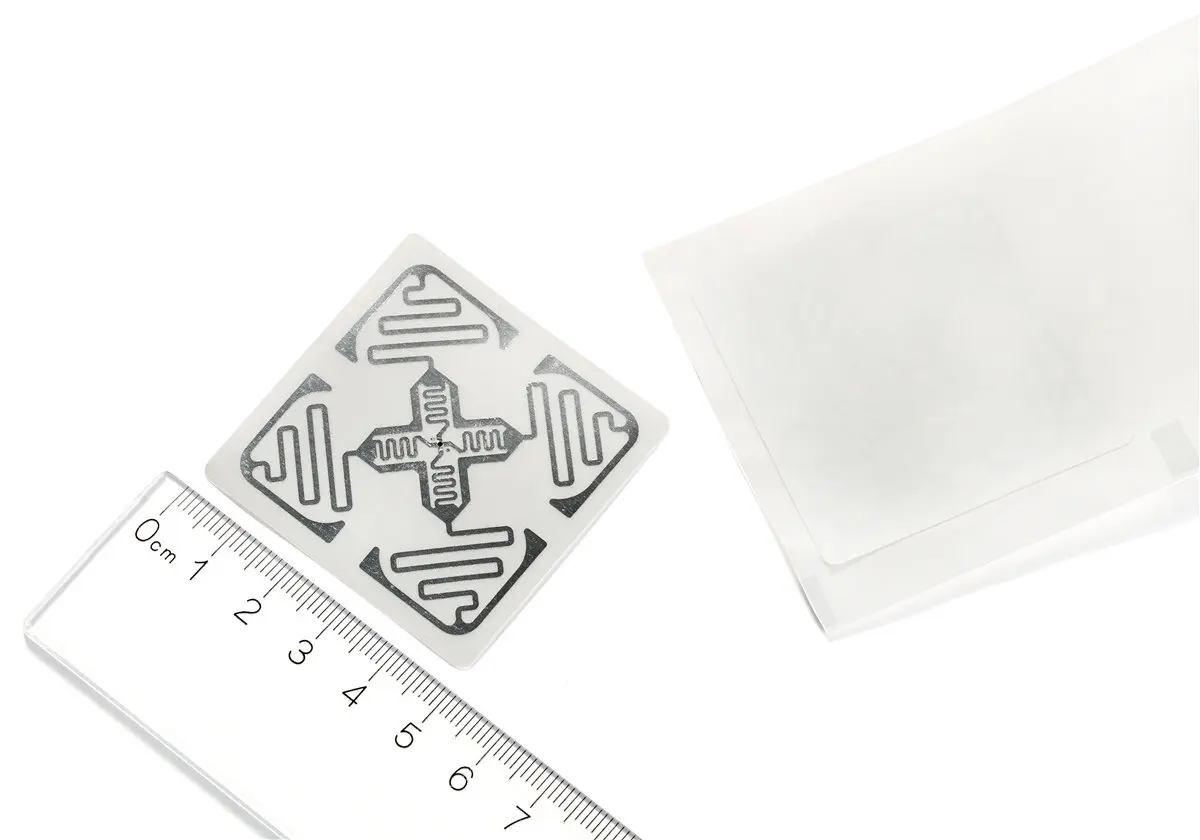

50*50mm, 100*50mm
0-8m reading, Impinj MR6 / NXP ucode 8 chip optional

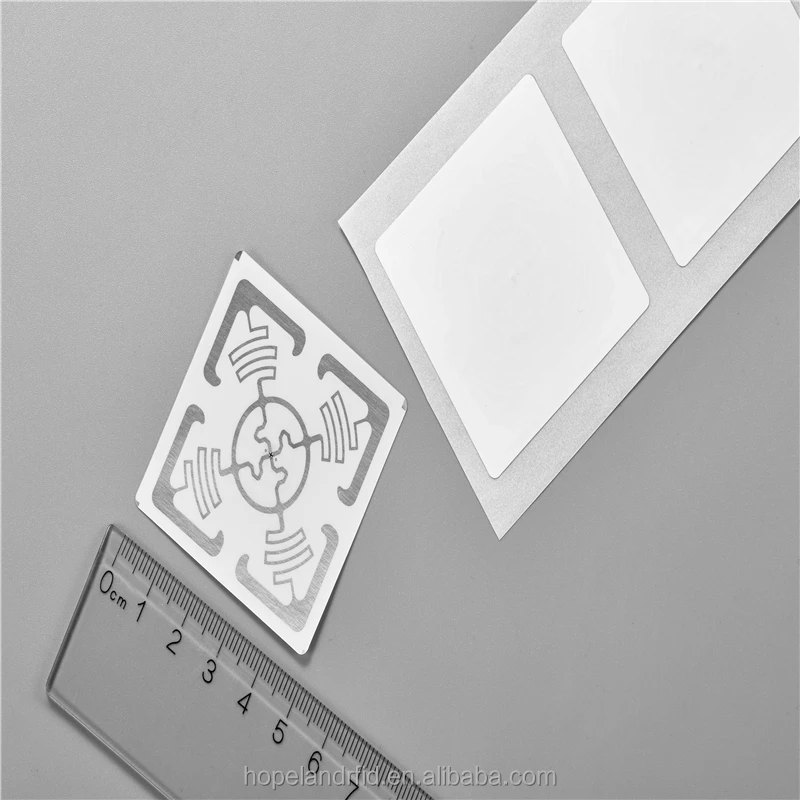

H41 50*40mm, different size optional
0-15m reading, Impinj MR6 / NXP ucode 8 chip optional
65*25mm
0-12m reading, Impinj MR6 / NXP ucode 8 chip optional
73*24mm
0-12m reading, Impinj MR6 / NXP ucode 8 chip optional
73*21mm
0-12m reading, Impinj MR6 / NXP ucode 8 chip optional

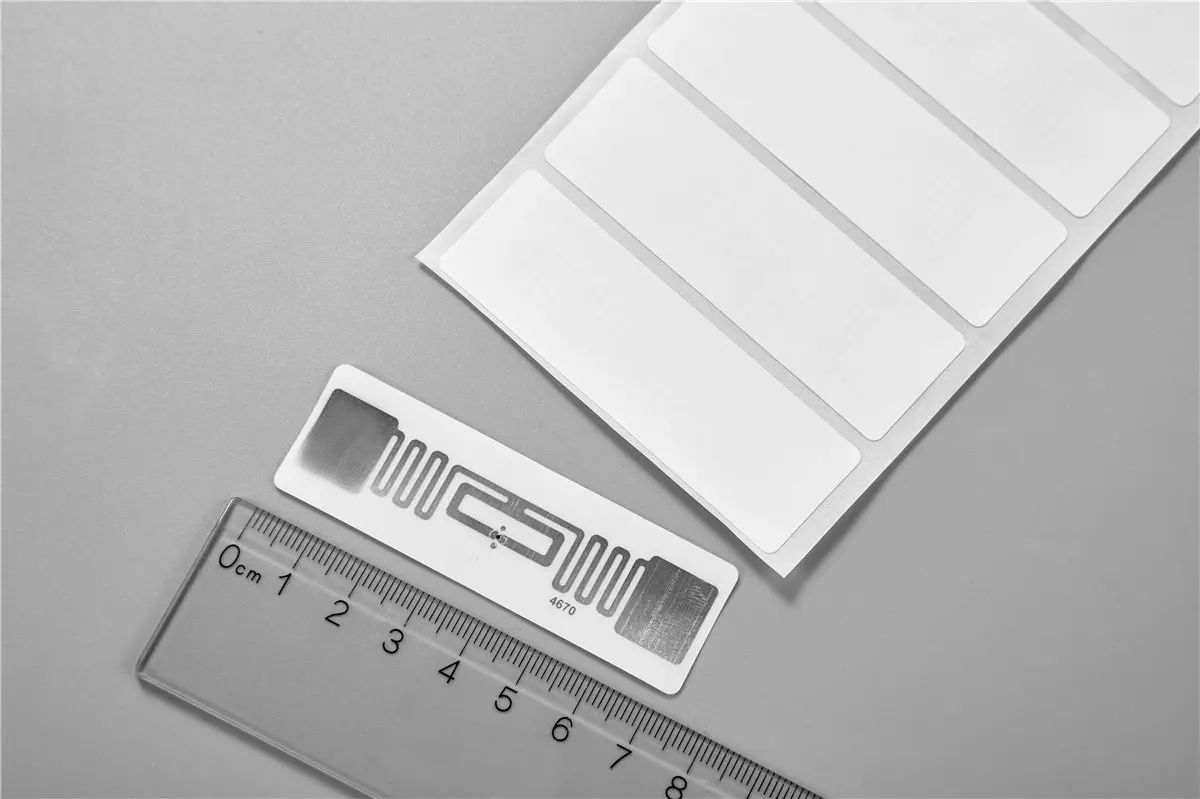

100*12mm
0-10m reading, Impinj MR6 / NXP ucode 8 chip optional
66*15mm
0-8m reading, Impinj MR6 / NXP ucode 8 chip optional
50*25mm
0-6m reading, Impinj MR6 / NXP ucode 8 chip optional
95*15mm
0-12m reading, Impinj MR6 / NXP ucode 8 chip optional
Specifications | ||
Item No. | CL7203L2/L3 support different brands of RFID printer | |
Protocol | EPC global C1 Gen2 / ISO 18000-6C | |
Frequency | 902-928MHz, 865-868MHz Optional | |
Working Mode | Read/Write/ Encryption | |
Modulation Mode | FHSS | |
Chip | IMPINJ M4QT or MR6-P or Ucode 8 optional | |
Housing Material | coated paper or PET | |
Read Range | Fixed reader Sharp HF340 0-20m, Handheld HY820: 0-10m | |
On | On non-metal solid surface, wood, plastic, wall supportable | |
Size | Different size optional : 50*100/50/25mm, 73*21/24mm, depends on antenna design customized optional | |
Weight | 1-3g | |
User Memory | EPC 96bit; User memory 128bit | |
Data Protection | Password modify, lock, kill | |
Data-hold | >10 years, Wipe more than 100000 times | |
Ambient Temperature | -20°C ~ 70°C | |
Storage | -40°C ~ 80°C | |
Attachment | with self adhesive or by screw or by rivet | |
Mounting method | Self-adhesive on metal | |
Packages
200pcs small box, depending on final order quantity
Nice and Safe box within foam
Good carton material
Pallet packaging plus film
Application& Cases
Real case: tool management
Real case: Car tracking
Real case: Warehousing shelf
