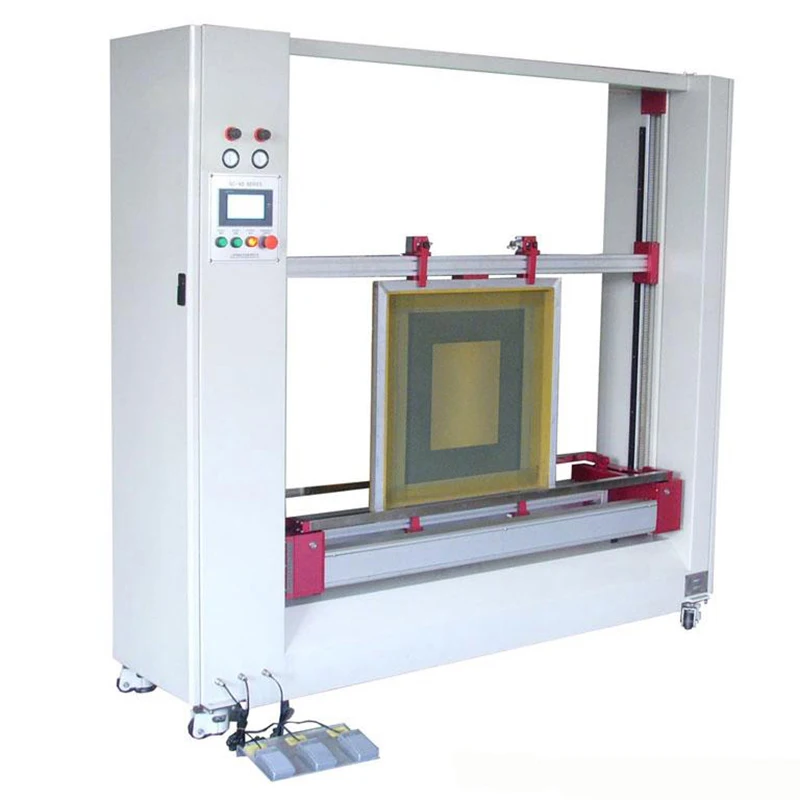

Automatic Screen Coating Machine
Automatic Screen Coating Machine

Automatic Screen Coating Machine

Share on (62566140686):


Price:

Quantity:


Product Overview

Description



Product Description




Product Paramenters


1. using imported motor, smooth operation, no vibration, uniform film thickness.

2. PLC set single double-sided coated manually or automatically. Can adjust the speed of the sizing applicator.

3. according to the special pressure device can also be the delicate has certain thickness of the coating.

4. screen fixed device can up and down conciliation, screen version of the coating is suitable for different specifications



Model
COATMAC
100AM
160AM
Max Frame Size
1000x1100mm
1600x2400mm
Min Frame Size
600x600mm
Coating Speed
50-150mm/sec
Power
Single phase, 220V, 50/60Hz, 30-50A
Dimension
1920x590x1900mm
2250x980x3300mm


Customer Photos






Packing & Delivery


3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
