Электрический регулирующий клапан с прямым приводом

Nominal Diameter DN(mm)

65

80

100

125

150

200

Rated flow coefficient Kv

63

100

160

250

400

600

Maximum stroke(mm)

39

60

Running time (sec.)

110-180

270

S6063-2..single seat and S6063-3..electric control valve connect with different actuator ΔP(MPa)

S6062-18

0.30

0.13

—

—

—

—

S6062-30

0.70

0.41

0.25

—

—

—

S6063-2..balance valve and S6063-3..electric control valve connect different actuator

ΔP(MPa)

S6062-18

0.72

—

—

—

—

S6062-30

—

—

0.82

—

Type

Valve material

Spool,seat material

pressure(Mpa)

leakage

Flow characters

Medium

Medium temperature

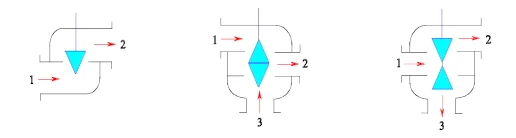

2/3-way valve

Balance valve

Ductile iron, cast steel,

Cast Iron,stainless steel

Stainless steel

1.6

<0.02%

Equal percentage or equillnearity

Water,steam

Normal:

2~120℃

Heat dissipation:

2-200℃
