Multi fuction air suction precision corn /maize bean planter 4/6/8/10/12 rows seed planter

Product Overview

Description

Description of air suction planter

Working method

When the air suction seeder is working, the high-speed fan generates negative pressure and transmits it to the vacuum chamber of the seeding monomer. When the seeding disc rotates, the seeds are absorbed under the negative pressure of the vacuum chamber and rotate together with the seeding disc. After the seeds are transferred out of the vacuum chamber, they no longer bear negative pressure and fall into the trench by their own weight or under the action of the seed scraper.



Advantage

1: This air suction seeds planter can plant seeds with different shape and size   ( corn/maize seeds , soybean seeds , bean seeds , cotton seeds ,sorghum seeds, onion seeds , sugar beet seeds and so on )

2:  High speed planting (4-8 km/h ) that can increase work efficiency , suitable for large farm use .

3:  Automatically monitor the seeding process and send a signal when there have malfunction .

4: All the seeds in same planting depth ,  average seeds quantity in every hole to realize precise seeding  ,  saving seeds and cost .

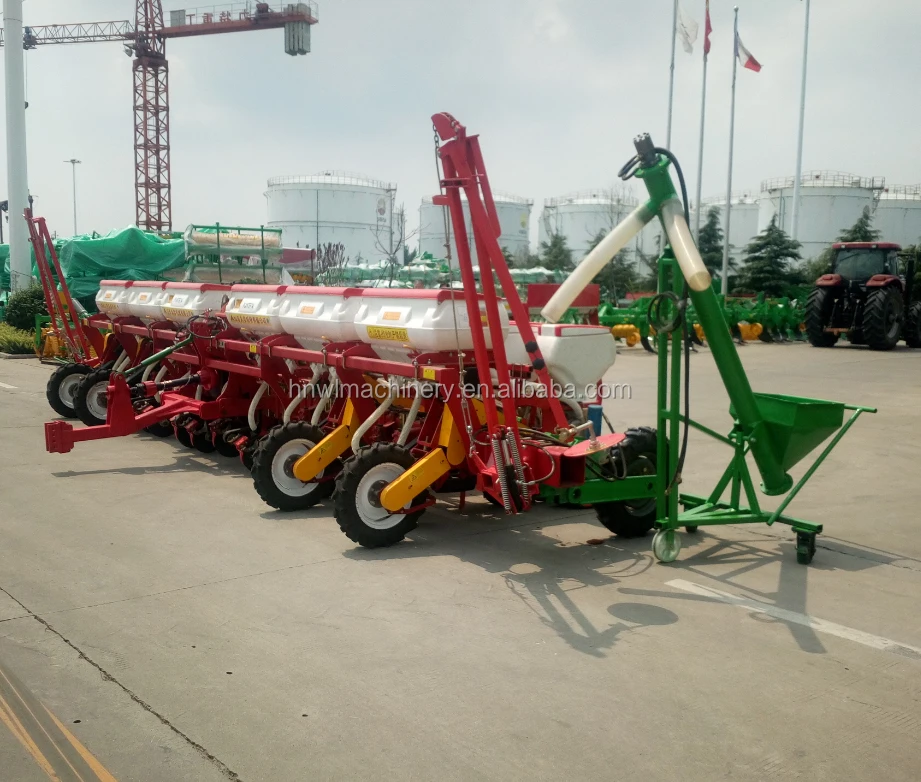

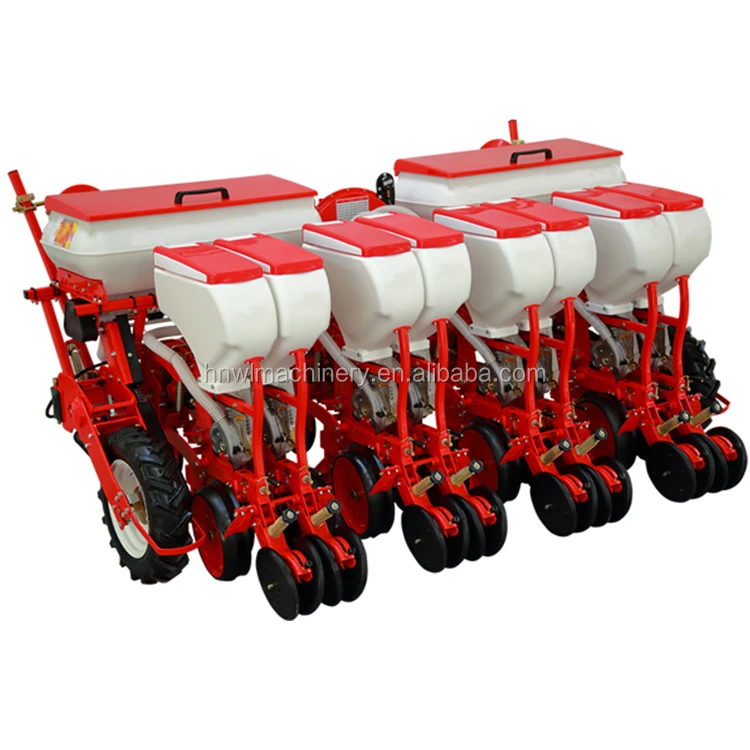

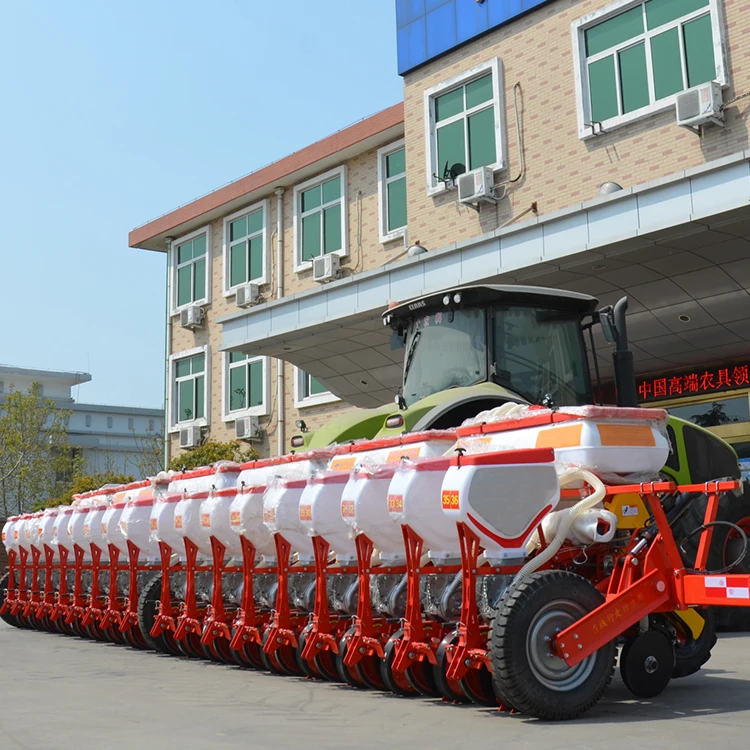

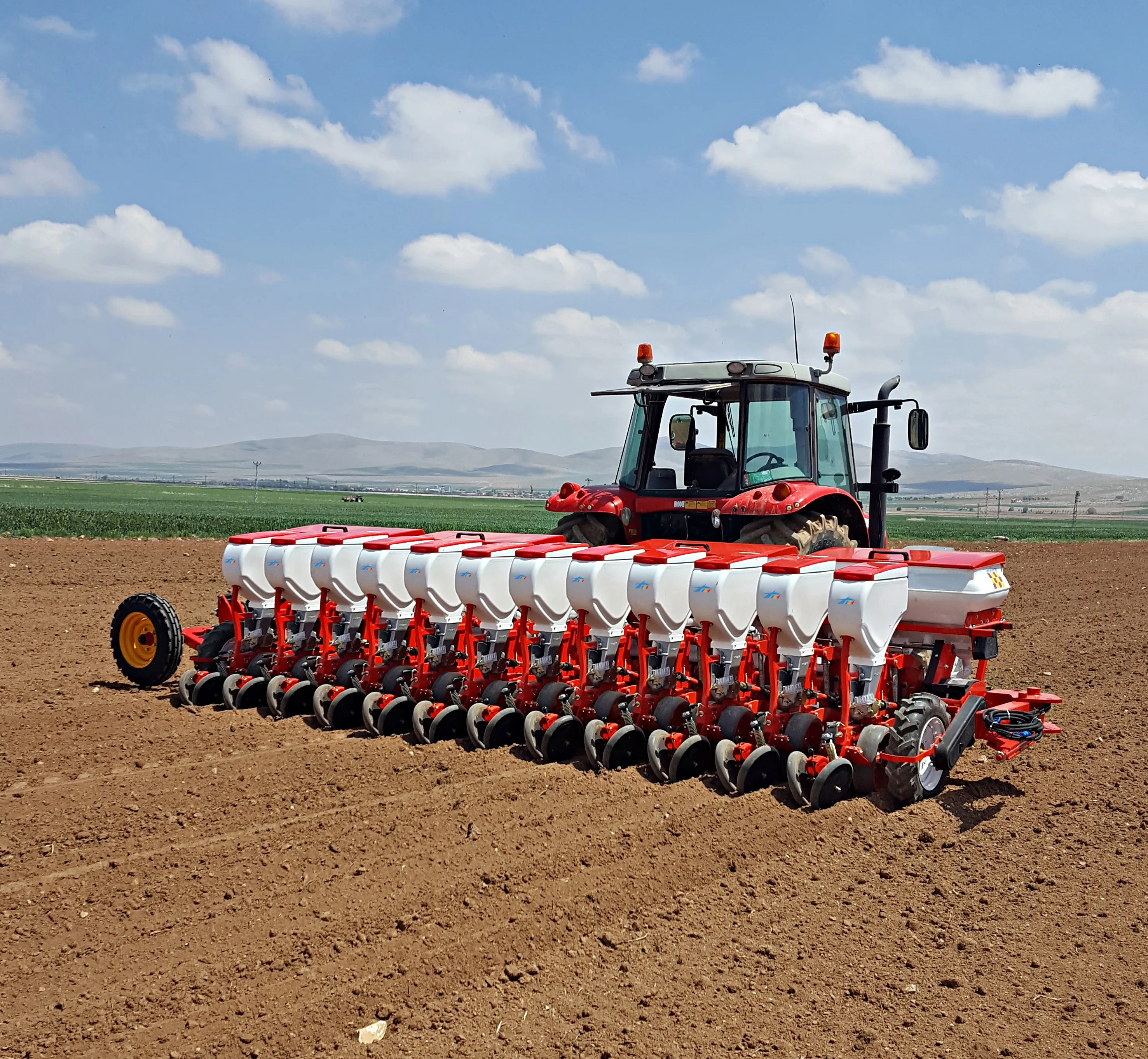

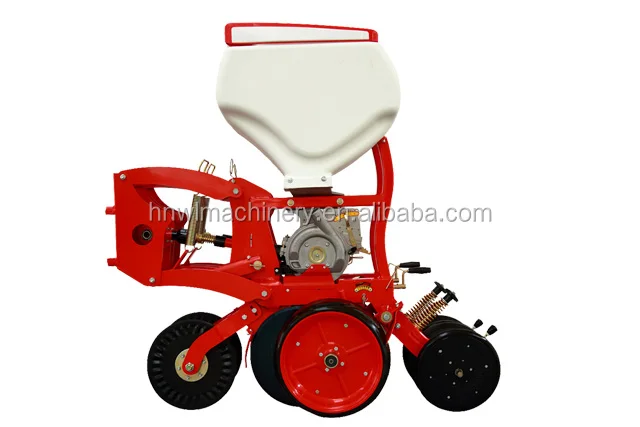

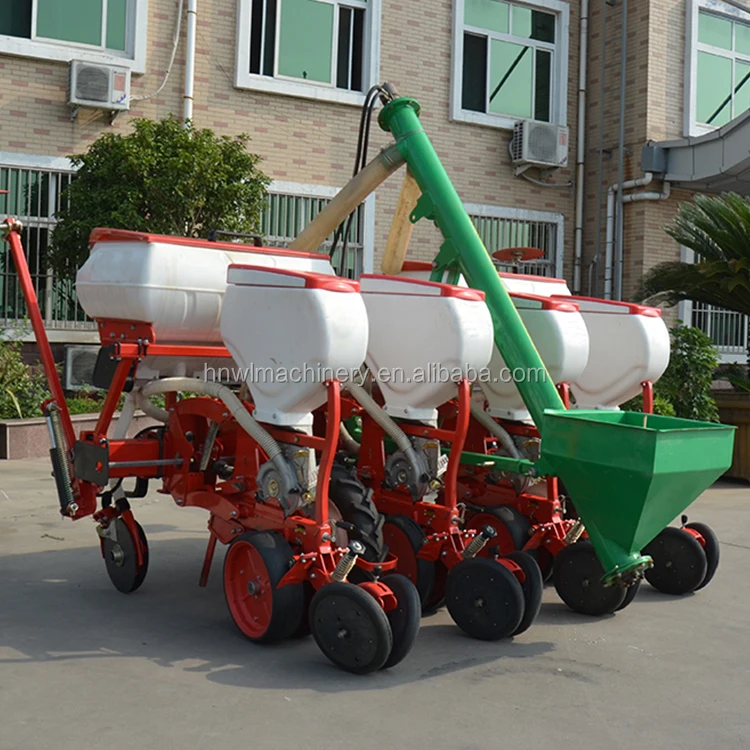

Pictures of  planter

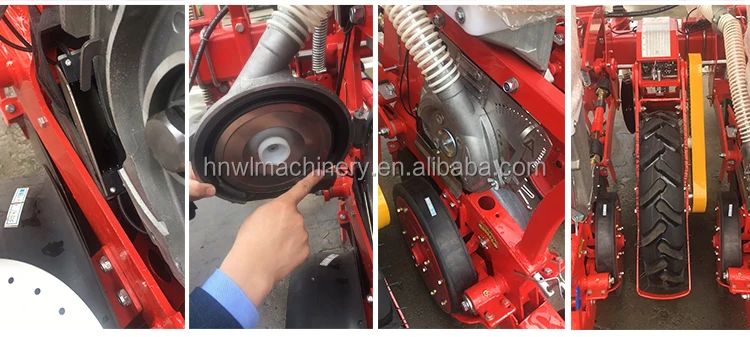

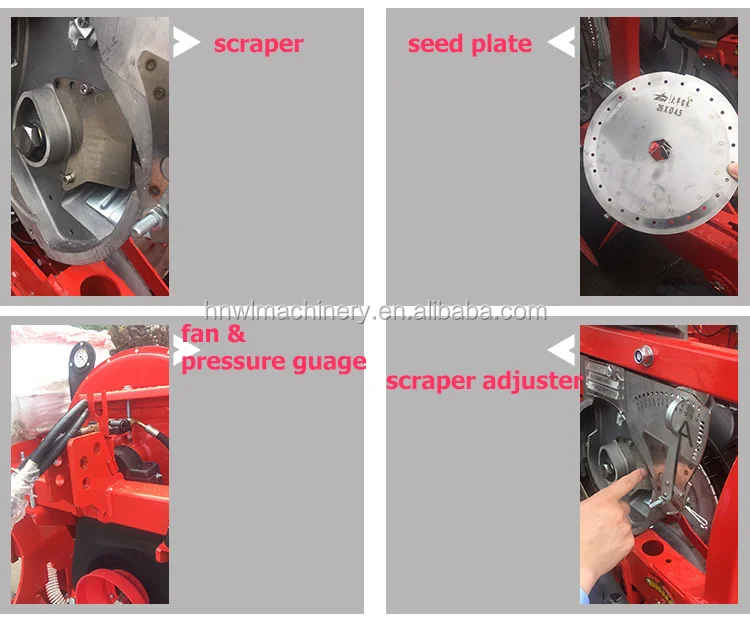

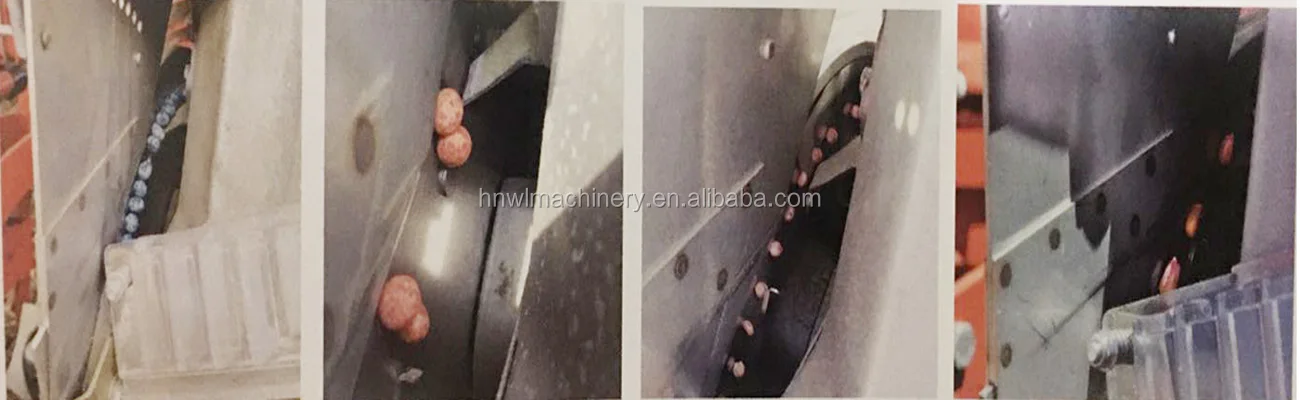

Inside structure  show



Parameter of air suction seeder /planter

Model	2BMYFQ-4D	2BMYFQ-6D/6DH	2BMYFQ-8D	2BMYFQ-12D	2BMYFQ-18D
Outline dimension(mm)	2000X3000X1800	2000X5900X1800	2000X7700X1800	2700X9000X1800	2700X9000X1800
Weight (kg)	1000	1425/1845	2600	3650	4510
Matched tractor  power(hp)	60-80	100-120	130-150	140-180	140-180
Working width (cm)	140-320	210-480	280-640	420-960	420-960
Seeding and fertilizer row	4/4	6/6	8/8	12/12	12/12
Sowing  spacing(cm)	40-70	40-70	40-70	40-60	40-60
Sowing  depth (mm)	0-100
Fertililzer box volume (kg)	160X2	200X2	160X4	160X6	160X6
Seed box volume (L)	40X4	40X6	40X8	40X12	40X18
Hitch way with tractor	Three pointed mounted
Optimum operation speed (km/h)	4-8
Capacity  (hm2/h)	1-2	1.5-3	2-4	3.5-5.8	4.4-8

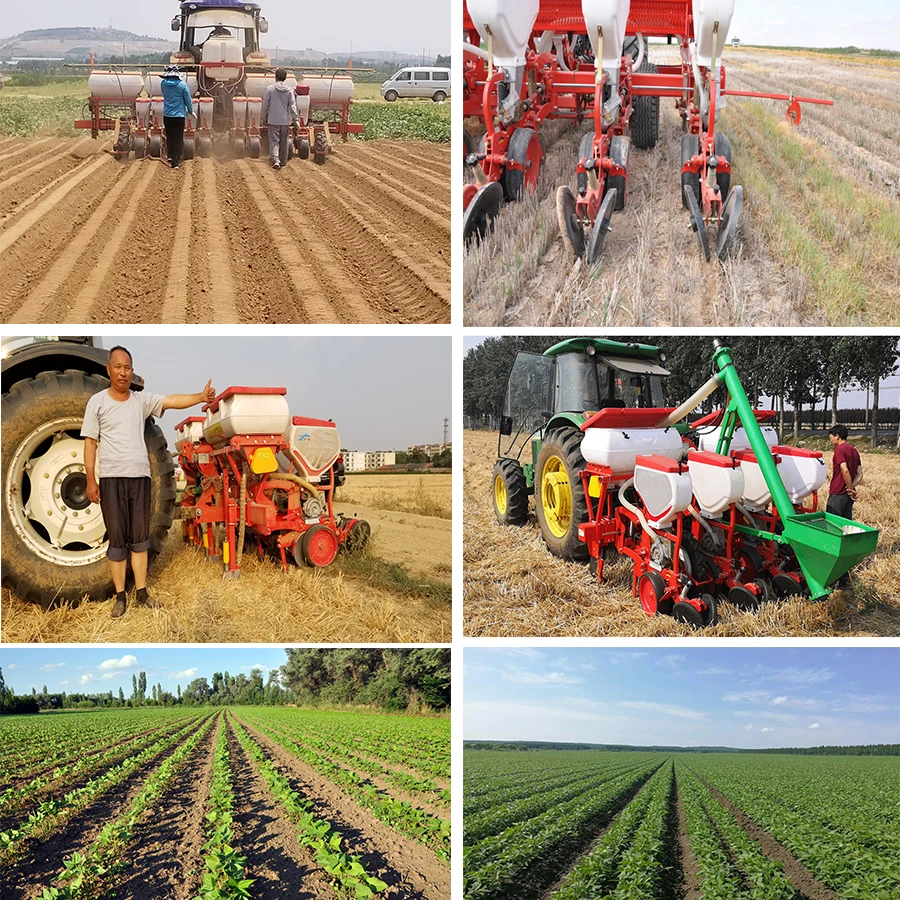

Feedback from customers
