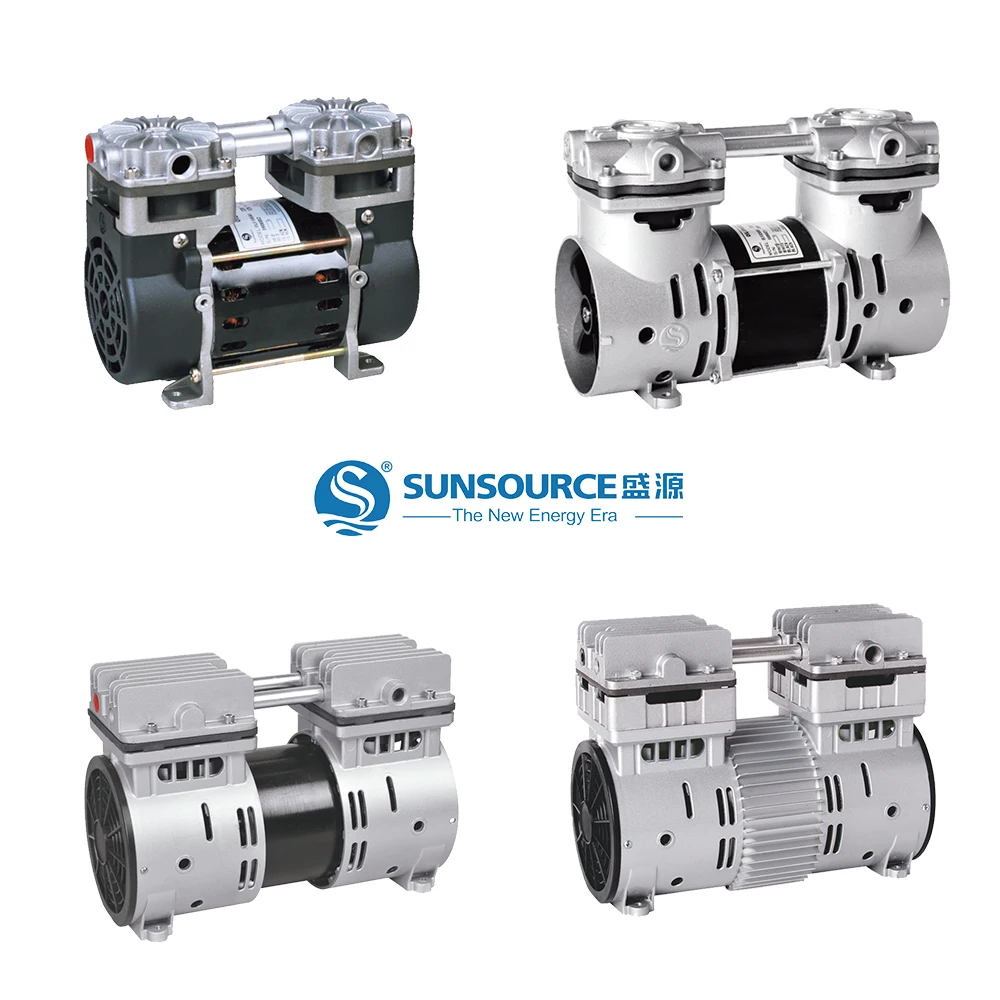

best oxygen generator price high pressure Silent oil free air compressor 560W 7 Bar 66dB spare parts compressor pump head
- Category: >>>
- Supplier: Zhejiang Shengyuan Compressor Manufacturing Co. Ltd.
Share on (62566442555):
Product Overview
Description
Product Display
Product Parameter
Model# | OLF550AF | OLF550AS | ||
Type | Oil Free Air Compressor Pump | Oil Free Air Compressor Pump | ||
Rated voltage (V/Hz) | AC-220V/50Hz | AC-220V/60Hz | ||
Rated current (A) | 2.55A | 2.55A | ||
input power(W) | 560W | 560W | ||
Rated speed (RPM) | 1380RPM | 1680RPM | ||
Noise Level dB(A) | 66dB | 66dB | ||
Use ambient temperature (℃) | MIN.-5℃ ~ MAX.40℃ | MIN.-5℃ ~ MAX.40℃ | ||
Maximum Pressure (Bar) | Rated Pressure | 7 Bar (101.5PSI) | 7 Bar (101.5PSI) | |
Peak Pressure | 8 Bar (116PSI) | 8 Bar (116PSI) | ||
Restart | 1.0Bar(14.5PSI) | 1.0Bar(14.5PSI) | ||
Compressor Pump Performance (Ltr/m @ Bar) | 0.0BAR | 102 Ltr/min | 102 Ltr/min | |
LOBAR | 70 Ltr/min | 70 Ltr/min | ||
1.5BAR | 55 Ltr/min | 55 Ltr/min | ||
2.0BAR | 46.7 Ltr/min | 46.7 Ltr/min | ||
2.5BAR | 35 Ltr/min | 35 Ltr/min | ||
Motor performance | Motor temperature rise(K) | 45 K | 45 K | |
Insulation class | B | B | ||
Insulation resistance(MΩ) | 200MΩ | 200MΩ | ||
Withstand voltage strength(V/s) | 1500V/S, <3mA | 1500V/S. < 3mA | ||
Wire material | Copper | Copper | ||
Stator Size | 160 sheets | 160 sheets | ||
Standard Equipment | Thermal Protector | Yes | Yes | |
Inlet & Exhaust Specifications | G1/4 | G1/4 | ||
capacitance (μF) | 15μF | 15μF | ||
Size & Weight | Net Weight (Kg) | 9Kg | 9Kg | |
Machine Size (mm) | 271x128x178.5mm | 271x128x178.5mm | ||
Packaging | HONEYCOMB CARTON | HONEYCOMB CARTON | ||
Gross Weight(Kg) | 10KG | 10KG | ||
Packaging Dimensions( mm) | 310x300x215mm | 310x300x215mm | ||
