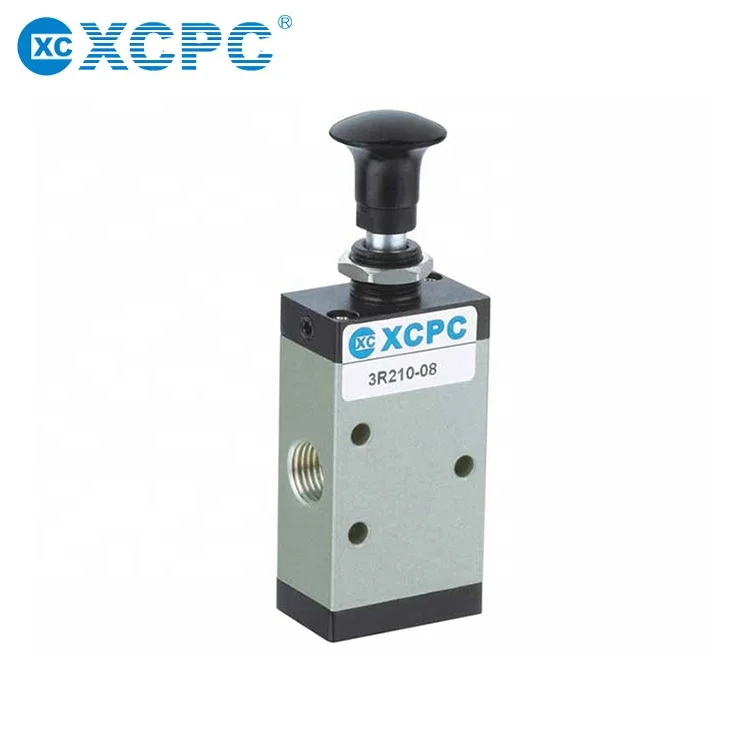

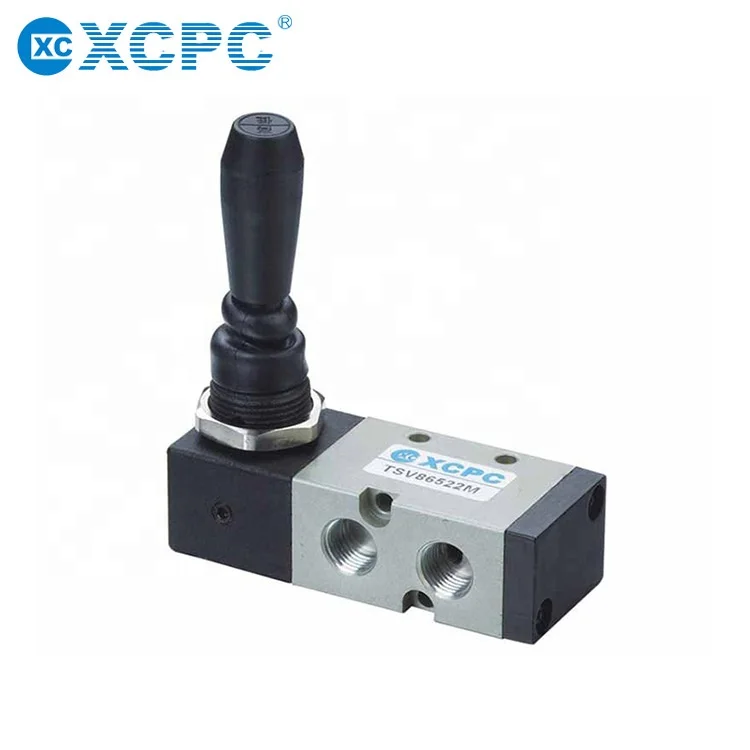

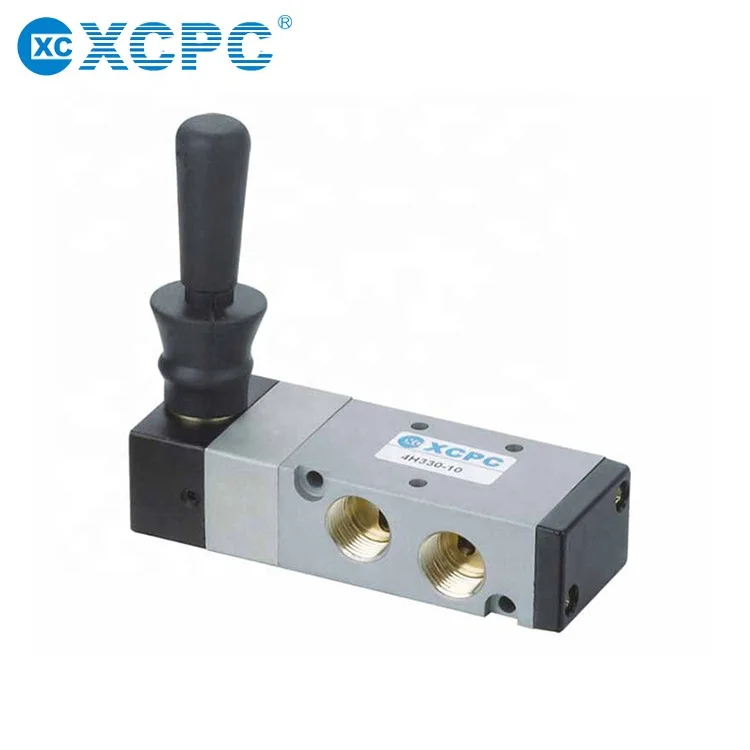

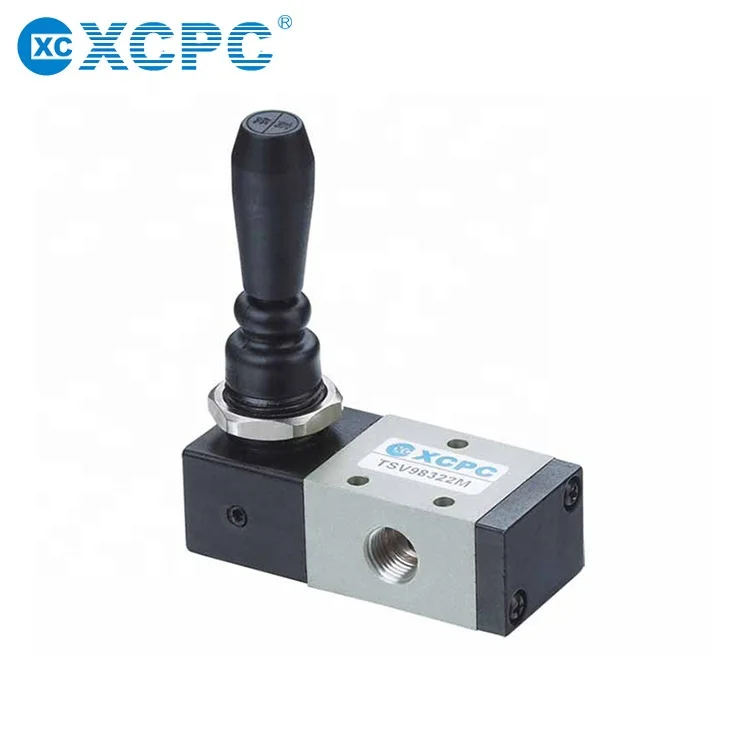

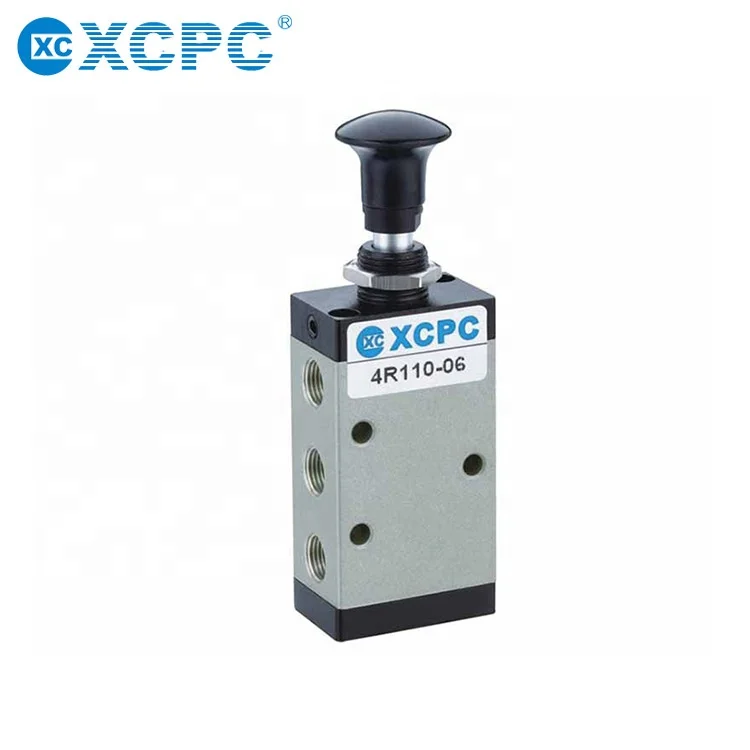

4H series Hand Pull Valve

Product Overview

Description

4H series Hand pull Valve Hand Lever Valve



Features:



  1.Controlled by human or machine,to switch the direction of air flow.



  2.The pull-push structure,quick revrsing action.



  3.Rigid or soft seals for surface.



  4.The rotary spool for easy operation.

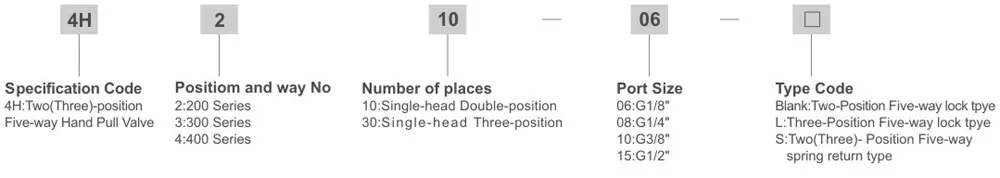

Model	4H210-06	4H210-08	4H230-08	4H310-08	4H310-10	4H330-10	4H410-15	4H430-15
Working Medium	40 Micron Filtered Air
Motion Pattern	Direct Drive Type
Effective Sectional Area	14mm2(CV=0.78)	16mm2(CV=0.89)	12mm2(CV=0.67)	25mm2(CV=1.4)	30mm2(CV=1.68)	30mm2(CV=1.68)	50mm2(CV=2.79)	50mm2(CV=2.79)
Port Size	Air Inlet=Air	Air Inlet=Air Outlet=		Air Inlet=Air	Air Inlet=Air Outlet=		Air Inlet=Air Outlet=
	Outlet=	Exhaust=G1/4"		Outlet=	G3/8” Exhaust=G1/4"		Exhaust=G1/2"
	Exhaust=G1/8"			Exhaust=G1/4"
Working-pressure Range	0~1.0MPa
Operating Temperature Range	0~60℃





Application:



Company Information:



Our Service:





Customized Solutions:

Customized pneumatic components

XCPC pneumatic is the ideal solution for custom pneumatic components because of its ability to be 100% customizable to your business' processes and operations. XCPC pneumatic specialize in design, custom and manufacture pneumatic components, including all pneumatic products.

If you have any specific needs for your new project, feel free to contact us. We are always here to support you !





FAQ





Our company also can provide other pneumatic valves as follows,



  1.Control valve



  2.Two position two way solenoid valve(aluminum,brass,stainless steel,plastic)



  3.Mechanical valve:Manual valve,foot valve,



  4.Pusle valve



  5.Angel valve



  6.Other valves:Check valve,ball valve,exhaust valve



More information and detailes,you can contact us and visit our online website.



If you have the nonstandard products to design,don't hesitate to contact us.



XCPC products are your good choice in Pneumatic!
